Exotronic Solar Connector Pair

Exotronic Solar Connector Pair: Professional-Grade Connectivity for Solar Arrays

Engineered for Reliable, Low-Resistance Solar Connections

The Exotronic Solar Connector Pair delivers secure, efficient power transmission for solar panel installations ranging from compact RV systems to large-scale off-grid arrays. Designed to mate with standard MC4 connectors, these connectors ensure a stable, low-loss link between your panels and balance of system components. With a contact resistance of just 0.5 mΩ, they minimise energy waste and heat buildup, supporting optimal system performance.

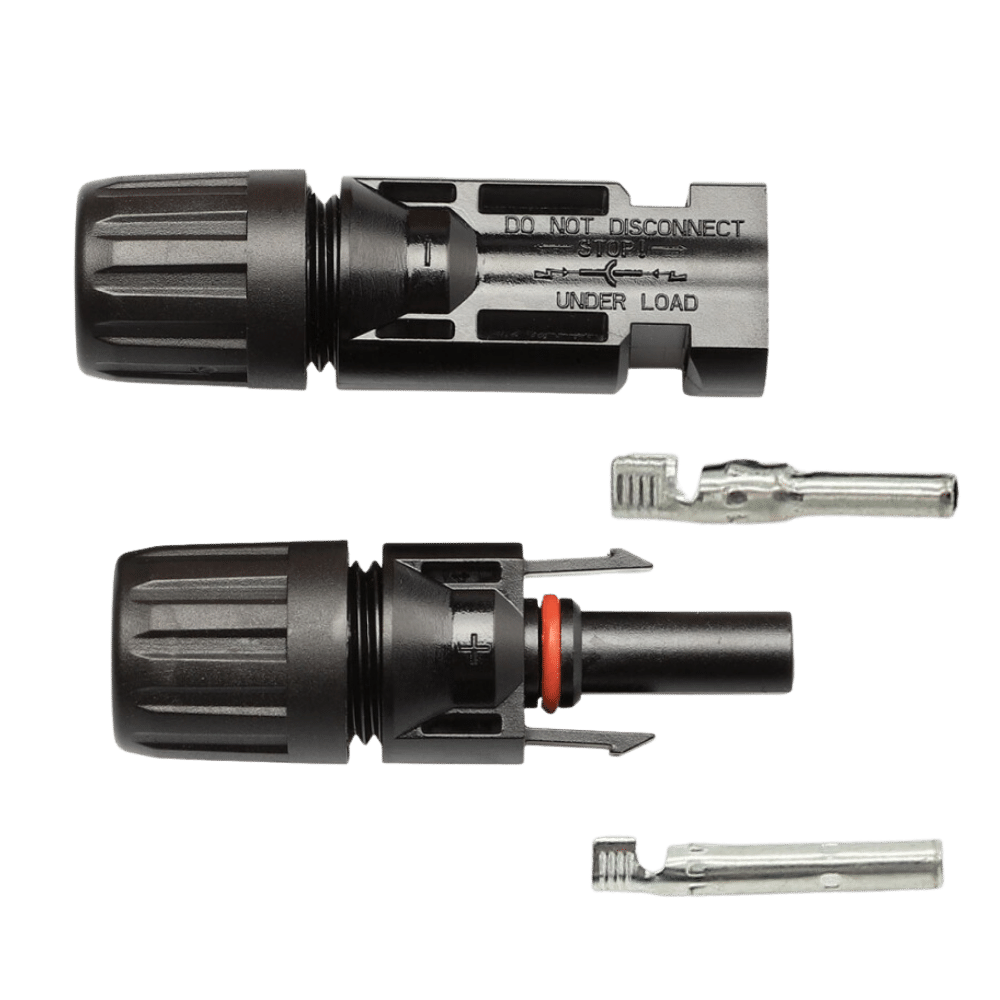

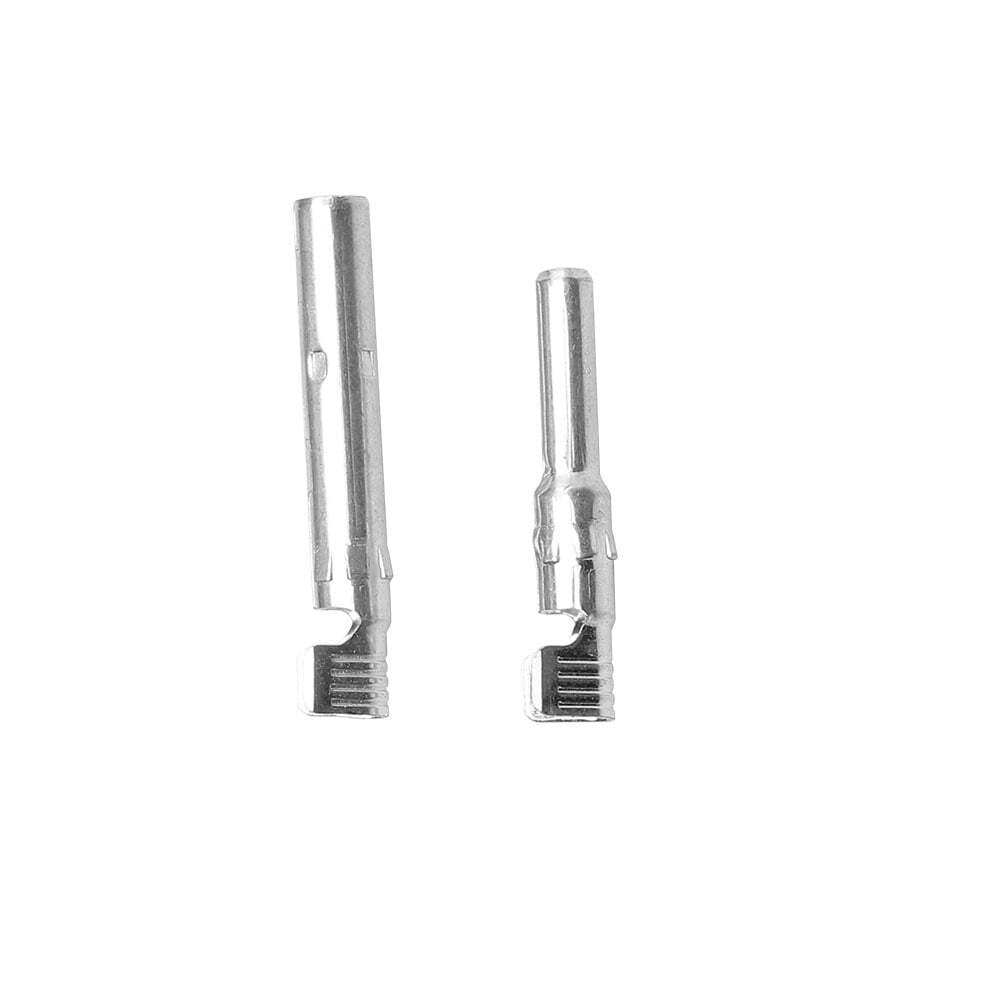

Each pair includes a male and female connector with precision-crimped tinned copper contacts that resist oxidation and maintain conductivity over time. The snap-in locking system provides a secure mechanical connection, preventing accidental disconnection due to vibration or cable strain—critical for mobile and rooftop installations.

IP67 Weatherproofing for Harsh Australian Conditions

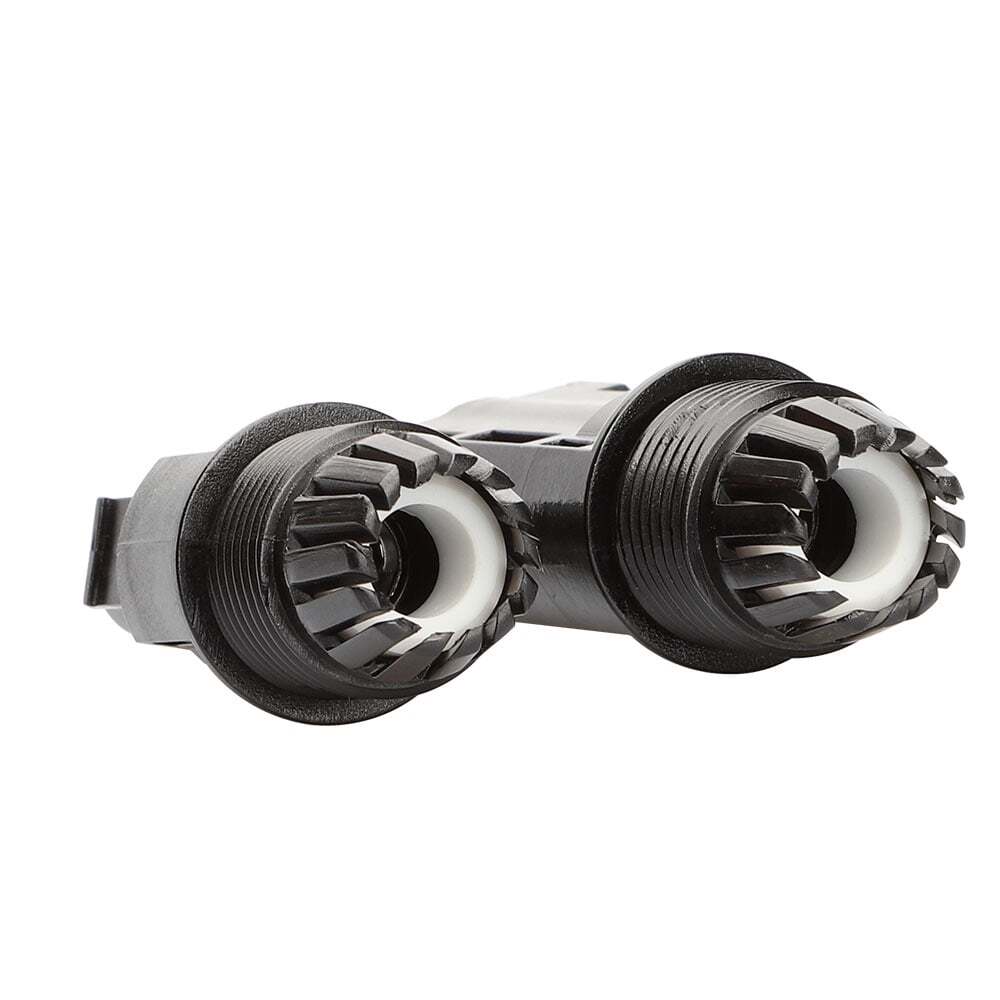

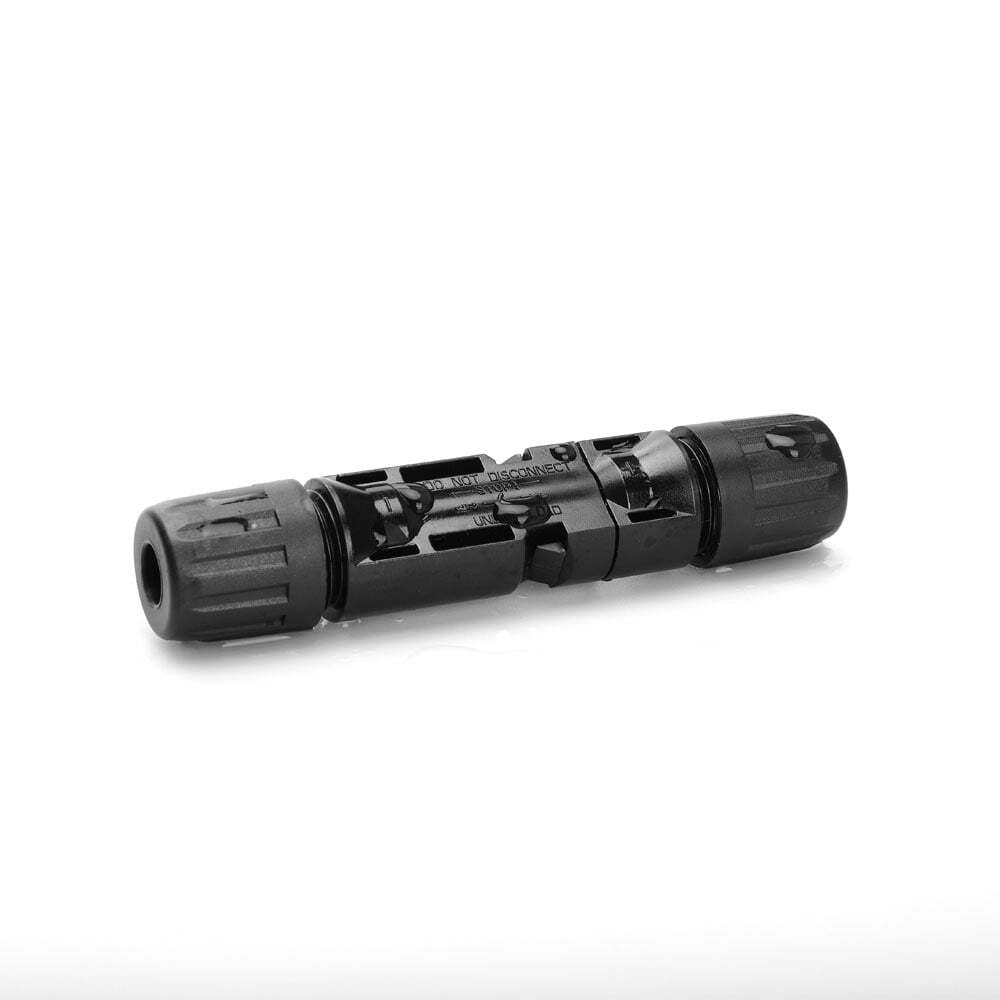

When mated, these connectors achieve an IP67 waterproof and dustproof rating, protecting the electrical interface from rain, dust, and temporary immersion. This level of sealing is essential for marine solar panels, coastal installations, and any environment exposed to salt mist or heavy precipitation. The compression gland design creates a tight seal around PV1-F or IEC6930 solar cable, preventing moisture ingress that can lead to corrosion or ground faults.

Unmated connectors maintain an IP2X rating, offering basic protection during handling and storage. The PC/PPO insulation material is UV-stabilised and flame-retardant to UL94-V0, reducing fire risk in the event of an electrical fault. Operating reliably from –40°C to +90°C, these connectors withstand extreme temperature swings without embrittlement or softening.

Key Features

• IP67 mated sealing – waterproof and dustproof for outdoor reliability
• 0.5 mΩ contact resistance – minimises power loss and heat generation
• 1000 V DC rated voltage – suitable for high-voltage series strings
• Snap-in locking system – prevents accidental disconnection
• Tinned copper contacts – excellent conductivity and corrosion resistance
• UL94-V0 flame class – self-extinguishing insulation for enhanced safety
• Wide temperature range – performs from –40°C to +90°C
• Compatible with MC4 – mates with industry-standard solar connectors

Flexible Current Ratings for Diverse Cable Sizes

The Exotronic Solar Connector Pair supports multiple wire gauges to match your system design: 17 A with 1.5 mm² cable, 22 A with 2.5 mm² (14 AWG), and 30 A with 4 mm² or 6 mm² (12–10 AWG). This flexibility allows you to optimise conductor size for voltage drop and cost without changing connector types. Always follow local wiring regulations and consider derating factors for bundled or high-temperature installations.

Safety and Compliance for Professional Installations

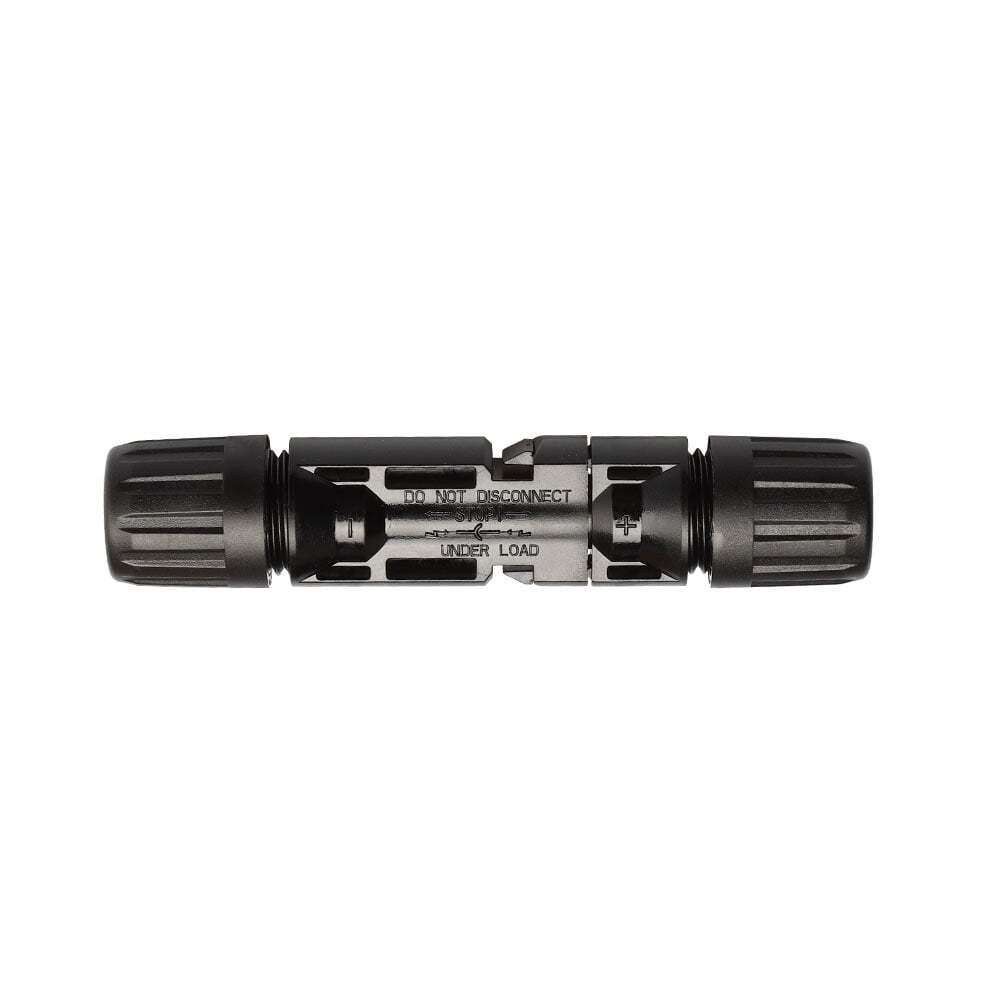

Safety Class II construction provides double insulation, eliminating the need for an earth connection. Each connector is tested to withstand 6 kV (50 Hz, 1 min) dielectric strength, ensuring isolation integrity. The clear 'Do Not Disconnect Under Load' warning on the housing reminds installers and users to isolate the circuit before separation, preventing arc damage. These connectors also meet IEC 60068-2-52 severity 5 for salt mist resistance, confirming their suitability for coastal and marine environments.

Why Choose Exotronic Solar Connectors?

In a market flooded with unbranded alternatives, Exotronic connectors offer verified performance and traceable quality. Inferior connectors often suffer from high contact resistance, poor UV stability, and inadequate sealing—leading to hot spots, energy losses, and premature failure. By choosing a connector with documented IP67 protection, low resistance, and flame-retardant materials, you reduce the risk of system downtime and fire hazards. These connectors are an investment in long-term reliability for your solar power system.

Ready to Secure Your Solar Array?

Add the Exotronic Solar Connector Pair to your order today and ensure your panels are linked with components built for Australian conditions. Whether you're expanding an existing array or starting a new off-grid project, these connectors provide the dependable, low-maintenance connection your system deserves.
