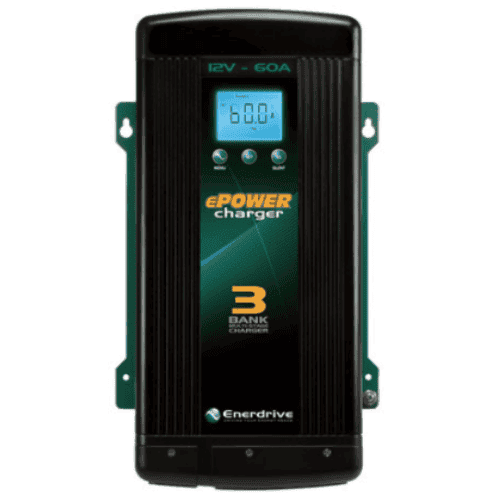

Enerdrive 12V 60A Multi-Bank ePower Battery Charger

Advanced Power Management with the Enerdrive 12V 60A Multi-Bank ePower Battery Charger

The Enerdrive 12V 60A Multi-Bank ePower Battery Charger represents a highly efficient and versatile solution for maintaining 12V battery systems in caravans, motorhomes, and marine environments. Designed as a sophisticated AC power supply, this unit provides precise energy delivery to ensure your off-grid electrical setup remains healthy and ready for deployment. With intelligent technology built into every unit, the Enerdrive ePower charger dynamically adapts to your system loads, helping to prevent undercharging or over-stressing your critical power reserves.

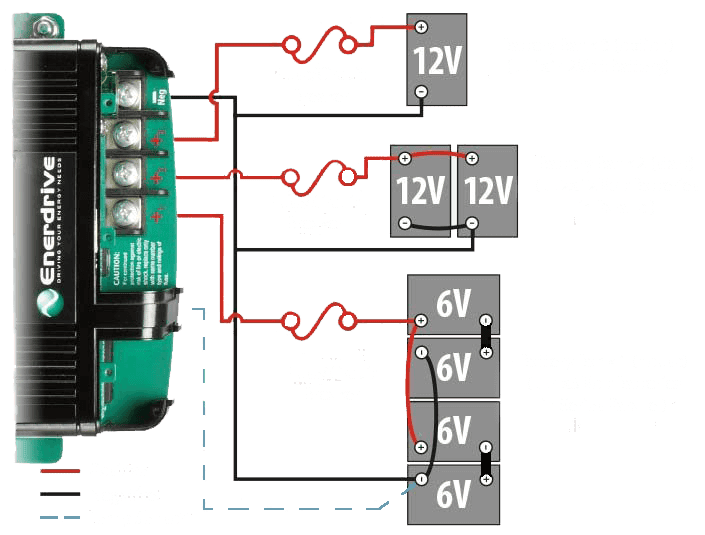

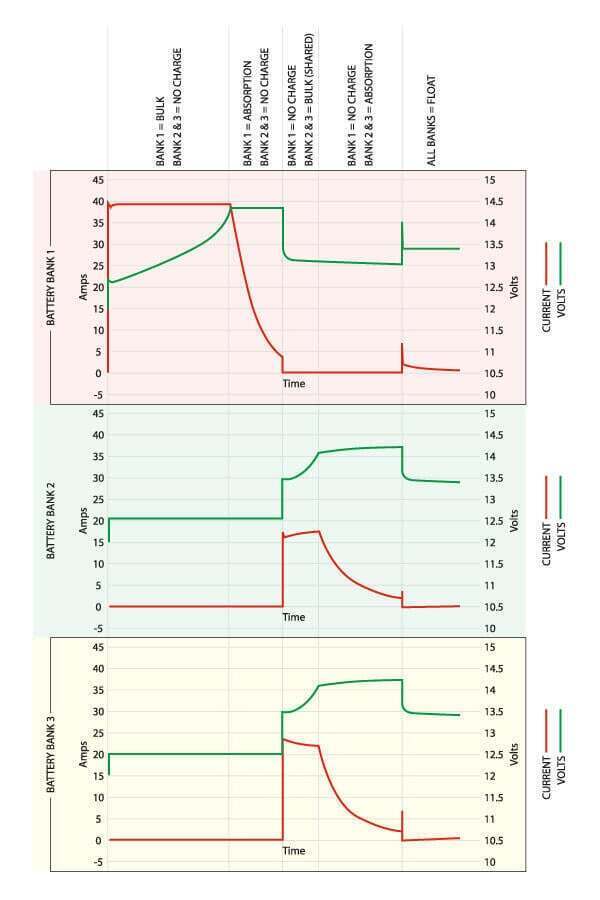

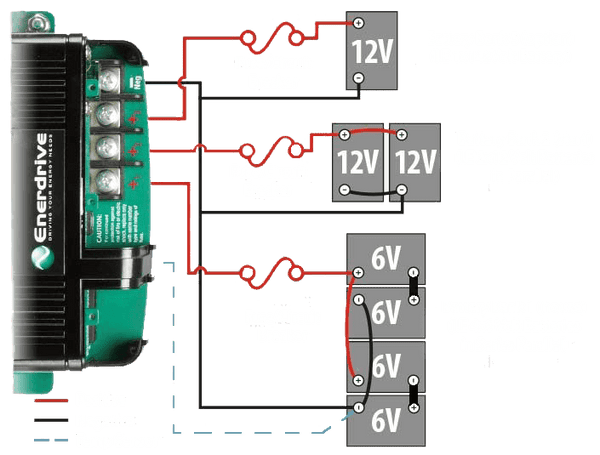

Important charging profile note: Battery bank 1 can be programmed independently and is intended as the priority or main battery bank, while battery banks 2 and 3 share the same charging algorithm rather than being configured separately. This means the charger can support a mixed setup such as bank 1 on lithium and banks 2 and 3 on AGM, however banks 2 and 3 must use the same battery profile. Once charging is complete, all three banks then move to a shared float stage determined by the bank 1 setting, so mixed-chemistry installations should always be matched against the battery manufacturers’ recommended charging requirements.

Precision Multi-Stage Algorithms and Lithium Support

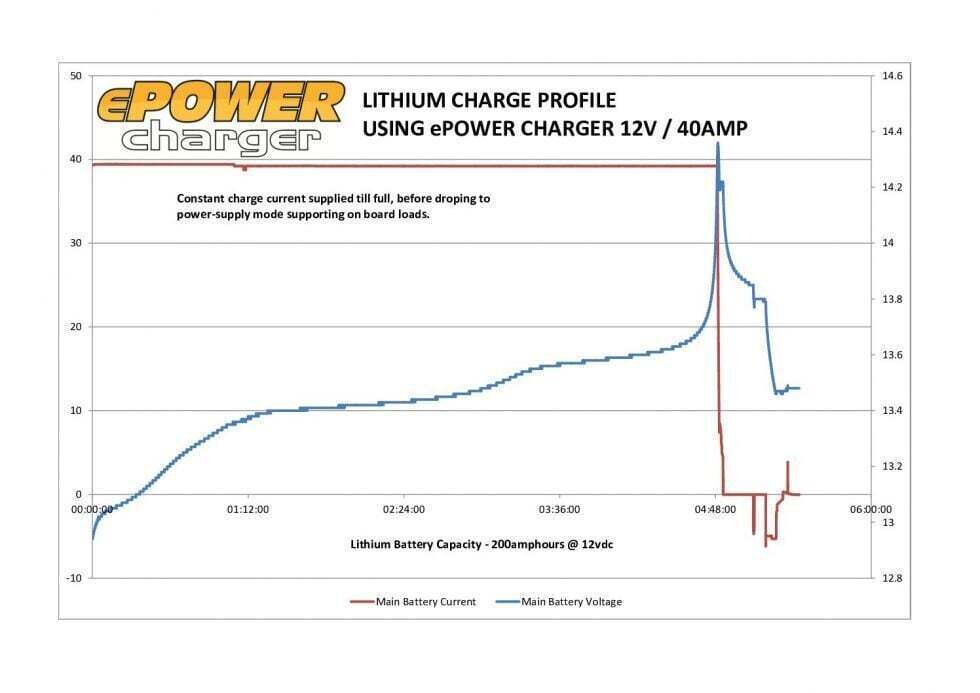

Generic, single-stage chargers often supply an unregulated voltage that can damage flooded batteries or limit the cycle life of advanced lithium cells. By deploying an Enerdrive 3 bank multi stage charger, you effectively mitigate these risks. The microprocessor actively applies a four-stage charging profile - transitioning smoothly through Bulk, Absorption, Float, and Maintenance phases. Furthermore, the unit features selectable profiles for AGM, Gel, and Flooded batteries, alongside a dedicated constant current/constant voltage profile that makes it a highly capable lithium battery charger.

Silent Mode and System Monitoring

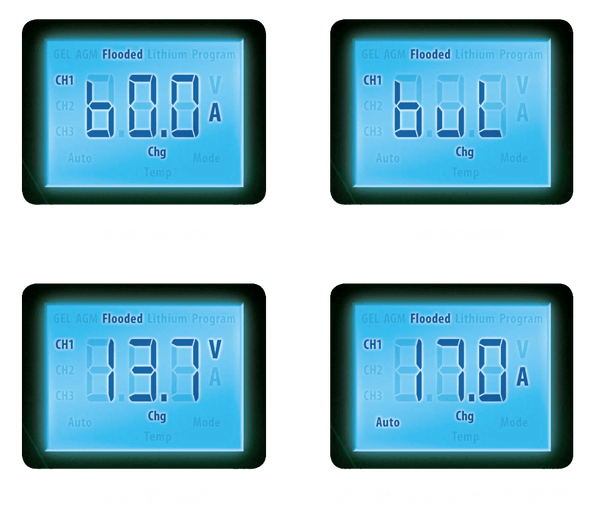

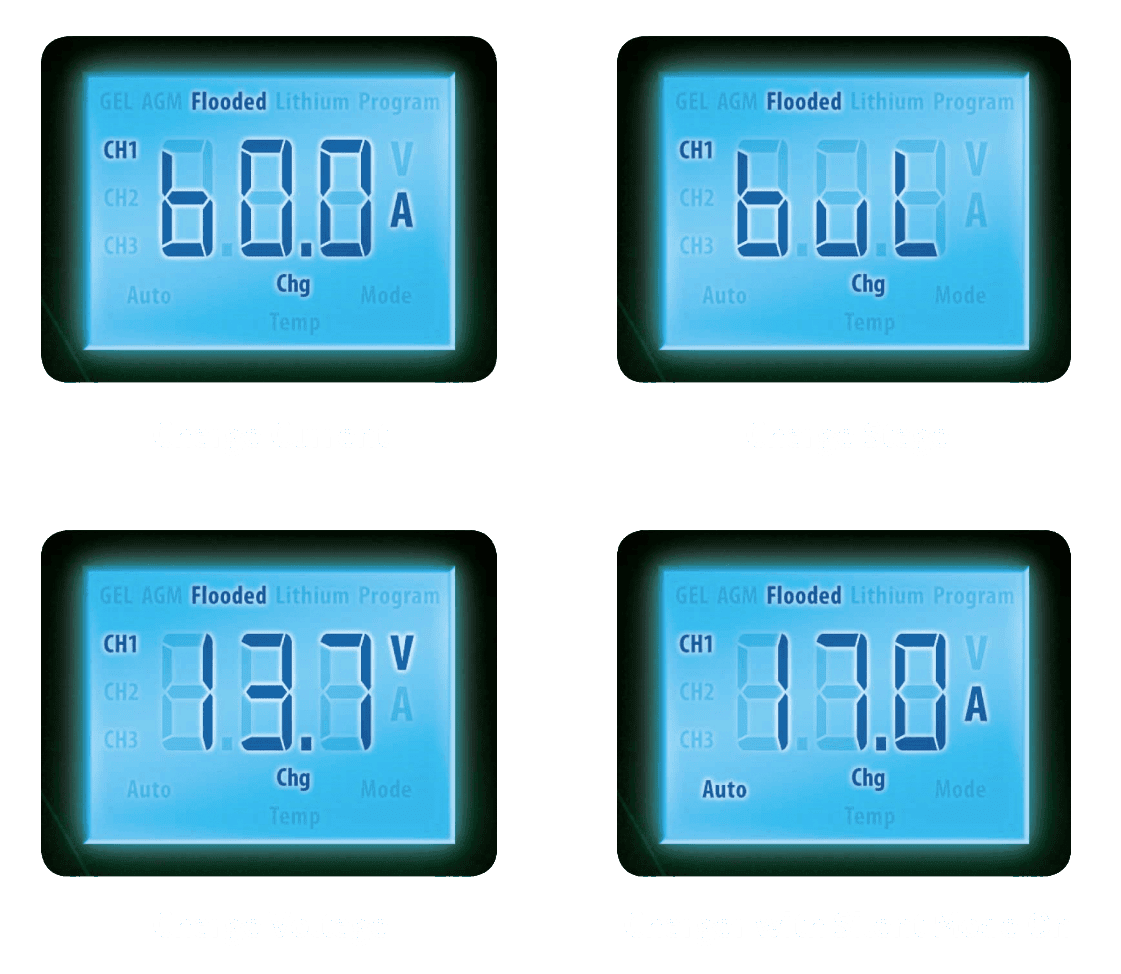

For applications where the charger is installed near sleeping quarters, acoustic footprint is a major consideration. The built-in Silent Mode setting reduces the charge output and disables the internal thermo-controlled cooling fan, allowing for quiet operation overnight without compromising system safety. During standard operation, the backlit LCD display provides an accurate, real-time readout of charging status, battery voltage, output current, and system fault codes, giving you total visibility over your electrical architecture.

Reliable Performance and Built-In Protections

Operating effectively across a wide AC input range of 90 to 265 VAC, this charger is well suited to unpredictable generator power or varying grid voltages. To further safeguard your investment, the unit integrates reverse polarity protection, output short-circuit protection, and an included RJ12 battery temperature sensor. This external sensor actively monitors the battery environment, dynamically adjusting the parameters to prevent thermal runaway in hot climates.

Key Features

• Simultaneous 3-bank charging capability with priority routing
• User-selectable charge profiles for Gel, AGM, Flooded, and Lithium batteries
• Comprehensive 4-stage smart charging cycle for prolonged battery health
• Wide AC input operating range ensures stability on generator or shore power
• Backlit LCD screen for clear, instant access to system metrics
• Thermo-controlled fan cooling with a specialised silent operation mode
• Includes external temperature sensor to automatically adjust voltage delivery
• Provides an impressive 60A maximum output for high-capacity power systems.

Secure Your Power Supply

Ensure your batteries are correctly maintained and ready for continuous operation. Upgrade your electrical system with the Enerdrive 12V 60A Multi-Bank ePower Battery Charger today and rely on intelligent, automated power distribution for your next remote deployment or marine passage.
