Victron 24V to 12V Orion 24/12-5A Non-Isolated IP67 DC-DC Converter
Waterproof
DESCRIPTION
Victron 24V to 12V Orion 24/12-5A (60W) Non-Isolated IP67 DC-DC Converter
Unmatched Durability and Protection
The Victron Orion 24V to 12V DC-DC Converter is designed for the toughest environments. This unit is completely encapsulated, making it waterproof, shockproof, and ignition protected. Whether it's water, oil, or dirt, the Orion IP67 DC-DC Converter remains undamaged. The cast aluminium casing and resin-moulded electronics ensure robust and reliable performance, providing peace of mind in demanding conditions.
Key Features
Waterproof, Shockproof, and Ignition Protected
- Encapsulated Design: With its IP67 rating, this converter is impervious to water, oil, and dirt.
- Durable Construction: Made with a cast aluminium casing and resin-moulded electronics.
Extra-Long Input and Output Cables
- 1.8 Meter Cables: Eliminate the need for intermediate cable connections, enhancing reliability.
- Ease of Installation: Simplifies setup by reducing the need for additional extensions.
Wide Input Voltage Range
- Versatile Voltage Handling: Operates efficiently within a 15 to 40 Volts input range.
- Stable Output: Maintains a steady 12V output even during voltage surges or sags from other connected equipment.
Overheat Protection
- Heat Resistance: Suitable for use in high-temperature environments such as machine rooms.
- Reliable Performance: Continues to operate efficiently without risk of overheating.
Applications
The Victron 24V to 12V Orion DC-DC Converter is ideal for a wide range of applications, including:
- Caravans and RVs: Ensures reliable power conversion for on-the-go power needs.
- Marine: Perfect for boats and other marine environments where waterproof equipment is essential.
- Off-Grid Systems: Enhances the reliability of power systems in remote locations.
- Industrial: Suitable for heavy-duty industrial use, providing stable power conversion in challenging conditions.
Why Choose the Victron Orion 24V to 12V DC-DC Converter?
Invest in the Victron Orion 24/12-5A Non-Isolated IP67 DC-DC Converter for unbeatable durability and performance. Its advanced protection features, combined with the extra-long cables and wide input range, make it a top choice for various applications. Upgrade your vehicle or off-grid system now to experience reliable power conversion in even the harshest environments!
Don't wait – ensure your power system's reliability with the Victron Orion today!
SKU: VIC-ORI241205260

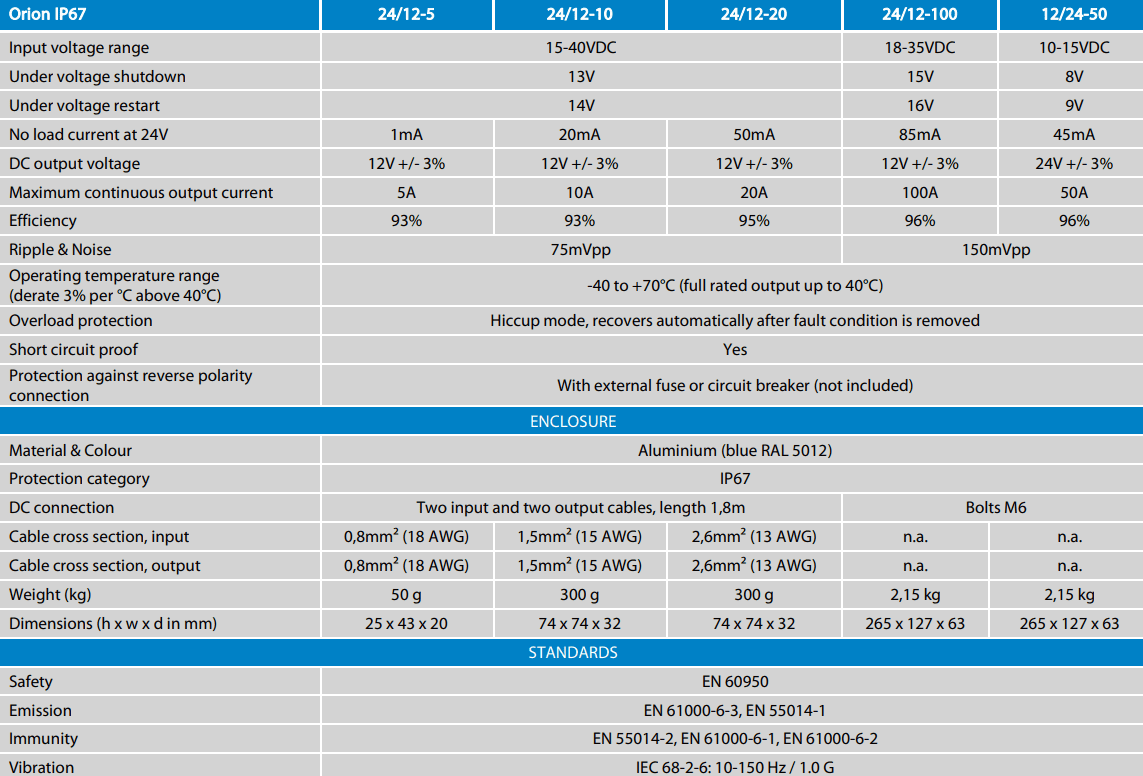

SPECIFICATIONS
Specifications
| Orion IP67 | 24/12-5 |
|---|---|
| Input voltage range | 15-40VDC |
| Under voltage shutdown | 13V |
| Under voltage restart | 14V |
| No load current at 24V | 1mA |
| DC output voltage | 12V +/- 3% |
| Maximum continuous output current | 5A |
| Efficiency | 93% |
| Ripple & Noise | 75mVpp |
| Operating temperature range | -40 to +70°C (full rated output up to 40°C) |
| Overload protection | Hiccup mode, recovers automatically after fault condition is removed |
| Short circuit proof | Yes |
| Protection against reverse polarity connection | With external fuse or circuit breaker (not included) |
| Material & Colour | Aluminium (blue RAL 5012) |
| Protection category | IP67 |
| DC connection | Two input and two output cables, length 1.8m |
| Cable cross section, input | 0.8mm² (18 AWG) |
| Cable cross section, output | 0.8mm² (18 AWG) |
| Weight (kg) | 50 g |

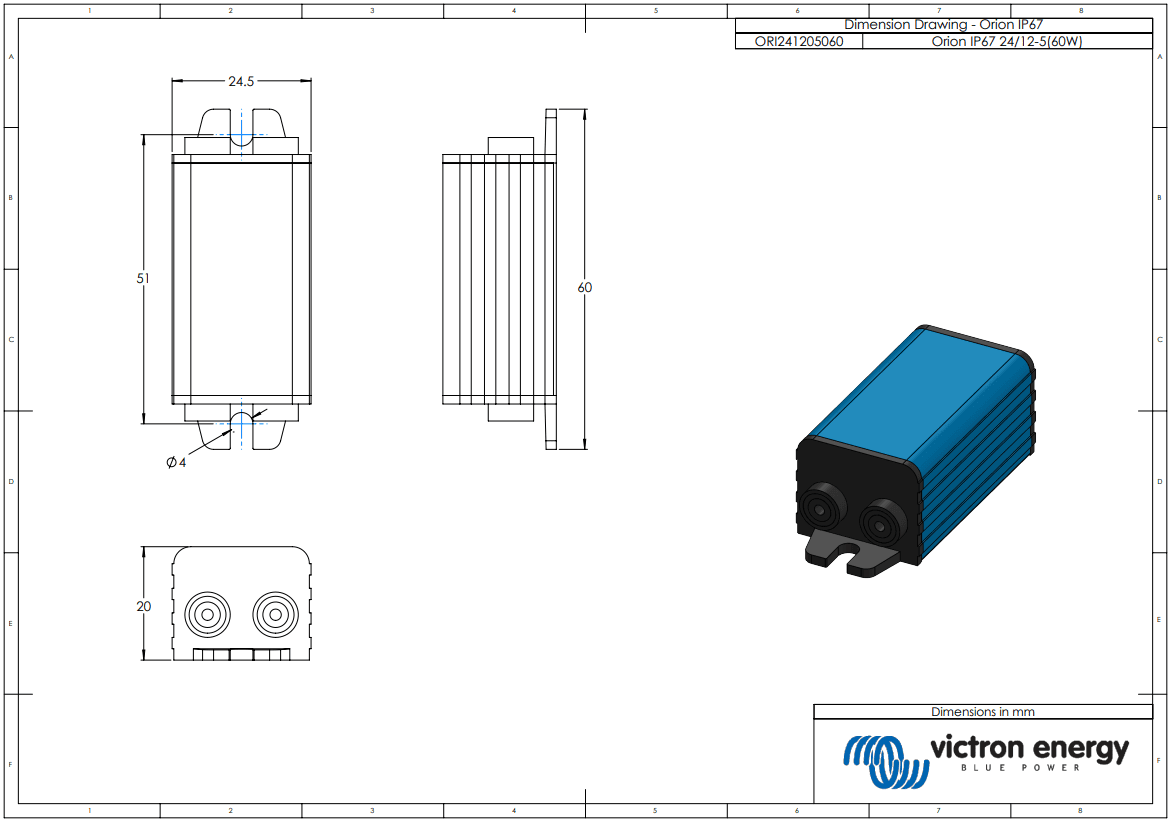

| Dimensions (h x w x d in mm) | 25 x 43 x 20 |
| Safety | EN 60950 |
| Emission | EN 61000-6-3, EN 55014-1 |
| Immunity | EN 55014-2, EN 61000-6-1, EN 61000-6-2 |
| Vibration | IEC 68-2-6: 10-150 Hz / 1.0 G |
| SKU: | VIC-ORI241205260 |
| Barcode: | 8719076048428 |
| Model #: | ORI241205260 |
| MPN: | ORI241205260 |
