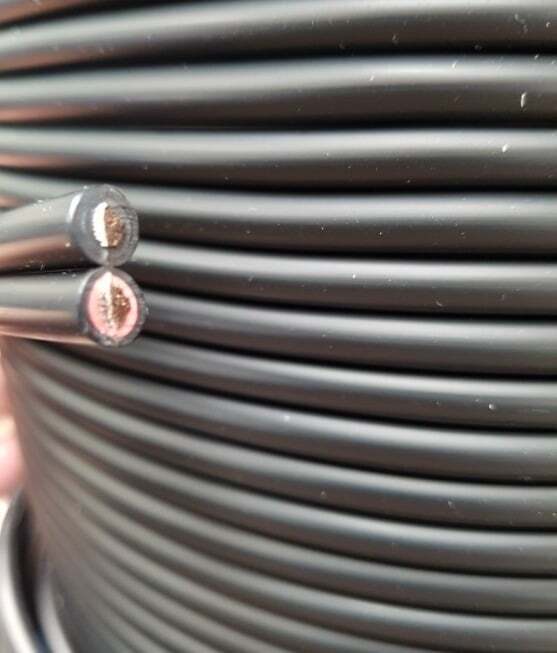

100m Roll of 6mm² Twin PV1-F Solar Cable

Full roll


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
99955

DESCRIPTION

6mm² Twin PV1-F Solar Cable - 100m Roll

Explore the versatility of our Premium 6mm² Twin Solar PV Cable, expertly tailored for diverse solar power applications. Ideal for RV and commercial solar setups, this high-quality cable, offers the perfect balance of durability and efficiency. Its tinned copper conductors ensure optimal energy transfer, while the dual-colored, Electron-beam Cross-linked XLPO insulation provides exceptional protection against varying weather conditions, making it a prime choice for outdoor solar installations.

Optimized for RV and Off-Grid Solar Installations

Our solar PV cable is a game-changer for both caravan solar arrays and off-grid systems. Boasting superior UV and temperature resistance, it delivers consistent performance in any environment. Rated to handle 70A at 60°C, it's built to sustain high-power solar setups. This makes it an ideal companion for your solar energy system, ensuring peak operation throughout the year. Its user-friendly design is highly appreciated by DIY enthusiasts and professional installers, simplifying the setup process and reducing installation time.

Reliable and Safe for Long-Term Solar Connectivity

Designed for longevity and safety, the 6mm² solar panel cable forms a dependable link between your solar panels and solar controllers. Adhering to international safety standards like TÜV IEC62930 and EN50618, it represents a wise, eco-conscious choice for your sustainable energy needs. Invest in this cable for a robust, efficient solar connection that you can trust for years to come.


SKU: PV1-F2x6MM-ROLL

SPECIFICATIONS

Specifications

  • Outside diameter of each core 6mm
  • Inner insulation: XLPE (Black, Red)
  • Sheath insulation: XLPE (Crosslinked Polyethylene)
  • Nominal voltage: U0 / U: 0,6 / 1 kV AC / max. 1.0 kV DC
  • Test voltage according to EN 50395-6: 6,5 kV AC / 15 kV DC (5 min.)
  • Rated current: 70 A (6.0 mm²)
  • Insulation resistance of the complete cable: ≥ 1000 MΩkm in accordance to EN 50395-8.2
  • Ambient temperature:  –40°C ...+90°C
  • Bending radius: Dynamic: >4 × OD

Construction Constructed using fine stranded tinned copper conductors insulated with a temperatureresistant, halogen-free cross-linked copolymer compound and protected by an outer sheath of flame-retardant, abrasion and UV-resistant, halogen-free cross-linked co-polymer.

  • Rated voltage AC 1000V, DC 1000V (max)
  • Temperature range Ambient –40°C ...+90°C
  • Approvals EN 50618 IEC 62930
  • Minimum bending radius Flexing: 5 x cable diameter
  • Fixed: 4 x cable diameter
  • Marking Meter marked

SKU: PV1-F2x6MM-ROLL
Model #: PV1-F2x6MM-ROLL
MPN: PV1-F2x6MM-ROLL
