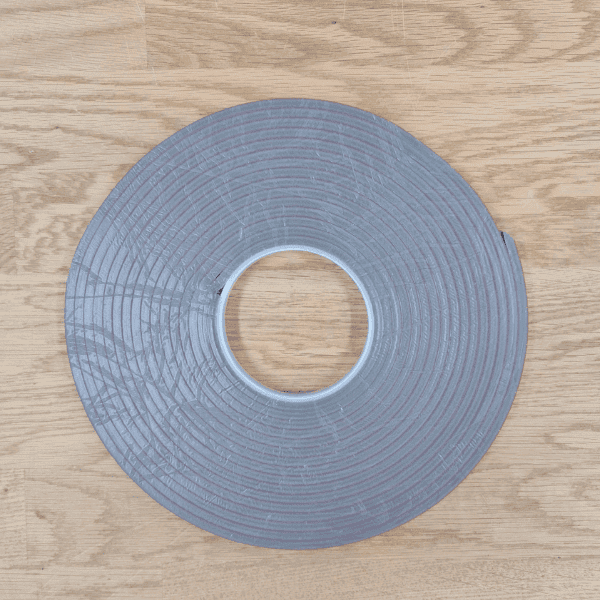

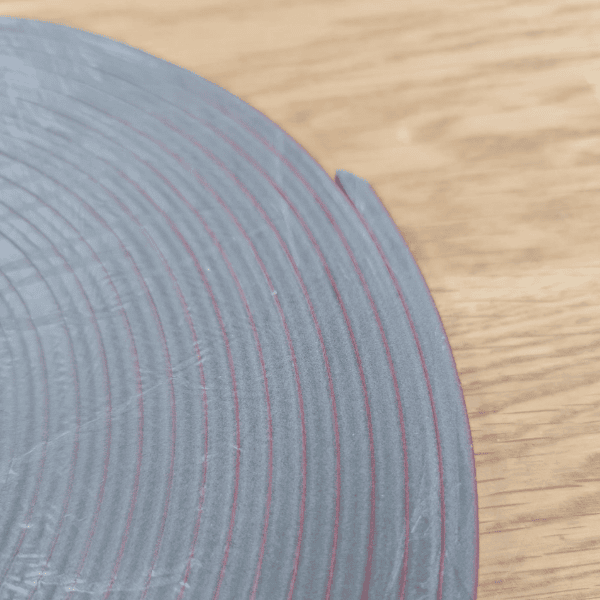

Roll of Acrylic VHB Double-sided Foam Tape 4.6mmH x 12mmW x 8.25m


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
1708

DESCRIPTION

Maximize Durability with High-Strength Acrylic Foam Tape

Experience the unparalleled strength and versatility of our Very High Bond (VHB) Acrylic Foam Tape. Engineered for durability, this tape boasts exceptional strength and conformability, making it an ideal choice for a wide range of applications.

Tested Under Extreme Conditions

Our VHB Acrylic Foam Tape isn't just strong; it's reliable. Rigorously tested in-house, it withstands extreme temperatures, from scorching heat to freezing cold. This ensures consistent performance, regardless of the environment.

Ideal for Thermal Expansion

Thermal expansion can be a challenge, but not with our tape. Its high bonding strength ensures that it accommodates the thermal expansion between panels and substrates, providing a secure, long-lasting hold.

Features at a Glance:

  • Effortless Application: Quick and easy to apply, saving time and effort.
  • Superior Adhesion and Shear Properties: Provides a strong, lasting bond.
  • Excellent Conformability: Easily stretches and conforms to surfaces, ensuring a tight seal.
  • Dynamic Shear Strength: Reliable performance under stress and movement.
  • Moisture and Chemical Resistance: Ideal for outdoor use, resistant to environmental elements.
  • Eco-Friendly Bonding: Creates a sustainable and effective seal.
  • UV Resistance: Long-term durability against sunlight and UV exposure.

SKU: RP-PK-Tape4.6

SPECIFICATIONS

Specifications


























Attribute Description
Part No. BG734F-4.6
Carrier Acrylic foam (grey)
Adhesive Acrylic
Liner Red PE release film


Applications




  • Automobile industry: weather strip, side strip, nameplates, sun visor, cushioning protector, roof rubber

  • Electronics: LCD, laptop, mobile phone, PDA, fixation of backlight frame and shading

  • Others: nameplates, radiator, flexible solar panels, silk-screen and free industry



Technical Details














































Property Specification
Thickness 4.6mm±0.050 mic
Tensile strength (aluminium T-block, ASTM D-897) ≥5,500 gf/cm2
180℃ Peel adhesion (stainless steel, ASTM D-3330) ≥4500 gf/25mm
Holding power (stainless steel, ASTM D-3654, 80℃, 1000g) >24 Hr
Dynamic shear strength (Room temperature after 20 minutes) ≥3,000 gf/cm2
Dynamic shear strength (Room temperature after 24 Hrs) ≥5300 gf/cm2
Static Shear (250g) 10000 minutes
Temperature resistance (Short term, 100g, 4 hours) 160 ℃
Temperature resistance (Long term, 250g, 10000 minutes) 120℃


Application



Temperature: between 0°C and + 35°C during application. Surface must be clean and free from dust and grease, clean all surfaces with iso-propyl alcohol and allow to dry. Avoid touching the tapes exposed adhesive surface in order to keep full adhesive performance. Pressure sensitive adhesive must be applied with a maximum of pressure in order to achieve maximum pressure level. The indicated level of performance will be reached after a bonding period of 24 hours at 23 °C.



Storage and Shelf Life



Clean and dry in a well ventilated area, preferably at a temperature between 10°C and 30°C. Stored under these conditions shelf life will be a minimum of 6 months.



The above information is given in good faith, but the user should assure themselves that the performance of the product is sufficient for his application. The quoted values are average and should not be taken as maximum or minimum values for specific purposes. We cannot be held responsible for product failure unless full testing has been carried out. The client has to decide on the tapes suitability for their own applications.



SKU: RP-PK-Tape4.6
Model #: RP-PK-Tape4.6
MPN: RP-PK-Tape4.6
