REC 2Q BMS wiring harness

5 connectors with installed wires and cables


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
1

DESCRIPTION

Wiring harness components plug into the 5 connectors in the 2Q BMS:

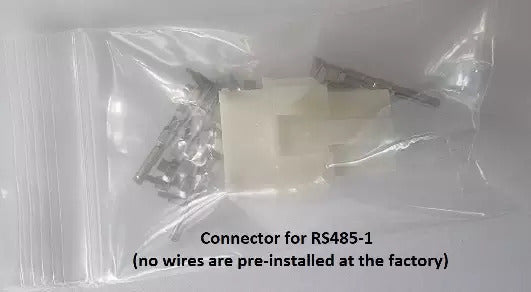

  1. "RS485-0" Connector:  Normally connects to the REC WiFi unit with the cable supplied with the WiFi unit.  As part of this wire harness a spare connector is supplied with pins that an installer can use to connect to, e.g. an industrial RS485 interface in an industrial system.

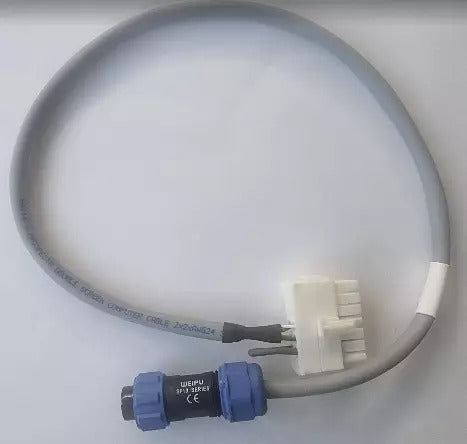

  2. "RS 485 CAN T Cp" Connector with the following wires
    • "RS 485-1" no wires on these pins
    • "CAN" has a 0.5metre cable to a Weipu Series 13 connector  (note that mostly inverters and controllers use an RJ45 connector for their CAN Bus, however as there is no industry standard pin-out for the RJ45 this leg of the CAN Bus cable is a separate purchase)
    • "T" has a jumper wire
    • "Cp" no wires on these pins

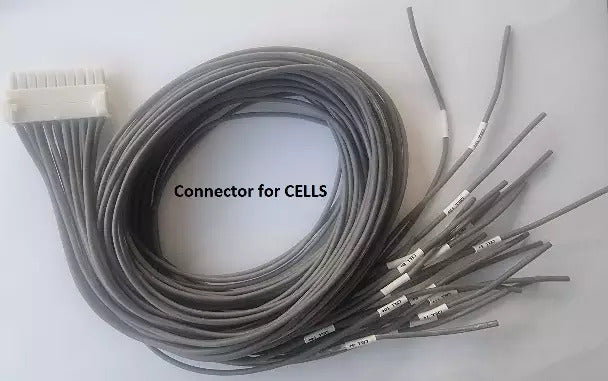

  3. "CELLS" Connector with the following labelled wires with a clean cut at 2metres length (for termination by the installer):
    • 17 cell wires labelled as follows:  "Cell 1-", "Cell 1+", etc to "Cell 16+"
    • Power supply wires labelled:  "Pack -",  "Pack +"
    • Pre-charge wire labelled:  "Precharge"

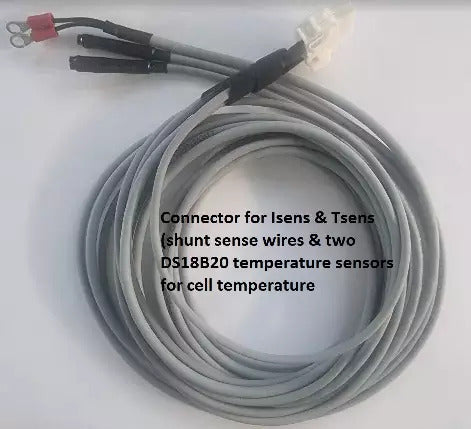

  4. "Isens Tsens"  Connector with the following labelled cables each 2metres length
    • DS18B20 digital temperature sensor  x 2 (unlabelled)
    • Shunt sense cable with 4mm lugs with 1 labelled "+" that attaches to the battery side of the shunt

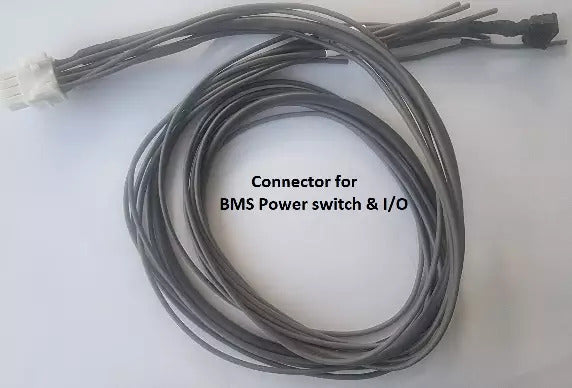

  5. "Power symbol  I/Os" Connector with 1 metre length cable and wire as follows:
    • Power symbol: Cable to BMS on/off switch
    • I/O wires labelled as follows:
      • "OPTO RELAY IN",  "OPTO RELAY OUT"
      • "OC 1-", "OC 1+"
      • "OC 2-", "OC 2+"

SKU: REC-2Q-WH
