PowerHouse 200Ah Lead-Carbon Deep Cycle Battery

36 Month Warranty


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

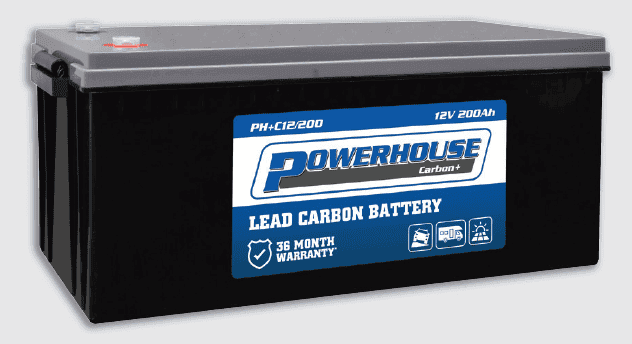

PowerHouse 200Ah Lead-Carbon Deep Cycle Battery: Superior Performance for Renewable Energy

Unleash the full potential of your renewable energy systems with the PowerHouse Carbon+ 200Ah Lead-Carbon Deep Cycle Battery, the ideal power solution for those who demand reliability and performance. This innovative battery range is the synthesis of traditional AGM deep cycle reliability and cutting-edge advancements with an added mixture of carbon on the negative plate, elevating your energy storage to new heights.

Key Features and Advantages:

  • Extended Service Life: With a superior cycle life offering up to 1,500 cycles at 50% Depth of Discharge (DoD), the PowerHouse Carbon+ is built to last, providing dependable power for all your energy needs.
  • Sulfation Resistance: Engineered to resist sulfation, the most common cause of battery failure, ensuring a longer service life and consistent performance under various conditions.
  • Rapid Charge Acceptance: Achieves high efficiency with an impressive charge acceptance rate of up to 0.3C, meaning you can go from 0% to 100% in just 12 hours, and from 50% to 100% in a mere 6 hours.
  • Lead Carbon Technology: This battery incorporates advanced lead carbon technology, enhancing the positive effects of carbon additives on the negative plates, which boosts performance and durability.
  • All-Cyclic Applications: Whether for leisure, solar use, or any other renewable energy storage application, the PowerHouse Carbon+ is the perfect match for high-demand situations.

Why PowerHouse Carbon+ Stands Out:

The PowerHouse AGM vs Lead Carbon graph illustrates the stark contrast in performance, with the Carbon+ range achieving more than double the number of cycles compared to standard AGM Deep Cycle Batteries at a 50% DoD. This not only underscores the superior quality of the PowerHouse Carbon+ but also signifies its role as a cost-effective and sustainable choice in the long run.

Invest in Reliability:

By choosing the PowerHouse 200Ah Lead-Carbon Deep Cycle Battery, you're not just purchasing a battery; you're investing in a dependable power source that comes with a reassuring 36-month warranty for leisure applications and a 24-month warranty for solar applications. It's more than just energy storage—it's the assurance of uninterrupted power for your most critical applications.


SKU: MP-PH-LC-200

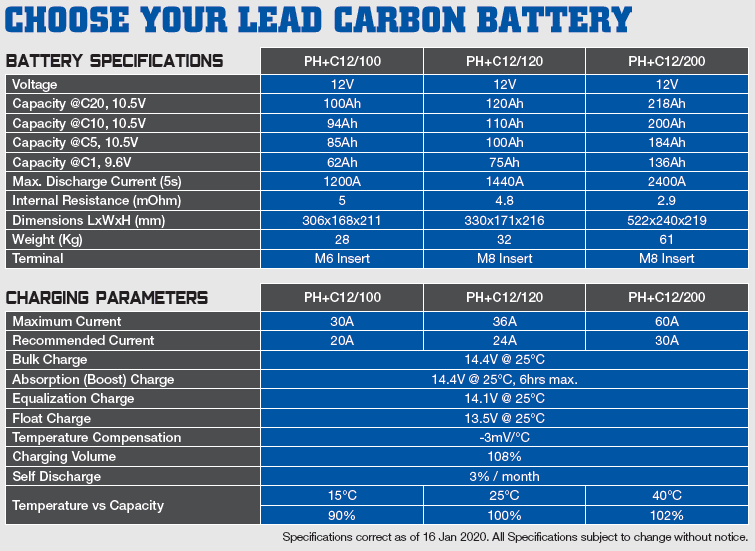

SPECIFICATIONS

Specifications

  • Voltage: 12V
  • Capacity @C20, 10.5V: 218Ah
  • Capacity @C10, 10.5V: 200Ah
  • Capacity @C5, 10.5V: 184Ah
  • Capacity @C1, 9.6V: 136Ah
  • Maximum Discharge Current (5s): 2400A
  • Internal Resistance: 2.9 mOhm
  • Dimensions LxWxH (mm): 522x240x219
  • Weight (Kg): 61
  • Terminal Type: M8 Insert

Charging Parameters for PH-C12/200:

  • Maximum Charging Current: 60A
  • Recommended Charging Current: 30A
  • Bulk Charge Voltage: 14.4V @ 25°C
  • Absorption (Boost) Charge Voltage: 14.4V @ 25°C, 6hrs max.
  • Equalization Charge Voltage: 14.1V @ 25°C
  • Float Charge Voltage: 13.5V @ 25°C
  • Temperature Compensation: -3mV/°C
  • Charging Volume: 108%
  • Self Discharge Rate: 1% per month
  • Temperature vs Capacity: 40°C

SKU: MP-PH-LC-200
Model #: MP-PH-LC-200
MPN: MP-PH-LC-200
