Exotronic 4x 200w Solar Panel & Victron SmartSolar MPPT 100/50 Bundle
High-Capacity Off-Grid TOPCon Solar Power Bundle
Exotronic 3x 200w Solar Panel & Victron SmartSo...DESCRIPTION
Exotronic 4x 200W Solar Panel & Victron SmartSolar MPPT 100/50 Bundle
This Complete Solar Bundle Includes:
- 4x Exotronic 200W Fusion Series TOPCon Solar Panels
- Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller
- 4x Mounting Bracket Kits
- 2x Fix15 Adhesive Sealant (White)
Ultimate High-Capacity Solar Bundle for Maximum Off-Grid Energy Performance
The Exotronic 4x 200W Fusion Series Bundle combines four advanced N-Type TOPCon solar panels with the intelligent Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller. Engineered specifically for large off-grid and mobile energy applications, this premium solar kit is ideal for caravans, RVs, marine environments, tiny homes, and industrial setups requiring exceptional solar power capacity and reliability.
Exotronic 200W Fusion Series TOPCon Solar Panels (4 Panels Included)
Featuring next-generation N-Type TOPCon solar cell technology, each panel achieves outstanding cell efficiency of 25.2%, significantly surpassing traditional monocrystalline and standard PERC panels. Designed for excellent low-light performance and shading resilience, these durable yet lightweight panels provide consistent and efficient energy production for your most demanding off-grid energy needs.
Key Advantages of Exotronic Fusion Series Panels:
- Superior cell efficiency of 25.2% ensures maximum energy generation
- Tested for extreme weather, handling wind loads.
- Compact and lightweight, perfect for mobile setups or tight installations

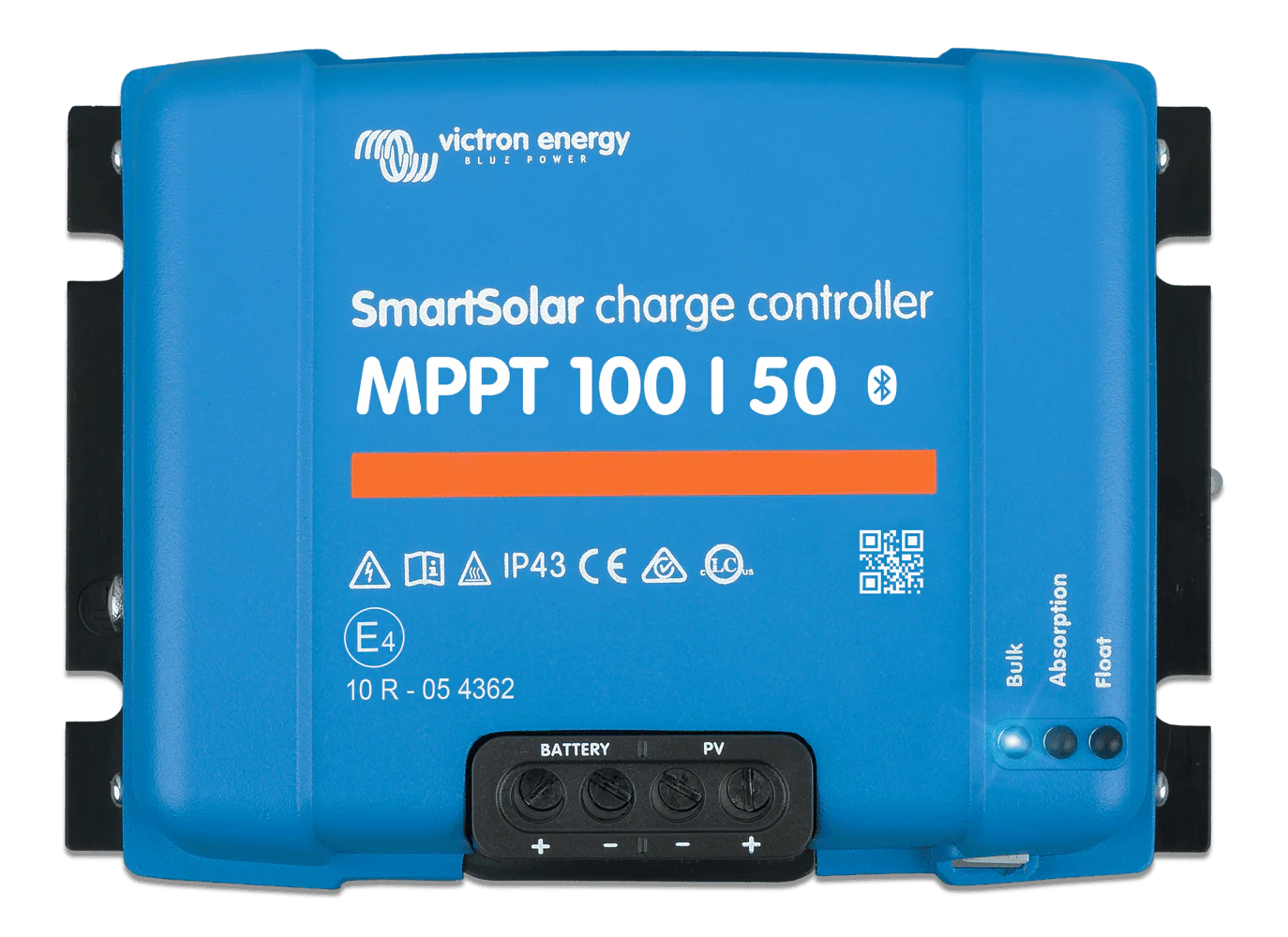

Victron 12/24V 50A SmartSolar MPPT 100/50 Bluetooth Charge Controller
The Victron SmartSolar MPPT 100/50 Charge Controller ensures peak performance from your solar array, delivering up to 30% higher efficiency compared to traditional PWM controllers. Integrated Bluetooth technology allows for easy monitoring and management of your solar system through the convenient VictronConnect app, ensuring optimal battery health and efficient energy harvesting.
Key Benefits of Victron SmartSolar Controller:
- Advanced ultra-fast MPPT technology maximizes energy collection
- Built-in Bluetooth connectivity enables effortless real-time monitoring
- High efficiency exceeding 98% under varying conditions
- Customizable charging profiles for precise battery management
- Comprehensive electronic protection against overheating, short circuits, and reverse polarity
Ready for Maximum Off-Grid Power?
Upgrade your off-grid setup today with the high-capacity Exotronic 4x 200W Fusion Series bundle. Experience unmatched solar efficiency, reliability, and performance wherever you go.
SKU: Exo-Vic-4x200-100-50-00
SPECIFICATIONS
Specifications
Exotronic Fusion 200w TOPCon Solar Panel
Electrical Characteristics |
|||||||||
| Model | Power (W) | Dimensions (mm) | Weight (kg) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | ||
| Exo-SP-TCN-200 | 200 | 1320x670x25 | 8.9 | 18.0 | 11.11 | 21.0 | 12.1 | ||
Temperature Ratings |
|
| NMOT | 41C +/-3C |
| Temperature Coefficient of Pmax | -0.37%/C |
| Temperature Coefficient of Voc | -0.29%/C |
| Temperature Coefficient of Isc | 0.05%/C |
Maximum Ratings |
|
| Operating Temperature | -40 - +85C |
| Maximum System Voltage | 1000VDC |
| Maximum Fuse Rated Current | 15A |
Mechanical Characteristics |
|
| Front | 3.2mm Tempered Glass |
| Frame | Black Anodized Aluminium Alloy |
| Junction Box | IP65 |
| Connectors | MC4 Compatible |
Victron 12/24V 50A SmartSolar MPPT 100/50 Bluetooth Solar Charge Controller
| SmartSolar Charge Controller | MPPT 100/50 |
|---|---|
| Battery voltage | 12/24 V Auto Select |
| Rated charge current | 50 A |
| Nominal PV power, 12 V (1a,b) | 700 W |
| Nominal PV power, 24 V (1a,b) | 1400 W |
| Maximum PV open circuit voltage | 100 V |
| Max. PV short circuit current (2) | 60 A |
| Maximum efficiency | 98 % |
| Self-consumption | 12 V: 30 mA, 24 V: 20 mA |
| Charge voltage 'absorption' | Default setting: 14,4 V / 28,8 V (adjustable) |
| Charge voltage 'float' | Default setting: 13,8 V / 27,6 V (adjustable) |
| Charge algorithm | multi-stage adaptive |
| Temperature compensation | -16 mV / °C resp. - 32 mV / °C |
| Protection | PV reverse polarity, Output short circuit, Over temperature |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
| Data communication port | VE.Direct |
| Enclosure Colour | Blue (RAL 5012) |
| Power terminals | 16 mm² / AWG6 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 1,3 kg |
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
| Safety Standards | EN/IEC 62109- 1, UL 1741, CSA C22.2 |
| Stored Trends Data | Battery voltage, current and temperature, as well as load output current, PV voltage and PV current. |
| Number of days trends data is stored | 46 |
Notes:
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2A PV array with a higher short circuit current may damage the controller.
| SKU: | Exo-Vic-4x200-100-50-00 |
WARRANTY
Exotronic Panel - 5 year warranty - please read full warranty statement for details
Victron - 5 year warranty - please read full warranty statement for details
Wiring kit and accessories - 1 year warranty
