Exotronic 3x 200w Solar Panel & Victron SmartSolar MPPT 100/50 Bundle
High-Capacity Off-Grid TOPCon Solar Power Bundle
Exotronic 200W Portable Folding Solar Panel + 2...DESCRIPTION
Exotronic 3x 200W Solar Panel & Victron SmartSolar MPPT 100/50 Bundle
Bundle Pack Includes:
- 3x Exotronic 200W Fusion Series TOPCon Solar Panels
- Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller
- 3x Mounting Bracket Kits
- 2x Fix15 Adhesive Sealant (White)
Powerful, Efficient Solar Bundle for High-Performance Off-Grid Applications
The Exotronic 3x 200W Fusion Series Bundle combines three advanced 200W solar panels featuring state-of-the-art N-Type TOPCon technology with the Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller. Specifically designed for larger off-grid installations in caravans, RVs, marine vessels, tiny homes, and industrial setups, this bundle delivers exceptional solar energy generation, superior reliability, and ease of management, perfectly tailored to Australian conditions.
Exotronic 200W Fusion Series TOPCon Solar Panels (3 Panels Included)
These premium solar panels utilize next-generation N-Type TOPCon solar cells, offering industry-leading cell efficiency at 25.2%. Compared to traditional monocrystalline and PERC panels, the Fusion Series panels significantly outperform in both low-light conditions and partial shading scenarios. Built with durability in mind, these lightweight and compact panels ensure easy installation and consistent energy production across various mobile and off-grid applications.
Key Benefits of Exotronic Fusion Series Panels:
- High-efficiency 25.2% N-Type TOPCon cells maximize energy production
- Rated for extreme conditions: wind loads.
- Compact, lightweight, and ideal for mobile or limited-space installations

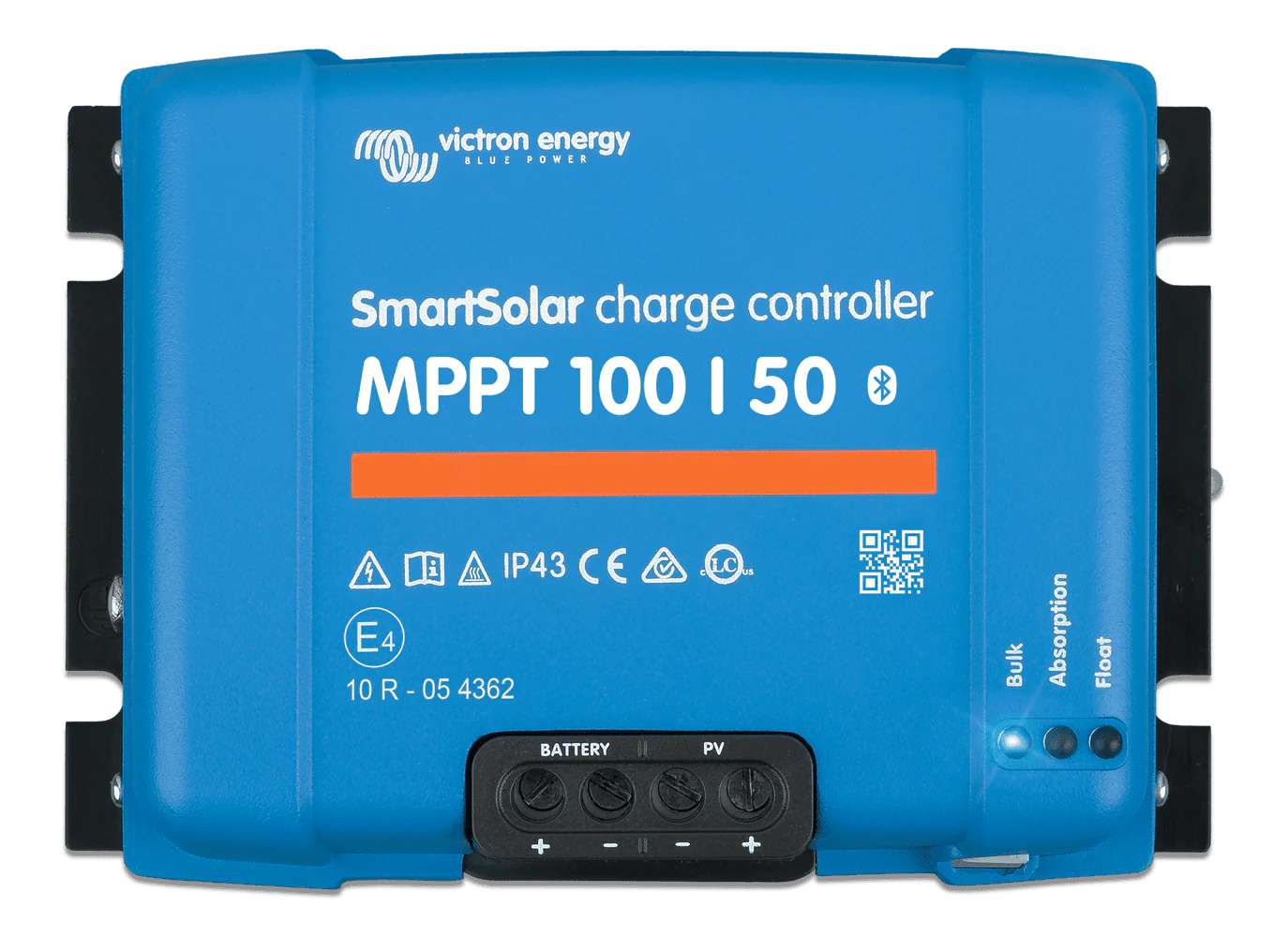

Victron 12/24V 50A SmartSolar MPPT 100/50 Bluetooth Charge Controller
The Victron SmartSolar MPPT 100/50 Controller efficiently harnesses solar energy, capturing up to 30% more power compared to traditional PWM controllers. With built-in Bluetooth, monitor your system’s performance in real-time directly from your smartphone, ensuring optimal energy management and extending battery lifespan.
Victron SmartSolar Controller Key Features:
- Ultra-fast MPPT technology for superior solar harvesting
- Integrated Bluetooth enables easy monitoring and control via VictronConnect app
- Efficiency consistently exceeds 98%, providing reliable performance
- Fully programmable charging algorithms customized for battery optimization
- Robust protection against overheating, short circuits, and reverse polarity
Ready for Serious Solar Power?
Upgrade your off-grid or mobile energy setup today with the Exotronic 3x 200W Fusion Series bundle. Designed for maximum efficiency, durability, and reliability, this package is the ultimate choice for powering your adventures and essential off-grid projects.
SKU: Exo-Vic-3x200-100-50-00
SPECIFICATIONS
Specifications
Exotronic Fusion 200w TOPCon Solar Panel
Electrical Characteristics |
|||||||||
| Model | Power (W) | Dimensions (mm) | Weight (kg) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | ||
| Exo-SP-TCN-200 | 200 | 1320x670x25 | 8.9 | 18.0 | 11.11 | 21.0 | 12.1 | ||
Temperature Ratings |
|
| NMOT | 41C +/-3C |
| Temperature Coefficient of Pmax | -0.37%/C |
| Temperature Coefficient of Voc | -0.29%/C |
| Temperature Coefficient of Isc | 0.05%/C |
Maximum Ratings |
|
| Operating Temperature | -40 - +85C |
| Maximum System Voltage | 1000VDC |
| Maximum Fuse Rated Current | 15A |
Mechanical Characteristics |
|
| Front | 3.2mm Tempered Glass |
| Frame | Black Anodized Aluminium Alloy |
| Junction Box | IP65 |
| Connectors | MC4 Compatible |
Victron 12/24V 50A SmartSolar MPPT 100/50 Bluetooth Solar Charge Controller
| SmartSolar Charge Controller | MPPT 100/50 |
|---|---|
| Battery voltage | 12/24 V Auto Select |
| Rated charge current | 50 A |
| Nominal PV power, 12 V (1a,b) | 700 W |
| Nominal PV power, 24 V (1a,b) | 1400 W |
| Maximum PV open circuit voltage | 100 V |
| Max. PV short circuit current (2) | 60 A |
| Maximum efficiency | 98 % |
| Self-consumption | 12 V: 30 mA, 24 V: 20 mA |
| Charge voltage 'absorption' | Default setting: 14,4 V / 28,8 V (adjustable) |
| Charge voltage 'float' | Default setting: 13,8 V / 27,6 V (adjustable) |
| Charge algorithm | multi-stage adaptive |
| Temperature compensation | -16 mV / °C resp. - 32 mV / °C |
| Protection | PV reverse polarity, Output short circuit, Over temperature |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
| Data communication port | VE.Direct |
| Enclosure Colour | Blue (RAL 5012) |
| Power terminals | 16 mm² / AWG6 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 1,3 kg |
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
| Safety Standards | EN/IEC 62109- 1, UL 1741, CSA C22.2 |
| Stored Trends Data | Battery voltage, current and temperature, as well as load output current, PV voltage and PV current. |
| Number of days trends data is stored | 46 |
Notes:
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2A PV array with a higher short circuit current may damage the controller.
| SKU: | Exo-Vic-3x200-100-50-00 |
WARRANTY
Exotronic Panel - 5 year warranty - please read full warranty statement for details
Victron - 5 year warranty - please read full warranty statement for details
Wiring kit and accessories - 1 year warranty
Exotronic provides high-quality products and solutions tailored for B2B and commercial customers, including commercial businesses, caravan manufacturers, marine electricians, OEMs, as well as emergency services, and more.
