Exotronic Yulara Series Pre-wired Victron Board

5000 VA Inverter, 100 A Solar, 100 A DC-DC, Cerbo GX - 1400x400x170mm


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
-30

DESCRIPTION

Exotronic Yulara Series Pre-Wired Victron Board: Complete Off-Grid Power System for Van Conversions

Professional-Grade, Pre-Configured Energy Hub for Caravans, RVs, and Mobile Living

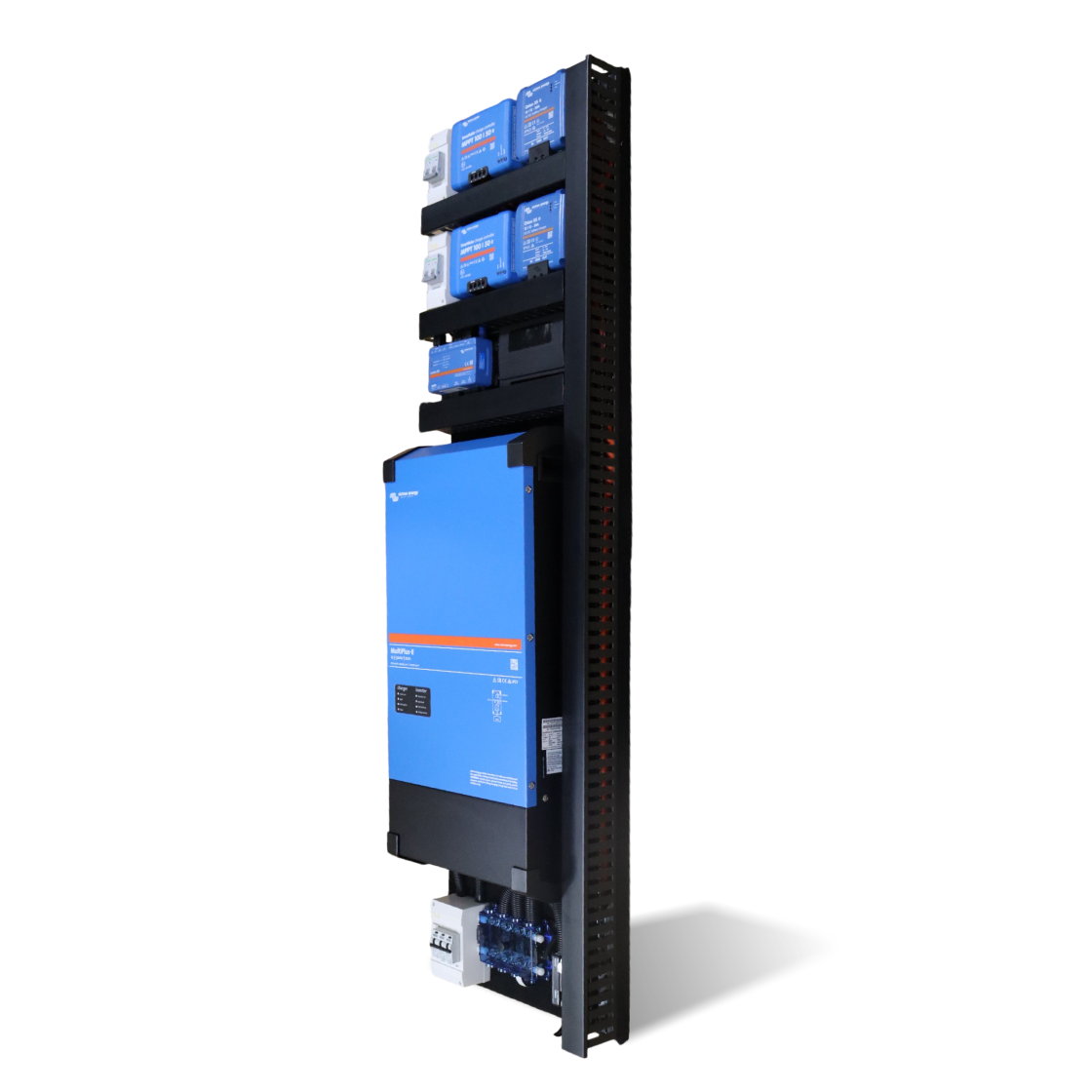

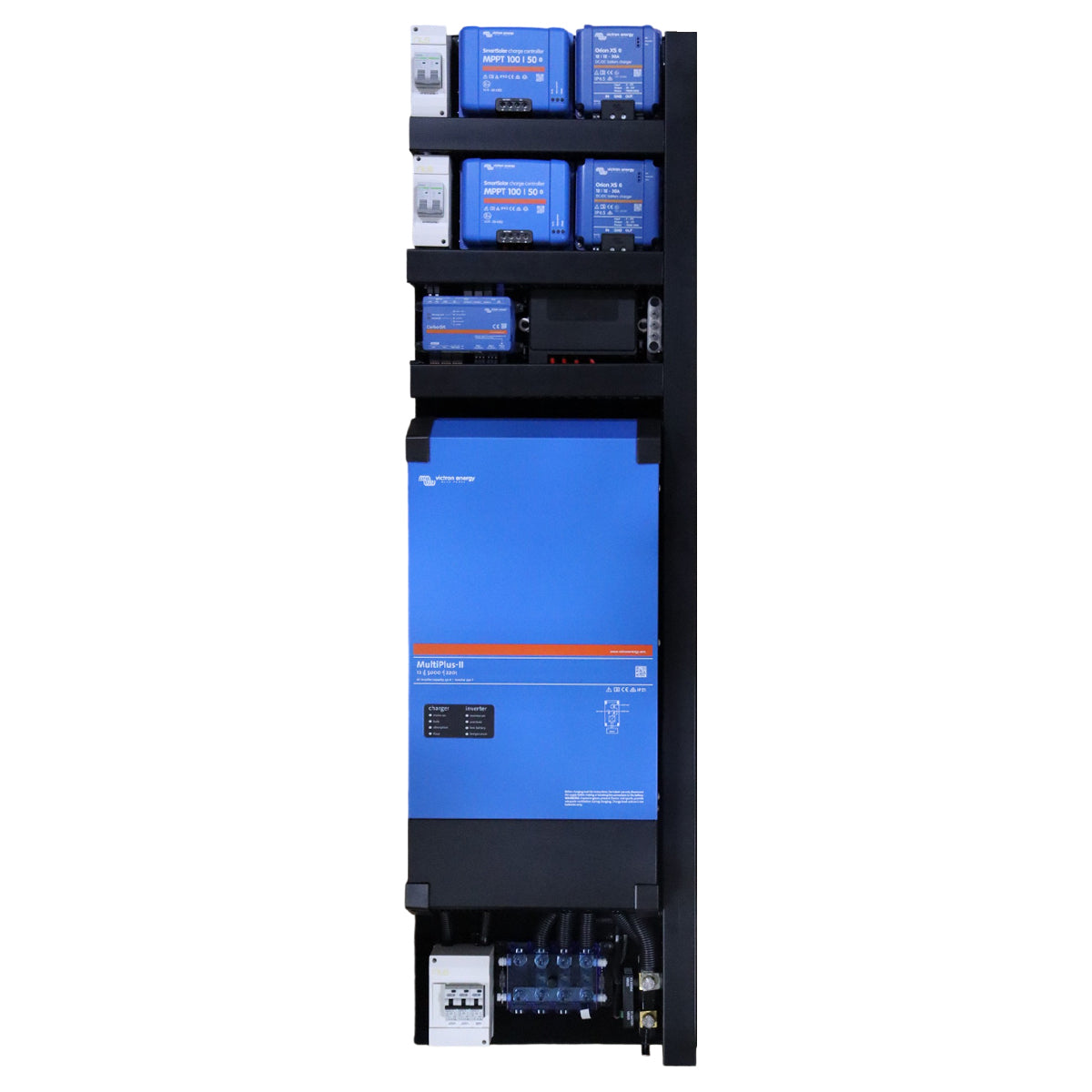

The Exotronic Yulara Series Pre-Wired Victron Board delivers a fully integrated, high-capacity power solution engineered for demanding off-grid applications. By combining a 5000 VA inverter/charger, dual 50 A solar controllers, and twin 50 A DC-DC chargers into a single, pre-wired assembly, this system eliminates the complexity and risk of custom electrical builds. Whether you are a professional installer or a dedicated DIY enthusiast, the Yulara Series provides a reliable, space-efficient foundation for your mobile energy needs.

Unlike piecemeal setups that require sourcing, matching, and wiring individual components, this board arrives with every Victron Energy device already interconnected and tested. This reduces installation time significantly and minimises the potential for wiring errors that can lead to system downtime or safety hazards. The result is a robust, turnkey power station that lets you focus on your build, not your electrical schematic.

Integrated Victron Energy Ecosystem for Maximum Reliability

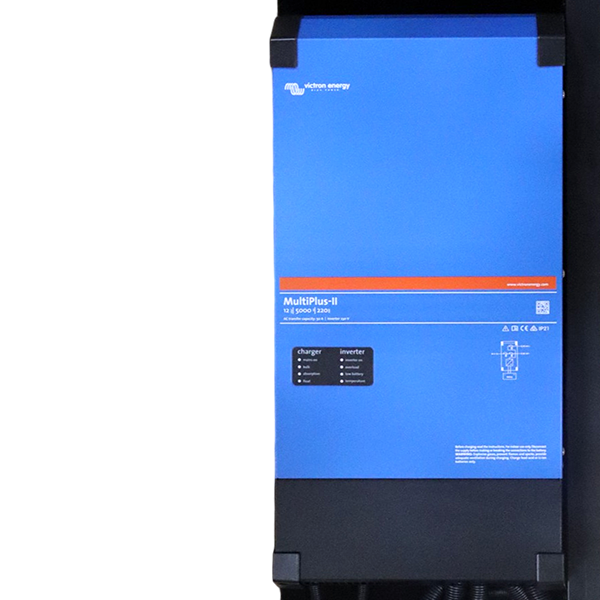

At the core of the Yulara Series is the Victron MultiPlus-II 5000 VA Inverter/Charger, a proven component that combines pure sine wave inversion, a 220 A mains charger, and an automatic transfer switch. This enables seamless switching between grid and battery power, ensuring your appliances remain operational without interruption. The inverter's high surge capacity handles inductive loads such as air conditioners and power tools, making it suitable for full-time living.

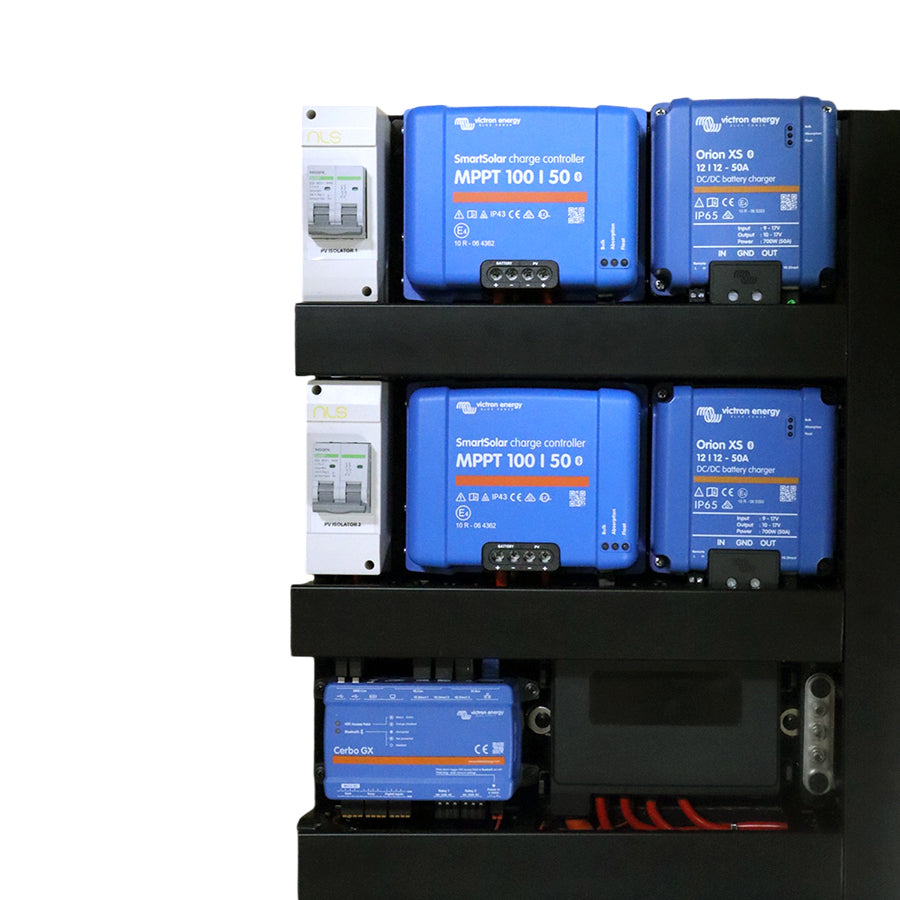

Charging flexibility is provided by two Victron SmartSolar MPPT 100/50 controllers, offering a combined 100 A solar input. These controllers use advanced Maximum Power Point Tracking to harvest the maximum energy from your solar array, even under partial shading or low-light conditions. Bluetooth connectivity allows real-time monitoring and configuration via the VictronConnect app, giving you complete visibility of your solar yield.

For charging from the vehicle alternator, two Victron Orion XS 50 A DC-DC Chargers deliver a combined 100 A charge rate, adjustable to match your alternator's capacity. Their adaptive three-step charging logic and intelligent recovery function protect your batteries and maximise lifespan, while Bluetooth control enables fine-tuning without accessing the physical unit.

Complete System Monitoring and Control

The included Victron Cerbo GX serves as the communication hub, providing centralised control over all connected devices. It supports remote monitoring via the VRM portal and is compatible with optional Ruuvi temperature sensors and Mopeka tank monitors (sold separately) for comprehensive system oversight. The Victron 500 A SmartShunt delivers precise battery state-of-charge tracking, voltage, and current data, with programmable alarms to prevent deep discharge.

Safety and Expandability Built In

Safety is paramount in mobile power systems. The Yulara Series incorporates Noark PV isolation switches on each solar input, meeting Australian standards for photovoltaic installations. The integrated fuse block features spare Midi and MEGA fuse slots, along with a negative busbar, allowing straightforward expansion for additional loads or future upgrades without re-engineering the entire board.

Key Features at a Glance

  • 5000 VA MultiPlus-II Inverter/Charger with 220 A mains charging and automatic transfer switch
  • Dual 50 A SmartSolar MPPT controllers for up to 100 A total solar input via red Anderson connector
  • Twin Orion XS 50 A DC-DC chargers with adjustable 100 A combined alternator charging
  • Victron Cerbo GX system monitor for local and remote control
  • 500 A SmartShunt battery monitor with Bluetooth and alarm functions
  • Pre-wired and tested to reduce installation time and eliminate wiring errors
  • Integrated PV isolators and fused protection for compliance and safety
  • Expandable fuse block with spare slots and negative busbar for future loads
  • Compact footprint (1400 x 400 x 170 mm) for flexible under-bed or wall mounting

Designed for Australian Conditions

Every component is selected and configured to withstand the rigours of Australian travel, from corrugated roads to coastal humidity. The board's robust construction and secure cable management prevent chafing and loose connections, while the high-quality Victron equipment is renowned for its durability and long service life. This system is equally at home in a caravan, RV, tiny home, or marine application, providing dependable power wherever you roam.

Applications

  • Van conversions and campervans
  • Caravans and RVs
  • Off-grid tiny homes and cabins
  • Marine and yacht electrical systems
  • Mobile workshops and emergency vehicles

Ready to Power Your Next Adventure?

Equip your build with the Exotronic Yulara Series Pre-Wired Victron Board and experience the confidence of a professionally integrated power system. Order today and take the next step toward true off-grid independence.


SKU: PWB-Vic-F100-YU-01

SPECIFICATIONS

Specifications

ProductExotronic Yulara Series Pre-wired Victron Board
System Configuration5000 VA + Mains 220 A + Solar 100 A + DC-DC 100 A + Cerbo GX
InverterVictron 5000 VA MultiPlus-II Inverter
Mains Charger220 A mains charger
Transfer SwitchBuilt-in automatic transfer switch
Solar Charge ControllersTwo Victron 50 A MPPT SmartSolar Controllers
Solar Charge RateUp to a combined 100 A solar charge rate
Solar Input ConnectorRed Anderson connector
PV Isolation SwitchesNoark PV Isolation Switches
DC-DC ChargersTwo Victron Orion XS 50 A DC-DC Chargers
DC-DC Charge RateCombined 100 A charge rate (adjustable to match alternator capacity)
Battery MonitorVictron 500 A SmartShunt Battery Monitor
System MonitorVictron Cerbo GX
Fuse BlockIncludes extra Midi and MEGA fuse slots for future expansion
Negative BusbarNegative busbar for easy expansion connections
MountingWall or floor mounting
Weight48 kg
Dimensions1400 x 400 x 170 mm

SKU: PWB-Vic-F100-YU-01
Barcode: 9361784000251
Model #: PWB-Vic-F100-YU-01
MPN: PWB-Vic-F100-YU-01
