Enerdrive Adventurer System Right w/ 40AC DC40 2000X Simarine SCQ50
0
DESCRIPTION

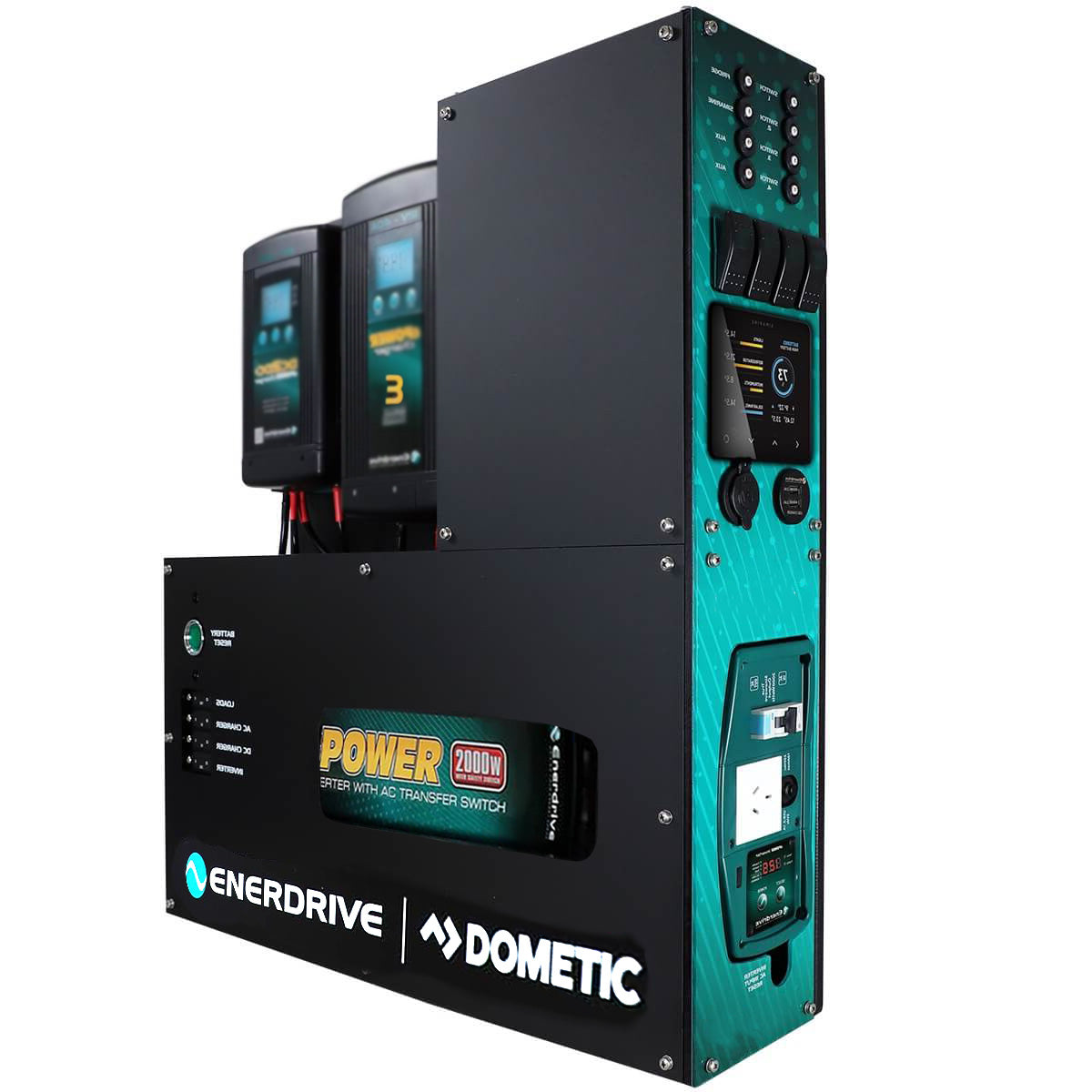

The Adventurer:
This system is designed for the end user requiring maximum power requirements along with AC charging ability and 230v Inverter power. Available in 3 different versions;
- K-ADVENTURER-01 inc ePRO PLUS Battery Monitor
- K-ADVENTURER-02 inc Simarine Battery Monitoring
- K-ADVENTURER-03 inc Simarine & Individual Load Monitoring
The Adventurer 01 for example consists of the following items

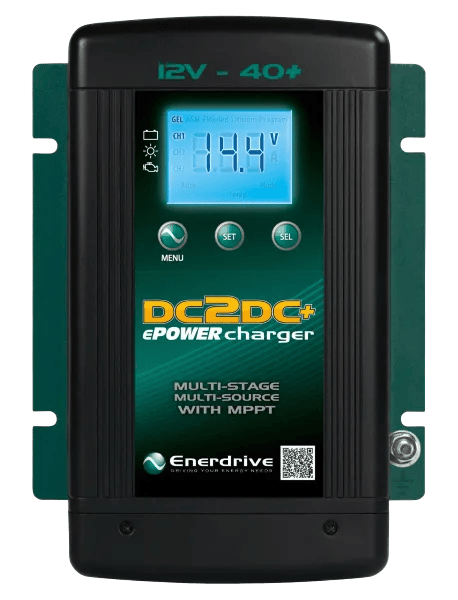

- Enerdrive ePOWER DC2DC40+ Vehicle/Solar Charger
- Enerdrive ePOWER 40A AC charger
- Enerdrive ePOWER 2000W AC Transfer Inverter
- 1 x ePRO Plus Battery Monitor
- 4x Pre-wired Circuit Breakers for main power equipment
- 4 x Contura switches for Lights & Auxiliary loads
- 4 x additional Circuits Breakers for Air/Water Pumps and more
- Main System & Inverter Hi-Amp Circuit Breakers
- 1 x 12v CIG & 1 x Dual 2.4A USB sockets come standard. You can choose a mixture of Twin USB 2.4A Hi Amp sockets to charge your mobile devices or mix it up with 2 x 12v Output Socket. The choice is yours at time of order.
- Battery Reset button for kick starting your flat battery from the DC2DC Charger
All Adventurer systems are pre-wired by Enerdrive so the only cabling required at installation time is load outputs, battery connection & vehicle/solar/tank inputs
SKU: K-ADVENTURER-03-R
SPECIFICATIONS
Specifications
| SKU | K-ADVENTURER-03 |
|---|---|
| Orientation | Right |
| DC Battery Charger | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) |
| AC Battery Charger | 12V 40A AC Battery Charger |
| Solar Charge Input (Solar ready) | ✓ |
| Lithium Battery ready | ✓ |
| Inverter | 2000W AC Transfer Inverter with Inbuilt RCD Safety Switch |
| Simarine LCD Touch Screen WiFi Battery Monitoring System | K-ADVENTURER-02 K-ADVENTURER-03 |
| Pre-Wired Circuit Breakers for Main Power Equipment | ✓ |
| Switches | 4 x Contura Water Resistant Rocker Switches |
| Integrated Light Bar | Sold separately |
| 4 x Customisable Laser-etched Rocker Switches | ✓ |
| Pre-wired 70mm2 Main Battery Cable Connection with Main DC Fuse | ✓ (with 175A Anderson Plug Socket) |
| USB Socket Output | Twin USB-A 2.4A Hi Amp Sockets |
| Cig Socket Output | 1 |
| RCD Protected Powerpoint | 1 |
| Battery Reset Button | ✓ |
| Individual Load/Charge Module for Simarine (SKU: SI-SCQ50) | K-ADVENTURER-03 |
| Water/Fuel Tank monitoring for Simarine - 2x resistance inputs included with SI-SC303 | K-ADVENTURER-02 (Included) K-ADVENTURER-03 (Included) |
| Water/Fuel Tank Module for Simarine. 4x resistance inputs 3x voltage (SKU: SI-ST107) | K-ADVENTURER-02 (Optional) K-ADVENTURER-03 (Optional) |
| Ignition Input for Smart Alternator Equipped Vehicles | Yes. Requires connection. |
| 2000W Inverter 200A Input Circuit Breaker | ✓ |
| Dimensions | 630L x 155W x 665H mm |
| Weight | 18.0kg |
| Warranty | 5 Years |
| Note | (✓) or (SKU) Indicates Standard Fitment |
| SKU: | K-ADVENTURER-03-R |
| Model #: | K-ADVENTURER-03-R |
| MPN: | K-ADVENTURER-03-R |
