DESCRIPTION

Noosa 50 Series Pre-Wired Victron Energy Power Board: Streamlined Lithium Charging for Mobile and Off-Grid Systems

Professional-Grade, Pre-Wired Power Hub for Caravans, RVs, and Marine Applications

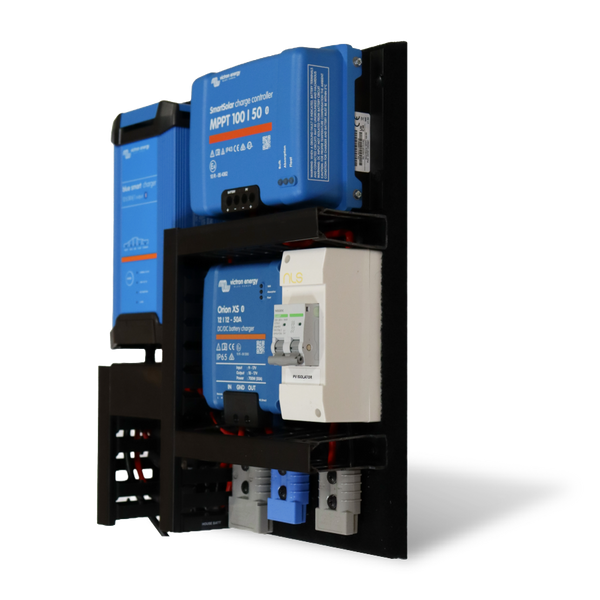

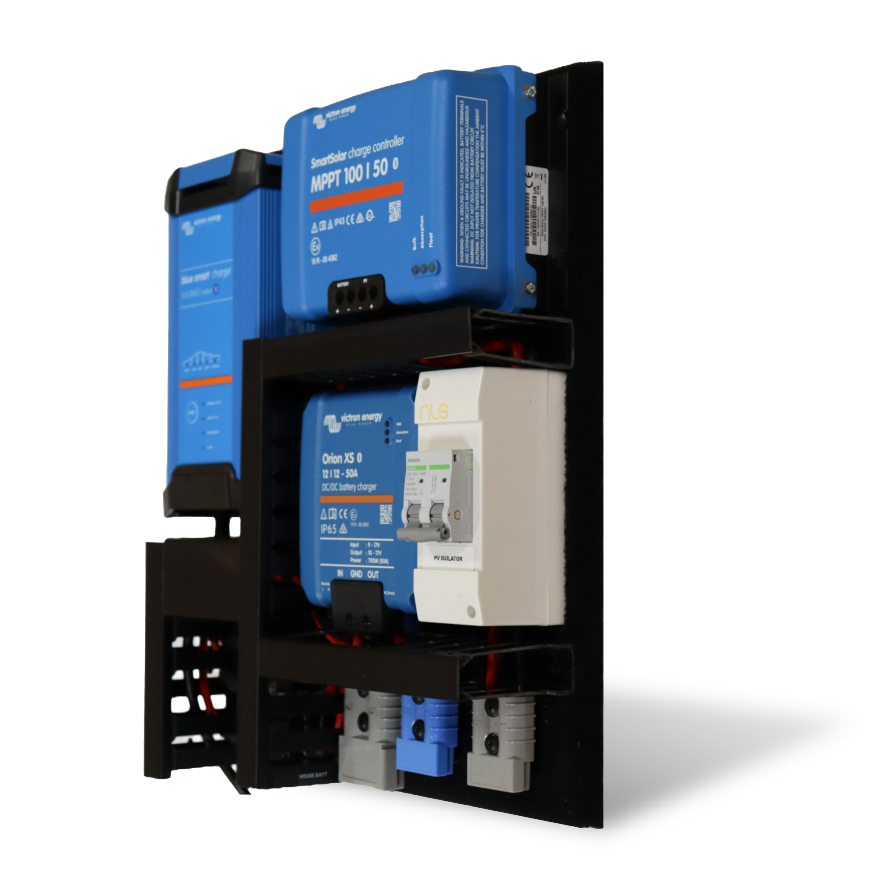

The Exotronic Noosa 50 Series Pre-wired Victron Board integrates three core Victron Energy charging components into a single, expertly wired assembly, eliminating the complexity of designing and building a multi-source power system from scratch. By combining a 50A DC-DC charger, a 50A MPPT solar controller, and a 30A mains charger on a compact 390 x 315mm board, this solution reduces installation time, minimises wiring errors, and ensures optimal charging performance for lithium battery upgrades. It is purpose-built for van conversions, RVs, caravans, and marine environments where space is limited and reliability is critical.

Unlike piecing together individual components, this pre-wired board arrives with all connections professionally terminated using genuine Anderson connectors and a pre-installed PV isolation switch, meeting Australian safety standards. The result is a faster, cleaner installation that lowers the risk of loose connections, voltage drop, or incorrect configuration—common pitfalls in DIY electrical setups.

Victron Energy Components: Engineered for Lithium Performance

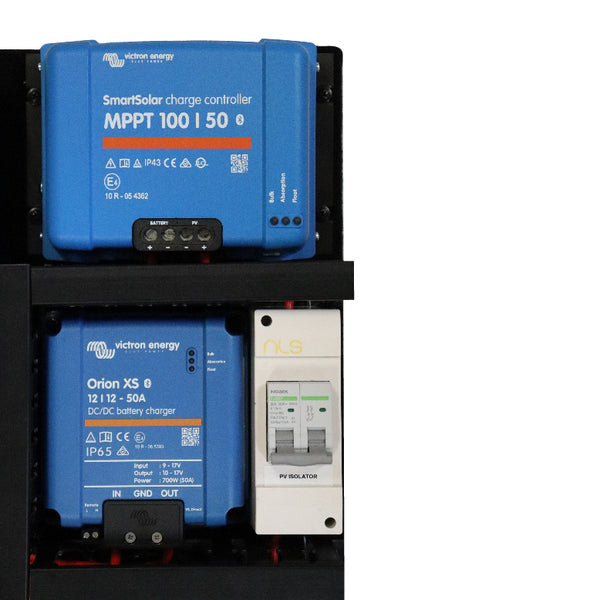

At the heart of the board is the Victron Orion XS 50A DC-DC Charger, which uses adaptive three-step charging and an intelligent recovery function to safely charge lithium batteries from a vehicle alternator. Its Bluetooth connectivity allows real-time monitoring and adjustment via the VictronConnect app, giving you full visibility of your charging system without additional displays.

The Victron SmartSolar MPPT 100/50 maximises solar harvest with ultra-fast Maximum Power Point Tracking, even under partial shading or overcast conditions. It supports solar arrays up to 1200W (600-800W recommended) and a maximum PV open-circuit voltage of 100V, making it suitable for a wide range of panel configurations. Bluetooth integration provides live data on solar yield and battery status.

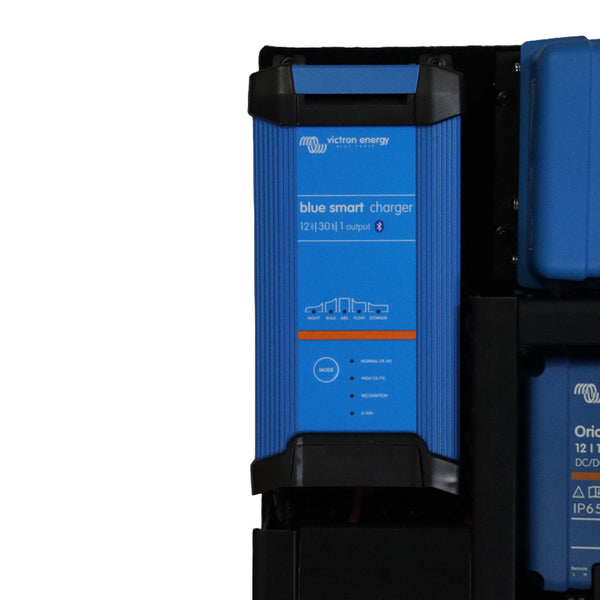

For shore power, the Victron Blue Smart IP22 12/30 Mains Charger delivers a 30A charge with a three-step process that adapts to battery condition, reducing charge time while protecting battery health. Its IP22 rating ensures durability in typical installation environments, and Bluetooth monitoring keeps you informed of charge progress.

Key Features

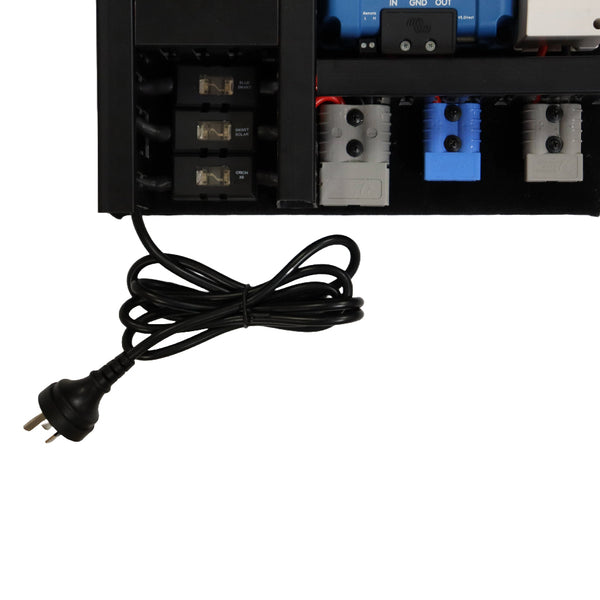

  • Pre-wired and tested with genuine Anderson connectors (120A grey output, 50A blue alternator input, 50A grey solar input) for plug-and-play integration
  • Integrated 50A Noark PV isolation switch for safe solar array disconnection, compliant with Australian standards
  • Simultaneous charging from solar and mains, or solar and DC-DC, with a combined maximum charge current of 100A
  • Compact footprint (390 x 315 x 95mm) fits under seats, beds, or in tight compartments
  • Bluetooth monitoring on all three Victron devices for remote system oversight via smartphone
  • Optimised for lithium batteries with adjustable absorption (14.2V) and float (13.5V) voltages, also compatible with lead-acid
  • Low self-consumption (3W zero-load power) preserves battery charge during storage

Simplified Installation, Reduced Risk

Traditional multi-charger installations require sourcing compatible components, calculating cable sizes, crimping terminals, and configuring charge profiles—a process that can take days and introduces potential points of failure. The Noosa 50 Series arrives with all internal wiring completed using appropriately sized cables, colour-coded Anderson plugs, and a detailed wiring diagram. This reduces the risk of incorrect connections, overheating, or underperformance, and allows both professional installers and experienced DIY users to complete a lithium-ready charging system in hours rather than days.

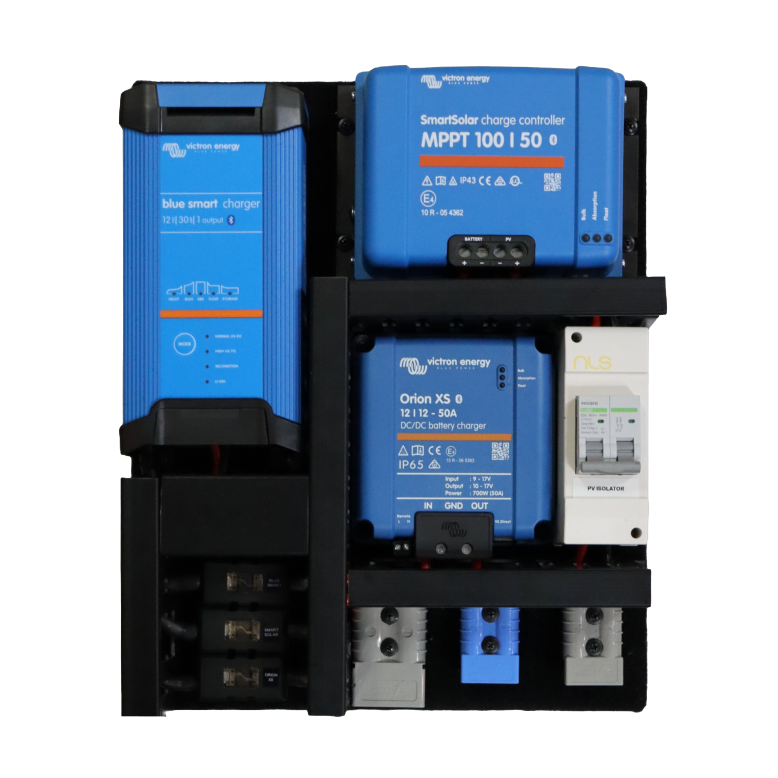

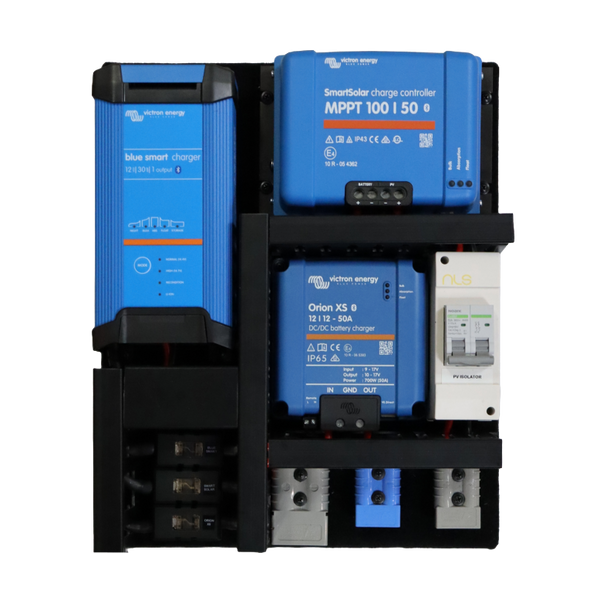

The board’s design also addresses common challenges in mobile installations: vibration resistance, heat dissipation, and accessibility. Components are securely mounted with adequate spacing for airflow, and the layout places connection points along the bottom edge for neat cable routing.

Applications Beyond the Basics

While ideal for van conversions and RV upgrades, this power board is equally suited to marine vessels, tiny homes, and remote off-grid cabins where reliable multi-source charging is essential. Its ability to accept input from a vehicle alternator, solar array, and 230V mains makes it a versatile energy hub for any mobile or stationary application requiring a robust 12V system.

Ready to Upgrade Your Power System?

Equip your caravan, boat, or off-grid setup with the Exotronic Noosa 50 Series Pre-wired Victron Board and experience the convenience of a professionally integrated charging solution. Order today to simplify your lithium upgrade and enjoy dependable power wherever you go.


SKU: PWB-Vic-C50-Nsa-01

SPECIFICATIONS

Specifications

Board DC Input Voltage

10 – 17V

Acceptable Battery Type

Lithium and Lead Acid Batteries

Minimum Battery Capacity and Current

100Ah

100A Continuous Current

Permitted Simultaneous Power Sources

Solar + Mains OR

Solar + DC-DC

System Zero Load Power

3W

Mains Charger AC Input Voltage Range

187 – 265VAC     45- 65Hz

Maximum Charge Current - Mains

30A

Maximum Charge Current - Solar

50A

Maximum Charge Current - DC-DC

50A

Maximum Total Charge Current

100A

Output Absorption Voltage

14.2V - Adjustable

Output Float Voltage

13.5V - Adjustable

Solar Maximum Voltage

100V

Solar Array Size

0 – 1200W

(600-800W recommended)

Solar Maximum Short Circuit Current

60A

Board Temperature Rating

5C – 50C

(0C – 65C storage)

Board Portrait Dimensions

390 x 315 x 95mm

Board Weight

5.7kg


SKU: PWB-Vic-C50-Nsa-01
Barcode: 9361784000237

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
