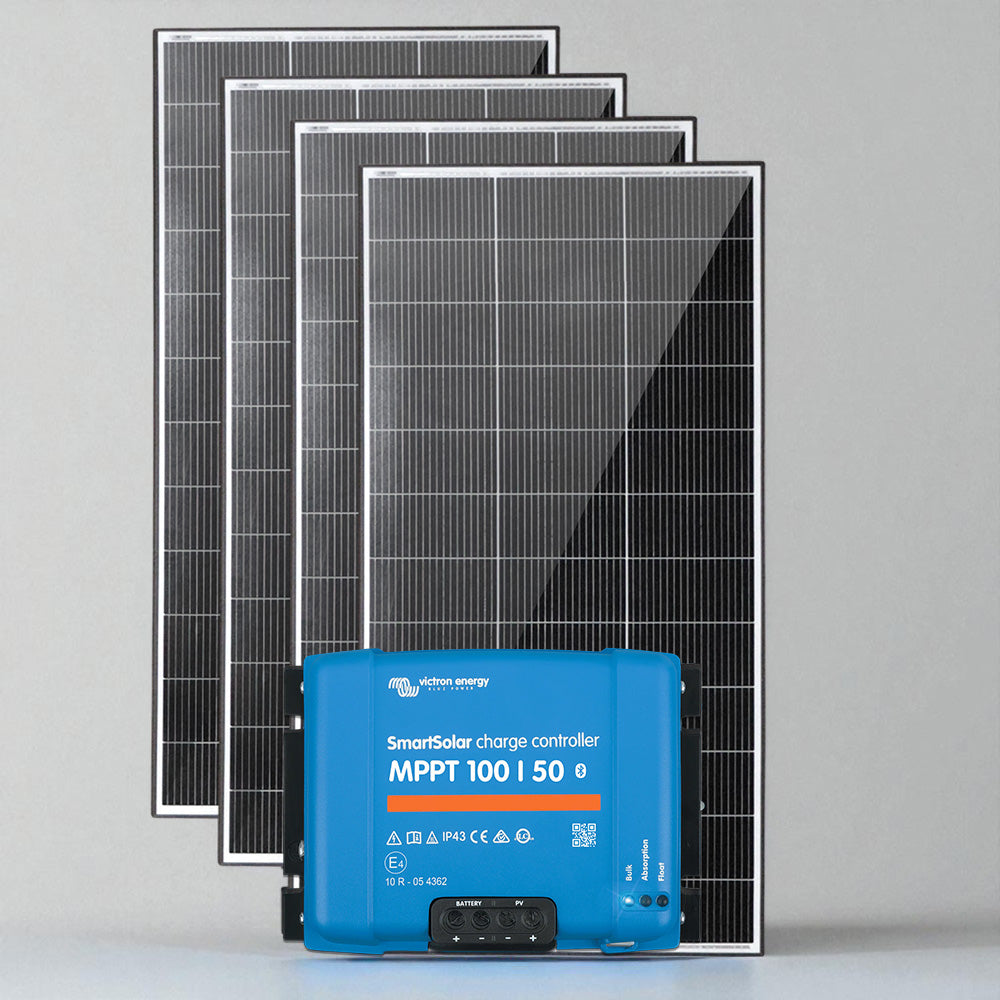

Exotronic 4x 200w Solar Panel & Victron SmartSolar MPPT 100/50 Bundle
800W N-Type TOPCon Kit with Victron MPPT 100/50 & Mounting Hardware
Exotronic 2x 220w Solar Panel & Victron SmartSo...DESCRIPTION
Exotronic 4x 200W Fusion Series & Victron SmartSolar MPPT 100/50: High-Capacity Off-Grid Solar Bundle
Complete 800W Solar Kit with Advanced TOPCon Panels and Intelligent MPPT Charge Control
The Exotronic 4x 200W Solar Panel & Victron SmartSolar MPPT 100/50 Bundle delivers a powerful, integrated energy solution for large off-grid and mobile applications. Combining four high-efficiency N-Type TOPCon solar panels with the precision of a Victron SmartSolar MPPT 100/50 Bluetooth charge controller, this bundle is engineered for caravans, RVs, marine vessels, tiny homes, and industrial setups where reliable, high-yield solar power is essential.
Each Exotronic 200W Fusion Series panel features advanced TOPCon (Tunnel Oxide Passivated Contact) cell technology, achieving a 25.2% cell efficiency that outperforms conventional monocrystalline and PERC panels. This means more energy from a compact footprint, making it ideal for roof-mounted installations with limited space. The panels are built to withstand harsh Australian conditions, with a robust anodised aluminium frame and high-transmissivity tempered glass that resists impact and environmental degradation.
The included Victron SmartSolar MPPT 100/50 charge controller maximises energy harvest with ultra-fast Maximum Power Point Tracking, delivering up to 30% more efficiency than traditional PWM controllers. Its built-in Bluetooth connectivity allows real-time monitoring and configuration via the VictronConnect app, giving you complete control over your system's performance and battery health.
Key Features
- 800W total solar capacity from four 200W panels, suitable for 12V, 24V, or 48V battery banks
- 25.2% cell efficiency with N-Type TOPCon technology for superior low-light and high-temperature performance
- Victron SmartSolar MPPT 100/50 with Bluetooth for intelligent charging and remote system management
- Comprehensive protection including PV reverse polarity, output short circuit, and over-temperature safeguards
- Complete installation kit with four mounting bracket sets and two tubes of Fix15 adhesive sealant
- Durable construction rated for wind loads up to 2400 Pa and snow loads up to 5400 Pa
Advanced TOPCon Technology for Maximum Energy Yield
Unlike standard PERC or monocrystalline panels, the Fusion Series utilises N-Type TOPCon cells that offer lower degradation rates and better performance in real-world conditions. The 18-busbar design minimises resistive losses and reduces hot-spot risks, ensuring consistent output even under partial shading. With a temperature coefficient of just -0.29%/°C, these panels maintain high efficiency in hot climates, making them a smart choice for Australian off-grid systems.
Victron SmartSolar MPPT 100/50: Intelligent Charge Management
The Victron SmartSolar MPPT 100/50 is a premium charge controller that automatically detects 12V or 24V battery systems and adjusts charging parameters for optimal battery life. Its multi-stage adaptive charge algorithm, combined with temperature compensation, prevents overcharging and extends battery lifespan. The integrated VE.Direct port allows connection to a GX device for advanced system monitoring, while the IP43-rated electronics ensure reliability in dusty or damp environments.
Built for Demanding Environments
This bundle is designed to solve the challenges of powering large loads in remote locations. The panels' salt mist and ammonia resistance make them suitable for coastal and agricultural settings, while the fully potted junction boxes prevent moisture ingress. The Victron controller's robust terminal design accepts cables up to 16 mm² (AWG6), ensuring secure, low-resistance connections for high-current applications.
Ready to Power Your Off-Grid Adventure?
Equip your caravan, boat, or remote installation with the Exotronic 4x 200W Fusion Series & Victron SmartSolar MPPT 100/50 Bundle and experience reliable, high-efficiency solar energy. Order today and take the next step toward energy independence.
SKU: Exo-Vic-4x200-100-50-00
SPECIFICATIONS
Specifications
Exotronic Fusion 200w TOPCon Solar Panel
Electrical Characteristics |
|||||||||
| Model | Power (W) | Dimensions (mm) | Weight (kg) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | ||
| Exo-SP-TCN-200 | 200 | 1320x670x25 | 8.9 | 18.0 | 11.11 | 21.0 | 12.1 | ||
Temperature Ratings |
|
| NMOT | 41C +/-3C |
| Temperature Coefficient of Pmax | -0.37%/C |
| Temperature Coefficient of Voc | -0.29%/C |
| Temperature Coefficient of Isc | 0.05%/C |
Maximum Ratings |
|
| Operating Temperature | -40 - +85C |
| Maximum System Voltage | 1000VDC |
| Maximum Fuse Rated Current | 15A |
Mechanical Characteristics |
|
| Front | 3.2mm Tempered Glass |
| Frame | Black Anodized Aluminium Alloy |
| Junction Box | IP65 |
| Connectors | MC4 Compatible |

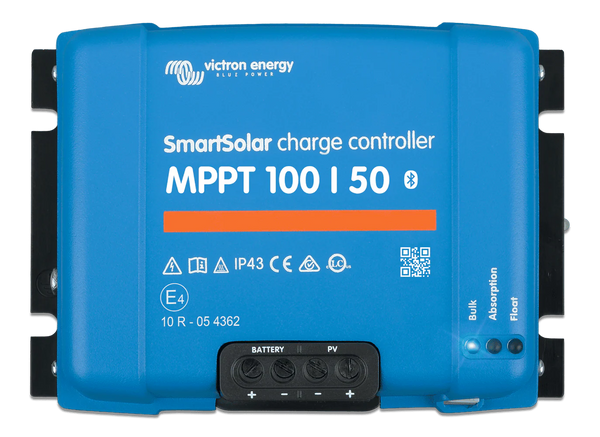

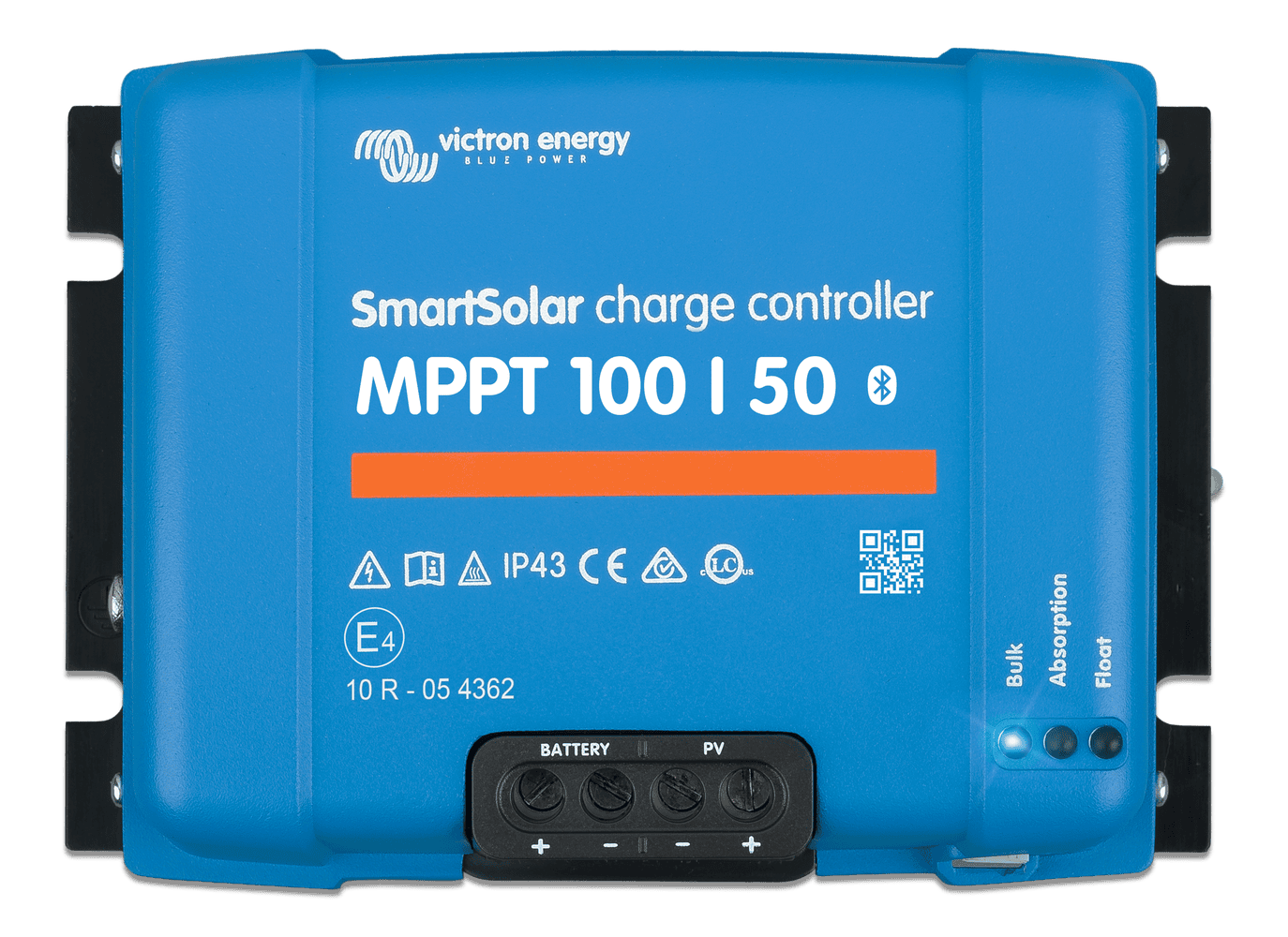

Victron 12/24V 50A SmartSolar MPPT 100/50 Bluetooth Solar Charge Controller
| SmartSolar Charge Controller | MPPT 100/50 |
|---|---|
| Battery voltage | 12/24 V Auto Select |
| Rated charge current | 50 A |
| Nominal PV power, 12 V (1a,b) | 700 W |
| Nominal PV power, 24 V (1a,b) | 1400 W |
| Maximum PV open circuit voltage | 100 V |
| Max. PV short circuit current (2) | 60 A |
| Maximum efficiency | 98 % |
| Self-consumption | 12 V: 30 mA, 24 V: 20 mA |
| Charge voltage 'absorption' | Default setting: 14,4 V / 28,8 V (adjustable) |
| Charge voltage 'float' | Default setting: 13,8 V / 27,6 V (adjustable) |
| Charge algorithm | multi-stage adaptive |
| Temperature compensation | -16 mV / °C resp. - 32 mV / °C |
| Protection | PV reverse polarity, Output short circuit, Over temperature |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
| Data communication port | VE.Direct |
| Enclosure Colour | Blue (RAL 5012) |
| Power terminals | 16 mm² / AWG6 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 1,3 kg |
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
| Safety Standards | EN/IEC 62109- 1, UL 1741, CSA C22.2 |
| Stored Trends Data | Battery voltage, current and temperature, as well as load output current, PV voltage and PV current. |
| Number of days trends data is stored | 46 |
Notes:
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2A PV array with a higher short circuit current may damage the controller.
| SKU: | Exo-Vic-4x200-100-50-00 |
WARRANTY
Exotronic Panel - 5 year warranty - please read full warranty statement for details
Victron - 5 year warranty - please read full warranty statement for details
Wiring kit and accessories - 1 year warranty
