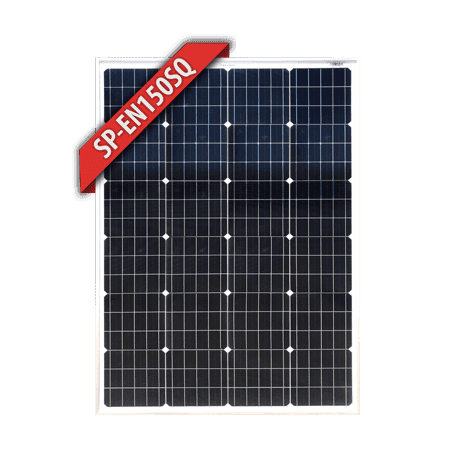

Enerdrive 150W Square Silver Frame Monocrystalline Fixed Solar Panel

Enerdrive 150W Square Monocrystalline Solar Panel: Reliable 12V Mobile Power

Power your next off-grid adventure with the Enerdrive 150W Square Monocrystalline Fixed Solar Panel. Engineered specifically for mobile applications, this robust solar module is an excellent addition to caravans, camper trailers, 4x4 canopies, and marine vessels. Featuring high-efficiency monocrystalline cells, this panel captures maximum sunlight to keep your 12V deep cycle batteries charged, ensuring your fridge, lights, and essential electronics stay powered while you explore remote locations.

Advanced Monocrystalline Cell Technology

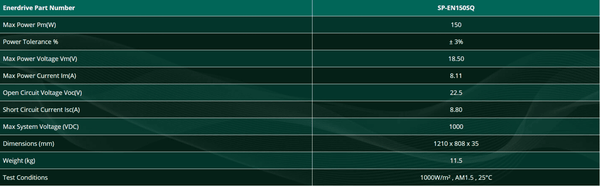

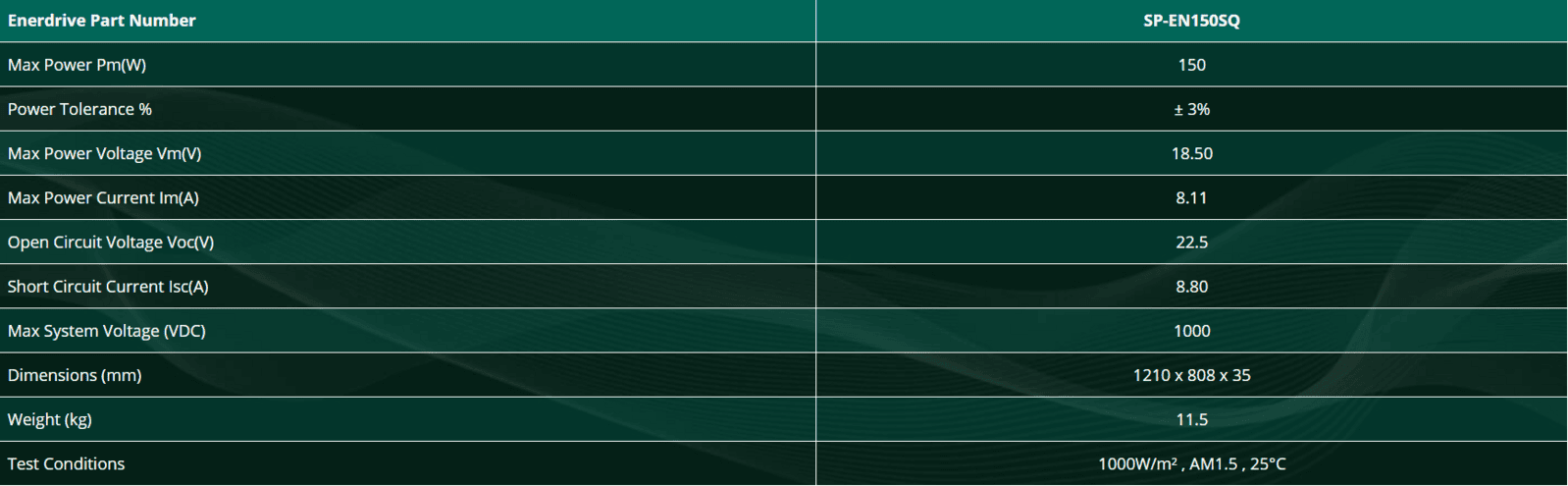

At the core of this 150W panel are premium monocrystalline solar cells. Known for their superior efficiency and longevity, monocrystalline cells outperform older polycrystalline alternatives, providing a higher energy yield per square metre. This means you generate more power without sacrificing valuable roof space on your vehicle. With a maximum power voltage of 18.5V and an open circuit voltage of 22.5V, this module is precisely optimised to work alongside MPPT solar charge controllers, extracting maximum available energy from the sun.

Built Tough for Australian Conditions

Mobile solar installations demand serious durability, and the Enerdrive 150W panel is constructed to withstand the vibrations, harsh UV rays, and extreme temperatures of off-grid travel. The solar cells are protected by high-transmissivity tempered glass, which enhances light capture while offering excellent resistance against environmental impacts. Encasing the panel is a rigid silver anodised aluminium frame measuring 35mm in thickness, providing structural integrity and multiple mounting options for standard solar brackets. Weighing 11.5kg, it offers a solid balance of heavy-duty construction and manageable installation weight.

Seamless Electrical Integration

Wiring up your off-grid system is straightforward and highly efficient. The panel is fitted with industry-standard MC4 compatible connectors, allowing for a secure, weather-resistant, and plug-and-play connection to your existing solar wiring harness. While ideally suited for charging 12V battery banks, the flexible design allows multiple panels to be easily wired in series. This configuration supports 24V battery systems or enables higher voltage strings to minimise voltage drop over long cable runs, giving you complete control over your power system design.

Key Features

• 150W Power Output: Provides reliable daily charging for 12V off-grid battery systems.
• High-Efficiency Cells: Premium monocrystalline technology for maximum solar harvest in a compact footprint.
• Durable Construction: 35mm silver anodised aluminium frame and tempered glass built for rugged travel.
• MC4 Connectors: Pre-wired with standard solar connectors for rapid, waterproof installation.
• Versatile Wiring: Optimised for 12V setups, but easily wired in series for 24V or 48V off-grid applications.

Backed by Local Australian Support

When investing in your off-grid electrical system, reliable support is essential. Enerdrive is renowned for its exceptional technical assistance and local backing. By choosing this panel, you are supported by an Australian team that understands local conditions, ensuring peace of mind without having to navigate overseas support channels or complex third-party statements.

Power Your Journey Today

Enhance your energy independence and keep your batteries topped up wherever you travel. Add the Enerdrive 150W Square Monocrystalline Solar Panel to your off-grid setup and experience reliable, continuous power on your next expedition.
