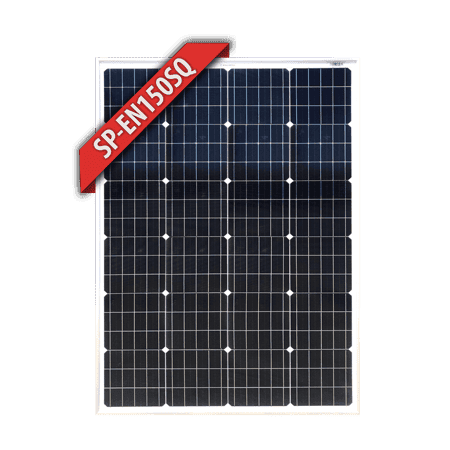

Enerdrive 150W Square Black Frame Monocrystalline Fixed Solar Panel

Enerdrive 150W Square Monocrystalline Solar Panel: Reliable 12V Off-Grid Power

The Enerdrive 150W Square Black Frame Monocrystalline Fixed Solar Panel offers an exceptional balance of power and space efficiency for mobile and off-grid energy systems. Designed with a distinct square-like form factor, this module is highly practical for installations where traditional long, rectangular panels simply do not fit. Whether you are outfitting a caravan, a camper trailer, or a marine vessel, this solar panel provides consistent energy generation to keep your 12V battery banks charged and your appliances running.

High-Efficiency Monocrystalline Technology

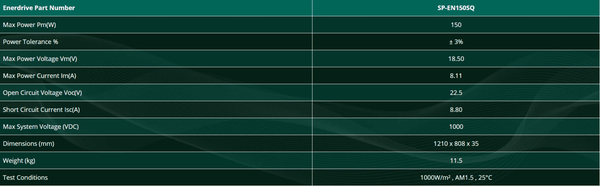

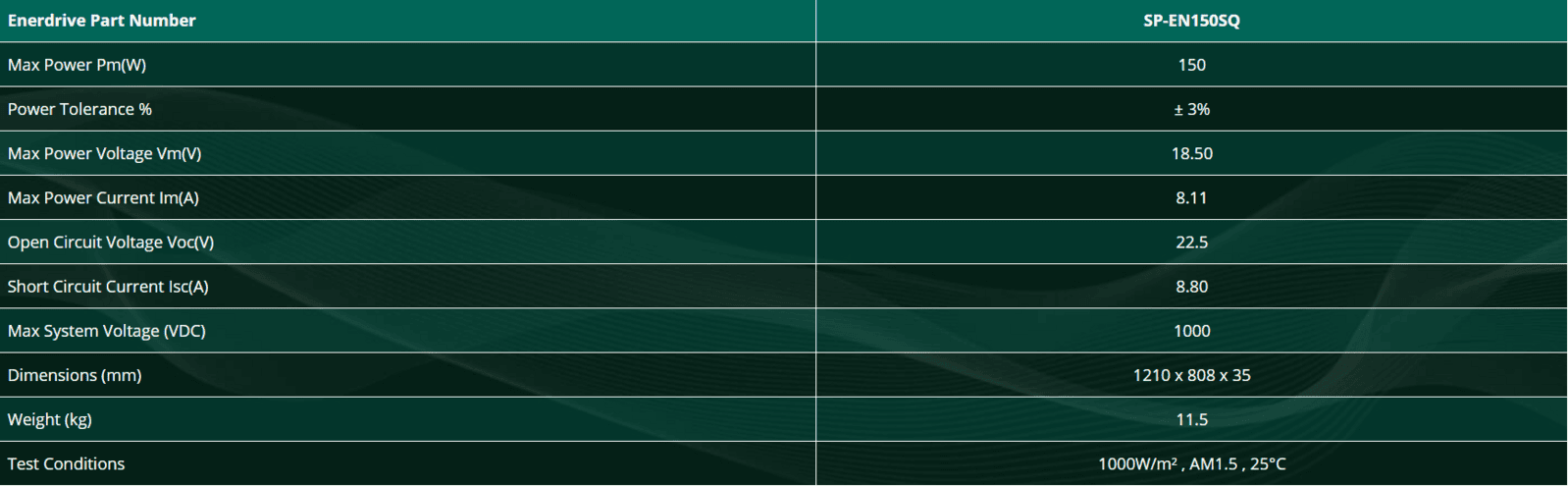

Built with premium monocrystalline cells, this 150-watt panel captures sunlight highly effectively, delivering steady power even during challenging light conditions. Producing a maximum power voltage (Vmp) of 18.5V and an open-circuit voltage (Voc) of 22.5V, it is perfectly tuned for 12V battery systems when paired with an MPPT or PWM solar controller. For larger power requirements, multiple panels can easily be wired in series to support 24V or 48V setups. This flexibility allows for scalable energy solutions tailored to your specific off-grid load requirements.

Unique Form Factor & Robust Construction

Measuring 1210 x 808 x 35 mm and weighing a manageable 11.5 kg, the compact footprint is a major advantage for crowded vehicle roofs. It allows installers to easily work around obstacles such as air conditioning units, skylights, and communication antennas. The module is encased in a rigid black powder-coated aluminium frame, which not only provides a sleek, modern aesthetic but also adds significant structural integrity. This heavy-duty frame protects the tempered glass and internal cells from harsh vibrations on corrugated outback roads, while offering enhanced corrosion resistance for coastal or marine environments.

Simplified Installation & Trusted Support

Setting up your solar array is straightforward and secure. The panel comes pre-wired with industry-standard MC4 compatible solar cable connectors, enabling weather-resistant electrical connections right out of the box. Additionally, choosing an Enerdrive solar product means investing in locally supported, high-quality equipment. This significantly reduces the risks associated with generic-grade products, giving you confidence in your power system's longevity and performance in extreme Australian conditions.

Key Features

• High-efficiency monocrystalline solar cells for optimal energy yield
• Compact footprint (1210 x 808 x 35 mm) suits challenging roof layouts
• Rugged black powder-coated aluminium frame for durability and sleek aesthetics
• Pre-fitted with MC4 compatible connectors for fast, secure wiring
• Generates 8.11A (Imp) to efficiently replenish 12V battery systems

Upgrade Your Mobile Energy System

Equip your vehicle or remote setup with a dependable power source built for local conditions. Order the Enerdrive 150W Square Black Frame Monocrystalline Fixed Solar Panel today and ensure reliable energy generation wherever your travels take you.
