Exotronic 12/24V 8x LED Rocker, Voltmeter, Dual Cigarette Lighter, Dual USB Socket Marine Switch Panel

Exotronic 12/24V 8x LED Rocker, Voltmeter, Dual Cigarette Lighter, Dual USB Socket Marine Switch Panel

When outfitting a marine vessel, 4WD canopy, or off-grid RV, managing multiple power circuits safely is a common challenge. The Exotronic 12/24V 8x LED Rocker Switch Panel resolves this by consolidating critical electrical controls into one compact, highly durable unit. Designed for both 12V and 24V DC systems, this control board simplifies wiring while providing complete oversight of your power distribution.

Streamlined 12V and 24V Power Distribution

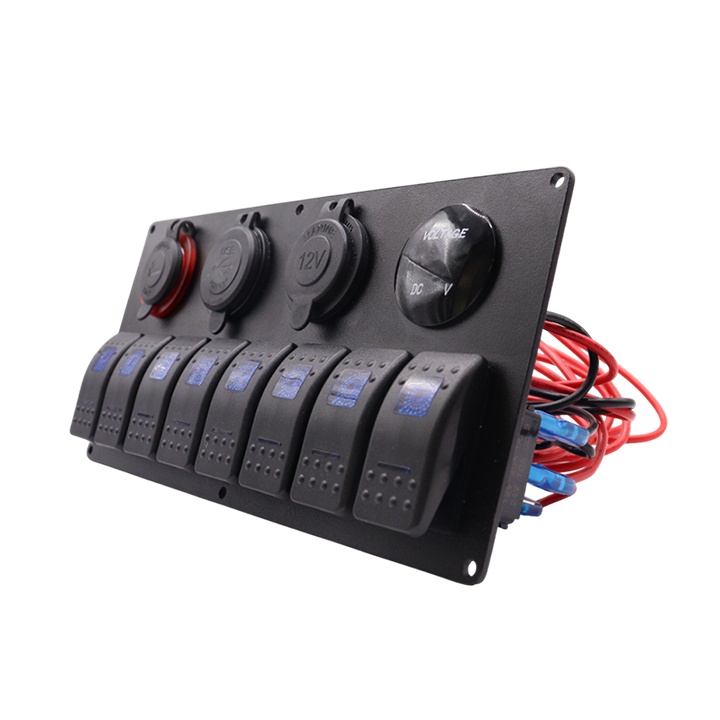

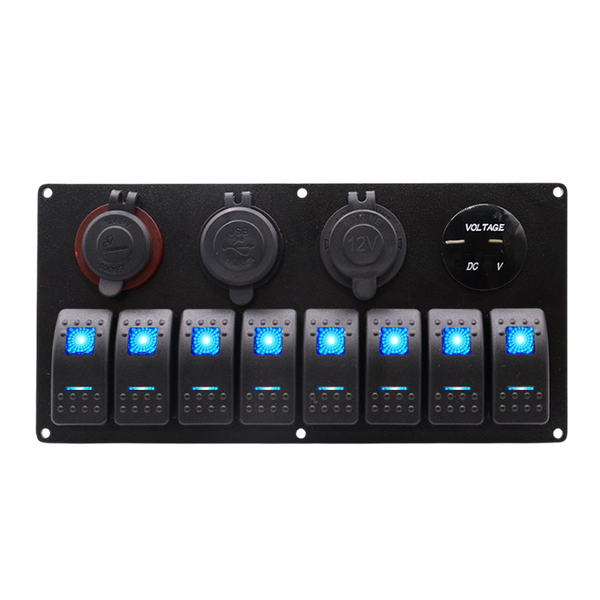

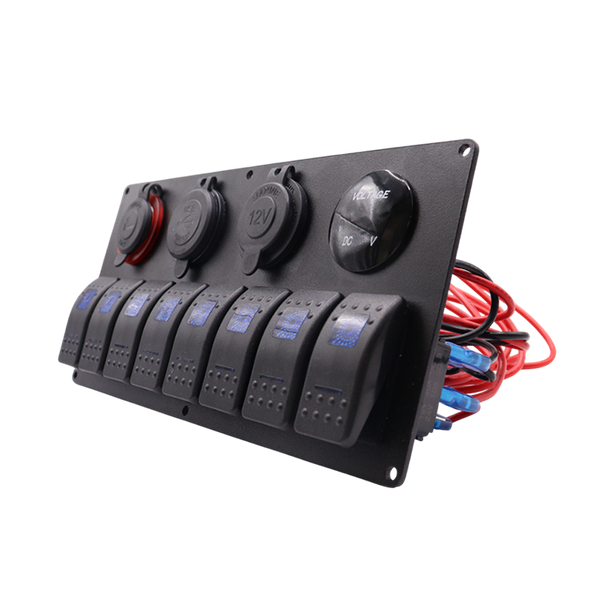

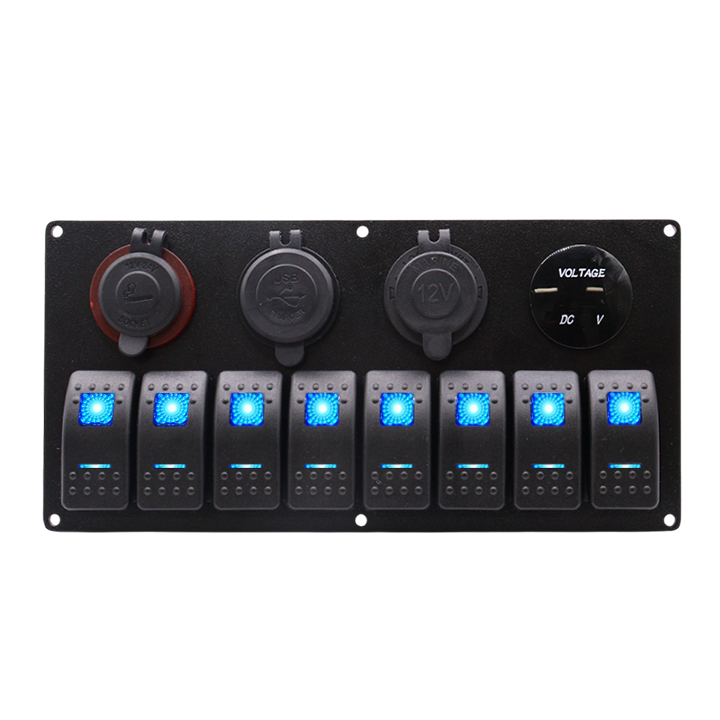

Building a reliable electrical system from scratch often leads to a cluttered dashboard and complex, error-prone wiring. This pre-wired 12V switch panel significantly reduces installation time. By combining eight illuminated rocker switches into a single black aluminium faceplate, you eliminate the need to source individual components. Whether you are installing a 12V system in a camper trailer or need a robust 24V switch panel for a larger off-grid truck, this unit handles the demands of modern vehicle accessories with ease.

Integrated Voltage Monitoring and Device Charging

Maintaining visibility of your battery state of charge is critical when running off-grid accessories. Featuring an integrated digital rocker switch voltmeter display, this panel allows you to monitor your system's voltage in real time, helping prevent deep discharge and extending battery life. Furthermore, the dual 12V auxiliary power sockets and dual USB ports (5V/2.1A and 5V/1A) ensure your portable electronics remain powered. If you are operating a portable power setup, this board pairs perfectly with accessories like a portable fridge or a solar panel with cigarette lighter socket input.

Built for Harsh Australian Conditions

Marine environments and corrugated outback roads require equipment that can withstand severe vibration and moisture. The Exotronic panel features a heavy-duty aluminium faceplate paired with ABS and polycarbonate components. It is rated to operate safely in temperatures ranging from -25°C to 80°C. Splash-proof rubber socket covers and fully insulated spade terminals ensure that moisture and dust do not compromise your electrical connections.

Flexible Customisation and High Current Capacity

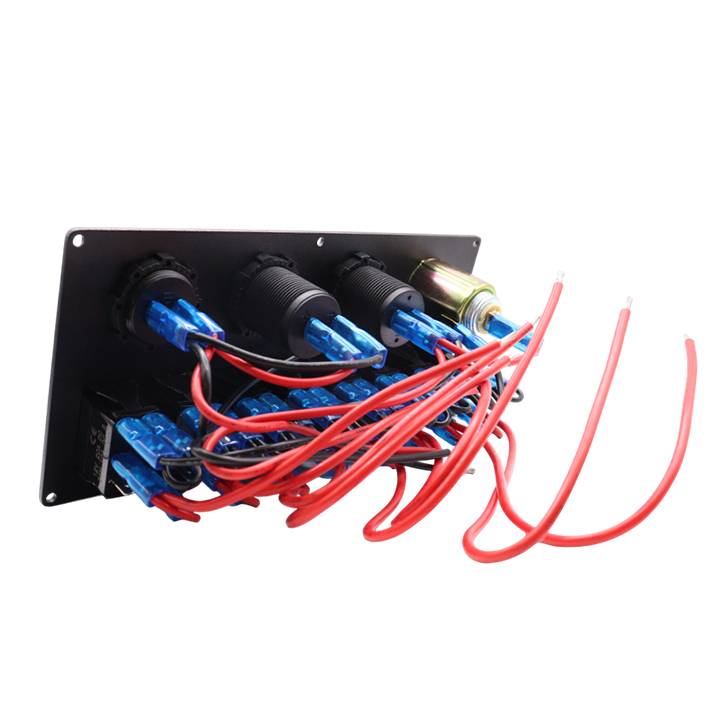

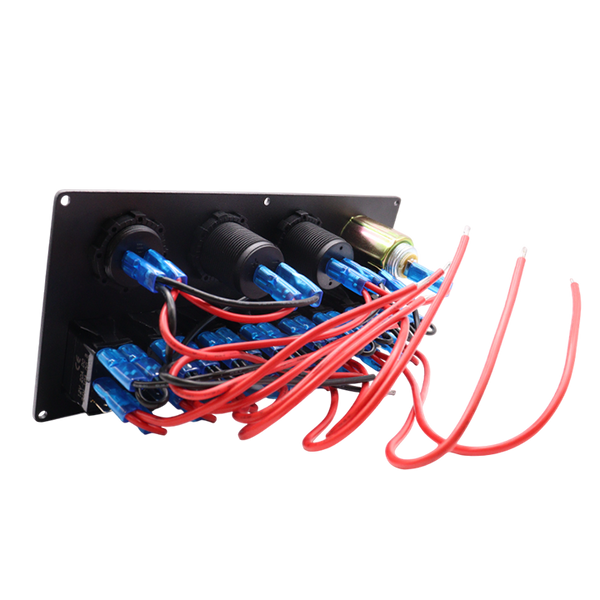

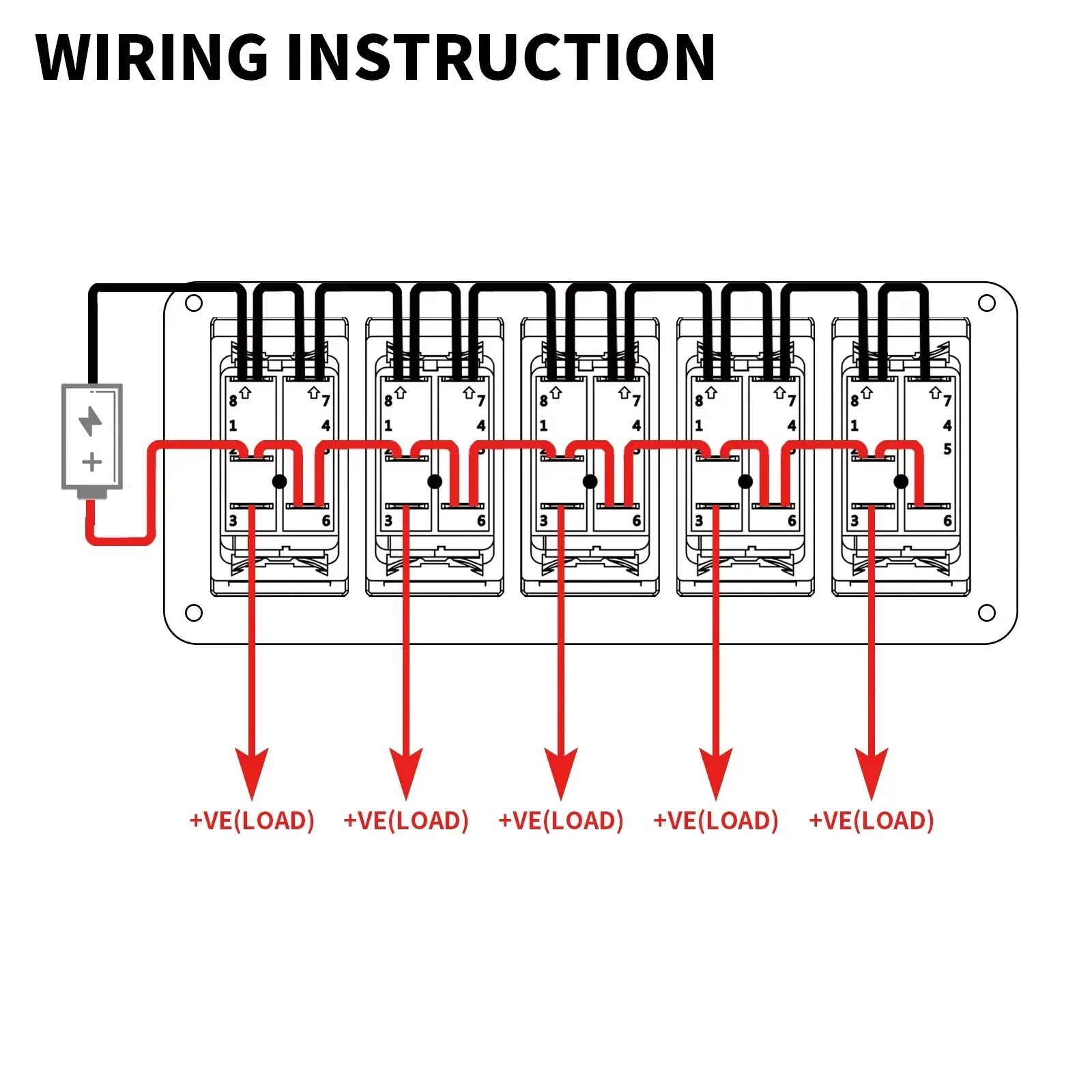

Every build is unique, which is why this panel is designed with flexibility in mind. The default pre-wired harness distributes power efficiently across the eight switches. However, each individual circuit is rated for up to 20A at 12V (or 10A at 24V). If you need to run a dedicated high-current circuit, the existing harness can be modified to wire switches individually. For advanced automation or specific circuitry needs, the standard cutouts also make it easy to swap in an alternative 8 pin rocker switch to control dual-load configurations.

Key Features

• Dual Voltage Compatibility: Seamlessly operates on both 12V and 24V DC battery systems.
• Comprehensive Power Hub: Includes dual USB ports, two 12V power sockets, and eight blue LED illuminated switches.
• Real-Time Monitoring: Integrated digital voltmeter helps you track auxiliary battery health instantly.
• Durable Construction: Built with a rigid aluminium plate, splash-proof covers, and flame-retardant ABS components.
• Safety Protections: Features overload and short circuit protection via inline safety components to safeguard your sensitive electronics.
• Customisable Labelling: Supplied with a comprehensive sticker set to clearly identify headlights, water pumps, fridges, and more.

Optimise Your Setup Today

Take the complexity out of your vehicle or marine electrical build. Consolidate your wiring and monitor your power safely with this comprehensive control unit. Equip your 4x4, boat, or off-grid cabin with the Exotronic 8-Gang Switch Panel and secure reliable control over your entire 12V or 24V system.
