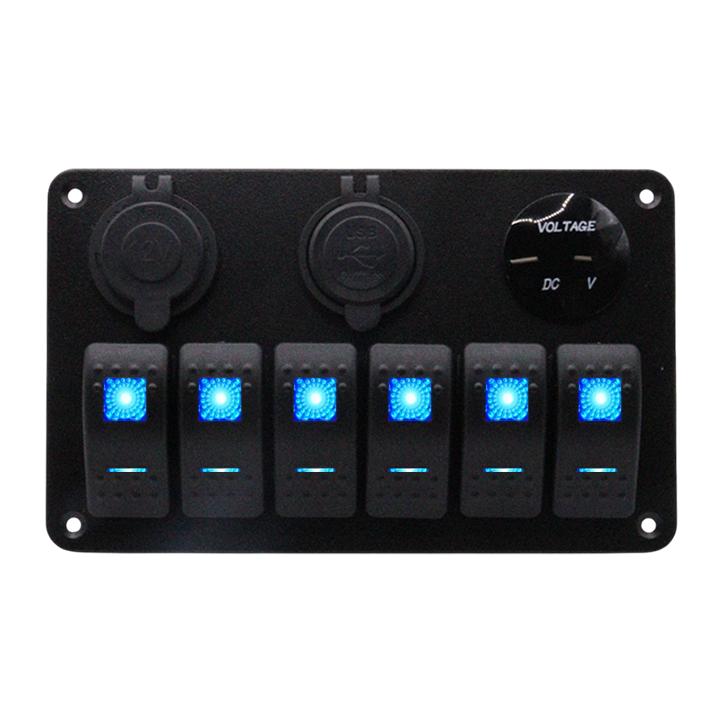

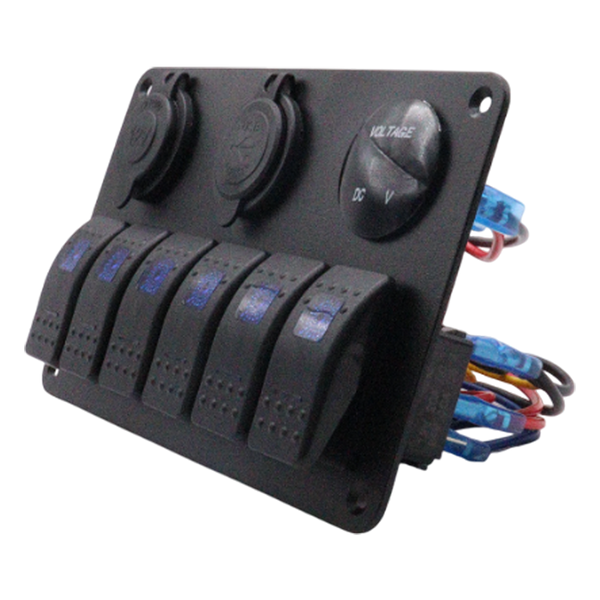

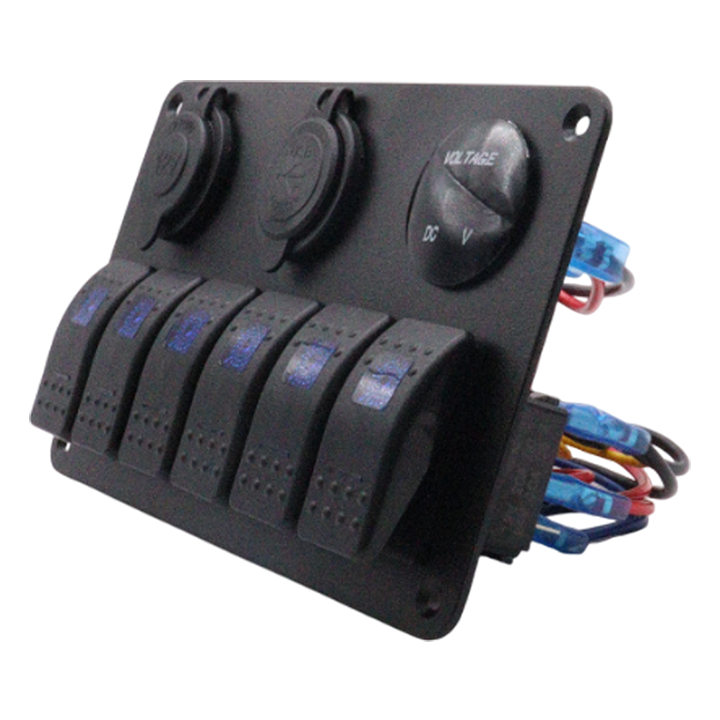

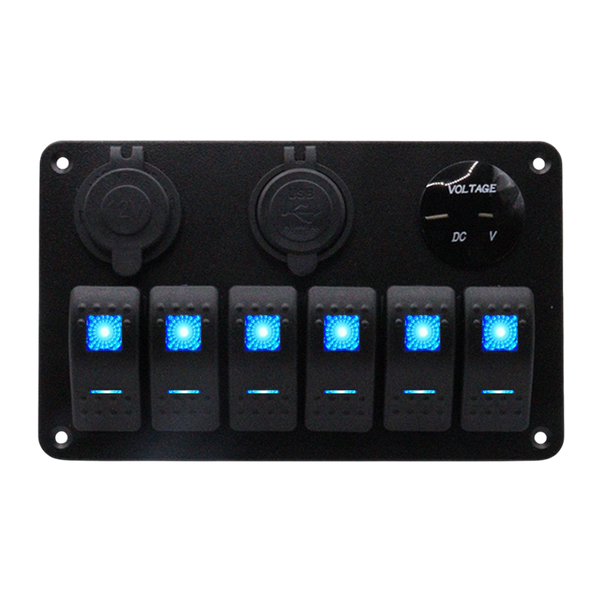

Exotronic 12/24V 6x LED Rocker, Voltmeter, Cigarette Lighter, Dual USB Socket Marine Switch Panel

Advanced 12V/24V Power Distribution and Monitoring for Marine and Off-Grid Systems

Managing multiple direct current loads safely and efficiently requires reliable hardware. The Exotronic 12/24V 6-gang marine switch panel integrates power distribution, system monitoring, and device charging into a single, space-efficient aluminium unit. Designed for marine environments, caravans, and off-grid solar setups, this panel provides a centralised point to act as a solar load controller or general accessory manager. It allows you to operate lighting, pumps, and electronics with complete confidence while keeping track of your system voltage.

Real-Time Voltage Monitoring and Integrated Charging

A critical component of any 12V or 24V battery bank is maintaining an optimal state of charge to prevent premature degradation. The integrated digital voltmeter switch provides clear, real-time feedback on your battery voltage, allowing you to monitor system health at a glance. Alongside the diagnostic display, the panel features a dual USB charging module (5V 2.1A and 5V 1A outputs) for powering mobile devices, plus a standard 12V power socket for larger portable accessories. This combination eliminates the need for separate, bulky dashboard additions, streamlining your electrical layout.

Robust Marine-Grade Construction

Built to withstand demanding environments, the faceplate is constructed from high-grade aluminium paired with durable ABS plastic and polycarbonate components. The rocker switches are illuminated with blue LEDs for clear visibility during night operation or in low-light conditions. Operating reliably in temperatures ranging from -25 degrees Celsius to 80 degrees Celsius, this panel is highly suited to the harsh temperature fluctuations often experienced in Australian 4x4 touring and marine applications.

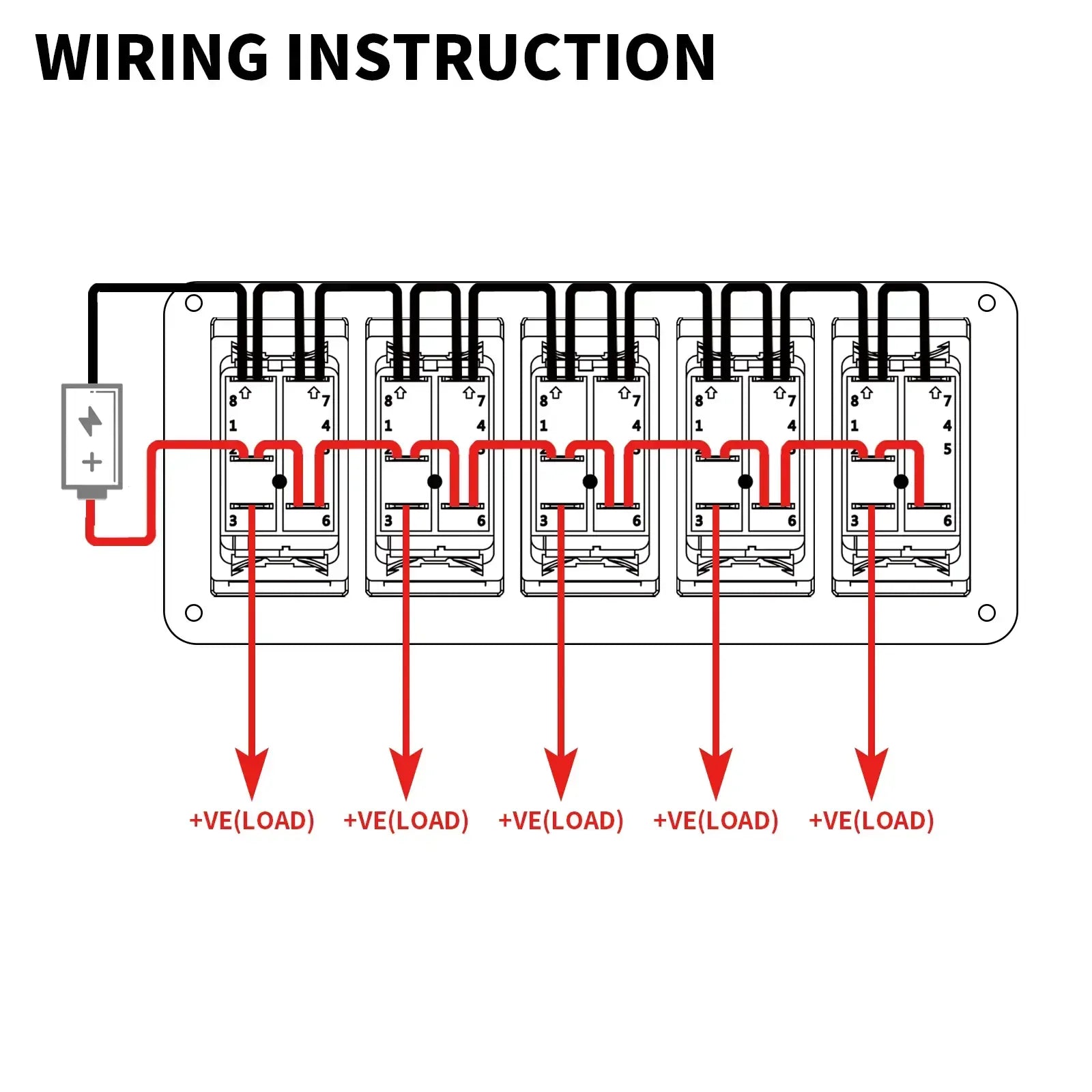

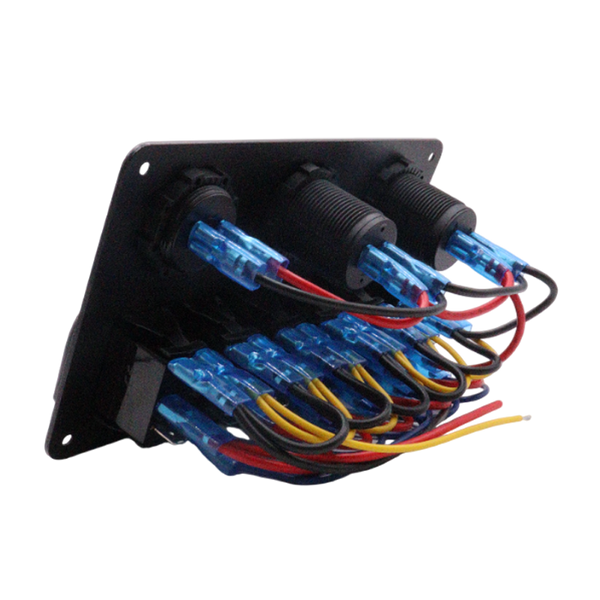

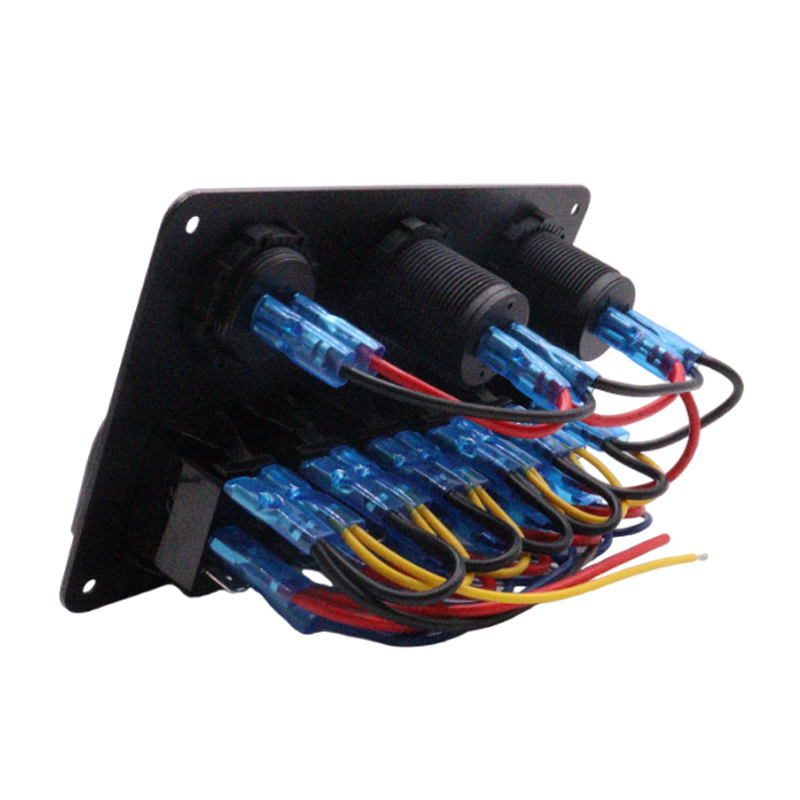

Pre-Wired for Safe and Simplified Installation

Installing custom electrical systems can be complex and time-consuming. To reduce the risk of wiring errors and ensure safe operation, this switch panel is supplied with a pre-wired harness featuring insulated spade terminals and integrated fuse protection. Each circuit is safeguarded against overloads and short circuits, protecting both your valuable accessories and the vehicle wiring infrastructure. If specific applications require high-current capacity, the default harness can be removed, allowing each switch to be wired independently to support up to 20A at 12V or 10A at 24V.

Key System Features

• Dual Voltage Compatibility: Engineered for both 12V and 24V DC systems, providing versatility across different vehicles and battery banks.
• High Current Capacity: Each rocker switch is rated to handle 20A at 12V or 10A at 24V.
• Integrated Diagnostics: The built-in digital voltmeter ensures you always know your exact battery status.
• Comprehensive Charging: Features a 12V cigarette lighter socket alongside a dual USB charging interface.
• Pre-Wired Harness: Includes inline fuses and insulated connections for immediate, secure installation.
• Customisable Labelling: Supplied with an included sticker sheet to accurately label your specific loads and accessories.

Optimised for Diverse Applications

Whether you are upgrading the dashboard on a boat, managing auxiliary lighting on a 4x4, or building a compact power wall for an off-grid cabin, this multi-function switch panel provides a professional finish. It functions effectively as a central hub for managing 12V accessories, making it an excellent upgrade over factory switches that lack modern safety features and monitoring capabilities.
