Victron Phoenix Inverter Control (Phoenix VE.Direct AU/NZ)

Remote ON/OFF/ECO Switch with LED Indicators - 60x65mm Flush Mount


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
11

DESCRIPTION

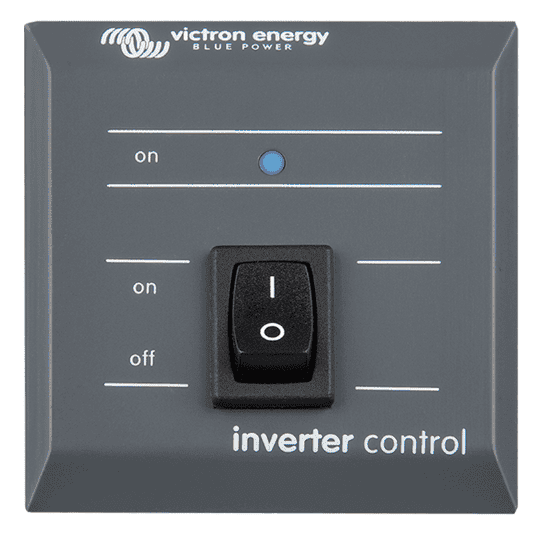

Victron Phoenix Inverter Control: Remote On/Off Panel for VE.Direct Inverters

Precision Remote Management for Your Victron Phoenix Inverter System

The Victron Phoenix Inverter Control provides a dedicated remote interface for managing Victron VE.Direct inverters, including the Phoenix Smart and standard VE.Direct inverter models. Designed for installations where the inverter is not easily accessible, this panel allows convenient ON/OFF/ECO switching from a central location, reducing unnecessary power draw and extending battery life.

With a compact 60 x 65 mm faceplate and a 40 x 45 mm mounting cut-out, it integrates neatly into control panels, cabinetry, or dashboards in caravans, motorhomes, marine vessels, and off-grid cabins. The three-position rocker switch offers straightforward control, while the blue status LED provides immediate visual confirmation of inverter operation and alarm conditions.

Why Use a Remote Inverter Control Panel?

In many mobile and off-grid installations, the inverter is mounted in a compartment, under a seat, or in an engine room. Accessing the inverter to switch it on or off can be inconvenient. This remote panel solves that problem by bringing control to a user-friendly location. It also enables ECO mode, which reduces standby consumption by automatically switching the inverter to a low-power state when no load is detected, then reactivating when a load is present. This is particularly valuable in solar-powered systems where every watt-hour counts.

Key Features

  • Three-position switch: ON, OFF, and ECO modes for flexible power management
  • LED indicators: Blue power LED and alarm indication for at-a-glance status monitoring
  • VE.Direct communication: Plug-and-play connection to all Victron VE.Direct inverters via the remote H/L port
  • Compact flush-mount design: 60 x 65 mm faceplate with a 40 x 45 mm cut-out for discreet installation
  • Polarity-dependent wiring: Simple two-wire connection ensures reliable operation when correctly installed

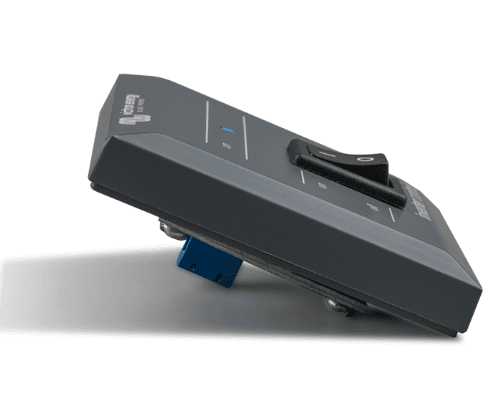

  • Low-profile construction: Recessed mounting screws and slim profile for a clean, professional finish

Compatibility and Integration

This control panel is compatible with all Victron VE.Direct inverters, including the popular Phoenix 12V, 24V, and 48V models. Whether you have a Victron 12/2000 Phoenix Smart Inverter or a compact 48/250 VE.Direct unit, this panel provides consistent remote control functionality. It connects via the inverter's remote H/L terminal, using a simple two-wire connection (polarity sensitive). No complex programming or additional interfaces are required.

Installation and Use

Mounting the panel requires a rectangular cut-out of 40 x 45 mm, making it suitable for standard switch panels. The included mounting screws secure the panel flush against the surface. Once wired to the inverter's remote port, the rocker switch immediately controls the inverter state. The blue LED illuminates when the inverter is active, and an alarm condition triggers a distinct indication, helping users quickly identify system issues.

Enhance Your Off-Grid Power System

Adding a remote control panel to your Victron inverter setup improves usability and energy efficiency. By enabling ECO mode, you can significantly reduce idle consumption, which is critical for battery-dependent systems. The panel's professional appearance and straightforward operation make it a practical upgrade for any installation.

Order the Victron Phoenix Inverter Control today and take command of your inverter from wherever you need it. Simplify your power management and optimise your energy use with this essential accessory.


SKU: VIC-REC040010210R

SPECIFICATIONS

Specifications

Product NameInverter Control VE.Direct
Victron Part NumberREC040010210R
FunctionRemote On/Off Control Of All VE.Direct Inverter Models
Compatible ModelsAll VE.Direct Inverters
Switch PositionsON / OFF / ECO
IndicatorsPower, Alarm
Remote ConnectorH / L
Remote Connection PolarityPolarity Dependent For Proper Operation
Panel Dimensions60 x 65 mm
Mounting Cut-out40 x 45 mm

SKU: VIC-REC040010210R
Barcode: 8719076041344
Model #: REC040010210R
MPN: REC040010210R

WARRANTY

Victron Energy Limited Warranty Policy





Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.





During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

• Reverse of battery polarity.

• Inadequate connection.

• Mechanical shock or deformation.

• Contact with liquid or oxidation by condensation.

• Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...).

• Breakage or damage due to lightning.

• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.

• For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.





This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.





Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.





Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.





Life Support Policy

As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.





As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.





Warranty on Repairs

The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.





Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.





Severability

If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.





For Australia only

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
