Victron Digital Multi Control 200/200A (Right Angle RJ45) GX / MultiPlus Remote Panel
AC Input Adjustment, Right-Angle RJ45, 65x120x40mm
Victron Digital Multi Control 200/200A / MultiP...DESCRIPTION
Victron Digital Multi Control 200/200A GX: Precision Remote Management for MultiPlus and Quattro Systems
Advanced Remote Panel for Inverter/Charger Control
The Victron Digital Multi Control 200/200A GX provides a dedicated, hardwired interface for remotely monitoring and adjusting your Victron inverter/charger system. Designed for seamless integration into control panels on boats, vehicles, and off-grid installations, this remote panel offers instant access to critical settings without needing a smartphone or laptop. The right-angle RJ45 connector ensures a low-profile, space-efficient fit behind mounting surfaces, making it ideal for compact electrical compartments.
With the ability to set AC input current limits up to 200 A, the DMC allows you to match your system’s draw to the available shore power or generator capacity. This prevents nuisance tripping of breakers and protects your AC source from overload, a common risk when connecting to weak marina supplies or portable generators. The panel replicates the inverter/charger’s LED status indicators, so you can verify operational modes at a glance—whether the unit is in bulk, absorption, float, or inverter mode.
Why a Dedicated Remote Panel Matters
While many Victron systems can be monitored via Bluetooth or the VRM portal, a physical control panel offers unmatched reliability and immediacy. There is no dependency on wireless connectivity, app updates, or device compatibility. In critical moments—such as when a generator is struggling or shore power is unstable—you can quickly switch the system to charger-only mode or adjust the input limit with the rotary knob. This reduces the risk of system shutdowns and extends the lifespan of your AC sources.
Compared to generic remote switches or basic digital meters, the Victron DMC communicates directly over the VE.Bus protocol, ensuring accurate, real-time data and full compatibility with all MultiPlus, MultiPlus-II, Quattro, and EasySolar models, including parallel and three-phase configurations. It also supports legacy VE.Bus products manufactured before 2008, providing a consistent control solution across mixed fleets.
Key Features
- 200 A AC input current adjustment via a tactile rotary knob, enabling precise matching to shore or generator limits
- Right-angle RJ45 connector minimises depth behind the panel, simplifying installation in tight spaces

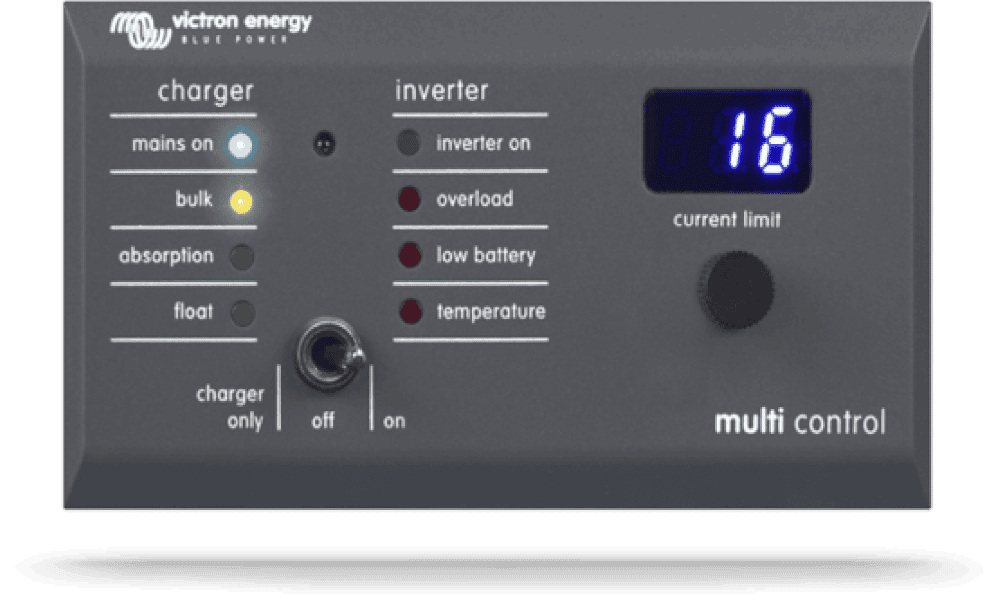

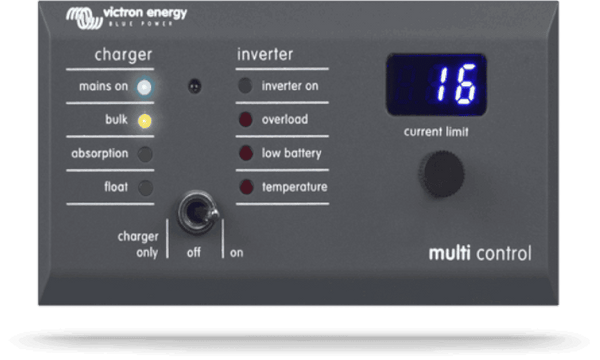

- Eight status LEDs mirror the inverter/charger’s own indicators for mains, bulk, absorption, float, inverter, overload, low battery, and temperature warnings
- 7-segment digital display shows the set AC input current limit and, if applicable, the active AC input source or VE.Bus error codes
- Three-position power mode switch (On, Off, Charger Only) for immediate system control without navigating menus
- Flexible mounting options include front recess, rear recess, or surface wall mount using the included frame and screws
- Generator support wiring accepts 0.25 to 1.0 mm² conductors for remote start/stop integration
- Wide operating temperature range from -20°C to 60°C, suitable for engine rooms and outdoor enclosures
Installation and Compatibility
Connecting the DMC is straightforward: a standard RJ45 UTP cable (not included) links the panel to the VE.Bus network. In most setups, no additional configuration is required—the panel is automatically recognised. The compact dimensions (65 x 120 x 40 mm) and included mounting frame allow for clean integration into existing dashboards or electrical panels. The right-angle connector is particularly beneficial when space behind the panel is limited, such as in marine navigation stations or slim RV control cabinets.
This remote is compatible with the full range of Victron inverter/chargers, including MultiCompact, MultiPlus, MultiPlus-II, MultiPlus-II GX, Quattro, Quattro-II, EasySolar, and EasySolar-II GX. It also supports older VE.Bus models, ensuring a unified control experience even when upgrading systems incrementally.
Enhance System Reliability and User Confidence
By providing a tactile, always-available interface, the Digital Multi Control reduces reliance on mobile devices and eliminates the frustration of connectivity issues. It empowers users to make real-time adjustments that protect their equipment and optimise energy usage. Whether you are managing a marine electrical system, a remote off-grid power setup, or a mobile workshop, this panel delivers the control precision needed to keep operations running smoothly.
Upgrade your Victron installation with the Digital Multi Control 200/200A GX and gain immediate, reliable command over your power system. Add it to your setup today for enhanced control and peace of mind.
SKU: Vic-DMC000200010R
SPECIFICATIONS
Specifications
| Product | Digital Multi Control 200/200A GX |
|---|---|
| Article Number | DMC000200010R |
| Connector | 90º RJ45 |
| Dimensions (H x W x D) | 65 x 120 x 40 mm |
| AC Input Current Setting Range | Up to 200 A |
| System Configurations | Stand-alone, Parallel, and 2- or 3-phase Configurations |
| Compatible Inverter/Charger Models | MultiCompact; MultiPlus, MultiPlus-II and MultiPlus-II GX; Quattro and Quattro-II; EasySolar and EasySolar-II GX; Legacy (pre-VE.Bus) Multi, MultiCompact, MultiPlus and Quattro (2008 and Earlier) |
| Display | 7-segment Display; Shows AC Input Current and, If Applicable, the AC Input Source or VE.Bus Error Codes |
| LEDs | Eight LEDs Replicate the Inverter/Charger LEDs |
| Power Mode Switch | On, Off or Charger-only Mode |
| Connection Cable | RJ45 UTP Cable, 30 cm to 30 m, Not Included |
| Generator Support Wiring | Two Wires, 0.25 to 1.0 mm² |
| Mounting | Front Recess; Rear Recess; Wall Mount |
| Included In The Box | Four Mounting Screws |
| Storage Temperature | -20°C to 60°C |
| SKU: | Vic-DMC000200010R |
| Barcode: | 8719076017011 |
| Model #: | DMC000200010R |
| MPN: | DMC000200010R |
WARRANTY
Victron Energy Limited Warranty Policy
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.
During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.
Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.
Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.
Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.
Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.
Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.
For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
