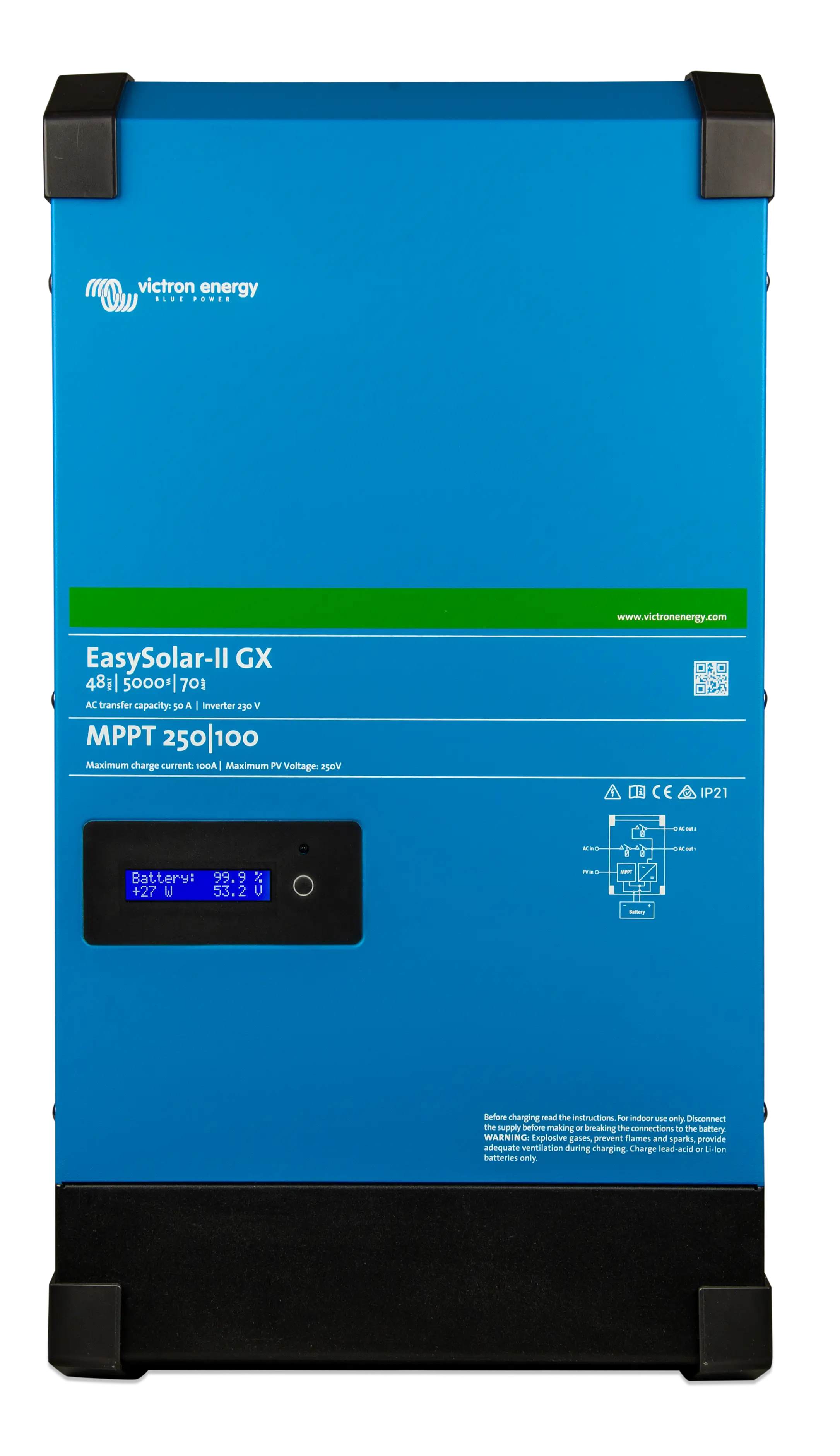

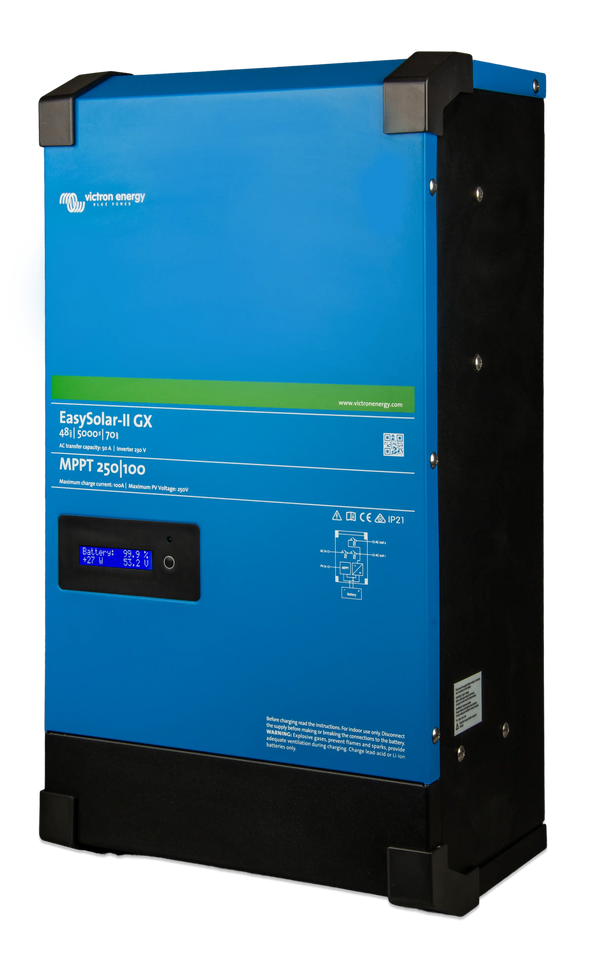

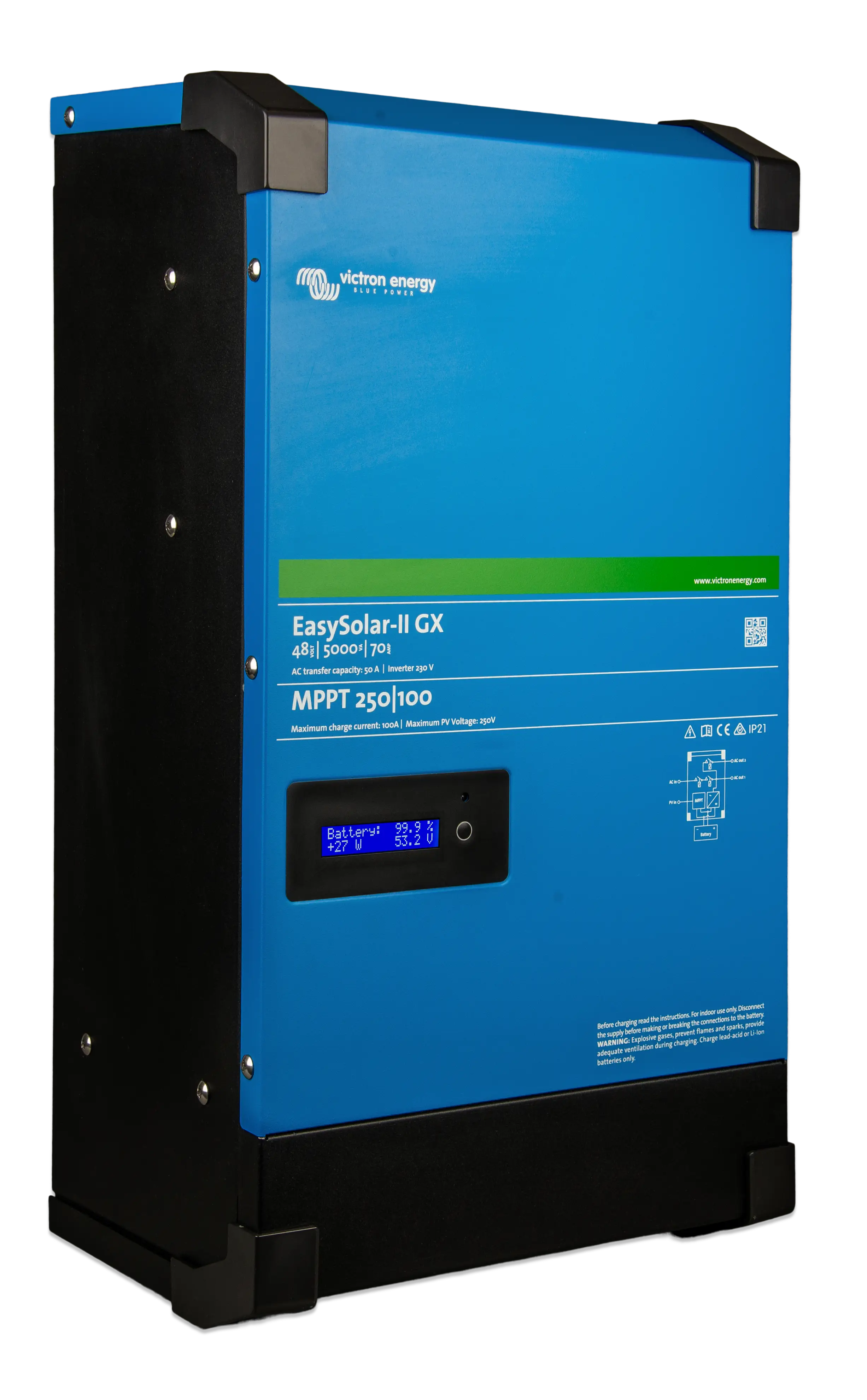

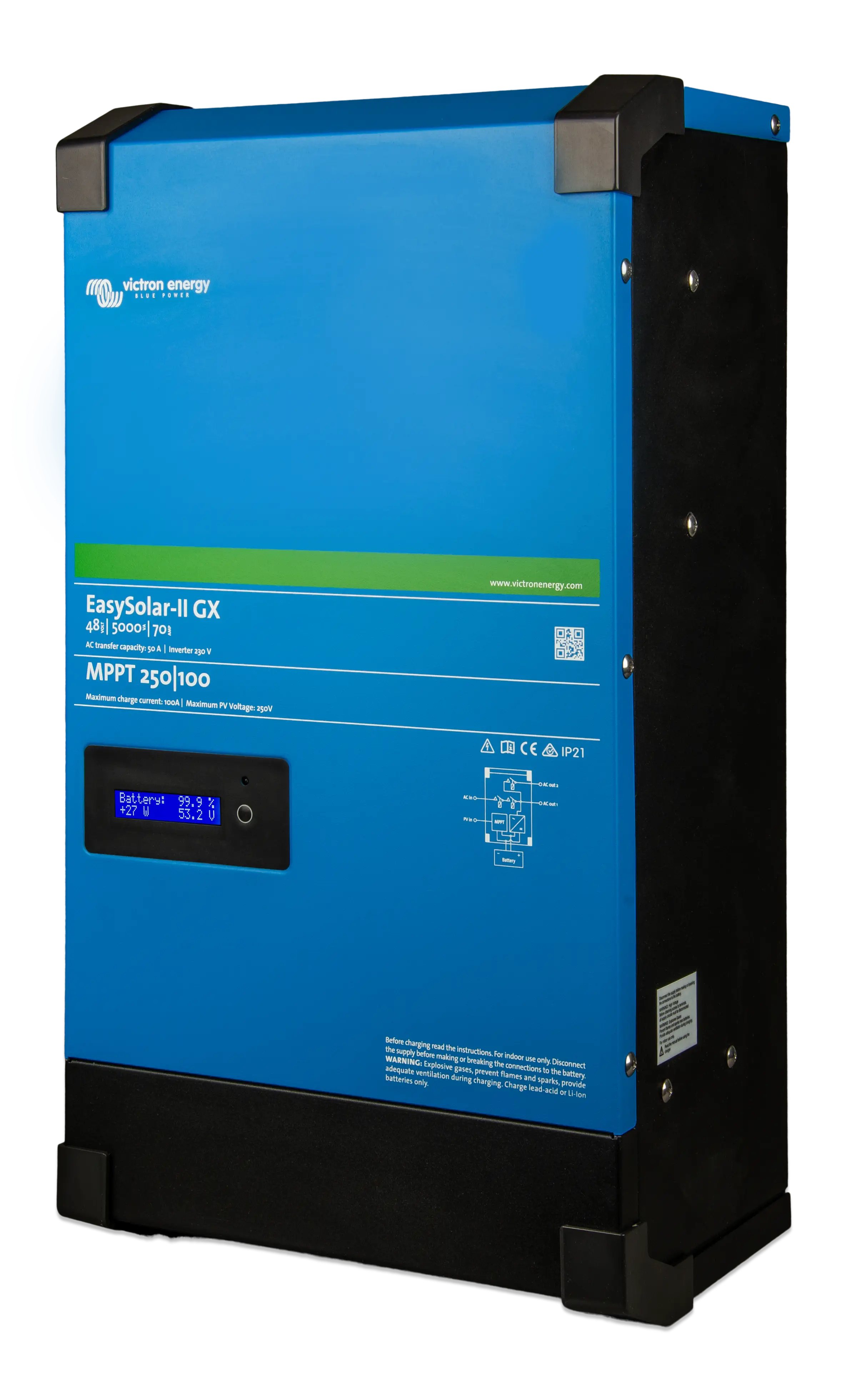

Victron 48V 5000VA EasySolar-II 48/5000/70-50 Inverter/Charger/MPPT 250/100 GX

5000VA Inverter, 70A Charger, 100A MPPT with GX Monitoring


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

Victron EasySolar-II 48/5000/70-50: Integrated 48V Inverter, Charger, and MPPT for Off-Grid Power

Unified Energy Management for Demanding Off-Grid and Backup Systems

The Victron EasySolar-II 48/5000/70-50 MPPT 250/100 GX consolidates a powerful 5000VA pure sine wave inverter, a 70A adaptive battery charger, and an advanced 100A SmartSolar MPPT charge controller into a single, space-efficient enclosure. By integrating these core components, this all-in-one 48V power hub reduces external wiring, simplifies installation, and minimises potential points of failure—making it an excellent foundation for off-grid solar systems, remote cabins, tiny homes, and critical backup power applications.

Designed for Australian conditions, the EasySolar-II delivers reliable AC power for household appliances, workshop tools, and sensitive electronics. Its integrated GX communication centre provides local and remote monitoring via Wi-Fi, Ethernet, and the Victron Remote Management (VRM) portal, giving you full control over your energy system from anywhere.

Reliable 5000VA Inverter with High Surge Capacity

At the heart of the EasySolar-II is a 5000VA (4000W continuous) inverter that produces clean, stable 230V AC power. This output is suitable for running demanding loads such as air conditioners, water pumps, and kitchen appliances. For equipment with high inrush currents—like compressors or induction motors—the inverter provides up to 9000W peak power, ensuring reliable starts without voltage dips. The PowerAssist feature intelligently supplements limited grid or generator supply with battery power, preventing overload trips and maintaining system stability.

High-Performance MPPT 250/100 Solar Charge Controller

The built-in SmartSolar MPPT 250/100 maximises energy harvest from your photovoltaic array. With a 250V maximum open-circuit voltage and 100A charge current, it can handle up to 5800W of solar input. Victron’s ultra-fast Maximum Power Point Tracking (MPPT) algorithm adapts rapidly to changing light conditions, capturing up to 30% more energy than conventional PWM controllers—particularly beneficial during overcast weather or partial shading. Direct M6 bolt connections for the PV array ensure secure, low-resistance terminations.

Integrated GX Monitoring and Control

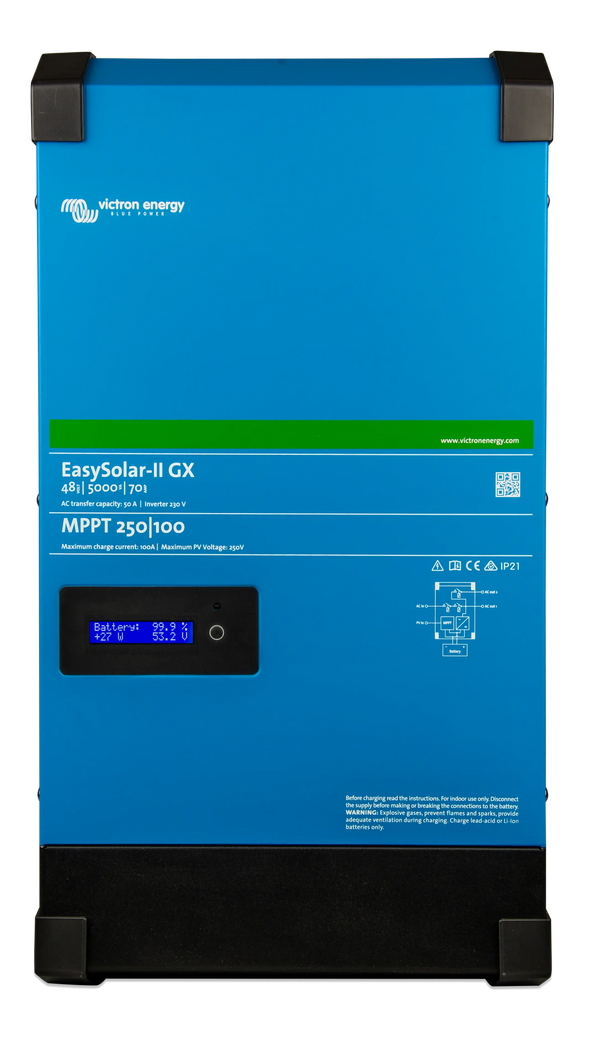

The onboard GX device serves as the communication hub, eliminating the need for an external control unit. It features a built-in digital display for real-time system data and supports connectivity via VE.Can, VE.Direct, USB, Ethernet, and Wi-Fi. This enables seamless integration with managed lithium batteries (BMS-Can), Victron accessories, and the VRM portal. Through VRM, you can monitor performance, adjust settings, and receive alerts from any smartphone or computer, providing peace of mind whether you’re on-site or away.

Key Features

  • All-in-one integration: Combines inverter, charger, MPPT, and GX control in a single IP21-rated aluminium enclosure, saving wall space and installation time.
  • 9000W surge capability: Starts heavy inductive loads with ease, reducing the risk of nuisance tripping.
  • Ultra-fast MPPT 250/100: Processes up to 5800W of solar power with 99% peak efficiency for optimal energy yield.
  • Comprehensive connectivity: Onboard Wi-Fi, Ethernet, VE.Can, and VE.Direct for BMS integration and remote monitoring via VRM.
  • Adaptive 70A charger: Multi-stage charging with temperature compensation extends battery service life.
  • Dual AC outputs: Separate connections for critical and non-critical loads, enhancing system flexibility.

Simplified Installation, Reduced Footprint

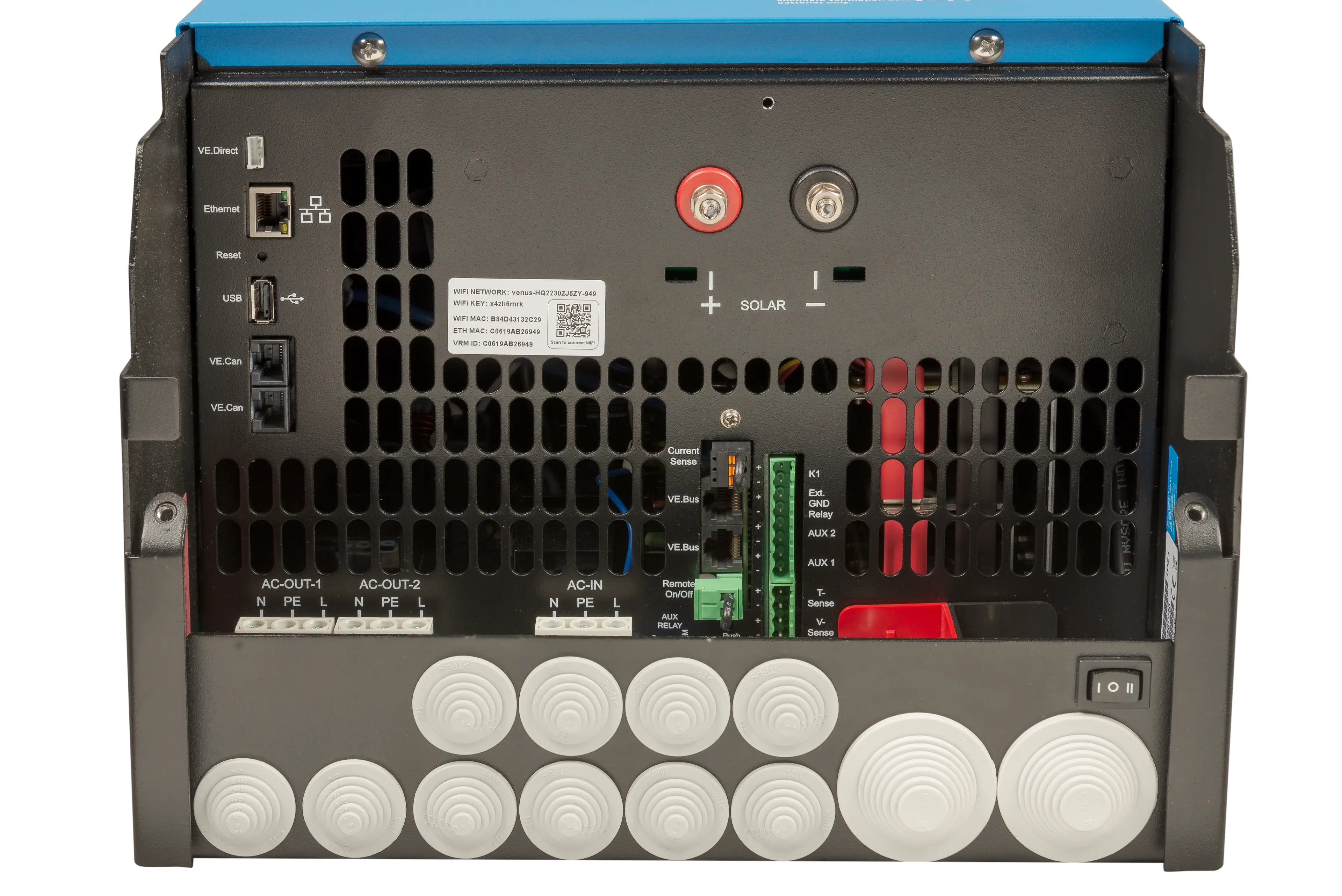

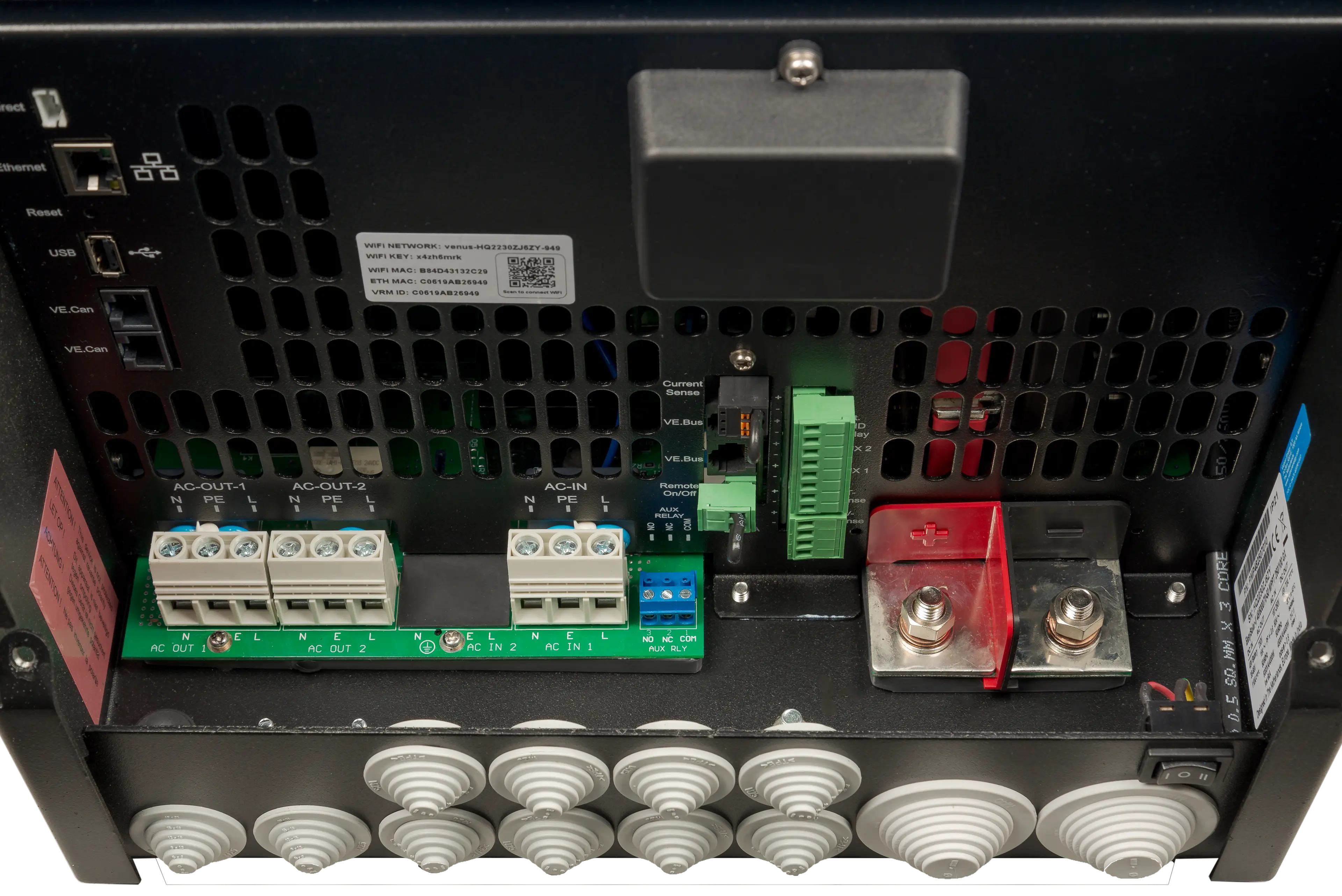

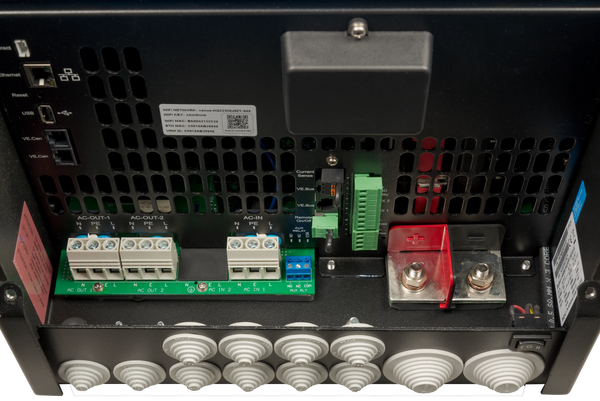

Traditional off-grid setups require separate mounting and cabling for the inverter, solar charge controller, and monitoring gateway. The EasySolar-II integrates these functions internally, dramatically reducing the physical footprint and the labour associated with external DC wiring and communication cables. The M8 battery bolts provide secure, high-current connections, while the AC screw terminals accommodate up to 16 mm² (approx. 6 AWG) conductors. This streamlined design not only speeds up commissioning but also lowers material costs and potential points of failure.

Built for Australian Off-Grid Environments

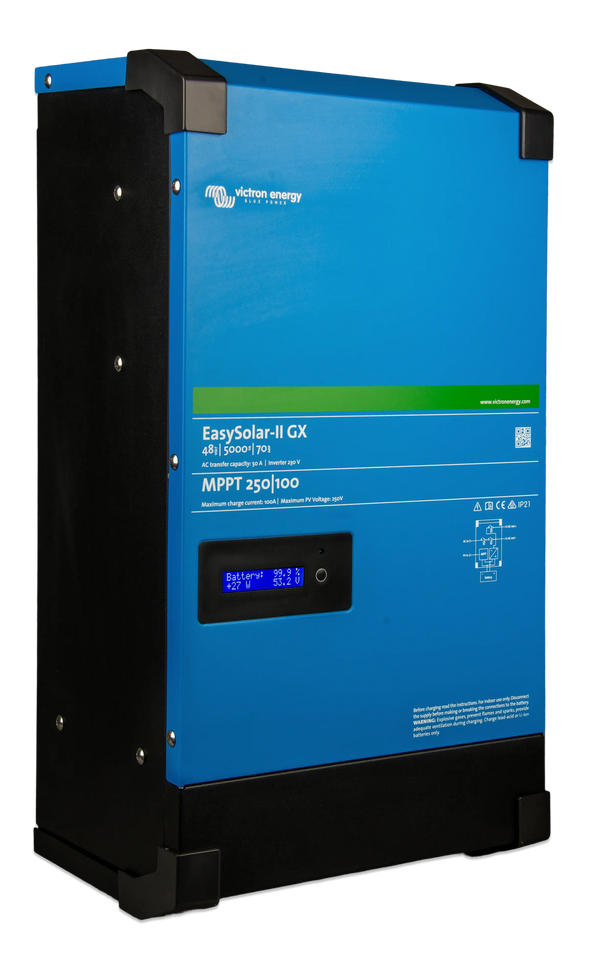

Housed in a durable aluminium enclosure (RAL 5012 blue) with IP21 protection, the EasySolar-II is engineered for indoor installation in demanding off-grid settings. Its fan-assisted cooling maintains performance in ambient temperatures from -20°C to +45°C, while the conformally coated electronics resist humidity and dust. The unit’s programmable relay can be configured for generator start/stop, low-battery alarms, or other custom functions, adding a layer of automation to your power system.

Take Command of Your Energy

Whether you’re building a new off-grid residence, upgrading a remote workstation, or designing a resilient backup system, the Victron EasySolar-II 48/5000/70-50 delivers integrated intelligence and dependable performance. Order your EasySolar-II today and experience the simplicity of unified power management with professional-grade Victron engineering.


SKU: VIC-PMP482507010

SPECIFICATIONS

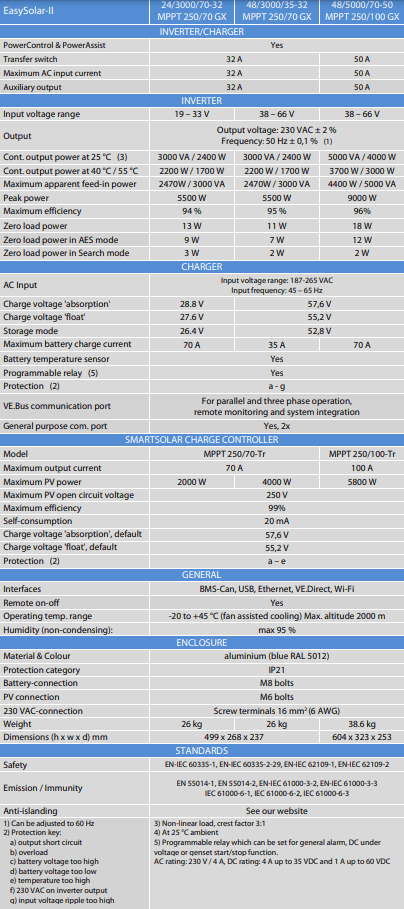

Specifications

Model EasySolar-II 48/5000/70-50 MPPT 250/100 GX
Inverter/Charger
PowerControl & PowerAssist Yes
Transfer switch 50A
Maximum AC input current 50A
Auxiliary output 50A
Inverter
Input voltage range 38 – 66V
Output voltage 230 VAC ± 2%
Frequency (1) 50 Hz ± 0.1%
Cont. output power at 25°C (3) 5000 VA / 4000 W
Cont. output power at 40°C / 55°C 3700 W / 3000 W
Maximum apparent feed-in power 4400 W / 5000 VA
Peak power 9000 W
Maximum efficiency 96%
Zero load power 18 W
Zero load power in AES mode 12 W
Zero load power in Search mode 2 W
Charger
AC Input voltage range 187-265 VAC
Input frequency 45 – 65 Hz
Charge voltage 'absorption' 57.6 V (adjustable)
Charge voltage 'float' 55.2 V (adjustable)
Storage mode 52.8 V (adjustable)
Maximum battery charge current 70 A
Battery temperature sensor Yes
Programmable relay (5) Yes
Protection (2) a - g
VE.Bus communication port Yes
General purpose com. port Yes, 2x
SmartSolar Charge Controller
Model MPPT 250/100-Tr
Maximum output current 100 A
Maximum PV power 5800 W
Maximum PV open circuit voltage 250 V
Maximum efficiency 99%
Self-consumption 20 mA
Charge voltage 'absorption', default 57.6 V
Charge voltage 'float', default 55.2 V
Protection a – e
General
Interfaces BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi
Remote on-off Yes
Operating temp. range -20 to +45°C (fan assisted cooling)
Max. altitude 2000 m
Humidity (non-condensing) max 95%
Enclosure
Material & Colour aluminium (blue RAL 5012)
Protection category IP21
Battery-connection M8 bolts
PV connection M6 bolts
230 VAC-connection Screw terminals 16 mm² (6 AWG)
Weight 38.6 kg
Dimensions (h x w x d) mm 604 x 323 x 253
Standards
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission / Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Anti-islanding See our website

1) Frequency Adjustment: Can be adjusted to 60 Hz

2) Protection Key: a) Output short circuit b) Overload c) Battery voltage too high d) Battery voltage too low e) Temperature too high f) 230 VAC on inverter output g) Input voltage ripple too high

3) Load Handling: Non-linear load, crest factor 3:1

4) Operating Conditions: At 25 °C ambient

5) Programmable Relay: Can be set for general alarm, DC under voltage or genset start/stop function. AC rating: 230 V / 4 A, DC rating: 4 A up to 35 VDC and 1 A up to 60 VDC


SKU: VIC-PMP482507010
Barcode: 8719076049333
Model #: PMP482507010
MPN: PMP482507010
