Exotronic Dual ANL/CNN Fuse Holder
Heavy-Duty 600A Dual Fuse Block
Exotronic 30A Marine Rated Battery (MRBF) Termi...DESCRIPTION

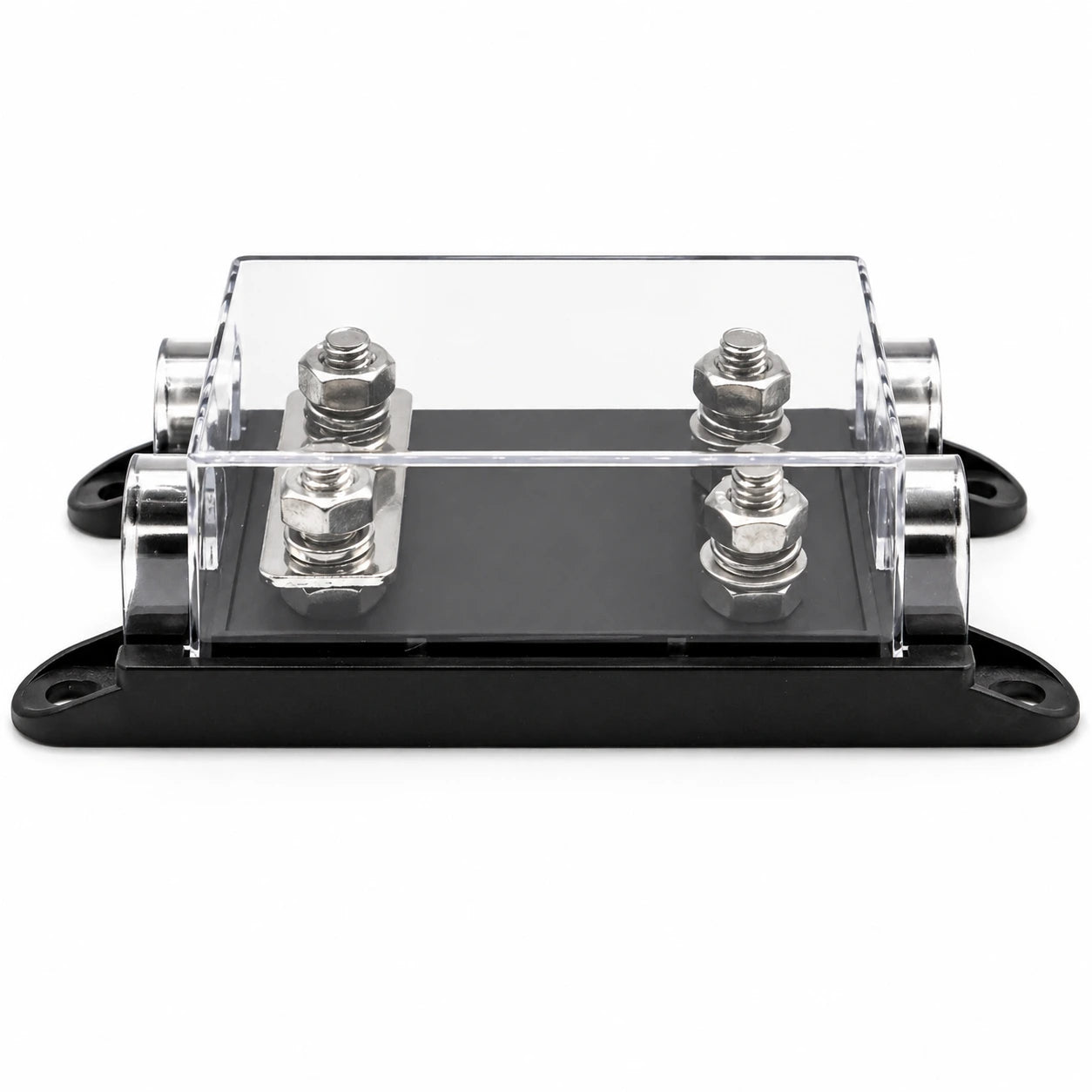

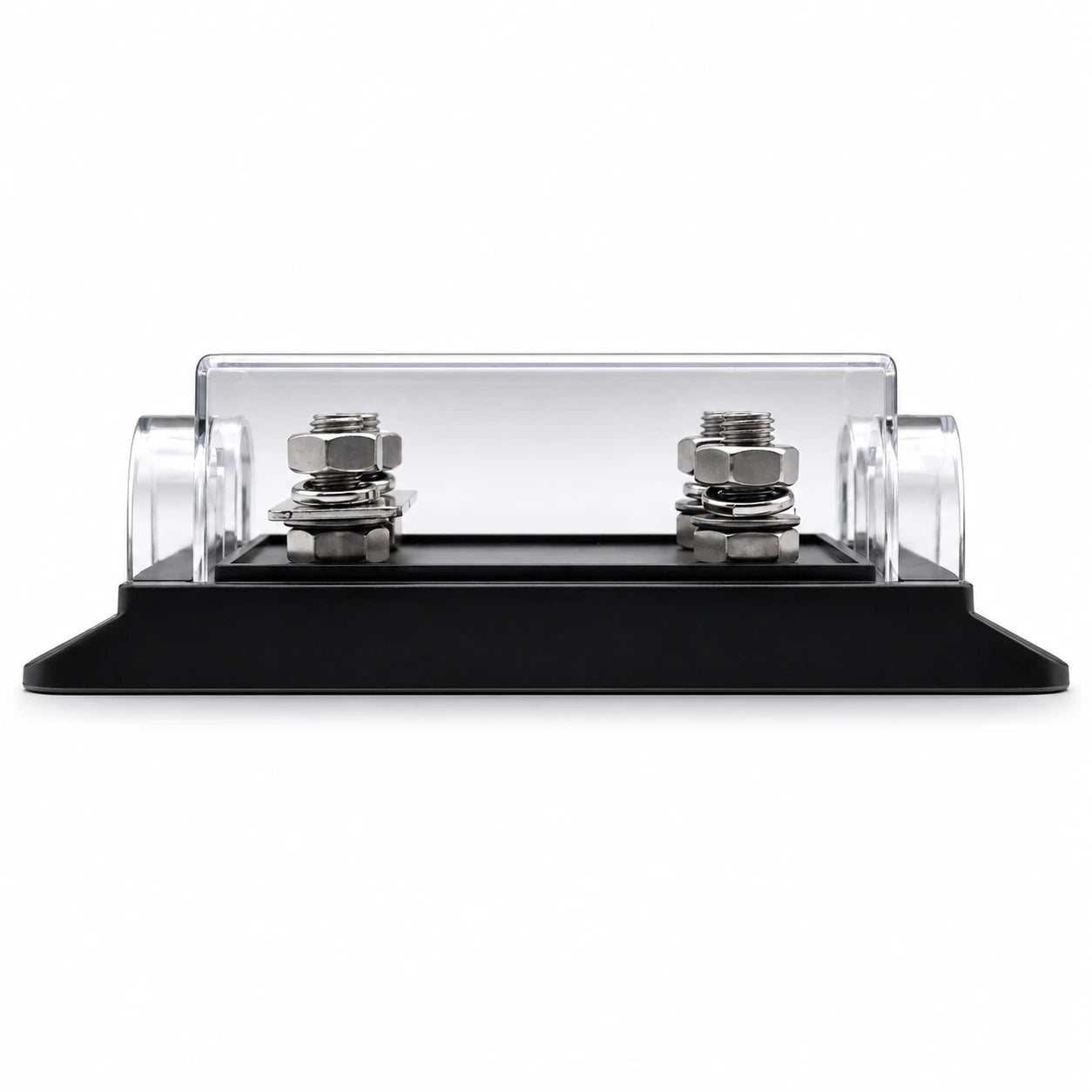

Exotronic Dual ANL/CNN Fuse Holder
High-Current Circuit Protection
Secure your most demanding electrical circuits with the Exotronic Dual ANL/CNN Fuse Holder. This heavy-duty unit is designed to house two ANL or CNN style fuses, offering robust protection for systems requiring up to 600 Amps. With a voltage rating of up to 120V DC, it is the ideal safety solution for high-power automotive, marine, and industrial applications.
Key Features
Robust Construction
- Industrial Strength: Built with a high-temperature resistant body and a clear protective cover, ensuring durability in harsh environments while allowing for easy visual inspection.
- High Capacity: Rated for massive current handling up to 600A, making it suitable for large inverters, bow thrusters, and heavy industrial machinery.
- Secure Connections: Features M8 threaded studs with hex nuts and lock washers to maintain tight, low-resistance connections even under vibration.
Versatile Design
- Dual Configuration: Consolidates two high-current fuses into a single compact unit, reducing installation clutter.

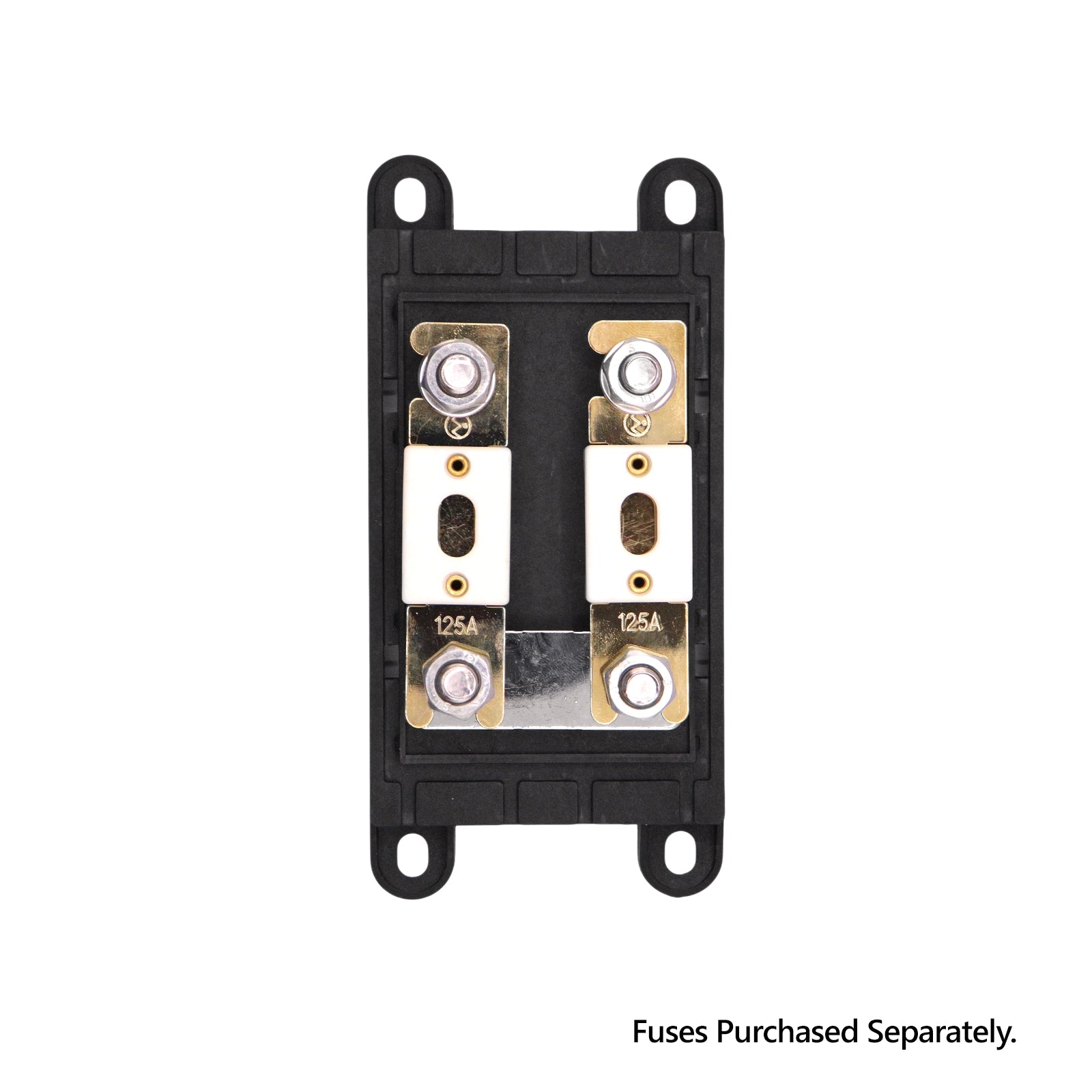

- Configurable Busbar: Includes a linking busbar between the studs, allowing you to easily configure the unit as a single-input/dual-output block, or remove it for two completely independent circuits.
- Wide Compatibility: Designed to accept both ANL and CNN fuse types.
Ideal Applications
- Heavy Automotive: Essential for protecting main battery feeds and high-output alternators.
- Marine: Reliable protection for main switchboards and winches.
- Industrial Equipment: Suitable for forklifts, lifting equipment, and 48V/110V DC systems.

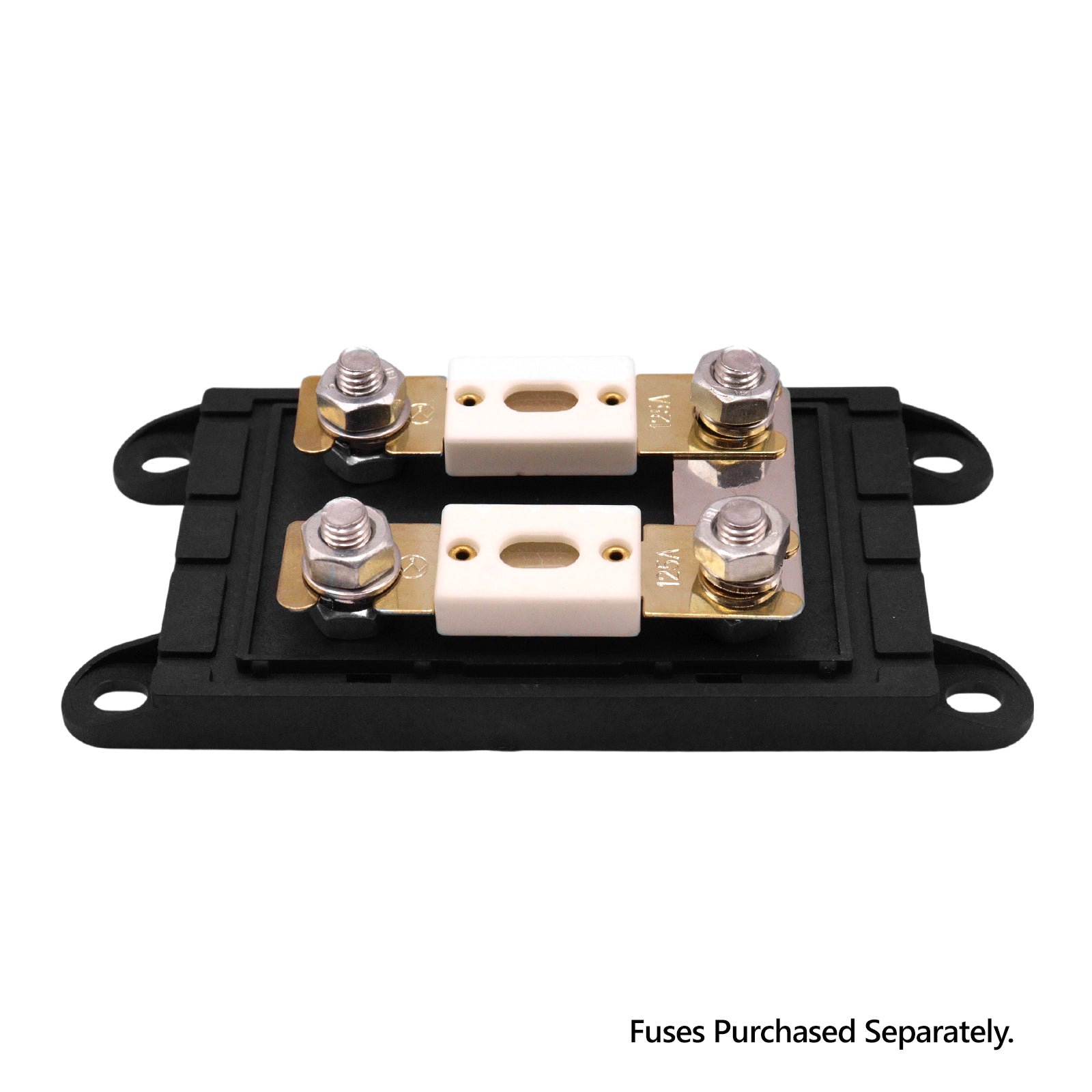

Note: Fuses sold separately.
SKU: Exo-FH-ANL-Du
SPECIFICATIONS
Product Specifications
| Max. Voltage Rating | 120V DC |
| Max. Fuse Rating | 600A |
| Fuse Compatibility | ANL / CNN |
| Stud Size | M8 Threaded Studs |
| Mounting Torque | 6 Nm |
| Housing Material | Glass-Filled Nylon / Polycarbonate Cover |
| SKU: | Exo-FH-ANL-Du |
| Model #: | Exo-FH-ANL-Du |
| MPN: | Exo-FH-ANL-Du |
WARRANTY
Warranty Statement
Exotronic warrants its accessories, to be free of defects in workmanship and materials for a period of 12 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
Exotronic provides high-quality products and solutions tailored for B2B and commercial customers, including commercial businesses, caravan manufacturers, marine electricians, OEMs, as well as emergency services, and more.
