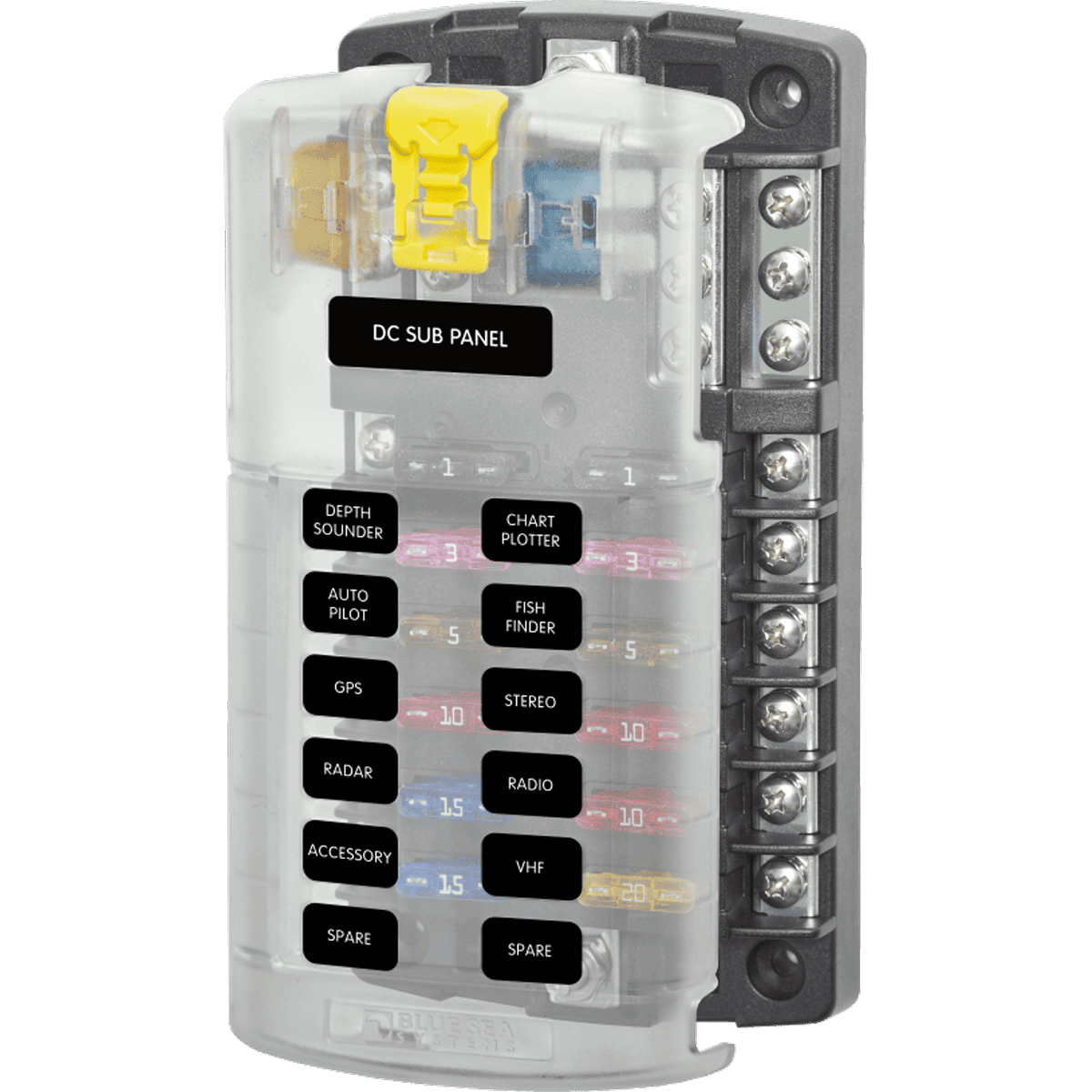

Blue Sea 12 Circuits Blade Fuse Block/Holder w/ Negative Bus & Cover
12 Circuits with Negative Bus and Cover
11
Blue Sea Safety Hub 150 Fuse BlockDESCRIPTION
Description
- Consolidates branch circuits and in-line fuses
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Models available with or without a cover
- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
- Circuit labels sold separately
SKU: BS-5026B
SPECIFICATIONS
Specifications
| Circuits | 12 |
|---|---|
| Maximum Amperage |
100A per block 30A per circuit |
| Maximum Voltage | 32V DC |

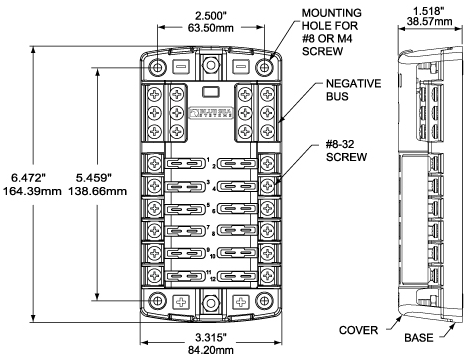

| Mounting |
#8 Screw (M4) (approx. #8 major diameter 4.17 mm; M4 is 4 mm; reference only) |
| Negative Bus |
#10-32 Stud (approx. #10 major diameter 4.83 mm, 32 TPI ≈ 0.79 mm pitch; reference only) |
| Positive Bus |
#10-32 Stud (approx. #10 major diameter 4.83 mm, 32 TPI ≈ 0.79 mm pitch; reference only) |
| Recommended Torque |
24 in-lb (2.71 N·m) (approx. 2.0 ft-lb; reference only) |
| Screw Terminal Torque |
18 in-lb (2.03 N·m) (approx. 1.5 ft-lb; reference only) |
| Screw Terminal Type |
#8-32 Screws with captive star lock washer (approx. #8 major diameter 4.17 mm, 32 TPI ≈ 0.79 mm pitch; reference only) |
| Weight (min / max) |
0.75–0.75 lb (0.34–0.34 kg) (approx. 340 g; reference only) |
| SKU: | BS-5026B |
| Barcode: | 632085050269 |
| Model #: | BS-5026B |
| MPN: | BS-5026B |
