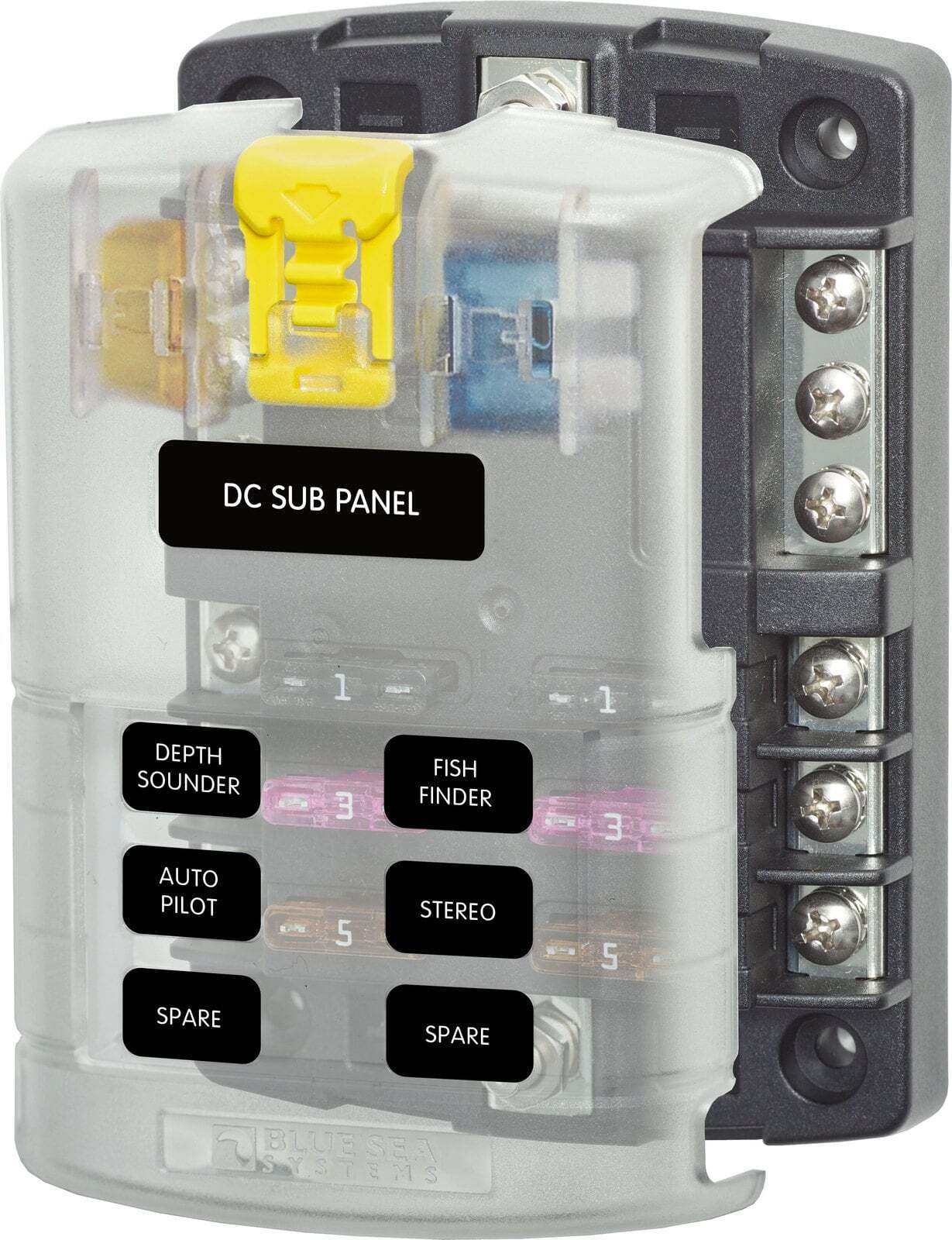

Blue Sea 6 Circuits Blade Fuse Block/Holder w/ Negative Bus & Cover
12
Blue Sea 12 Circuits Blade Fuse Block/Holder w/...DESCRIPTION
Description
- Consolidates branch circuits and in-line fuses
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Models available with or without a cover
- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems"
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
- Circuit labels sold separately
SKU: BS-5025B
SPECIFICATIONS
Specifications
| Circuits | 6 |
|---|---|
| Maximum Amperage |
100A per block 30A per circuit |
| Maximum Voltage | 32V DC |

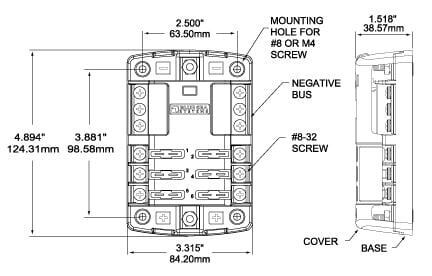

| Mounting |
#8 Screw (M4) (approx. #8 major diameter 4.17 mm; M4 is 4 mm; reference only) |
| Negative Bus |
#10-32 Stud (approx. #10 major diameter 4.83 mm, 32 TPI ≈ 0.79 mm pitch; reference only) |
| Positive Bus |
#10-32 Stud (approx. #10 major diameter 4.83 mm, 32 TPI ≈ 0.79 mm pitch; reference only) |
| Recommended Torque |
24 in-lb (2.71 N·m) (approx. 2.0 ft-lb; reference only) |
| Screw Terminal Torque |
18 in-lb (2.03 N·m) (approx. 1.5 ft-lb; reference only) |
| Screw Terminal Type |
#8-32 Screws with captive star lock washer (approx. #8 major diameter 4.17 mm, 32 TPI ≈ 0.79 mm pitch; reference only) |
| Weight (min / max) |
0.55–0.55 lb (0.25–0.25 kg) (approx. 250 g; reference only) |
| SKU: | BS-5025B |
| Barcode: | 632085050252 |
| Model #: | BS-5025B |
| MPN: | BS-5025B |
