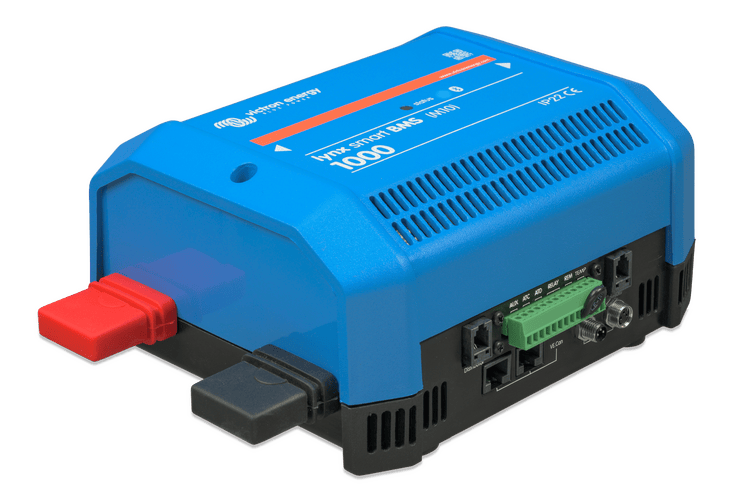

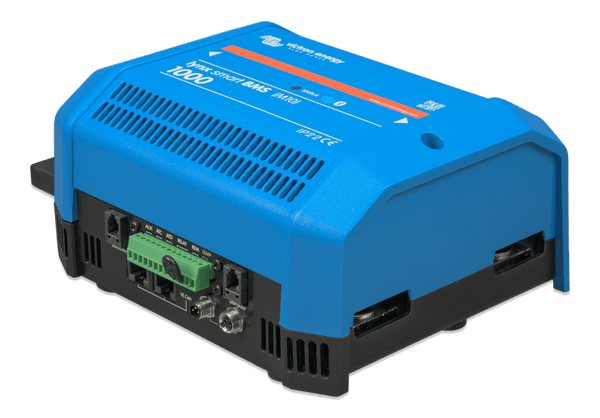

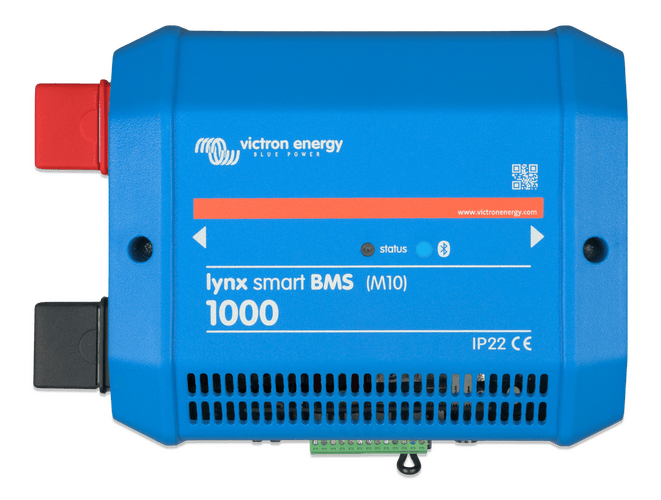

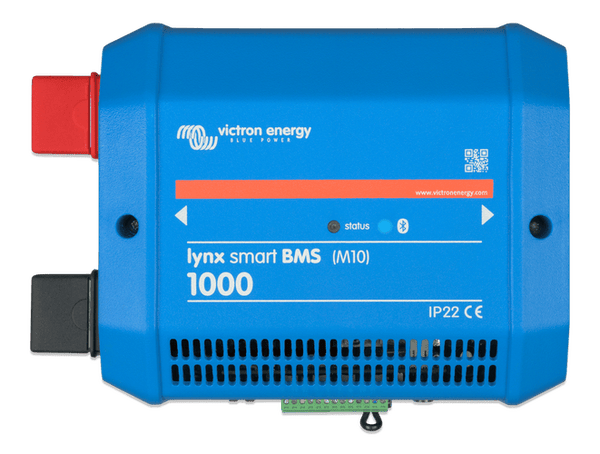

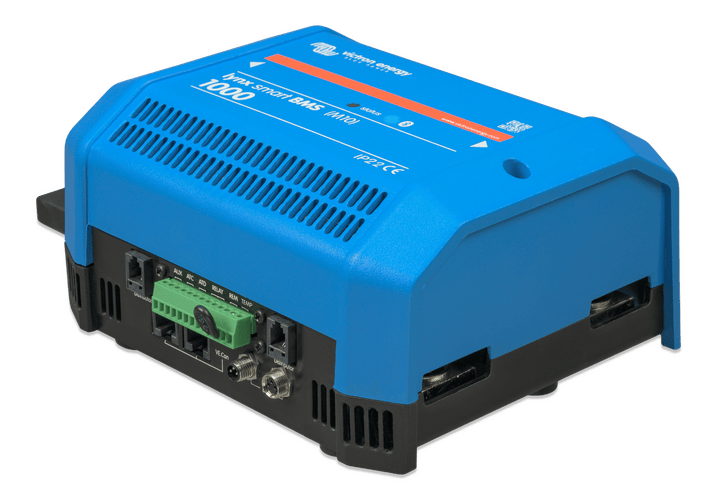

Victron Lynx Smart BMS 1000 NG (NextGen) M10

1000A Continuous Rating with Built-In Pre-Charge and Redundancy


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

Next-Generation Battery Management for High-Capacity Lithium Systems

The Victron Lynx Smart BMS 1000 NG (NextGen) stands as the ultimate command centre for your energy storage, specifically engineered to integrate seamlessly with Victron Lithium Battery Smart models. Designed for complex power setups in marine vessels, off-grid properties, and high-demand industrial applications, this advanced Battery Management System ensures your 12V, 24V, or 48V lithium iron phosphate (LiFePO4) battery banks operate safely and efficiently.

Unlike standard controllers, the Lynx Smart BMS goes beyond simple cell balancing. It actively protects your power system from deep discharges, overcharging, and extreme temperatures, prolonging the lifespan of your heavy-duty battery arrays. With a robust 1000A continuous current rating and surge capabilities up to 1200A for five minutes, it easily handles the high loads of demanding inverter networks and parallel configurations.

Integrated Pre-Charge Circuit and Primary Safety Contactor

One of the most critical challenges when powering up high-capacity inverter systems is managing the initial rush of electrical current. The integrated pre-charge circuit resolves this completely. By safely charging the internal capacitors of connected inverters before the main contactor engages, it prevents damaging inrush currents that can degrade components over time. This eliminates the need for manual pre-charging steps or external resistors, reducing installation complexity and lowering the risk of hardware faults.

Additionally, the built-in safety contactor acts as a dependable secondary safety mechanism. It provides an immediate physical disconnect in the event of a critical system fault, isolating your batteries to prevent severe damage. This contactor can also be controlled remotely, giving users the ability to manually shut down the system during maintenance or long-term storage.

Parallel Redundancy for Mission-Critical Power

The "NG" NextGen series introduces a highly requested feature for complex electrical architectures: parallel redundancy. By installing multiple Lynx Smart BMS units in parallel, system builders can drastically increase overall storage capacity while establishing a failsafe network. In the event of an isolated communication or hardware issue, the redundant architecture allows your system to maintain safe, continuous operation. This ensures your off-grid home or commercial marine vessel never experiences an unexpected total power loss.

Comprehensive Monitoring and System Integration

Full visibility into your power usage is crucial for long-term reliability. Equipped with built-in Bluetooth, this Victron BMS allows installers and end-users to monitor real-time battery voltage, temperature data, and system health directly from a smartphone or tablet using the VictronConnect app.

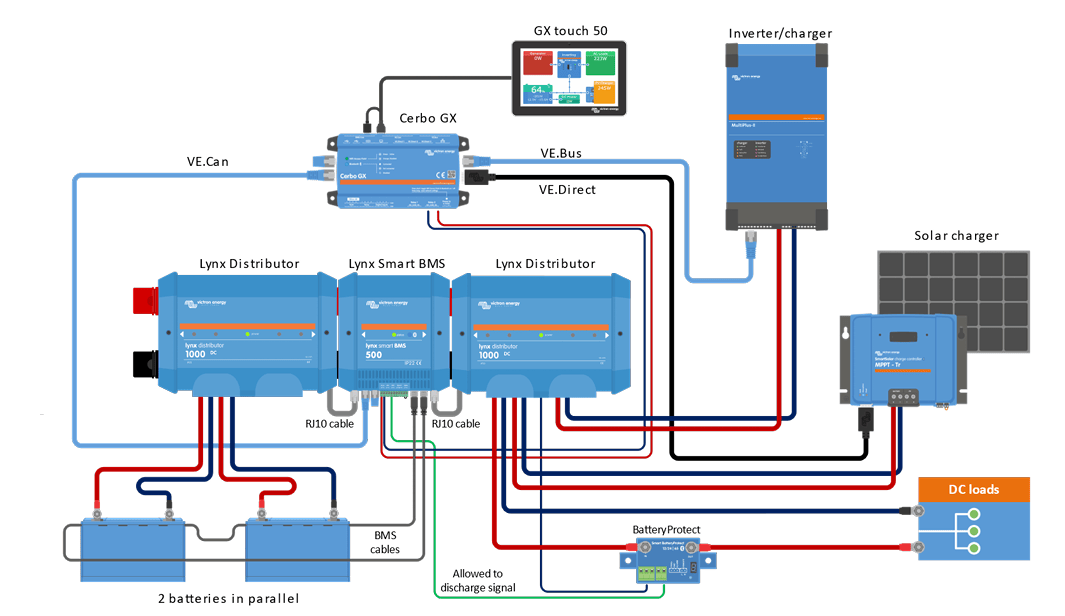

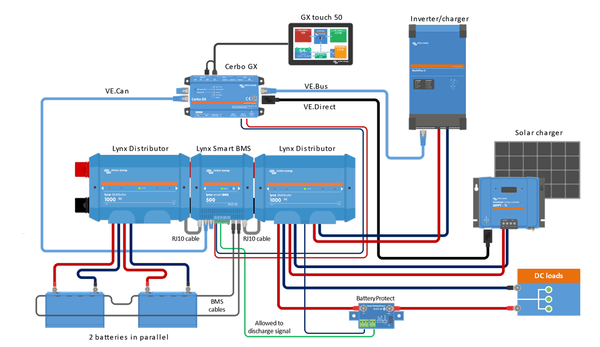

For more advanced setups, the included VE.Can port allows direct communication with Victron GX devices, such as the Cerbo GX. This enables global remote monitoring via the VRM portal. Furthermore, native NMEA 2000 compatibility ensures the system integrates flawlessly into modern marine networks, displaying crucial energy metrics right on your glass bridge or multi-function display.

Key Features

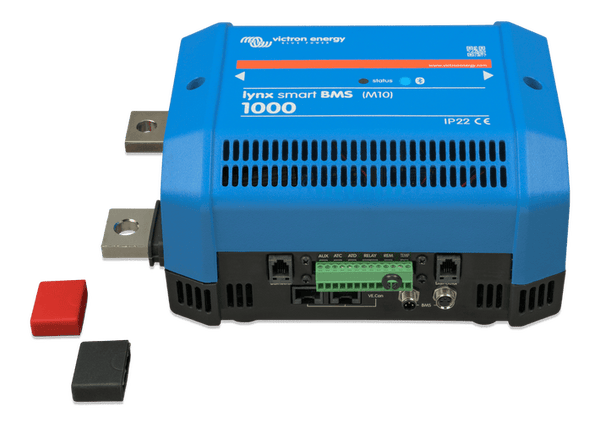

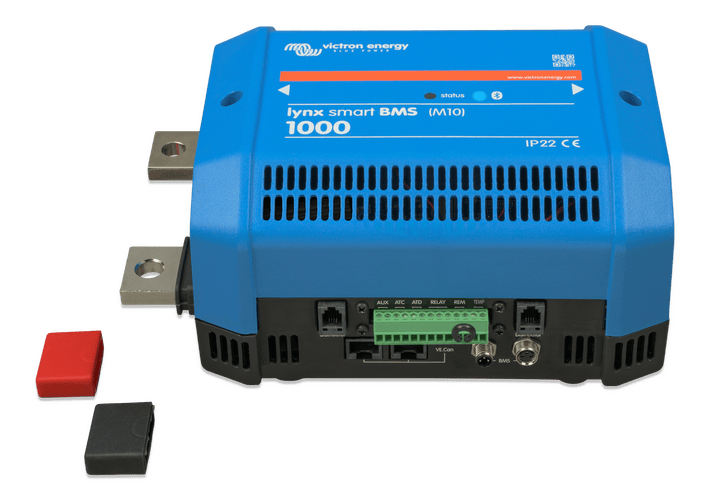

  • High Current Capacity: 1000A continuous current rating via heavy-duty M10 tinned copper busbars.
  • Built-in Pre-Charge: Protects inverter capacitors by safely managing inrush currents during startup.
  • Integrated Safety Contactor: Reliable hardware disconnect for critical faults and remote system isolation.
  • Parallel Redundancy: Connect multiple NextGen BMS units for scalable capacity and fault-tolerant continuous operation.
  • Advanced Diagnostics: Built-in Bluetooth and VE.Can connectivity for local and remote VictronConnect monitoring.
  • Multi-Voltage Support: Fully compatible with 12V, 24V, and 48V Victron Lithium Smart battery configurations.

Secure the core of your energy infrastructure with robust protection and intelligent control. Upgrade your off-grid or marine electrical architecture with the Victron Lynx Smart BMS 1000 NG and maintain complete visibility over your power reserves today.


SKU: VIC-LYN034170310

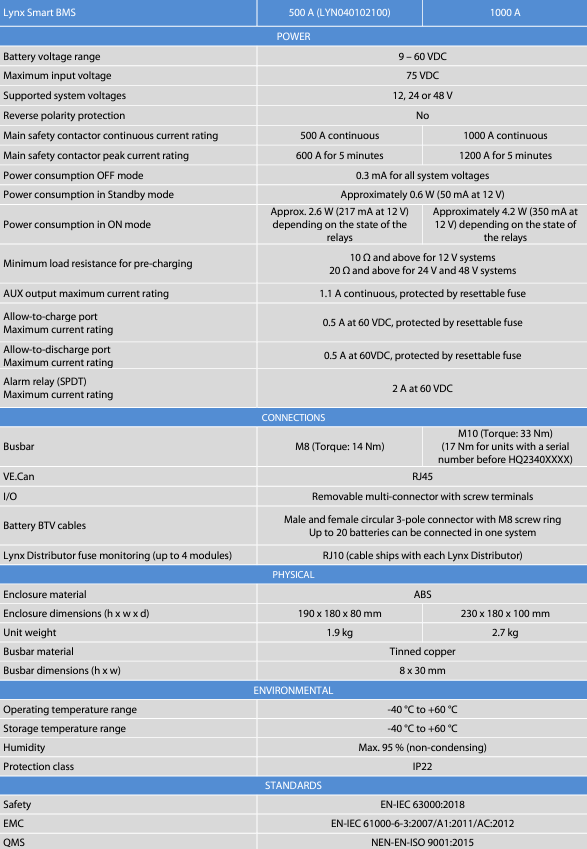

SPECIFICATIONS

Specifications

Lynx Smart BMS 1000 A
Power
Battery voltage range 9 – 60 VDC
Maximum input voltage 75 VDC
Supported system voltages 12, 24 or 48 V
Reverse polarity protection No
Main safety contactor continuous current rating 1000 A continuous
Main safety contactor peak current rating 1200 A for 5 minutes
Power consumption OFF mode 0.3 mA for all system voltages
Power consumption in Standby mode Approximately 0.6 W (50 mA at 12 V)
Power consumption in ON mode Approximately 4.2 W (350 mA at 12 V) depending on the state of the relays
Minimum load resistance for pre-charging 10 Ω and above for 12 V systems 20 Ω and above for 24 V and 48 V systems
AUX output maximum current rating 1.1 A continuous, protected by resettable fuse
Allow-to-charge port Maximum current rating 0.5 A at 60 VDC, protected by resettable fuse
Allow-to-discharge port Maximum current rating 0.5 A at 60VDC, protected by resettable fuse
Alarm relay (SPDT) Maximum current rating 2 A at 60 VDC
Connections
Busbar M10 (Torque: 33 Nm) (17 Nm for units with a serial number before HQ2340XXXX)
VE.Can RJ45

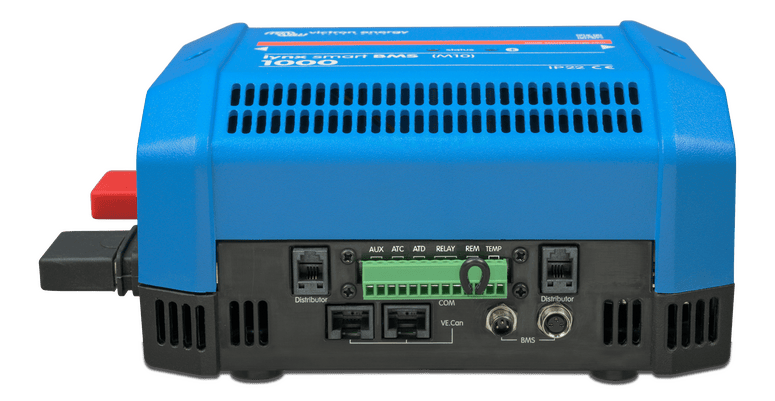

I/O Removable multi-connector with screw terminals
Battery BTV cables Male and female circular 3-pole connector with M8 screw ring Up to 20 batteries can be connected in one system
Lynx Distributor fuse monitoring (up to 4 modules) RJ10 (cable ships with each Lynx Distributor)
Physical
Enclosure material ABS

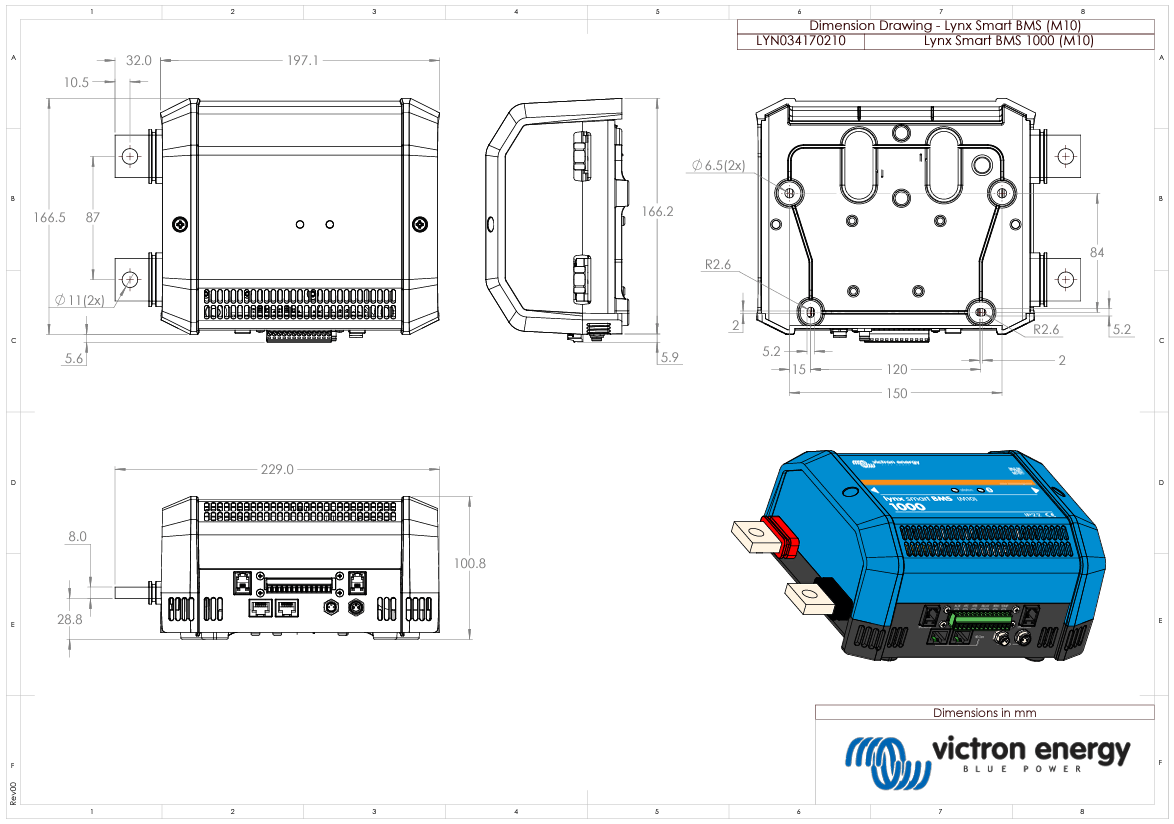

Enclosure dimensions (h x w x d) 230 x 180 x 100 mm
Unit weight 2.7 kg
Busbar material Tinned copper
Busbar dimensions (h x w) 8 x 30 mm
Environmental
Operating temperature range -40 °C to +60 °C
Storage temperature range -40 °C to +60 °C
Humidity Max. 95 % (non-condensing)
Protection class IP22
Standards
Safety EN-IEC 63000:2018
EMC EN-IEC 61000-6-3:2007/A1:2011/AC:2012
QMS NEN-EN-ISO 9001:2015

SKU: VIC-LYN034170310
Barcode: 8719076063568
Model #: LYN034170310
MPN: LYN034170310
