Victron Lynx Smart BMS 1000 M10

1000A Contactor, Pre-Charge, Bluetooth, VE.Can, Fuse Monitoring


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

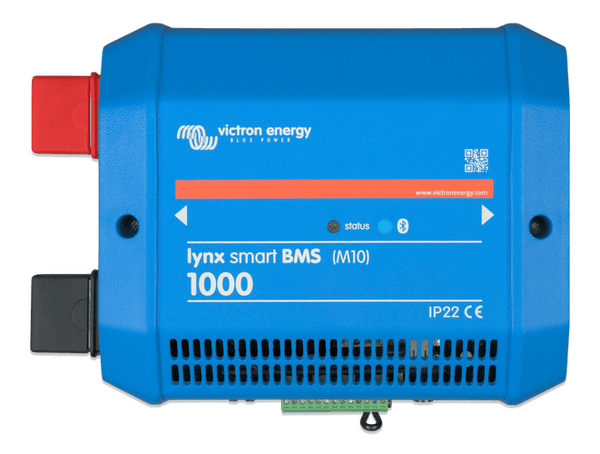

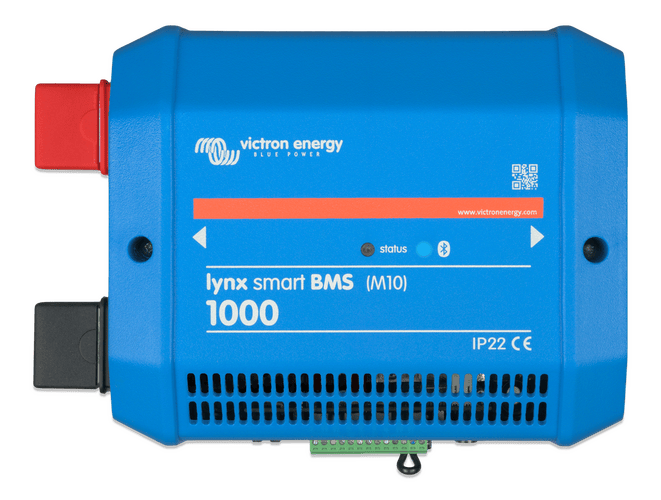

Victron Lynx Smart BMS 1000 M10: Advanced Battery Management for High-Capacity Lithium Systems

Integrated Protection and Control for 12V, 24V, and 48V Victron Lithium Smart Battery Banks

The Victron Lynx Smart BMS 1000 M10 is a dedicated battery management system engineered for Victron Lithium Battery Smart series (LiFePO4). It provides comprehensive protection, monitoring, and control for large-scale energy storage, making it an essential component for demanding off-grid, marine, and mobile applications. This unit is designed to manage battery banks up to 84 kWh in 12V systems and 102 kWh in 24V and 48V configurations, supporting up to 20 batteries in series, parallel, or series/parallel arrangements.

Unlike generic BMS solutions, the Lynx Smart BMS integrates a high-current contactor, pre-charge circuit, and advanced communication protocols into a single, modular unit. This reduces installation complexity, eliminates the need for external pre-charge resistors, and enhances system reliability. The built-in 1000 A continuous contactor serves as both a primary safety disconnect and a remote-controllable main switch, while the pre-charge circuit mitigates inrush currents that can damage inverters and chargers.

Key Features

  • 1000 A continuous contactor with 1200 A peak rating for 5 minutes, ensuring safe disconnection under heavy loads
  • Integrated pre-charge circuit prevents high inrush currents, protecting downstream electronics
  • Bluetooth monitoring and control via VictronConnect app for real-time state of charge, voltage, current, and alarms
  • VE.Can and NMEA 2000 communication for seamless integration with GX devices (e.g., Cerbo GX) and marine MFDs
  • Fuse monitoring for up to four Lynx Distributors, providing alerts for blown fuses via VictronConnect or VRM Portal
  • Programmable relay for alarm or alternator field control, with Alternator ATC mode for safe alternator shutdown
  • AUX output (1.1 A) to power critical loads like a GX device after a low-voltage disconnect
  • Instant readout of key parameters without connecting to the BMS, enabling quick diagnostics

Advanced System Integration and Safety

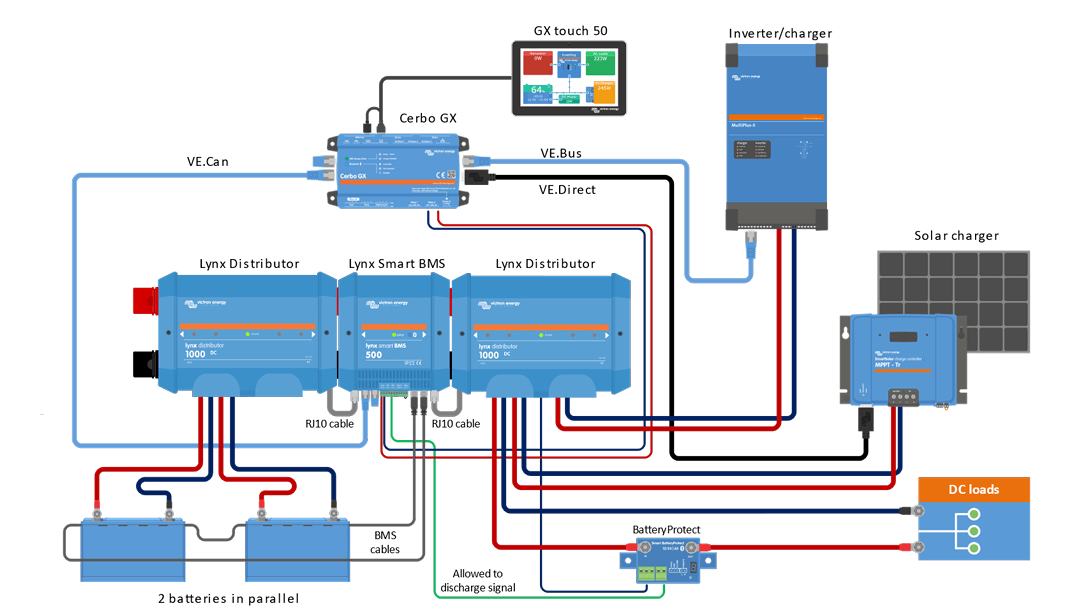

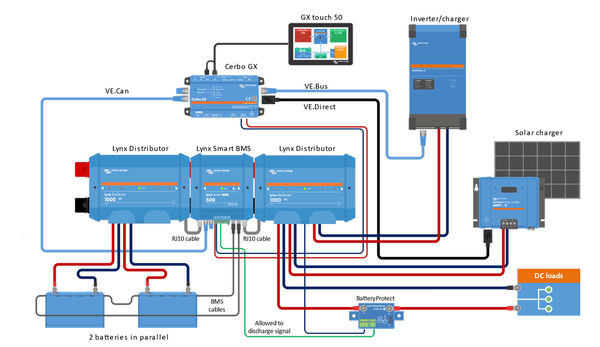

The Lynx Smart BMS works in concert with Victron inverter/chargers and solar chargers through a connected GX device and DVCC (Distributed Voltage and Current Control). This enables automatic charge and discharge control based on cell-level data, optimising battery health and longevity. The ATC (Allow-to-Charge) and ATD (Allow-to-Discharge) contacts provide direct control over third-party chargers and loads with remote on/off ports, expanding compatibility beyond Victron equipment.

For marine installations, the VE.Can interface uses standard RJ45 cables and supports NMEA 2000 (and J1939) protocols, allowing battery data to be displayed on multifunction displays. A VE.Can to NMEA 2000 micro-C male cable is required for direct connection. The system also monitors up to four Lynx Distributor modules via RJ10 connections, reporting individual fuse status and triggering alarms if a fuse blows, which is critical for maintaining uptime in remote or unattended systems.

Robust Construction for Demanding Environments

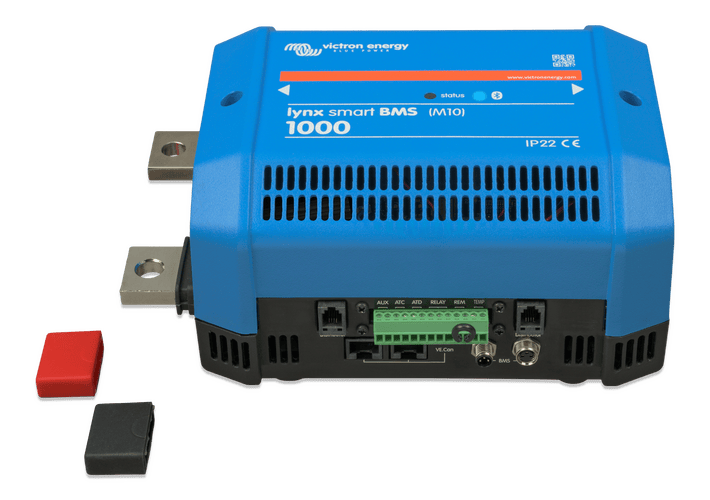

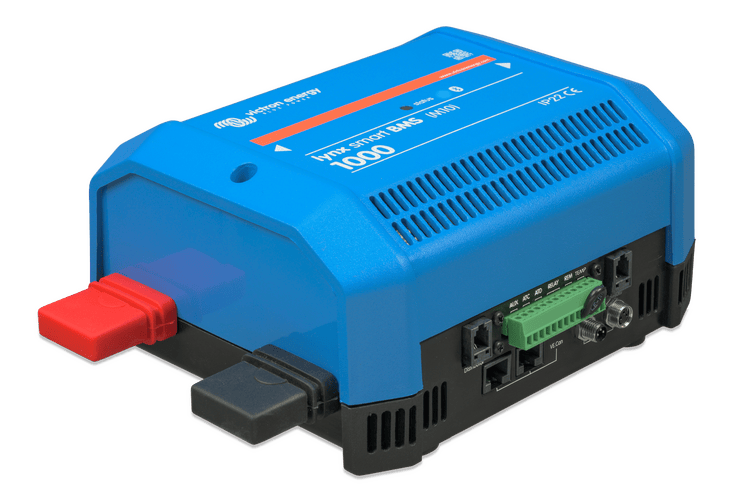

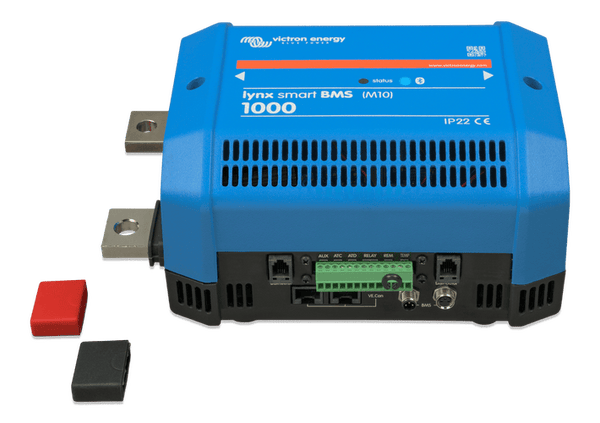

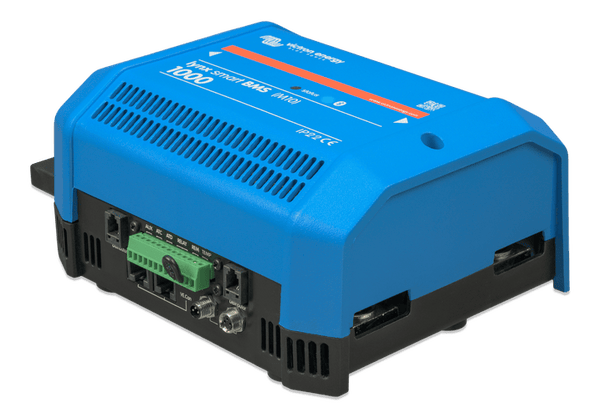

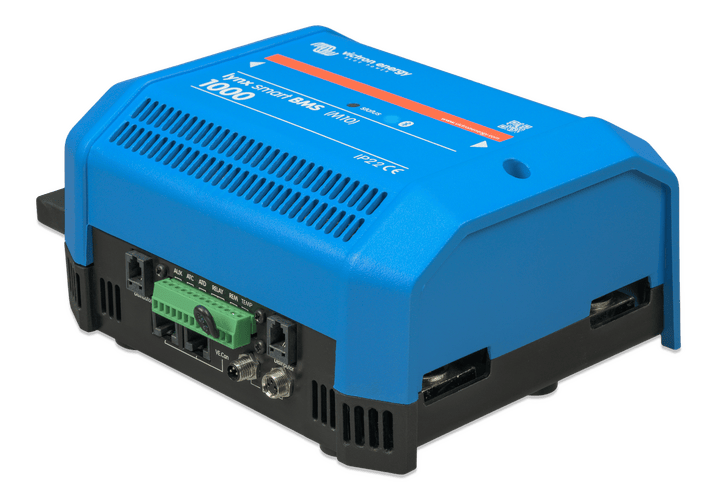

Housed in an IP22-rated ABS enclosure, the Lynx Smart BMS 1000 M10 features tinned copper busbars (8 x 30 mm) with M10 stud terminals (torque: 33 Nm, or 17 Nm for earlier serial numbers). These heavy-duty connections accommodate large-gauge cables, ensuring minimal voltage drop at high currents. The unit operates reliably in temperatures from -40 °C to +60 °C and withstands up to 95% non-condensing humidity, making it suitable for engine rooms, outdoor enclosures, and mobile installations.

Why Choose the Lynx Smart BMS Over Generic Alternatives?

Standard BMS units often lack integrated contactors, requiring external relays and complex wiring that increase failure points. The Lynx Smart BMS consolidates these functions, reducing installation time and potential faults. Its pre-charge circuit eliminates the need for manual pre-charge procedures, which can be hazardous and inconvenient. Additionally, the seamless integration with Victron's ecosystem provides a unified monitoring experience, from the battery to the inverter, through a single interface.

For system builders, the ability to monitor fuse status remotely reduces troubleshooting time and prevents unexpected downtime. The programmable relay adds flexibility for alternator control, ensuring that the alternator is disconnected before the battery in a fault condition, protecting both the alternator and the electrical system.

Take Control of Your Energy System

Upgrade your Victron Lithium Smart battery bank with the Lynx Smart BMS 1000 M10 for reliable, integrated protection and monitoring. Whether you're powering a remote off-grid cabin, a marine vessel, or a mobile workshop, this BMS delivers the safety and data you need to maximise performance and lifespan. Add to your system today and experience the confidence of professional-grade battery management.


SKU: VIC-LYN034170210

SPECIFICATIONS

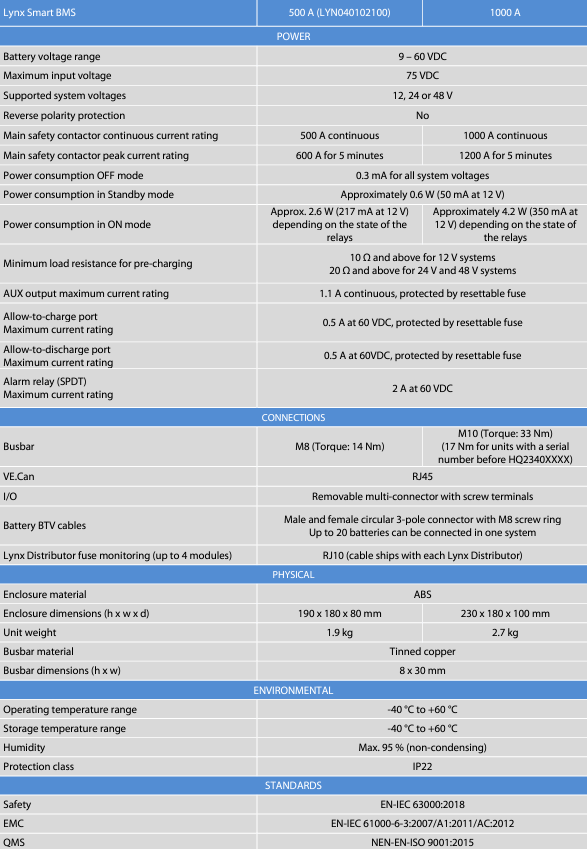

Specifications

Lynx Smart BMS 1000 A
Power
Battery voltage range 9 – 60 VDC
Maximum input voltage 75 VDC
Supported system voltages 12, 24 or 48 V
Reverse polarity protection No
Main safety contactor continuous current rating 1000 A continuous
Main safety contactor peak current rating 1200 A for 5 minutes
Power consumption OFF mode 0.3 mA for all system voltages
Power consumption in Standby mode Approximately 0.6 W (50 mA at 12 V)
Power consumption in ON mode Approximately 4.2 W (350 mA at 12 V) depending on the state of the relays
Minimum load resistance for pre-charging 10 Ω and above for 12 V systems 20 Ω and above for 24 V and 48 V systems
AUX output maximum current rating 1.1 A continuous, protected by resettable fuse
Allow-to-charge port Maximum current rating 0.5 A at 60 VDC, protected by resettable fuse
Allow-to-discharge port Maximum current rating 0.5 A at 60VDC, protected by resettable fuse
Alarm relay (SPDT) Maximum current rating 2 A at 60 VDC

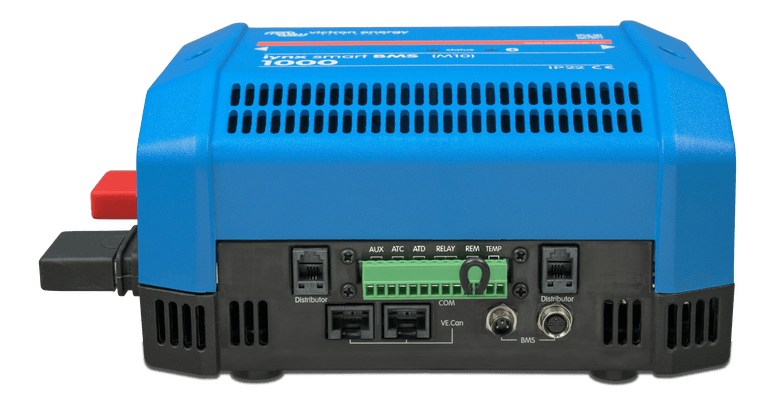

Connections
Busbar M10 (Torque: 33 Nm) (17 Nm for units with a serial number before HQ2340XXXX)
VE.Can RJ45
I/O Removable multi-connector with screw terminals
Battery BTV cables Male and female circular 3-pole connector with M8 screw ring Up to 20 batteries can be connected in one system
Lynx Distributor fuse monitoring (up to 4 modules) RJ10 (cable ships with each Lynx Distributor)
Physical
Enclosure material ABS

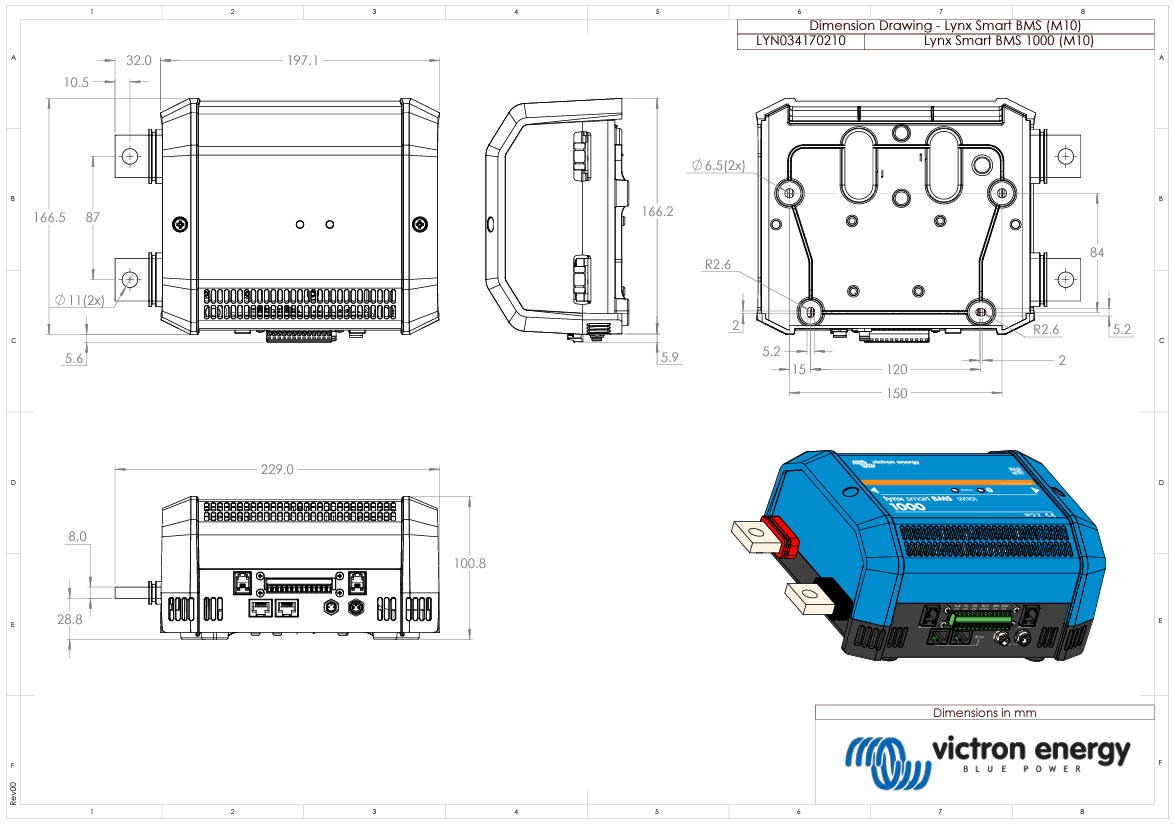

Enclosure dimensions (h x w x d) 230 x 180 x 100 mm
Unit weight 2.7 kg
Busbar material Tinned copper
Busbar dimensions (h x w) 8 x 30 mm
Environmental
Operating temperature range -40 °C to +60 °C
Storage temperature range -40 °C to +60 °C
Humidity Max. 95 % (non-condensing)
Protection class IP22
Standards
Safety EN-IEC 63000:2018
EMC EN-IEC 61000-6-3:2007/A1:2011/AC:2012
QMS NEN-EN-ISO 9001:2015

SKU: VIC-LYN034170210
Barcode: 8719076057604
Model #: LYN034170210
MPN: LYN034170210
