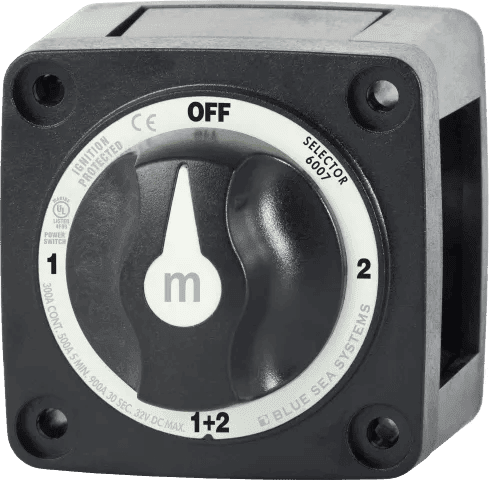

Blue Sea 300A Black Mini m-Series 4 Position (OFF/1/2/1+2) Battery Selector Switch
2
Blue Sea 500A HD-Series Heavy Duty 4 Position (...DESCRIPTION
Switches isolated battery banks to all loads or combines battery banks to all loads
Make before break contact design allows switching between battery banks without power interruption
SKU: BS-6007200B
SPECIFICATIONS
Specifications

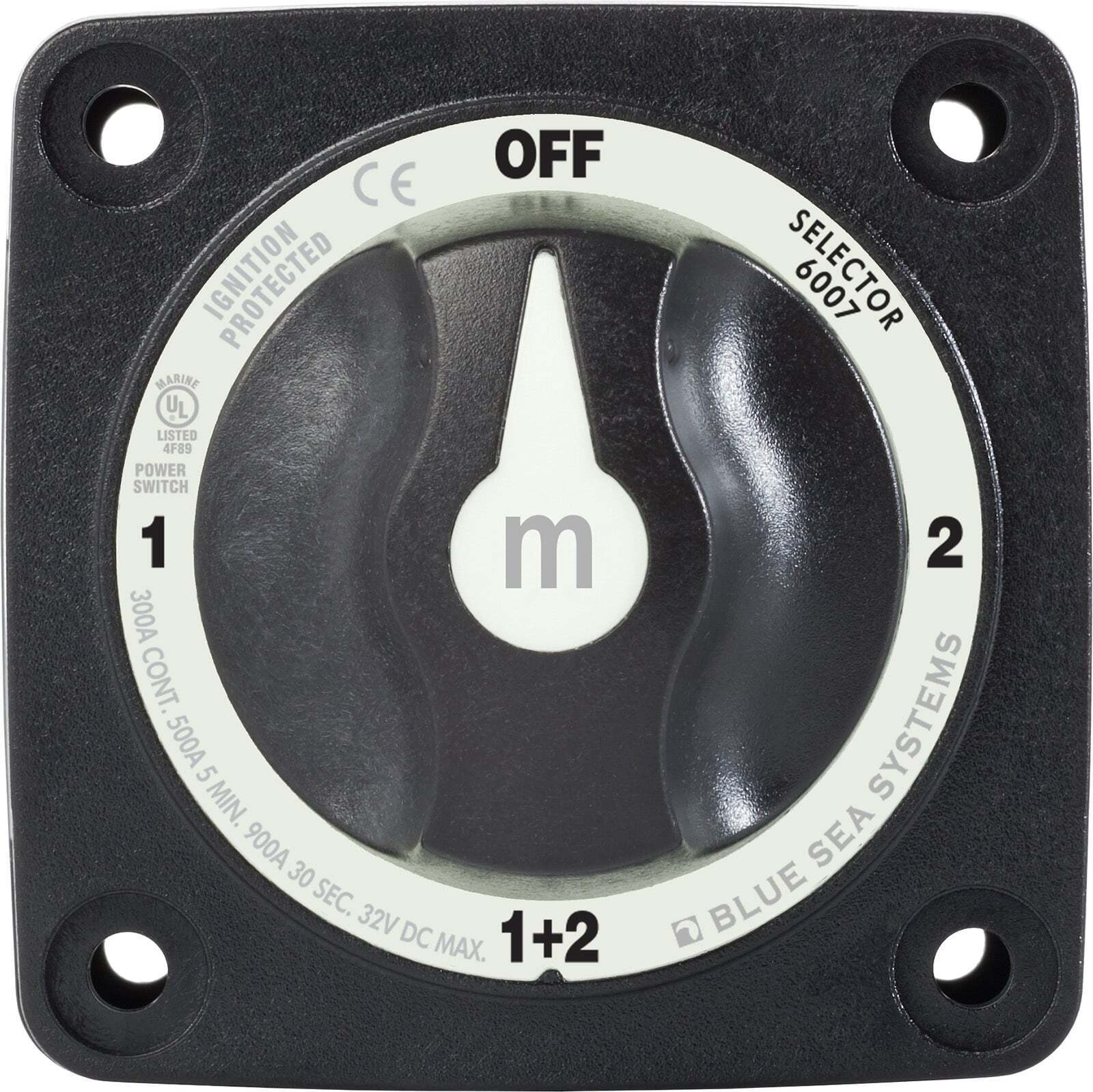

| Switch Type | Selector 4 Position |
|---|---|
| Color | Black |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Stud Size |
3/8" (approx. 9.53 mm; reference only) |
| Terminal Stud Torque |
120 in-lb (13.56 N·m) (approx. 10.0 ft-lb; reference only) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Starting Rating (30 sec) | 900A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables |
1.12in (28.45 mm) (reference only) |
| Cable Size to Meet Ratings |
4/0 AWG (120mm²) (AWG vs mm² is an approximate equivalence; reference only) |

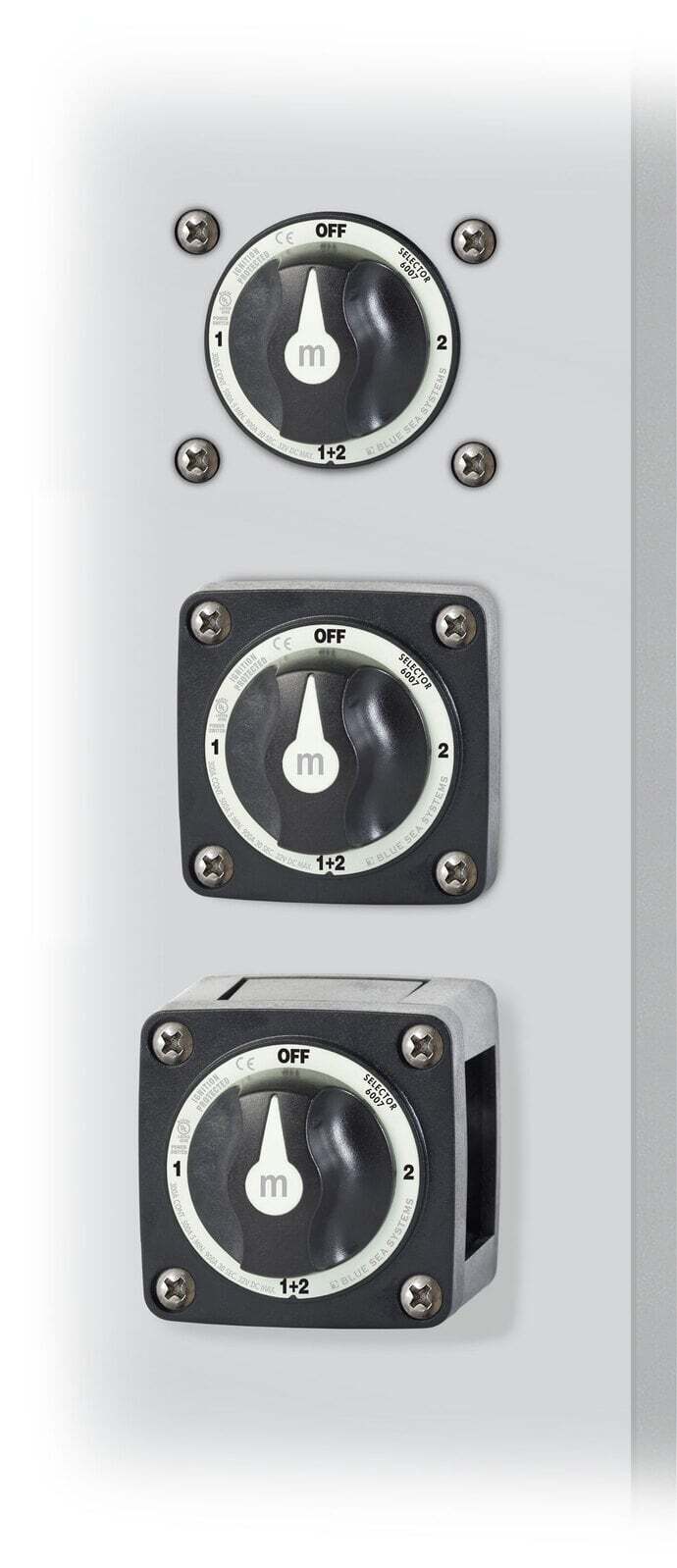

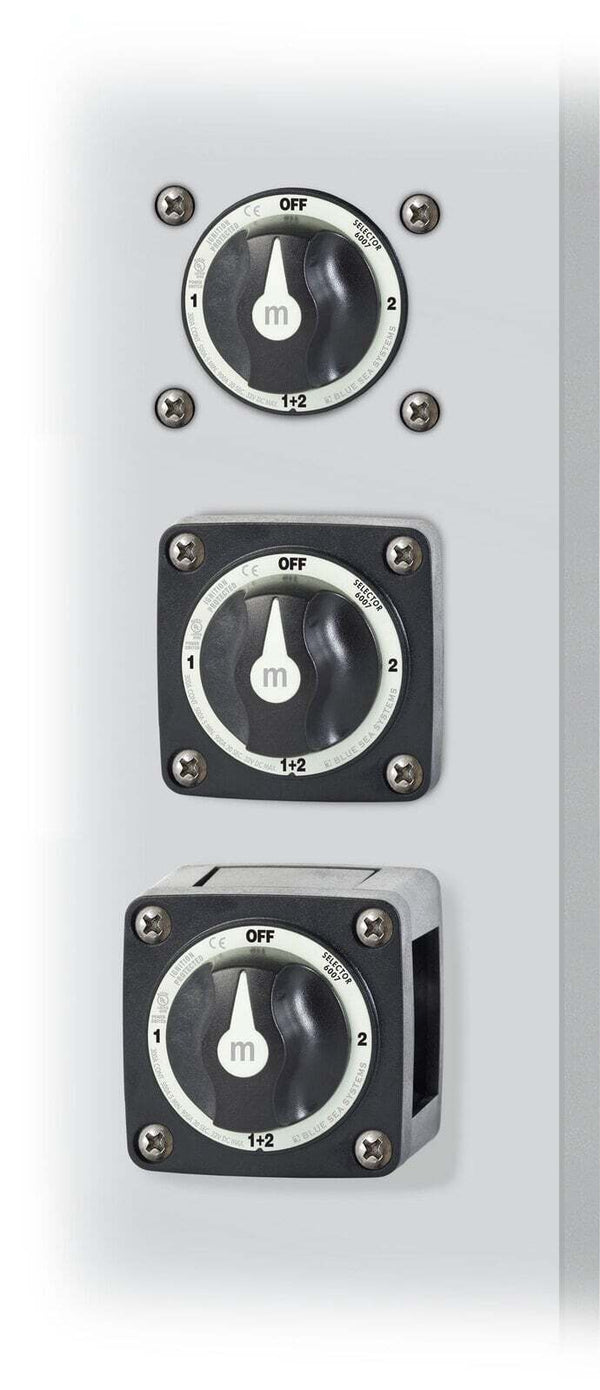

| Mounting Holes |
Accept #10 Screw (approx. #10 major diameter 4.83 mm; reference only) |

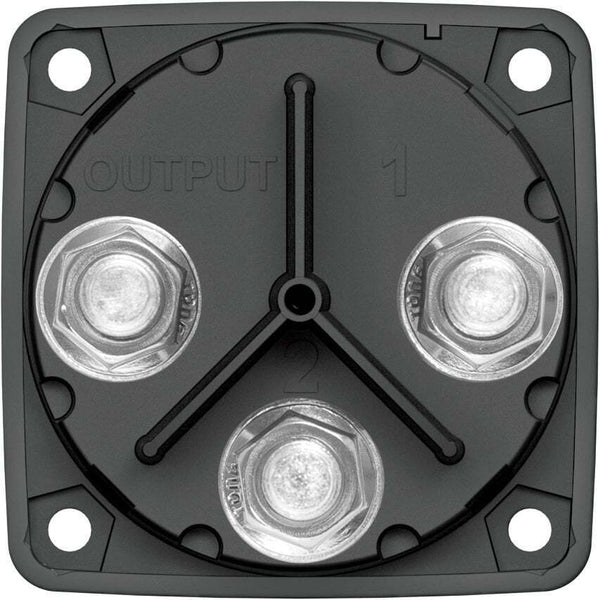

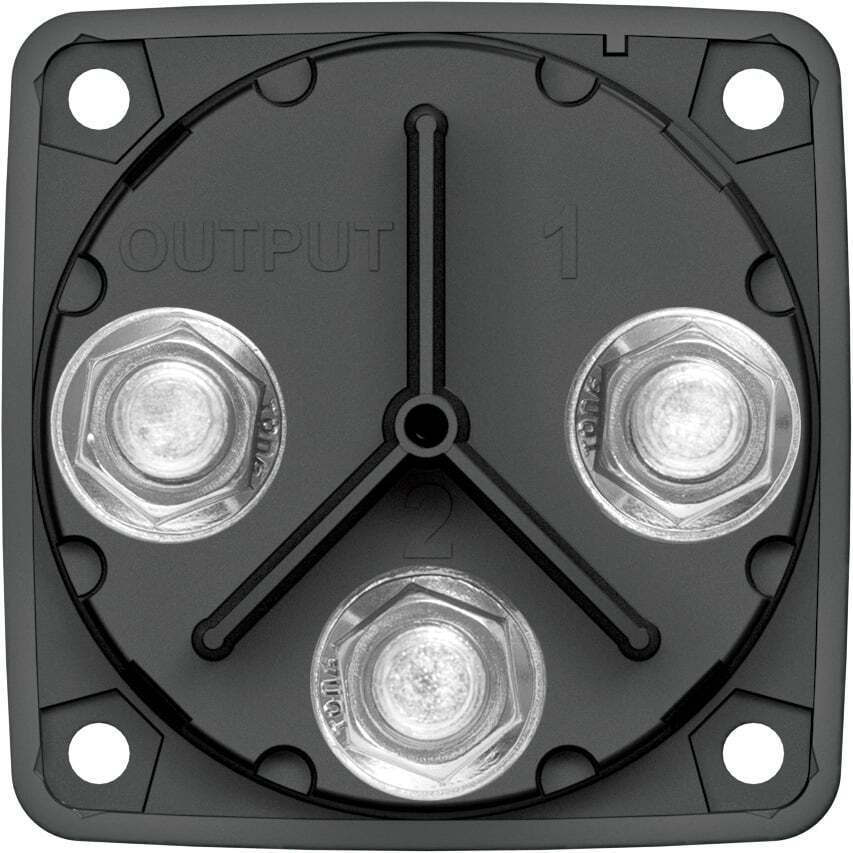

| Stud Material | Tinned Copper |
| Stud Torque |
120 in-lb (13.56 N·m) (approx. 10.0 ft-lb; reference only) |
| Switching Rating | 25A |
| Terminal Stud Size |
3/8" - 16 (M10) (3/8" ≈ 9.53 mm major diameter; M10 is 10 mm; 16 TPI ≈ 1.59 mm pitch; reference only) |
| Weight (min / max) |
0.77–0.77 lb (0.35–0.35 kg) (approx. 350 g; reference only) |
| SKU: | BS-6007200B |
| Model #: | BS-6007200B |
| MPN: | BS-6007200B |
