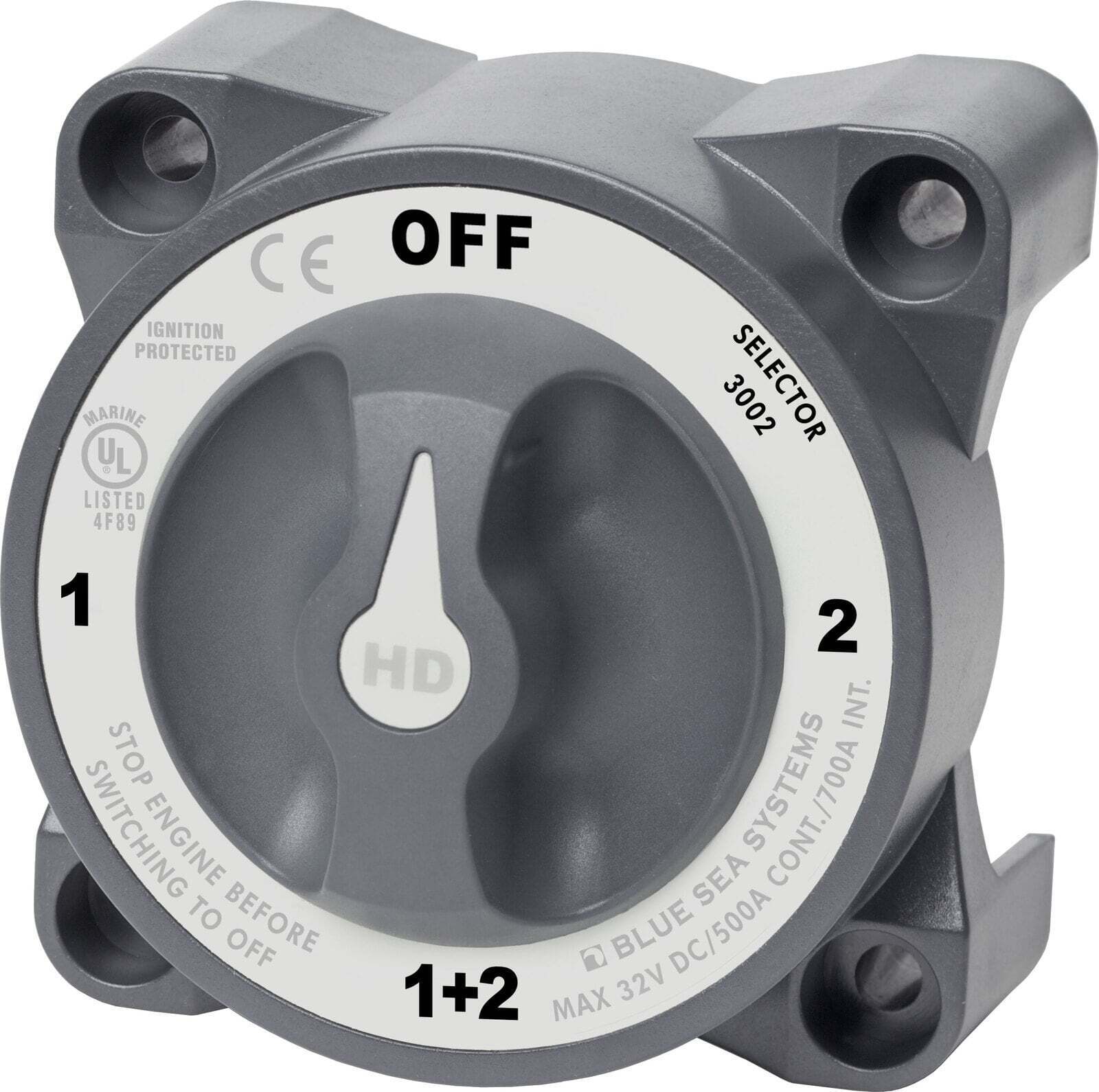

Blue Sea 500A HD-Series Heavy Duty 4 Position (OFF/1/2/1+2) Battery Selector Switch
4 Position OFF/1/2/1+2
3
Victron Battery BalancerDESCRIPTION
HD-Series Heavy Duty Selector Battery Switch- 3002
- Switches isolated battery banks to all loads or combines battery banks to all loads
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats

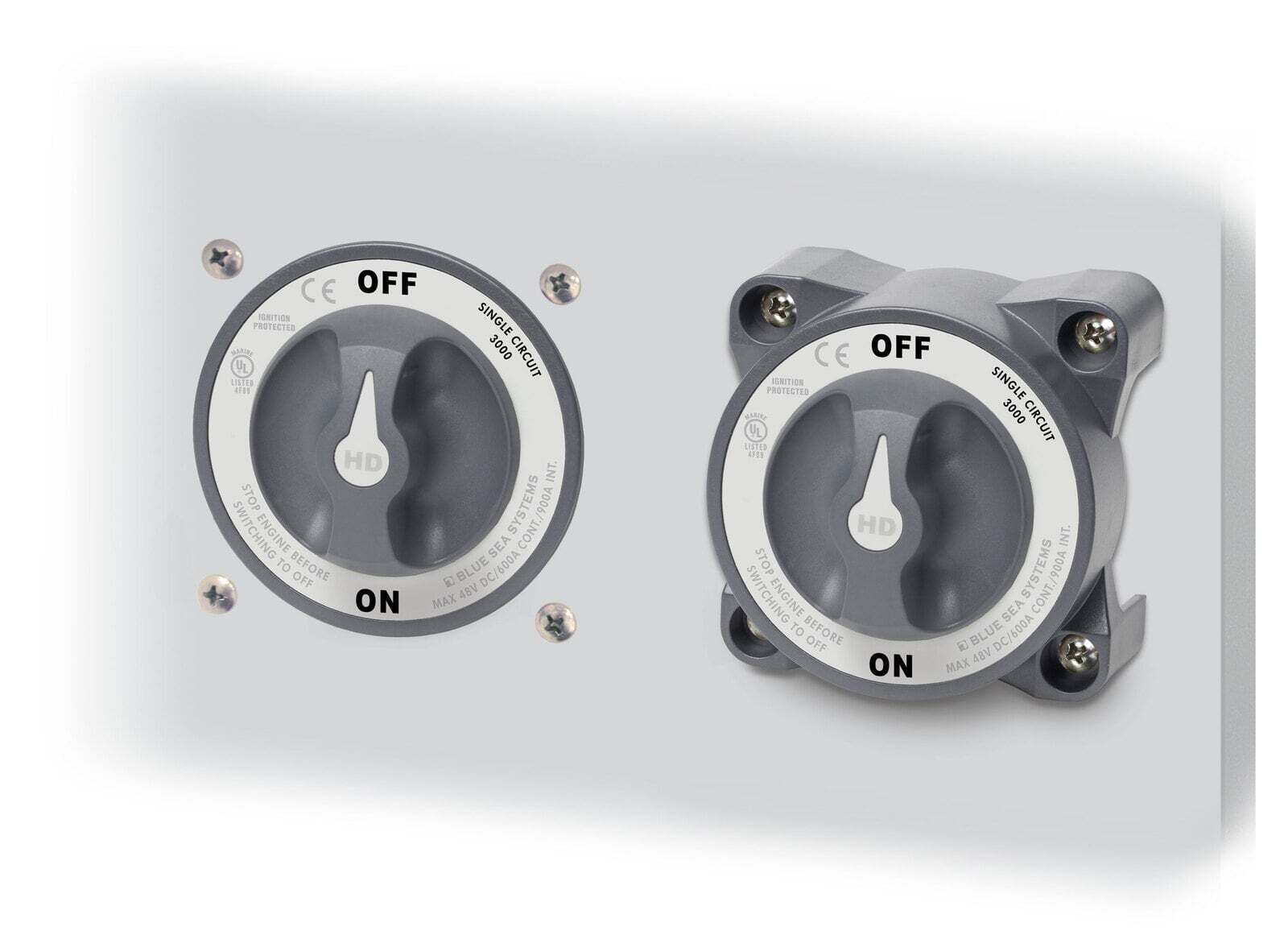

- Case design allows surface or rear panel mounting

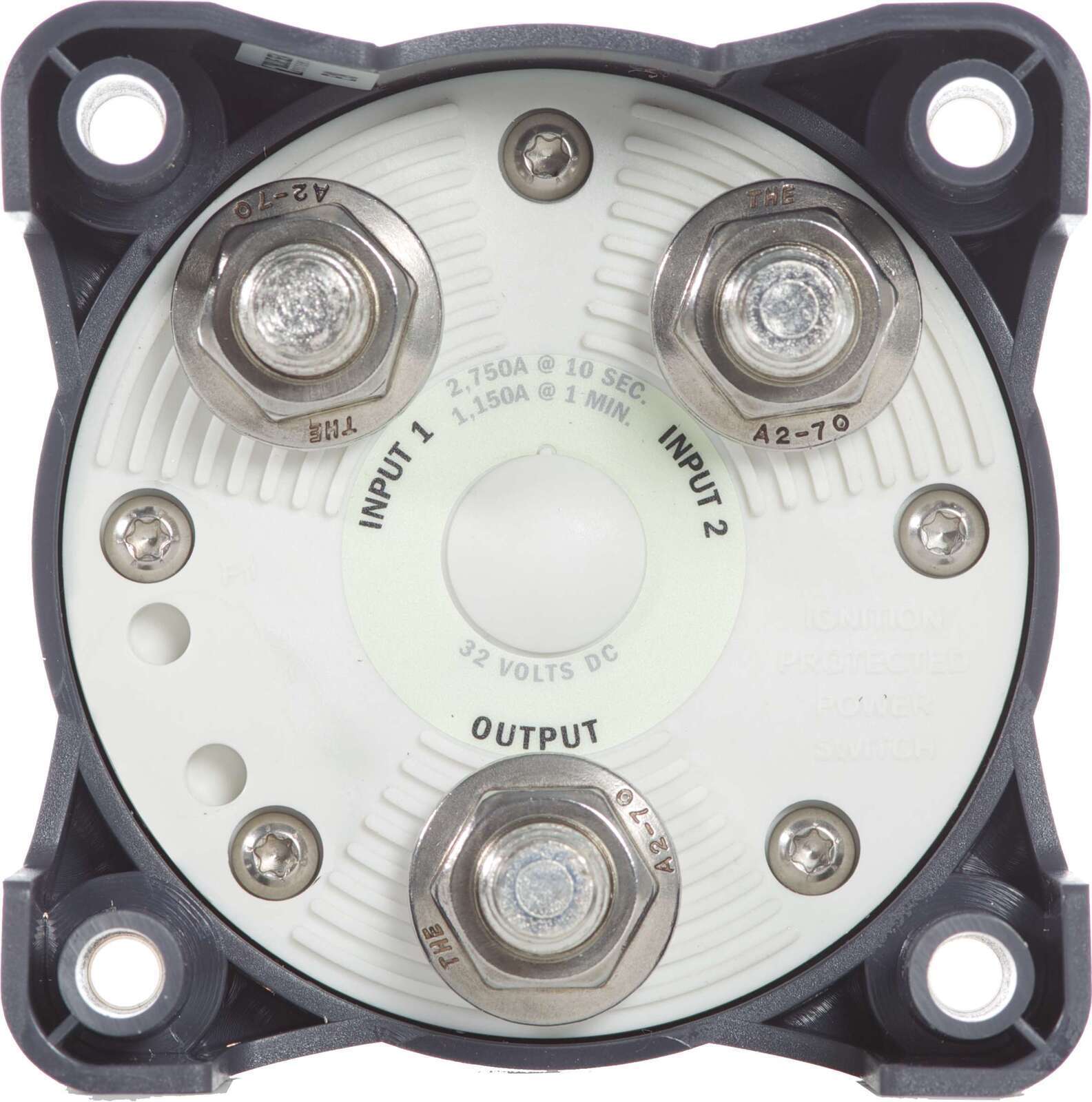

- Accepts two 4/0 AWG (95mm²) battery cables
SKU: BS-3002B

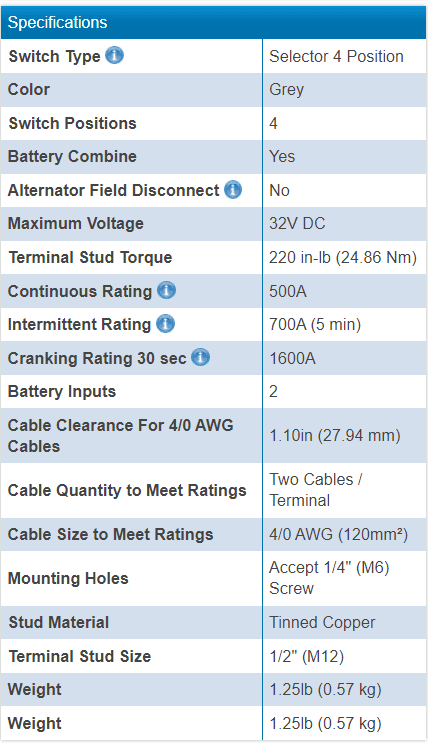

SPECIFICATIONS
Specifications
| Switch Type | Selector 4 Position |
|---|---|
| Color | Grey |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque |
220 in-lb (24.86 N·m) (approx. 18.3 ft-lb; reference only) |
| Continuous Rating | 400A |
| Intermittent Rating | 700A (5 min) |
| Starting Rating (30 sec) | 1600A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables |
1.10in (27.94 mm) (reference only) |
| Cable Quantity to Meet Ratings | Two Cables / Terminal |
| Cable Size to Meet Ratings |
4/0 AWG (120mm²) (AWG vs mm² is an approximate equivalence; reference only) |
| Mounting Holes |
Accept 1/4" (M6) Screw (1/4" ≈ 6.35 mm; M6 is 6 mm; reference only) |
| Stud Material | Tinned Copper |
| Switching Rating | 25A |
| Terminal Stud Size |
1/2" (M12) (1/2" ≈ 12.70 mm; M12 is 12 mm; reference only) |
| Weight (min / max) |
1.25–1.25 lb (0.57–0.57 kg) (approx. 570 g; reference only) |
| SKU: | BS-3002B |
| Barcode: | 632085030025 |
| Model #: | BS-3002B |
| MPN: | BS-3002B |
