Victron 24V 100Ah SuperPack NG Lithium Battery
Integrated LiFePO₄ Battery with Bluetooth BMS and Self-Heating
Victron 24V 200Ah Smart NG (NextGen) LiFePO4 Li...DESCRIPTION
Victron SuperPack NG Lithium Battery: Integrated Energy Storage for Demanding Applications
Advanced Lithium Iron Phosphate Technology with Built-In Intelligence
The Victron SuperPack NG 25.6V/100Ah delivers a complete, ready-to-use energy storage solution by integrating high-performance Lithium Iron Phosphate (LiFePO₄) cells with an advanced Battery Management System (BMS) and Bluetooth communication. This integration eliminates the complexity of external components, providing a reliable and safe power source for off-grid, mobile, and backup applications. With a round-trip efficiency of 93%, this battery ensures minimal energy loss during charge and discharge cycles, maximising the usable capacity of your system.
Unlike conventional lead-acid batteries, the SuperPack NG offers significantly higher energy density, faster charging, and a longer service life. The built-in BMS actively protects against overvoltage, undervoltage, overtemperature, and overcurrent conditions, safeguarding your investment and ensuring consistent performance. The integrated self-heating function, drawing up to 65 W, automatically warms the cells in cold environments, enabling safe charging at temperatures as low as -30°C, a critical advantage for installations in Australia's alpine regions or winter touring.
Seamless Monitoring and Control via VictronConnect
Every SuperPack NG battery features built-in Bluetooth, allowing direct connection to the VictronConnect app on your smartphone or tablet. This provides real-time visibility of key parameters including voltage, current, state of charge (SoC), and temperature. The intuitive interface also allows you to switch the battery on or off remotely, check historical data, and diagnose system health without additional displays or wiring. An External Feedback Signal (EFS) port provides a wired output for integration with alarms, relays, or other Victron equipment, enabling automated responses to low SoC or protection events.
Robust Design for Harsh Environments
Encased in an IP65-rated housing, the SuperPack NG is protected against dust ingress and low-pressure water jets, making it suitable for installation in exposed locations such as vehicle underbody compartments, marine engine bays, or outdoor equipment enclosures. The robust M8 female threaded inserts (20 mm depth including nut screws) provide secure, low-resistance power connections, while integrated rope handles facilitate safe handling during installation. The battery can be mounted upright or on its long side, provided flat horizontal support is maintained, offering flexibility in space-constrained layouts.
Key Features
- Integrated BMS with comprehensive protection against overvoltage, undervoltage, overtemperature, and overcurrent
- Built-in Bluetooth for wireless monitoring and control via the VictronConnect app
- Self-heating function enables charging in temperatures as low as -30°C
- IP65-rated enclosure for reliable operation in dusty and wet environments
- Supports unlimited parallel connection for energy expansion (system current limits apply)
- External Feedback Signal (EFS) output for wired system integration and alarms
- Exceptional cycle life: up to 5000 cycles at 50% depth of discharge
- 93% round-trip efficiency for reduced energy losses
Applications
The Victron SuperPack NG is engineered for a wide range of demanding applications where reliable, maintenance-free energy storage is essential. Typical uses include:
- Caravan, RV, and camper trailer power systems
- Marine and boating electrical systems
- Off-grid solar energy storage for cabins and tiny homes
- Backup power for critical communications and monitoring equipment
- Industrial and agricultural vehicles requiring deep-cycle capability
Whether you are upgrading an existing lead-acid bank or building a new off-grid system, the SuperPack NG provides a straightforward, high-performance solution that reduces installation time and enhances reliability. Its drop-in form factor and integrated intelligence mean you can focus on your adventure or application, not on battery maintenance.
Equip your energy system with the Victron SuperPack NG lithium battery and experience the confidence of advanced, integrated power storage designed for the toughest Australian conditions.
SKU: VIC-BAT524110740

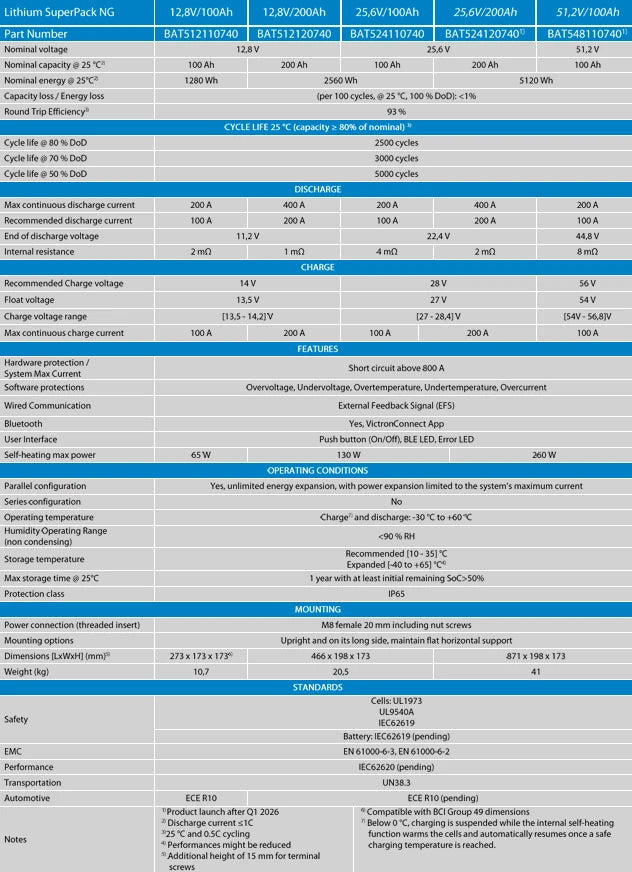

SPECIFICATIONS
Specifications
| Battery Model | SuperPack 25.6V/100Ah NG |
|---|---|
| Part Number | BAT524110740 |
| Nominal Voltage | 25.6 V |
| Nominal Capacity @ 25°C | 100 Ah |
| Nominal Energy @ 25°C | 2560 Wh |
| Capacity Loss | <1% |
| Energy Loss | <1% |
| Round Trip Efficiency | 93% |
| Discharge Current ≤1C | Yes |
| CYCLE LIFE | |
| 80% DoD | 2500 cycles |
| 70% DoD | 3000 cycles |
| 50% DoD | 5000 cycles |
| DISCHARGE | |
| Max Continuous Discharge | 200 A |
| Recommended Discharge Current | 100 A |
| End of Discharge Voltage | 22.4 V |
| Internal Resistance | 4 mΩ |
| CHARGE | |
| Recommended Charge Voltage | 28 V |
| Float Voltage | 27 V |
| Charge Voltage Range | 27 – 28.4 V |
| Max Continuous Charge | 100 A |
| FEATURES | |
| Hardware Protection | Short circuit protection (>800 A) |
| Software Protections | Overvoltage, Undervoltage, Overtemperature, Undertemperature, Overcurrent |
| Wired Communication | External Feedback Signal (EFS) |
| Bluetooth | Yes, via VictronConnect |
| User Interface | Push button (On/Off), BLE LED, Error LED |
| Self-heating Max Power | 65 W |
| OPERATING CONDITIONS | |
| Parallel Configuration | Yes (unlimited energy expansion, system current limits apply) |
| Series Configuration | No |
| Operating Temperature | Charge & Discharge: -30°C to +60°C |
| Humidity (non-condensing) | <90% RH |
| Storage Temperature | Recommended 10°C – 35°C (Expanded -40°C to +65°C) |
| Max Storage Time @ 25°C | 1 year (with SoC >50%) |
| Protection Class | IP65 |
| MOUNTING | |
| Power Connection | M8 threaded inserts |
| Mounting Options | Upright or on its long side (flat horizontal support required) |
| Dimensions (L x W x H) mm | 345 x 173 x 240 |
| Weight | 23 kg |
| STANDARDS | |
| Safety | Cells: UL1973, UL9540A, IEC62619 (pending) |
| EMC | EN 61000-6-3, EN 61000-6-2 |
| Performance | IEC62620 (pending) |
| Transportation | UN38.3 |
| Automotive | ECE R10 (pending) |
| SKU: | VIC-BAT524110740 |
| Barcode: | 8719076073765 |
| Model #: | BAT524110740 |
| MPN: | BAT524110740 |
