Exotronic Inline Standard Blade Fuse Holder | 10AWG Tinned Copper

Exotronic Inline Standard Blade Fuse Holder: Reliable Circuit Protection for 12V and 24V Systems

Engineered for Demanding Automotive and Marine Electrical Environments

The Exotronic Inline Standard Blade Fuse Holder delivers a professional-grade solution for safeguarding your DC circuits. Designed to accept widely available APR/ATO/ATC/ATS blade fuses, this holder ensures your fuses remain secure, easily accessible, and protected from environmental factors. Its robust construction and high-quality materials make it a dependable choice for automotive fuse holders, marine fuse holders, caravan wiring, and other 12V/24V applications where reliable circuit protection is critical.

Unlike basic fuse holders that can suffer from corrosion or poor conductivity, this unit features 10AWG tinned copper conductors and nickel-plated brass terminals. These materials provide excellent electrical performance and long-term resistance to oxidation, particularly in humid or salt-laden environments. The highly stranded wire construction enhances flexibility and reduces stress from vibration, a common cause of failure in mobile installations.

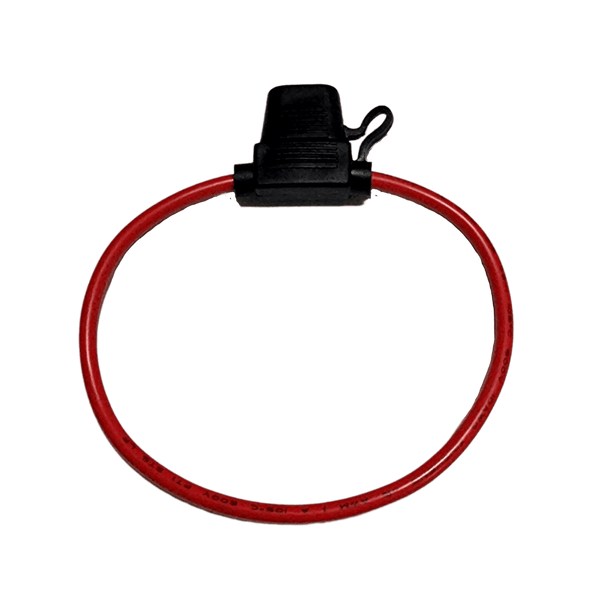

Customisable Installation with a 300mm Cable Loop

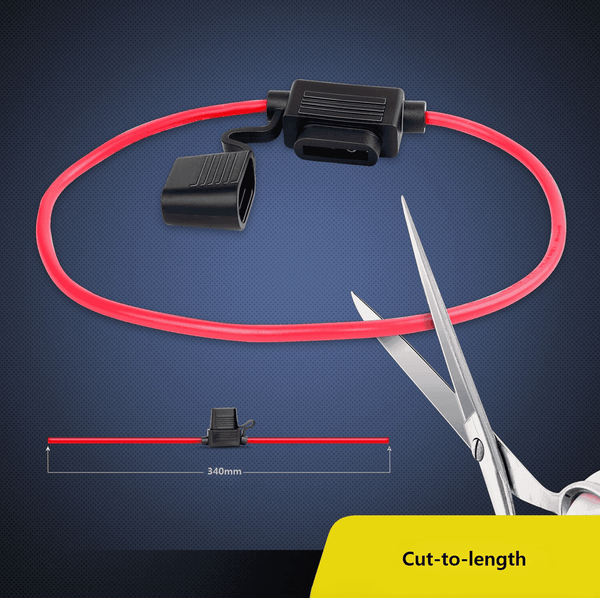

Supplied as a continuous 300mm cable loop, this inline blade fuse holder offers exceptional installation flexibility. You can cut the wire to the exact length required for your specific setup, minimising excess cable and ensuring a clean, professional finish. This design is ideal for tight spaces within engine bays, behind dash panels, or in marine wiring looms where a tailored fit is essential.

Key Features

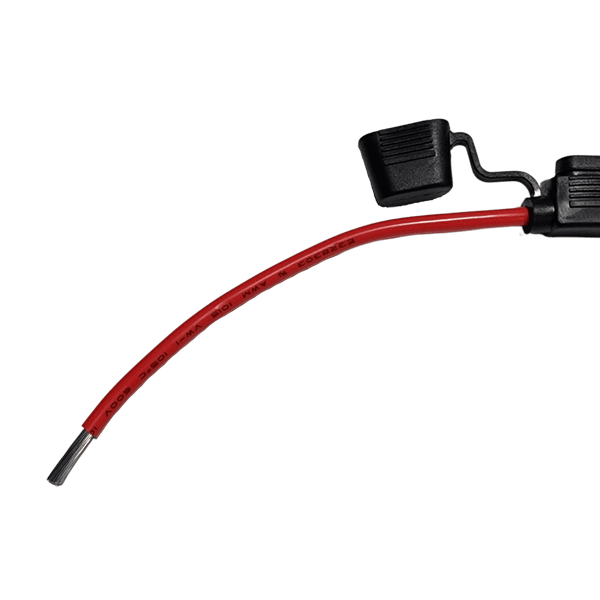

• 10AWG (approx. 5.3mm²) tinned copper wire for superior current handling and corrosion resistance
• 25A continuous current rating suitable for a wide range of 12V and 24V DC circuits
• 32V DC maximum voltage rating for safe operation in automotive and low-voltage systems
• Nickel-plated brass terminals ensure low-resistance connections and long-term durability

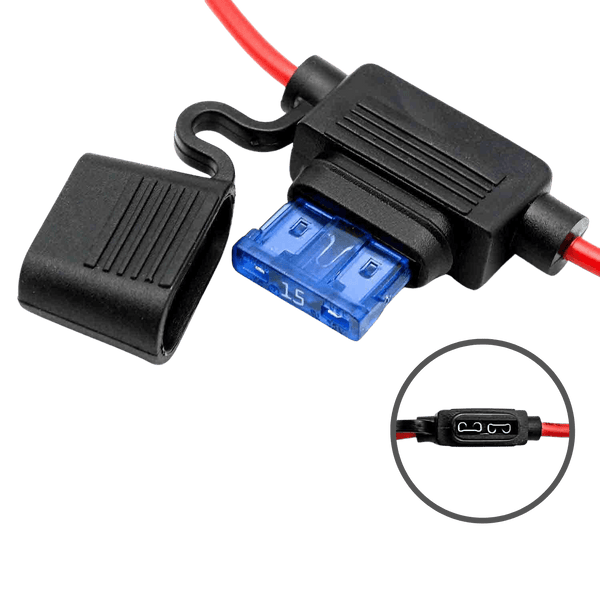

• Weatherproof moulded cap seals the fuse against moisture, dust, and debris
• Durable PVC housing provides robust physical protection and electrical insulation
• Highly stranded conductors for enhanced flexibility and vibration resistance
• Accepts standard blade fuses (APR/ATO/ATC/ATS) for easy sourcing and replacement

*Note typical de-rating factors apply; ensure the continuous load does not exceed 80% of the fuse rating for optimal safety.

Why Choose the Exotronic Inline Fuse Holder?

This fuse holder addresses common pain points in electrical system protection. The tinned copper wire prevents the black wire corrosion often seen in untinned copper, maintaining conductivity over time. The weatherproof cap reduces the risk of moisture ingress, which can lead to corrosion and intermittent faults. By using a standard blade fuse format, you avoid the hassle of sourcing proprietary fuses, making field replacements quick and straightforward.

Whether you are adding a new circuit to your 4WD, protecting a bilge pump on your boat, or wiring accessories in your caravan, this inline fuse holder 10AWG provides a secure and serviceable connection point. Its compact design and flexible wire loop simplify routing, while the robust materials ensure reliable performance in harsh Australian conditions.

Applications

• Automotive accessory circuits (driving lights, UHF radios, fridges)
• Marine electronics (fish finders, navigation lights, pumps)
• Caravan and RV 12V systems
• Solar charge controller input protection
• General low-voltage DC circuit protection

Secure Your Electrical System Today

Upgrade your circuit protection with the Exotronic Inline Standard Blade Fuse Holder. Designed for professionals and DIY enthusiasts alike, it offers the reliability and flexibility needed for critical DC installations. Add this essential component to your toolkit and ensure your equipment stays protected on every journey.
