Victron 24V 50Ah SuperPack Lithium Battery
Integrated BMS and Safety Switch for True Plug-and-Play LiFePO4 Power
Victron 24V 100Ah Smart LiFePO4 Lithium BatteryDESCRIPTION
Victron Lithium SuperPack: Integrated LiFePO4 Battery for Demanding Off-Grid and Mobile Applications
Plug-and-Play Lithium Power with Built-In Protection
The Victron Lithium SuperPack redefines ease of use in energy storage by integrating a sophisticated Battery Management System (BMS) and a safety switch directly into a single, compact unit. Unlike traditional lead-acid batteries that require external monitoring and protection, this LiFePO4 battery is ready to install right out of the box, making it an ideal choice for caravan solar systems, marine applications, and off-grid power solutions across Australia. With a nominal voltage of 25.6 V and a capacity of 50 Ah, it delivers 1280 Wh of usable energy, ensuring you have reliable power when you need it most.
The internal safety switch automatically disconnects the battery in the event of over-discharge, over-charge, or extreme temperatures, safeguarding your investment and eliminating the risk of irreversible damage. This intelligent protection, combined with the inherent stability of Lithium Iron Phosphate (LiFePO4) chemistry, provides peace of mind for critical installations where battery failure is not an option.
Superior Efficiency and Longevity Over Lead-Acid
One of the most significant advantages of the SuperPack is its exceptional round-trip energy efficiency of 92%, compared to the typical 80% of lead-acid batteries. In real-world off-grid solar setups, where batteries often operate in a partial state of charge, lead-acid efficiency can plummet to 50% or less. The SuperPack maintains high efficiency even under shallow cycling, meaning more of your generated solar power is stored and available for use. This translates to faster charging, reduced energy waste, and lower running costs over the battery's lifetime.
Furthermore, the SuperPack is virtually immune to the sulfation that plagues lead-acid batteries when left partially charged. It thrives on partial charging, and its service life can even improve when not constantly held at 100% state of charge. With a cycle life of 2500 cycles at 80% depth of discharge and a capacity loss of less than 1% per 100 cycles at full discharge, this battery is built for long-term, dependable service in demanding Australian conditions.
Key Features
- Integrated BMS and safety switch for automatic protection against over-discharge, over-charge, and temperature extremes
- High round-trip efficiency (92%) maximises solar harvest and reduces energy loss compared to lead-acid
- LiFePO4 chemistry ensures thermal stability, long cycle life, and no risk of thermal runaway
- Unlimited parallel connection allows you to scale your battery bank to meet larger energy demands
- Lightweight and compact design simplifies installation in space-constrained environments like caravans and boats
- Wide operating temperature range from -20°C to +50°C for discharge, suitable for Australian climates
- IP43 protection rating guards against dust and water spray, enhancing durability in mobile and marine settings
- Maintenance-free operation with no need for watering, equalisation charges, or terminal cleaning
Engineered for Real-World Reliability
Victron has designed the SuperPack to withstand the rigours of mobile and off-grid life. The robust casing and IP43-rated enclosure protect internal components from dust and moisture, making it suitable for installation in vehicle bays, boat lockers, and remote equipment sheds. The battery can be placed on its longest side, offering flexible mounting options where vertical space is limited.

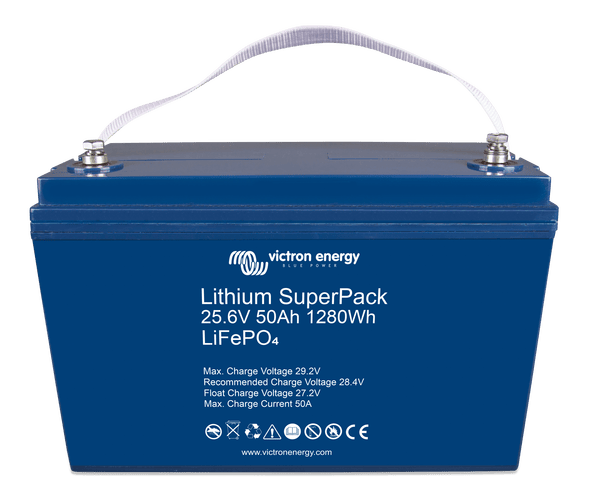

Connection is straightforward via M8 threaded inserts, which accept standard cable lugs for a secure, low-resistance link. The integrated carry strap makes transport and positioning safe and easy. Unlike some generic lithium batteries that require complex external BMS units and wiring, the SuperPack's all-in-one design reduces installation time and potential points of failure.
Ideal Applications
The Victron Lithium SuperPack is perfectly suited for a wide range of applications where reliable, maintenance-free energy storage is essential:
- Caravans and RVs: Power lights, fridges, and electronics without the weight and maintenance of lead-acid
- Marine and boating: Dependable power for navigation, communication, and onboard amenities in saltwater environments
- Off-grid solar systems: Store solar energy efficiently for remote cabins, tiny homes, and sheds
- Backup power: Keep critical devices running during grid outages with a silent, emission-free solution
- Industrial and mobility: Power electric wheelchairs, scooters, and portable equipment with a safe, high-cycle battery
Compact footprint with dimensions of 220 x 330 x 172 mm and a weight of 14 kg, ideal for installations where space and weight are critical.
Power Your Next Adventure with Confidence
Upgrade your energy system with the Victron Lithium SuperPack and experience the freedom of truly maintenance-free, high-efficiency power. Whether you're exploring the outback, sailing the coast, or living off the grid, this battery delivers the performance and reliability you need. Order yours today and take the first step towards a smarter, more resilient energy setup.
SKU: VIC-BAT524050705

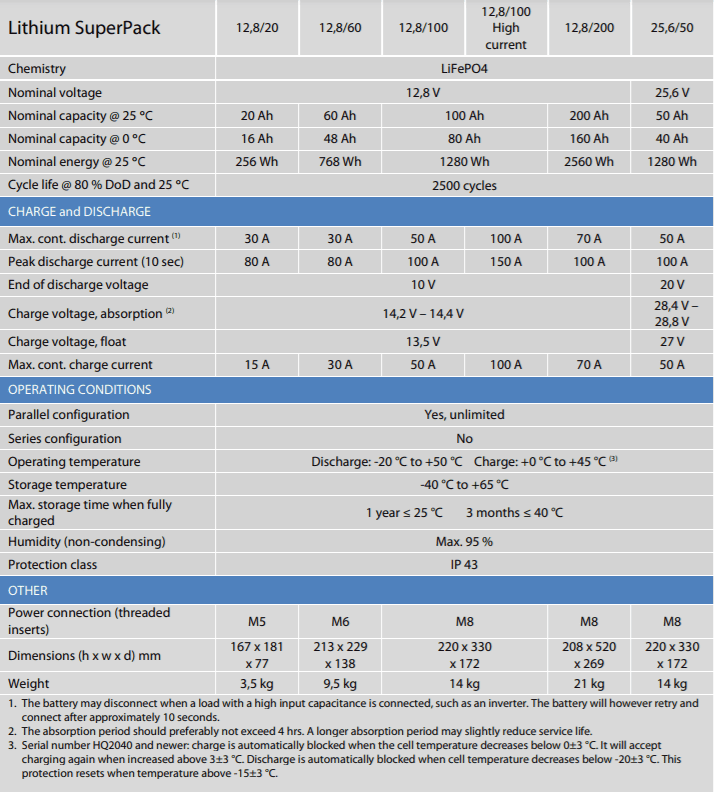

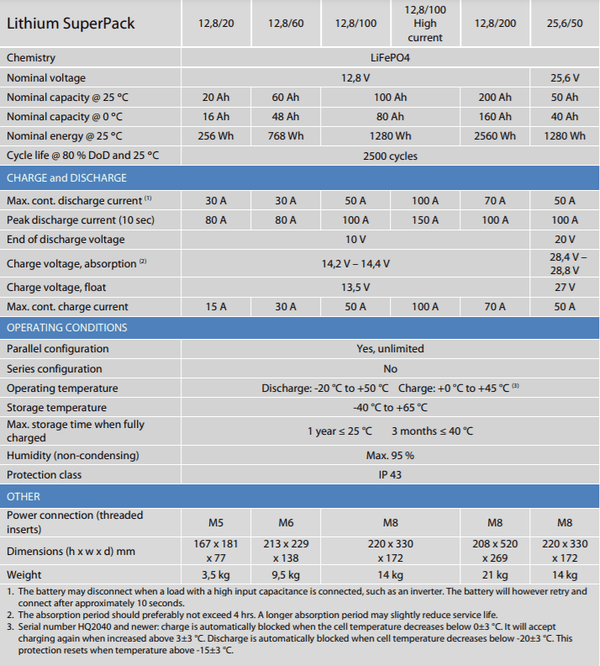

SPECIFICATIONS
Specifications
| Model | BAT524050705 Lithium SuperPack 25.6V/50Ah (M8) |
|---|---|
| Chemistry | LiFePO4 |
| Nominal Voltage | 25.6 V |
| Nominal Capacity @ 25 °C | 50 Ah |
| Nominal Capacity @ 0 °C | 40 Ah |
| Nominal Energy @ 25 °C | 1280 Wh |
| Cycle Life @ 80 % DoD And 25 °C | 2500 cycles |
| Capacity Loss (Per 100 Cycles, @ 25 °C, 100 % DoD) | <1 % |
| Energy Loss (Per 100 Cycles, @ 25 °C, 100 % DoD) | <1 % |
| Round Trip Efficiency | 92 % |
| Max. Cont. Discharge Current | 50 A |
| Peak Discharge Current (10 sec) | 100 A |
| End Of Discharge Voltage | 20 V |
| Charge Voltage, Absorption | 28.4 V - 28.8 V |
| Charge Voltage, Float | 27 V |
| Max. Cont. Charge Current | 50 A |
| Parallel Configuration | Yes, unlimited |
| Series Configuration | No |
| Operating Temperature | Discharge: -20 °C to +50 °C; Charge: +0 °C to +45 °C |
| Storage Temperature | -40 °C to +65 °C |
| Max. Storage Time When Fully Charged | 1 year ≤ 25 °C; 3 months ≤ 40 °C |
| Humidity (Non-condensing) | Max. 95 % |
| Protection Class | IP 43 |
| Can Be Placed On Its Longest Side | Yes |
| Power Connection (Threaded Inserts) | M8 |

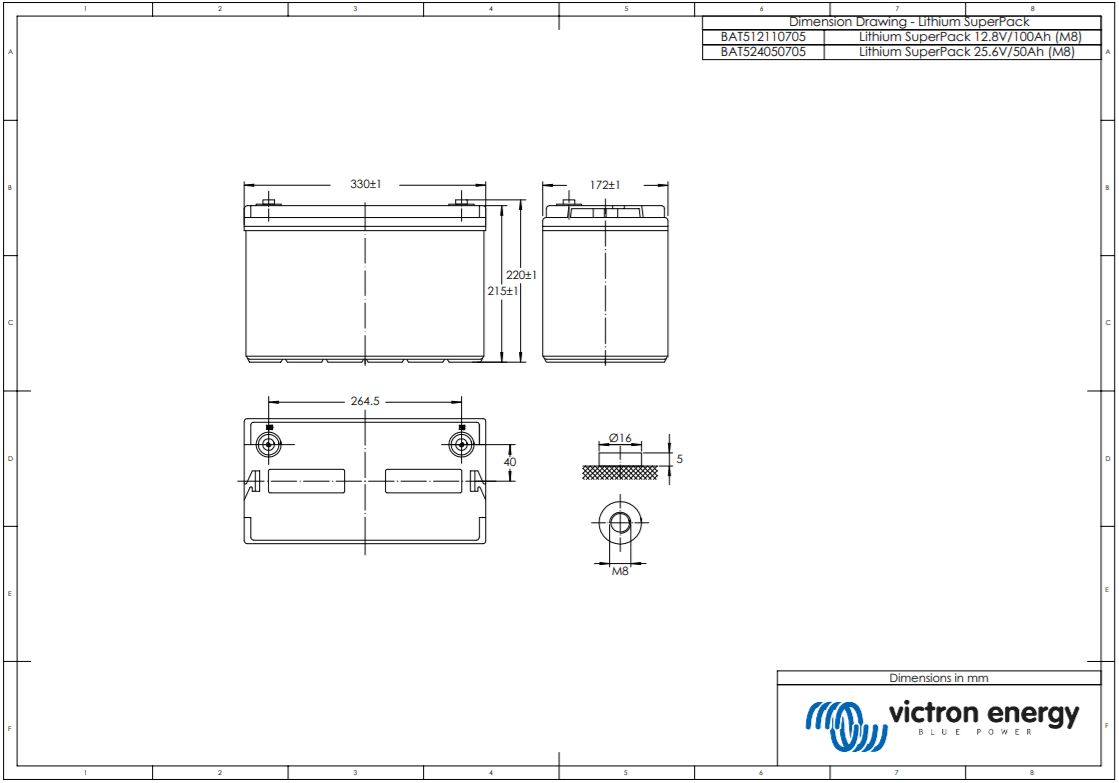

| Dimensions (H x W x D) | 220 x 330 x 172 mm |
| Weight | 14 kg |
| SKU: | VIC-BAT524050705 |
| Barcode: | 8719076047575 |
| Model #: | BAT524050705 |
| MPN: | BAT524050705 |
WARRANTY
Victron Energy Limited Warranty Policy
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.
During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.
Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.
Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.
Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.
Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.
Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.
For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
