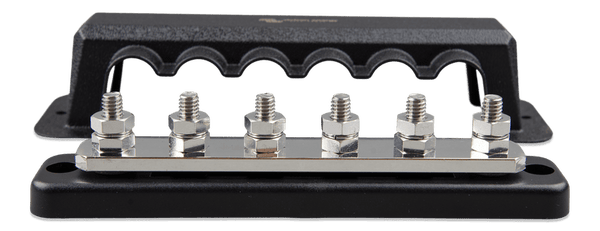

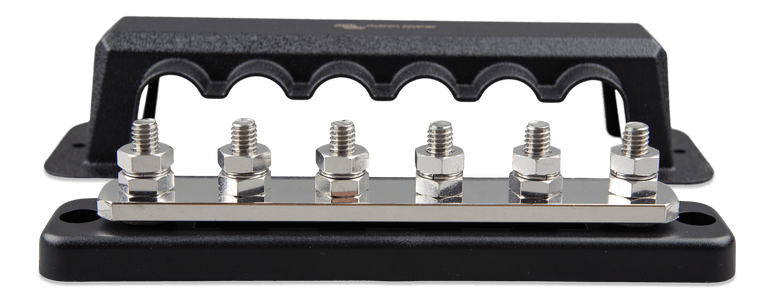

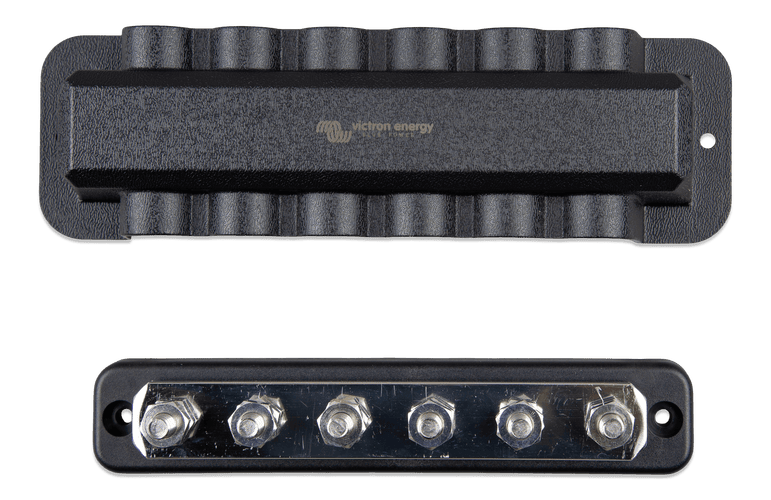

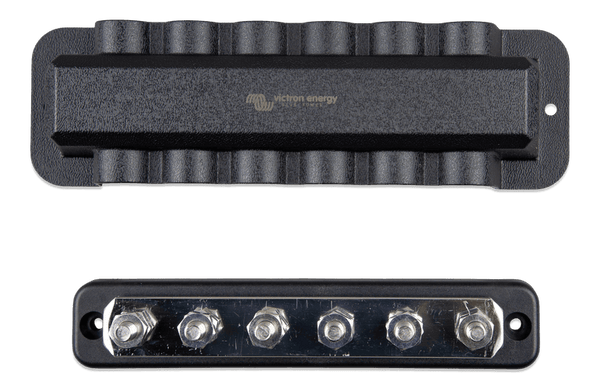

Victron Busbar 250A 6P/Terminals & Cover
6-Way Power Distribution with Tin-Plated Copper & Protective Cover
Victron Grey BMV-700 Battery MonitorDESCRIPTION
High-Current Power Distribution for Marine, RV, and Solar Systems
When wiring high-capacity battery banks, inverters, and DC loads, relying on direct battery terminal connections often leads to dangerous clutter and voltage drops. The Victron busbar 250A 6P provides a professional, highly efficient central distribution point for heavy-duty DC electrical circuits. Rated for up to 250 Amps and handling voltages up to 70V DC, this distribution block is the ideal solution for robust 12V, 24V, and 48V systems found in off-grid solar setups, marine vessels, and mobile power configurations.
Engineered for Maximum Conductivity and Low Resistance
At the core of this power distribution solution is a high-quality tin-plated copper busbar strip measuring 5 x 24 mm. Copper is renowned for its exceptional electrical conductivity, while the heavy-duty tin plating provides critical protection against oxidation and corrosion. This ensures that your electrical system maintains optimal current flow and minimal voltage drop, even in harsh coastal or humid environments where standard components may degrade over time.
High-Torque Stainless Steel Terminals
A common point of failure in generic power systems is weak terminal connections that loosen over time due to vibration or thermal cycling. To combat this, the Victron busbar features six 5/16 inch (approx. 8mm) stainless steel terminal studs. These heavy-duty studs allow for high-torque tightening (up to 13 N.m), creating a highly secure mechanical and electrical connection for heavy gauge cable lugs. The unique insert-moulded design eliminates the need for separate securing nuts underneath, providing a rigid anchor point that will not spin or break loose during installation.

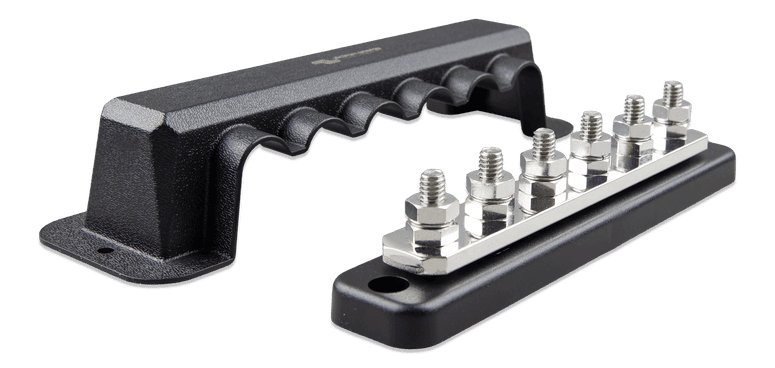

Protective Busbar Cover and Flame-Retardant Safety
Safety is paramount when dealing with high-amperage DC power. An accidental short circuit across exposed terminals can cause catastrophic damage or fire. This unit includes a dedicated busbar cover made from durable black ABS plastic, which shields the live connections from dropped tools, loose conductive materials, and accidental contact. The mounting base itself is constructed from UL 94 V-0 rated flame-retardant ABS, providing an extra layer of thermal protection. Furthermore, the raised bus configuration allows for straightforward wire routing, creating a clean, highly organised installation that simplifies future maintenance.
Key Features and Benefits
- 250A Maximum Current Rating: Handles heavy loads from large inverters, solar charge controllers, and battery banks.
- 70V DC Maximum Voltage: Perfectly suited for standard 12V, 24V, and 48V nominal battery systems.
- Six 5/16 inch (approx. 8mm) Studs: Ample connection points for main feeds and high-draw branch circuits.
- Tin-Plated Copper Strip: Delivers superior conductivity and excellent long-term corrosion resistance.
- Stainless Steel Hardware: Allows for secure, high-torque connections that withstand heavy mobile vibration.
- Flame-Retardant Construction: UL 94 V-0 base and UL 94 V-2 cover enhance system safety against excessive heat.
Eliminate Battery Terminal Clutter
Stacking multiple heavy-duty ring terminals onto a single battery post is a well-known risk factor for poor contact, increased resistance, and excessive heat generation. By migrating your main distribution cables to a dedicated 200 amp busbar or higher capacity 250A model, you isolate the mechanical stress from the battery terminals and ensure every circuit receives a clean, low-resistance connection. This practice drastically improves system reliability and troubleshooting speed.
Secure your high-current DC circuits with a proven, professional-grade solution. Add the Victron 250A 6-way busbar to your electrical system today to ensure safe, highly efficient power distribution across your entire setup.
SKU: VIC-VBB125060020

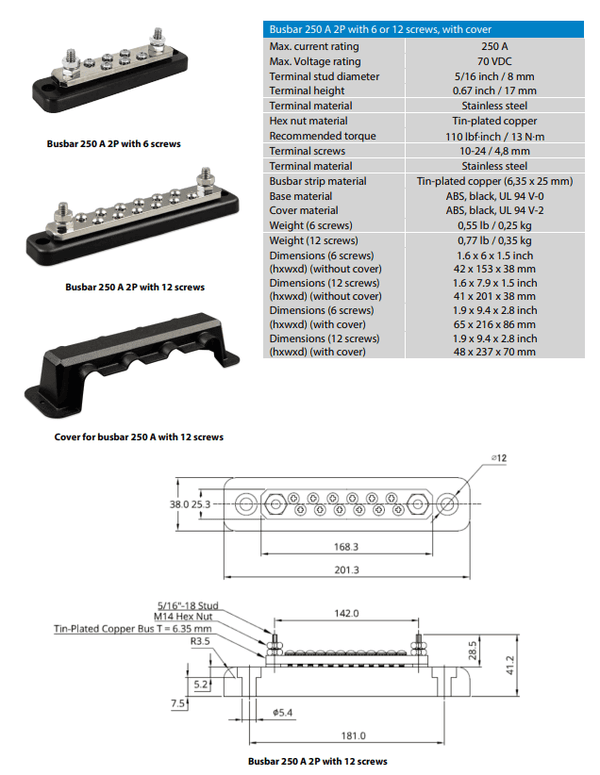

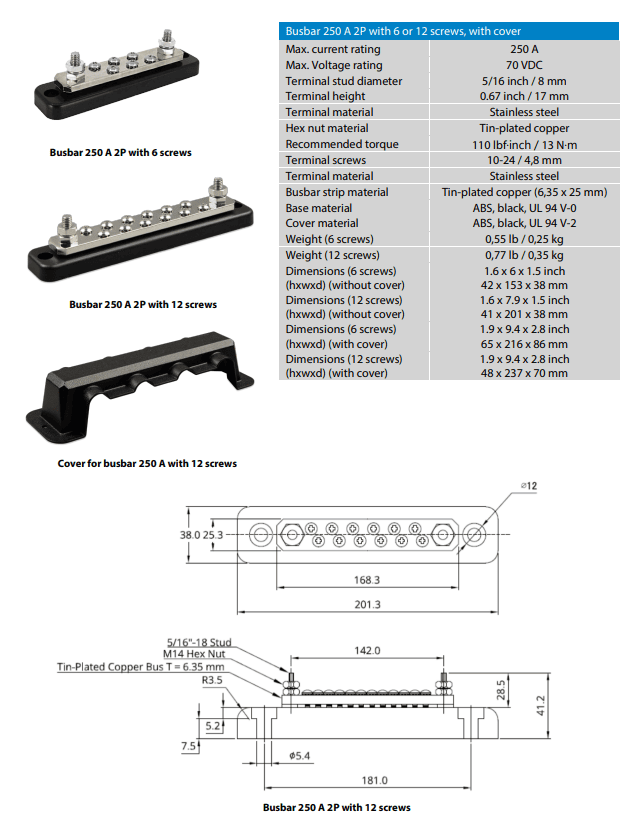

SPECIFICATIONS
Specifications
| Feature | Specification |
|---|---|
| Max. Current Rating | 250 A |
| Max. Voltage Rating | 70 VDC |
| Terminal Diameter | 5/16 inch / 8 mm |
| Terminal Height | 0.67 inch / 17 mm |
| Terminal Material | Stainless steel |
| Hex Nut Material | Tin-plated copper |
| Recommended Torque | 110 lbf·inch / 13 N·m |
| Busbar Strip Material | Tin-plated copper (5 x 24 mm) |
| Base Material | ABS, black, UL 94 V-0 |
| Cover Material | ABS, black, UL 94 V-2 |
| Weight, 6 Terminals | 1.0 lb / 0.43 kg |
| Dimensions (6 Terminals) (HxWxD) with Cover | 1.9 x 9.4 x 2.8 inch / 48 x 237 x 70 mm |
| SKU: | VIC-VBB125060020 |
| Barcode: | 8719076056416 |
| Model #: | VBB125060020 |
| MPN: | VBB125060020 |
