Victron 12V/160Ah Lead Carbon Deep Cycle Battery (M8)

500+ cycles at 100% DoD, reduced sulfation, M8 terminals, 532x207x226mm


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

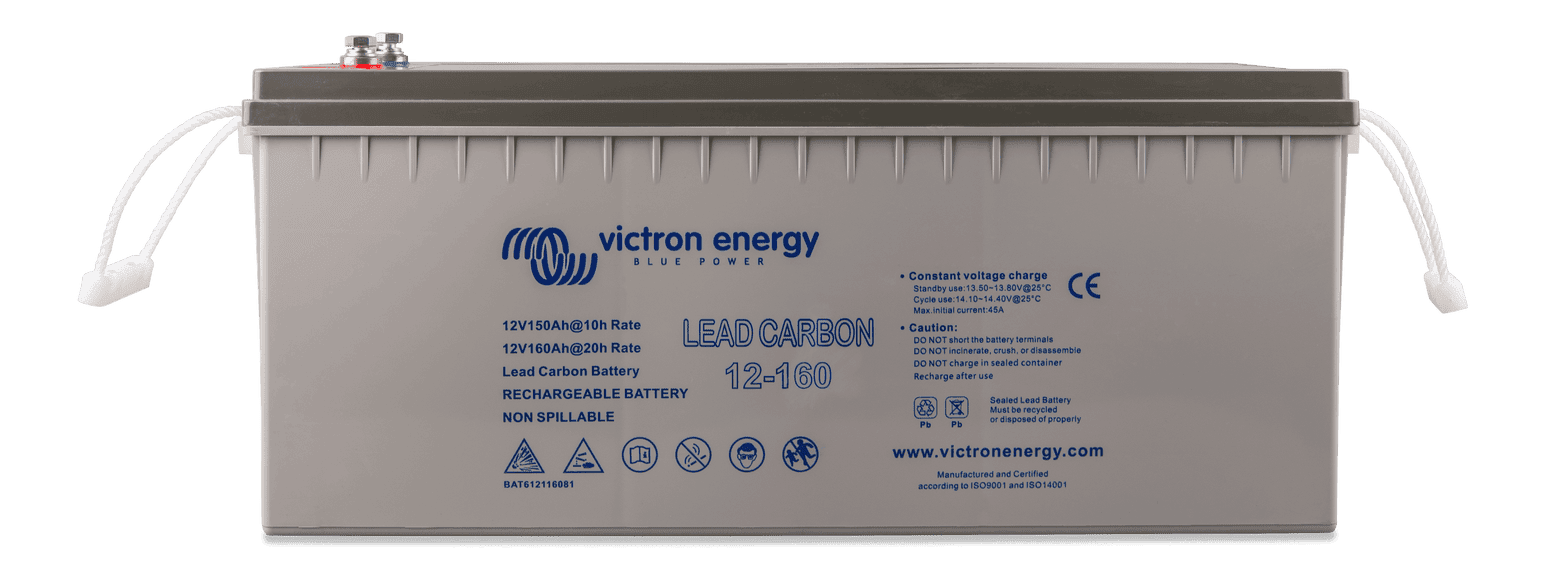

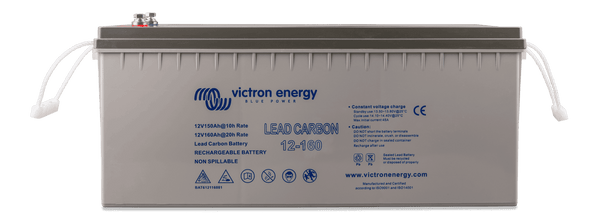

Victron 12V 160Ah Lead Carbon Deep Cycle Battery: Advanced Energy Storage for Intensive Cycling

Engineered for Superior Partial State-of-Charge Performance and Extended Cycle Life

The Victron 12V 160Ah Lead Carbon Deep Cycle Battery is purpose-built for demanding off-grid and renewable energy systems where frequent deep discharges are the norm. By integrating lead carbon technology into the negative plate, this battery significantly reduces sulfation and enhances charge acceptance, making it a reliable choice for applications such as solar storage, marine house banks, and backup power. Unlike conventional AGM or gel batteries, the lead carbon composite maintains performance even when operating in a partial state-of-charge (PSOC) for extended periods, a common scenario in solar-powered installations.

With a nominal capacity of 160Ah at C20 and a robust cycle life exceeding 500 cycles at 100% depth of discharge (DoD), this battery is designed to endure rigorous daily cycling. Its sealed VRLA construction ensures maintenance-free operation and allows flexible mounting, while the integrated rope carry handles and M8 terminals (Approx. 5/16"-18) simplify installation and transport. Whether you're upgrading a caravan power system or building a remote off-grid setup, this battery delivers consistent, long-lasting energy.

Lead Carbon Technology: Solving the Sulfation Challenge

Traditional lead acid batteries often fail prematurely due to sulfation of the negative plate, especially when left in a discharged state or cycled at partial charge. The Victron Lead Carbon battery addresses this by replacing the active material of the negative plate with a lead carbon composite. This innovation offers three key benefits:

  • Reduced Sulfation: The carbon additive inhibits the growth of hard sulfate crystals, preserving capacity even after prolonged PSOC operation.
  • Improved Charge Efficiency: Lower charge voltage requirements (14.1–14.4V absorption) reduce corrosion on the positive plate and minimise energy loss.
  • Extended Cycle Life: Proven to withstand over 500 cycles at 100% DoD, with even greater longevity at shallower discharges (≥1000 cycles at 60% DoD, ≥1400 cycles at 40% DoD).

These characteristics make the battery particularly effective in solar systems where daily charging may be inconsistent, ensuring reliable performance without the need for frequent full recharges.

Built for Real-World Demands

Weighing 55 kg and measuring 532 x 207 x 226 mm, this battery is substantial yet manageable, aided by heavy-duty rope handles. The M8 insert terminals (Approx. 5/16"-18) provide secure, low-resistance connections for high-current applications. The sealed, non-spillable case allows installation in various orientations, adding flexibility for tight compartments in boats or vehicles.

Key specifications include a CCA rating of 600A at 0°F and a reserve capacity of 290 minutes at 80°F, ensuring dependable starting power and sustained energy delivery. The recommended float voltage of 13.5–13.8V and storage voltage of 13.2–13.5V help maintain battery health during idle periods.

Ideal Applications

  • Off-Grid Solar Systems: Perfect for daily cycling in solar installations, where PSOC operation is common.
  • Marine and RV House Banks: Powers lights, pumps, and electronics reliably, even after deep discharges.
  • Backup Power: Provides dependable energy storage for critical loads during grid outages.
  • Industrial and Remote Monitoring: Suitable for remote equipment, telecommunications, and security systems.

Note: For optimal lifespan, adhere to recommended charge parameters and avoid prolonged storage in a discharged state. Typical de-rating factors apply for temperature and discharge rates.

Upgrade Your Energy Storage Today

Choose the Victron 12V 160Ah Lead Carbon Deep Cycle Battery for a durable, high-cycle solution that thrives under demanding conditions. Order now to enhance your off-grid power reliability.


SKU: VIC-BAT612116081

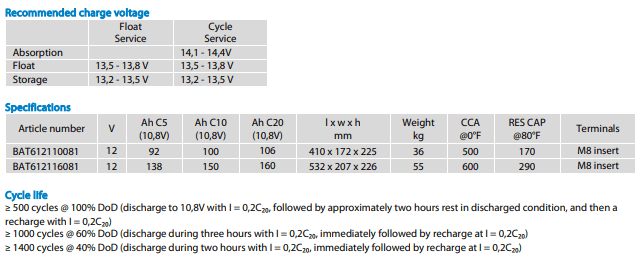

SPECIFICATIONS

Specifications

Battery TypeLead Carbon Battery
Article NumberBAT612116081
Nominal Voltage12 V
Capacity C5 (10.8 V)138 Ah
Capacity C10 (10.8 V)150 Ah
Capacity C20 (10.8 V)160 Ah
Dimensions (L x W x H)532 x 207 x 226 mm
Weight55 kg
CCA @ 0°F600
RES CAP @ 80°F290
TerminalsM8 Insert
Recommended Charge Voltage - AbsorptionCycle Service: 14.1 - 14.4 V
Recommended Charge Voltage - FloatFloat Service: 13.5 - 13.8 V; Cycle Service: 13.5 - 13.8 V
Recommended Charge Voltage - StorageFloat Service: 13.2 - 13.5 V; Cycle Service: 13.2 - 13.5 V
Cycle Life @ 100% DoD≥ 500 Cycles (Discharge to 10.8 V with I = 0.2C20, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0.2C20)
Cycle Life @ 60% DoD≥ 1000 Cycles (Discharge during three hours with I = 0.2C20, immediately followed by recharge at I = 0.2C20)
Cycle Life @ 40% DoD≥ 1400 Cycles (Discharge during two hours with I = 0.2C20, immediately followed by recharge at I = 0.2C20)

SKU: VIC-BAT612116081
Barcode: 8719076045472
Model #: BAT612116081
MPN: BAT612116081

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
