Victron Busbar 150A 6P/Terminals & Cover

6-Terminal 150A DC Busbar with Protective Cover - 231.7x31.8x45mm


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
3

DESCRIPTION

Victron 150A 6-Position Busbar: High-Current Distribution with Integrated Protective Cover

Professional Power Distribution for Marine, Automotive, and Off-Grid Systems

The Victron 150A 6-Position Busbar provides a robust and organised solution for managing high-current DC circuits. Engineered for demanding environments, this busbar simplifies connections between batteries, inverters, chargers, and other DC equipment. Its 6-terminal design consolidates multiple high-current connections onto a single, secure point, reducing cable clutter and improving system reliability.

Unlike generic busbars that may use lower-grade materials or lack essential safety features, this Victron model is built with a tin-plated copper conductor for superior conductivity and corrosion resistance. The included clear polycarbonate cover protects against accidental shorts and physical contact, a critical safety feature often overlooked in budget alternatives. This makes it an ideal choice for professional installers and DIY enthusiasts seeking a dependable, long-lasting power distribution hub.

Engineered for Safety and Long-Term Reliability

Safety is paramount in any DC electrical system. The Victron 150A 6-Position Busbar incorporates several design elements to mitigate risks. The flame-retardant ABS base (UL 94 V-0) provides a stable, insulated mounting platform, while pre-drilled mounting holes allow for secure attachment to any flat surface, preventing movement and potential shorts. The raised bus design ensures easy access for wiring and reduces the chance of terminals contacting metal surfaces.

Each terminal features a moulded-in stainless steel stud (1/4 inch / 6.35 mm diameter), eliminating the need for a bottom securing nut. This design allows for higher torque values (up to 7 N·m) without compromising the stud's integrity, ensuring a gas-tight, low-resistance connection that remains stable over time. The tin-plated copper hex nuts further enhance conductivity and resist corrosion, even in humid or salt-laden air.

Key Features

  • 150 A continuous current rating for demanding DC loads

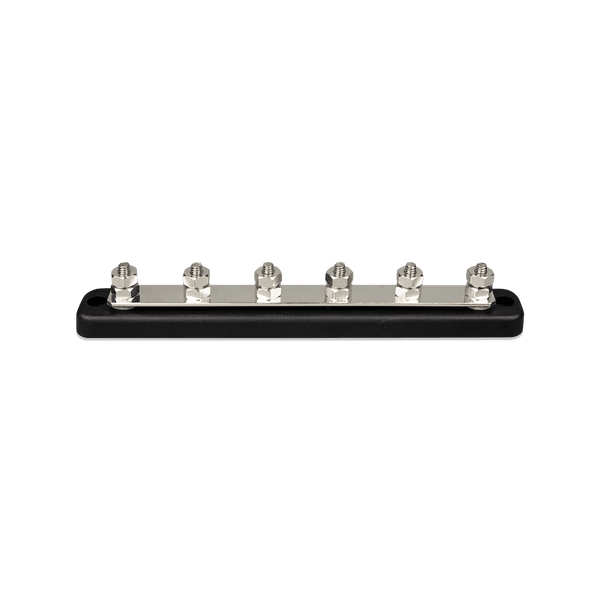

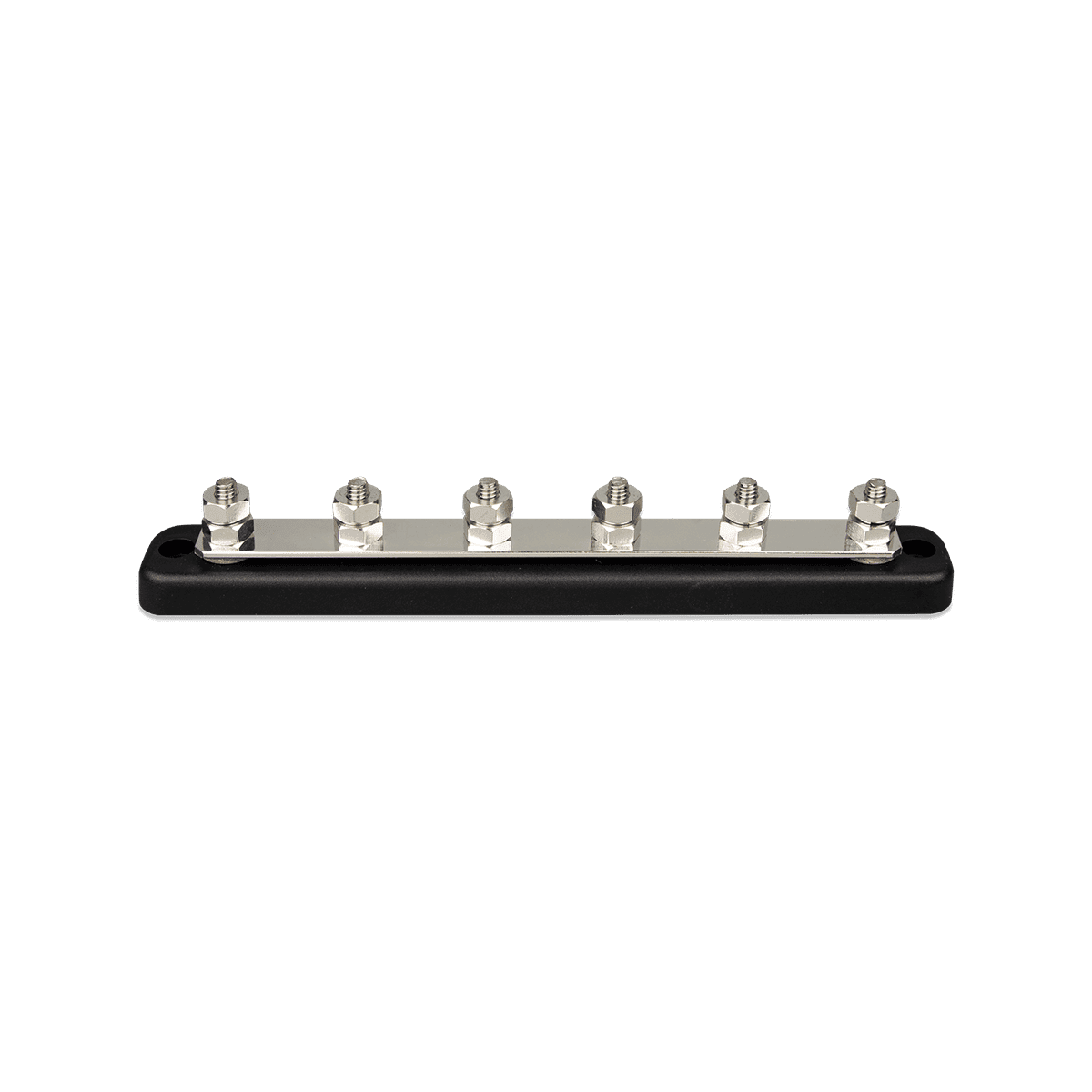

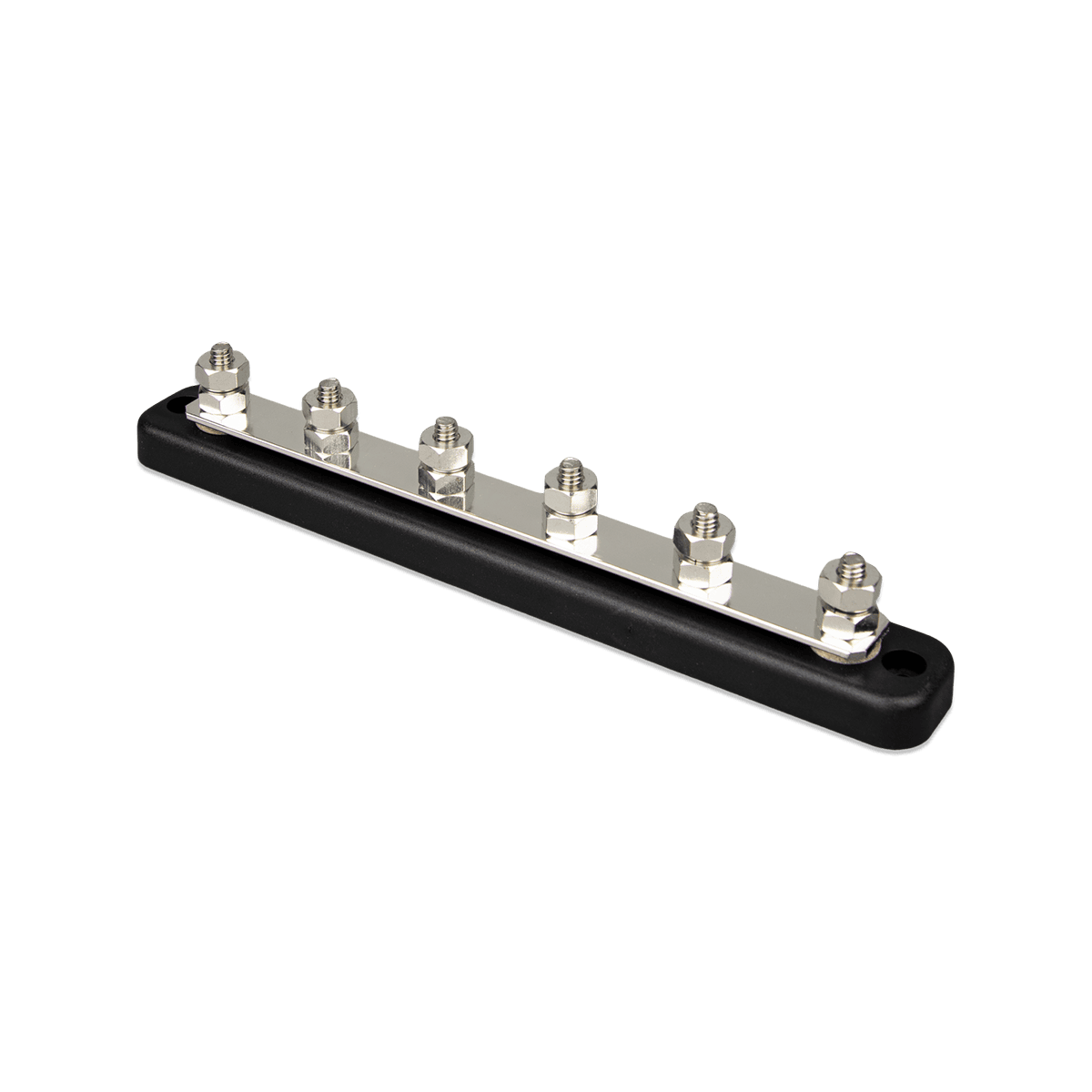

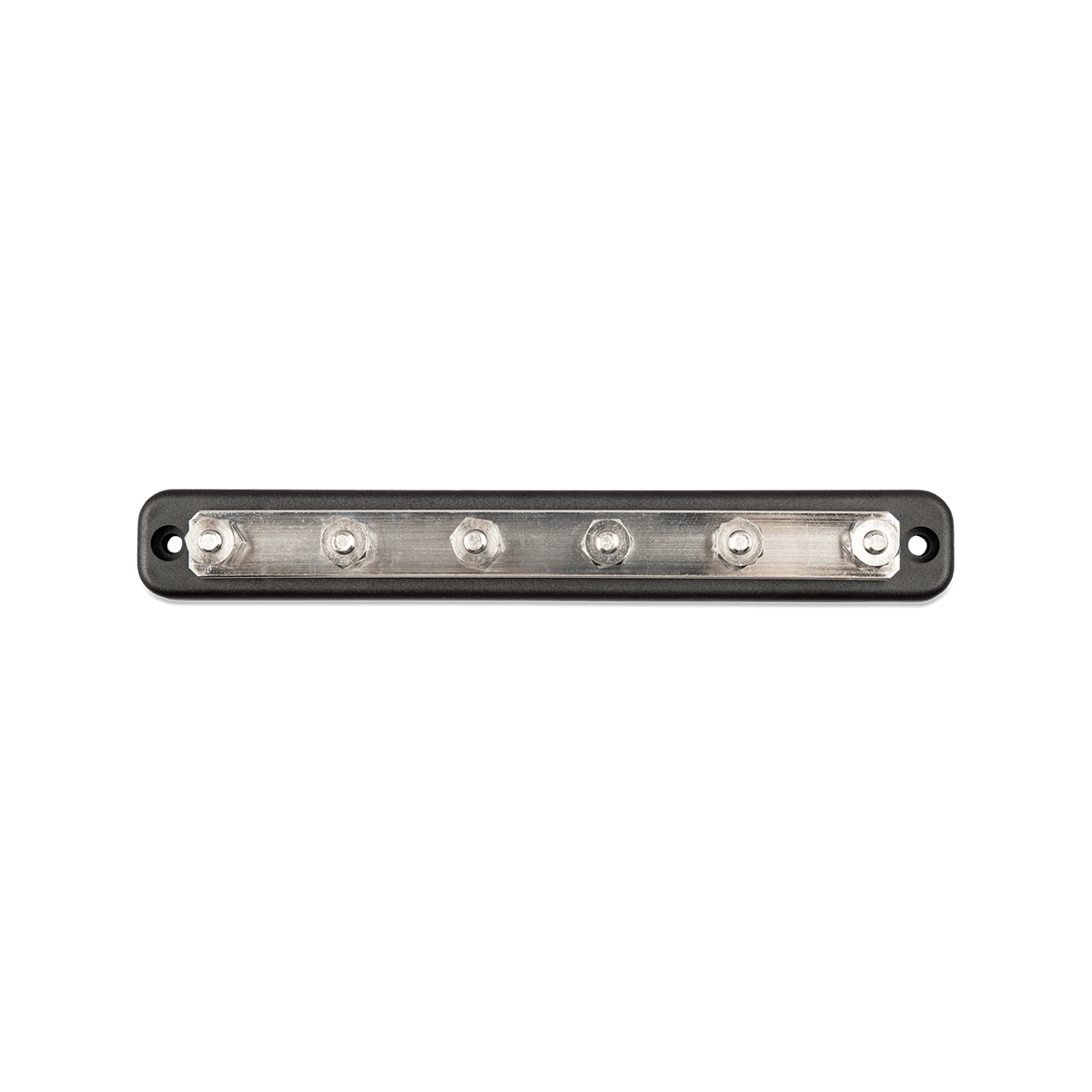

  • 6 stainless steel terminal studs with tin-plated copper nuts for secure, high-torque connections

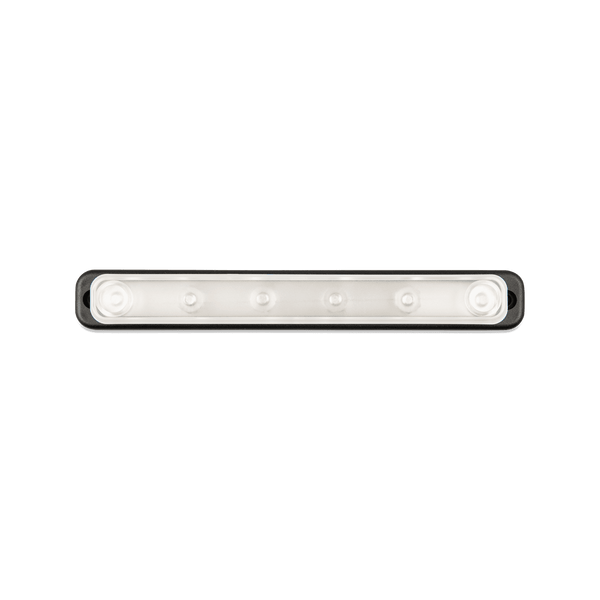

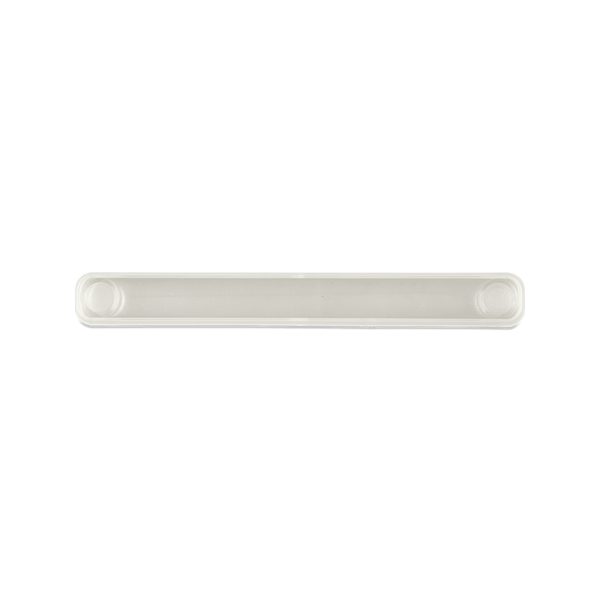

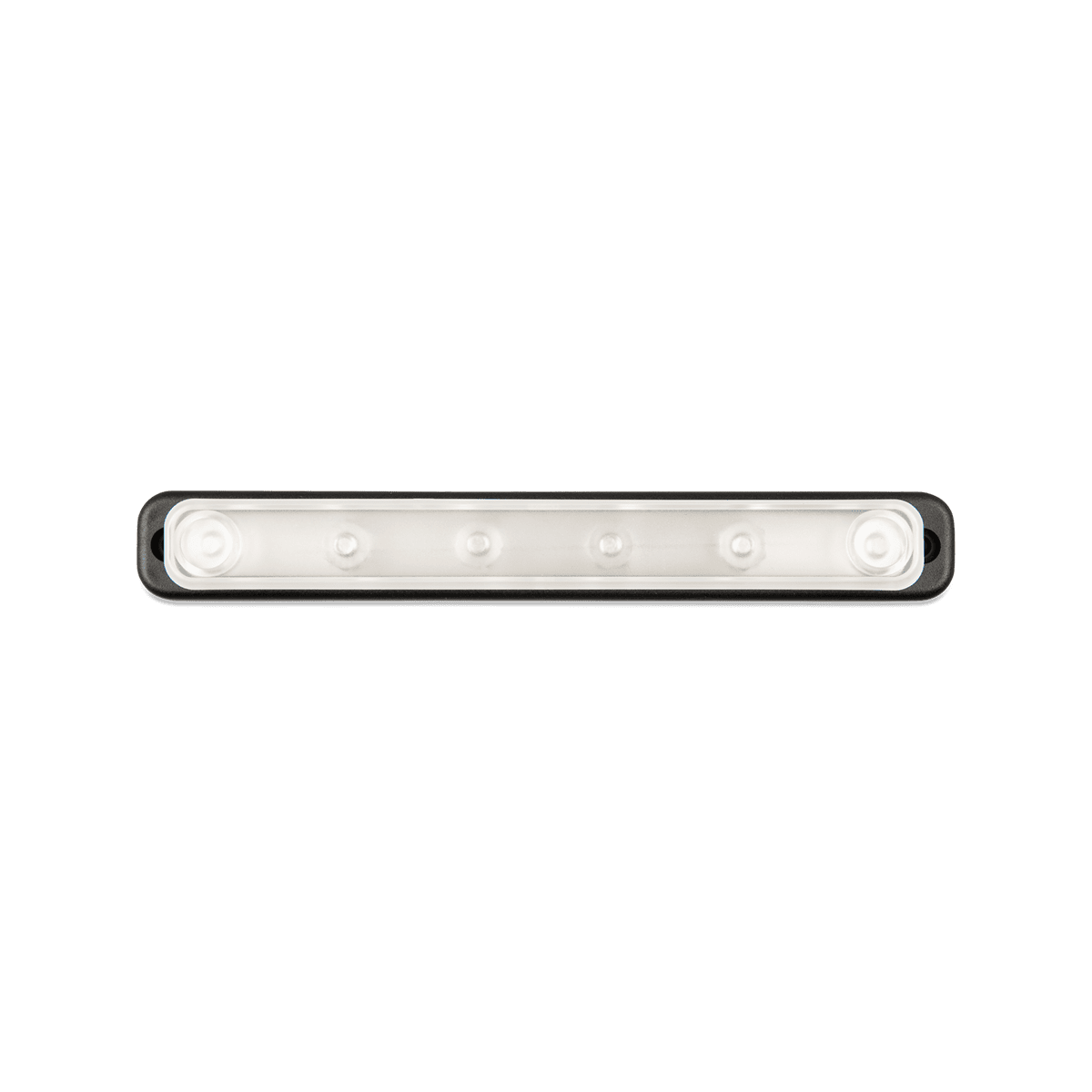

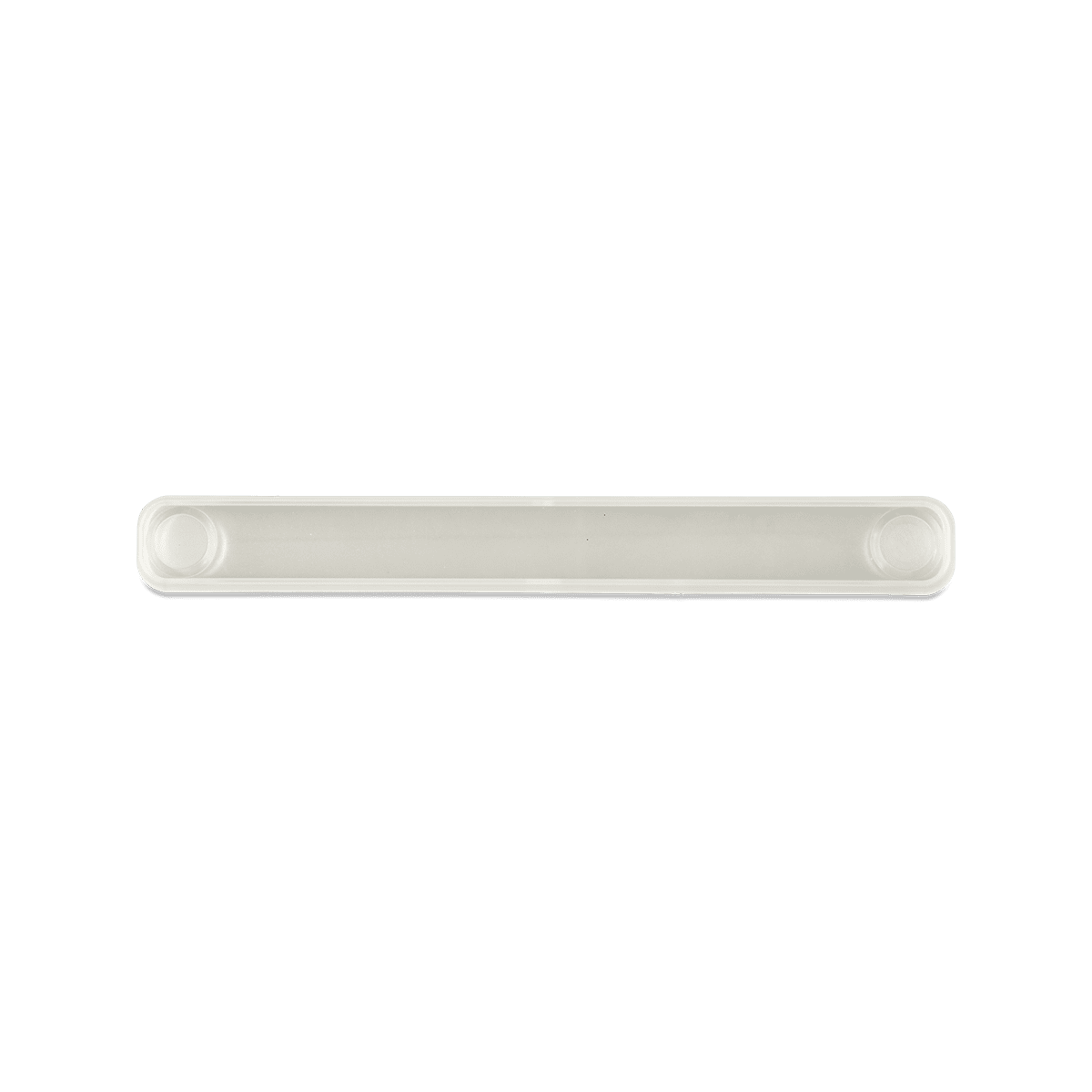

  • Removable clear polycarbonate cover prevents accidental shorts and provides touch-safe operation

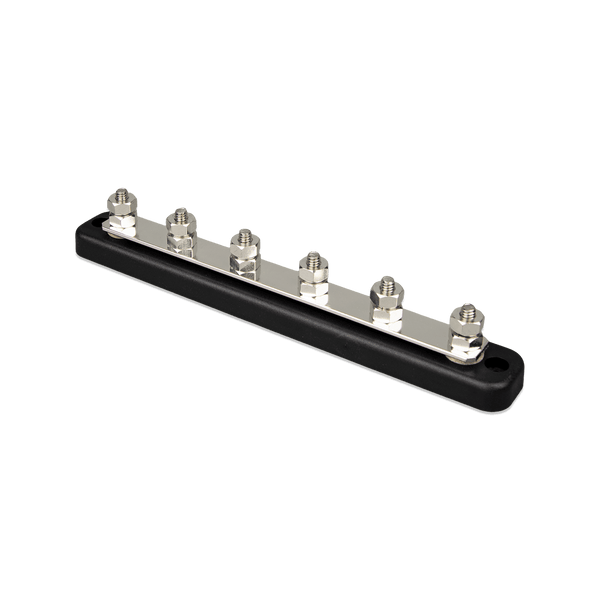

  • Tin-plated copper busbar strip (1.4 x 18 mm) ensures excellent conductivity and corrosion resistance
  • Flame-retardant ABS base (UL 94 V-0) with pre-drilled mounting holes for safe, stable installation
  • Compact footprint (231.7 x 31.8 x 45 mm with cover) fits easily into tight battery compartments

Ideal Applications

This busbar is perfectly suited for a wide range of 12 V, 24 V, and 48 V DC systems, including:

  • Marine electrical panels and battery banks
  • RV and caravan power distribution
  • Solar energy storage systems
  • Automotive auxiliary circuits
  • Off-grid power setups

Whether you're upgrading a boat's electrical system or building a new off-grid solar array, the Victron 150A 6-Position Busbar provides the reliability and safety you need. Its professional appearance and organised layout also make troubleshooting and future expansions significantly easier.

Upgrade Your Power Distribution Today

Invest in a busbar that matches the quality of your Victron components. Add the Victron 150A 6-Position Busbar with Cover to your system for a cleaner, safer, and more efficient electrical installation.


SKU: VIC-VBB115060020

SPECIFICATIONS

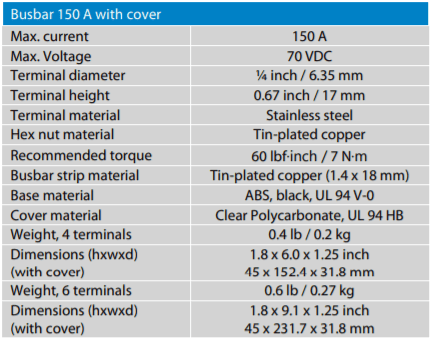

Specifications

Max. Current 150 A
Max. Voltage 70 VDC
Terminal Diameter ¼ inch / 6.35 mm
Terminal Height 0.67 inch / 17 mm
Terminal Material Stainless steel
Hex Nut Material Tin-plated copper
Recommended Torque 60 lbf·inch / 7 N·m
Busbar Strip Material Tin-plated copper (1.4 x 18 mm)
Base Material ABS, black, UL 94 V-0
Cover Material Clear Polycarbonate, UL 94 HB
Weight, 6 Terminals 0.6 lb / 0.27 kg

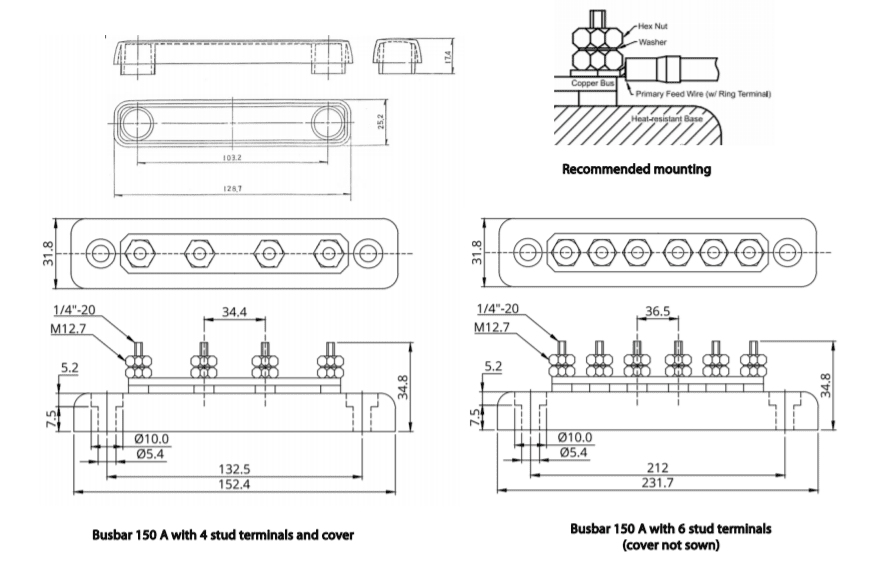

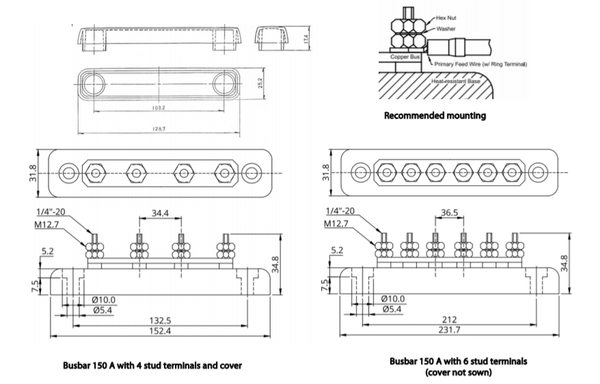

Dimensions (HxWxD), 6 Terminals (with cover) 1.8 x 9.1 x 1.25 inch / 45 x 231.7 x 31.8 mm

SKU: VIC-VBB115060020
Barcode: 8719076052203
Model #: VBB115060020
MPN: VBB115060020

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
