DESCRIPTION
Victron 150A 4-Terminal Busbar for High-Current DC Distribution
Elevate your power management and streamline your electrical system with the Victron 150A 4-Terminal Busbar. Designed specifically for safe and efficient high-current distribution, this critical component acts as a central hub for connecting batteries, solar charge controllers, inverters, and other high-draw DC equipment. Whether you are upgrading a dual battery system in a caravan or building a comprehensive off-grid power plant, maintaining an organised electrical layout is essential for long-term safety and performance.
Engineered for Demanding Marine and Off-Grid Environments
A common issue with generic power distribution blocks is their susceptibility to corrosion and poor conductivity over time, which can lead to dangerous voltage drops or hot spots. Victron addresses these risks by utilising a highly conductive 1.4 x 18 mm tin-plated copper strip. The tin plating actively resists oxidation, making it highly suitable for harsh coastal or marine applications. Furthermore, the four 1/4 inch (6.35 mm) stainless steel terminal studs provide robust mechanical connections that can handle high torque (recommended 7 N·m) without stripping, ensuring excellent electrical contact for heavy-duty cable lugs.
Versatile Voltage Compatibility
While many enthusiasts look specifically for a 12V bus bar for their camper or automotive projects, this component is rated for a maximum DC voltage of 70V. This broad rating makes it exceptionally versatile and completely suitable for 24V and 48V marine and off-grid solar systems. When configuring your system, remember that the unit has a maximum current capacity of 150A (*Note typical de-rating factors apply depending on ambient temperature and continuous load duration).
Enhanced Safety and Professional Cable Management
Working with high-current DC systems requires strict attention to safety. Leaving cables stacked directly onto battery terminals not only looks messy but significantly increases the risk of short circuits and terminal stress. By routing your positive or negative connections through a dedicated 4 terminal bus bar, you reduce clutter and create a highly professional layout.

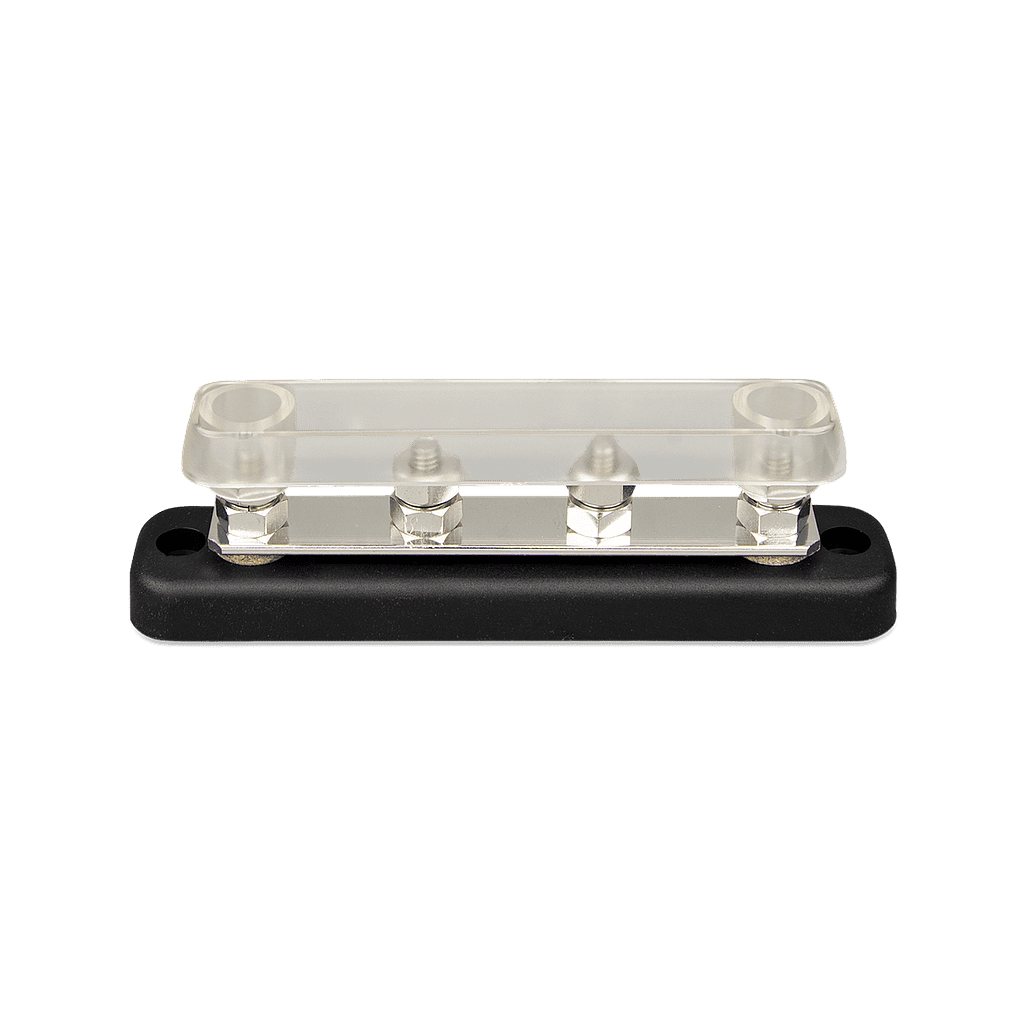

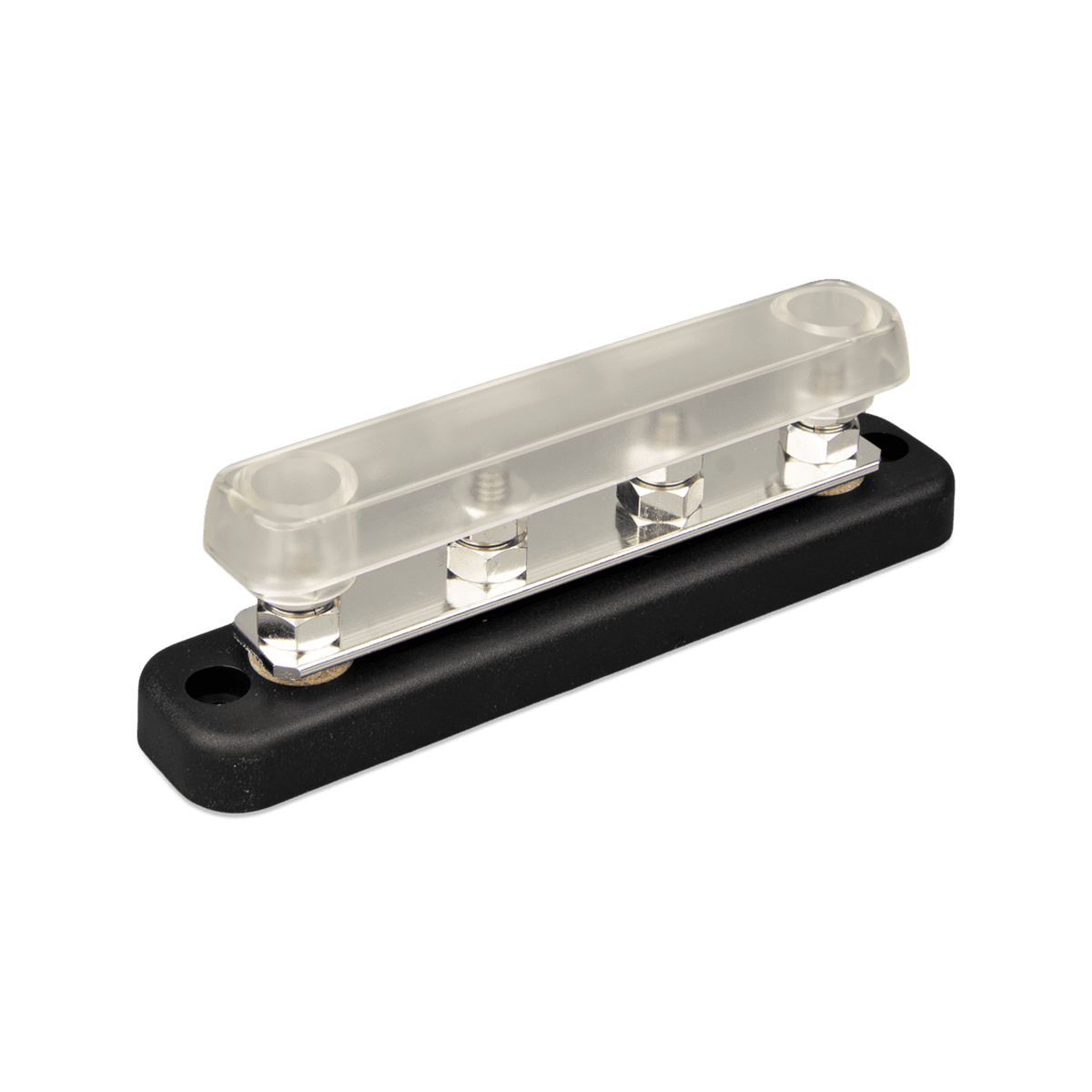

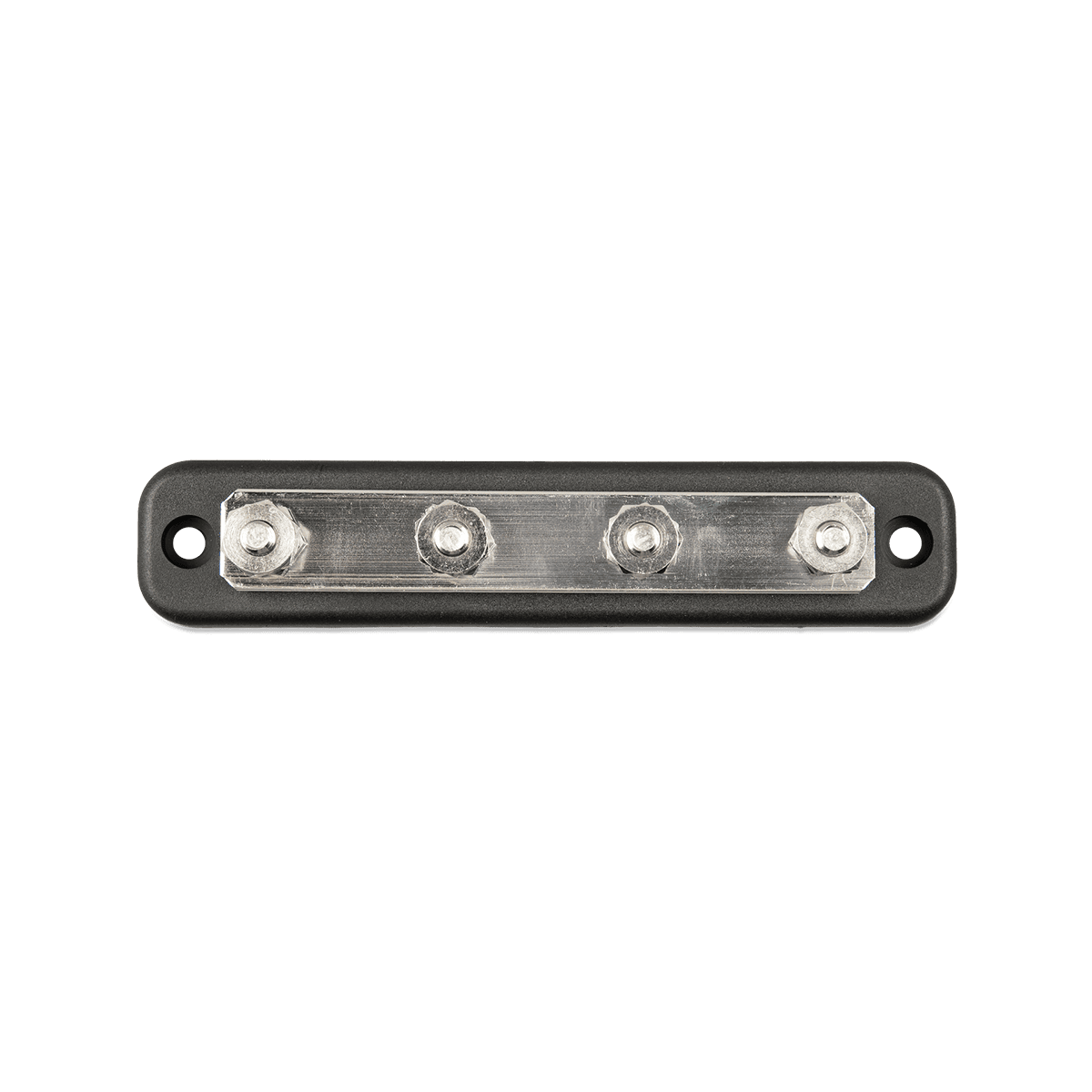

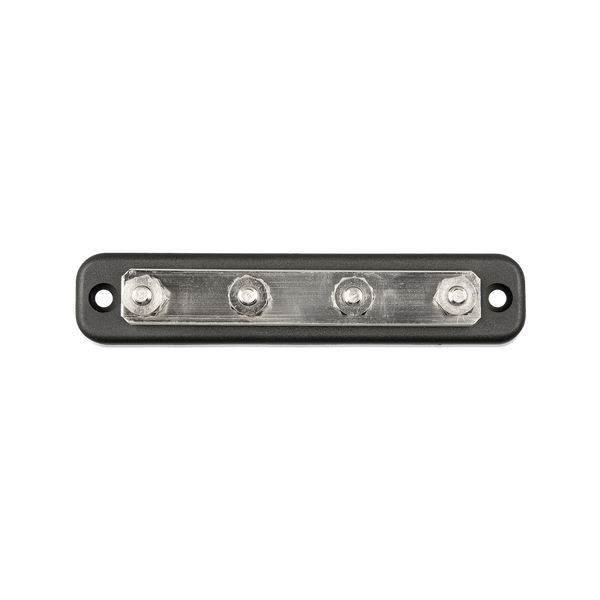

To further protect your installation, this busbar includes a clear polycarbonate cover (UL 94 HB rated) that shields the exposed studs from accidental contact with dropped tools or loose wiring. The entire assembly sits securely on a durable, black ABS base that features a UL 94 V-0 flame-retardant rating. Recessed, pre-drilled mounting holes allow for secure installation onto flat surfaces within your electrical enclosure, isolating the conductive elements away from metal chassis components.
Key Features at a Glance
- Maximum current capacity of 150A (*Note typical de-rating factors apply)
- Rated up to 70V DC, making it highly suitable for 12V, 24V, and 48V systems

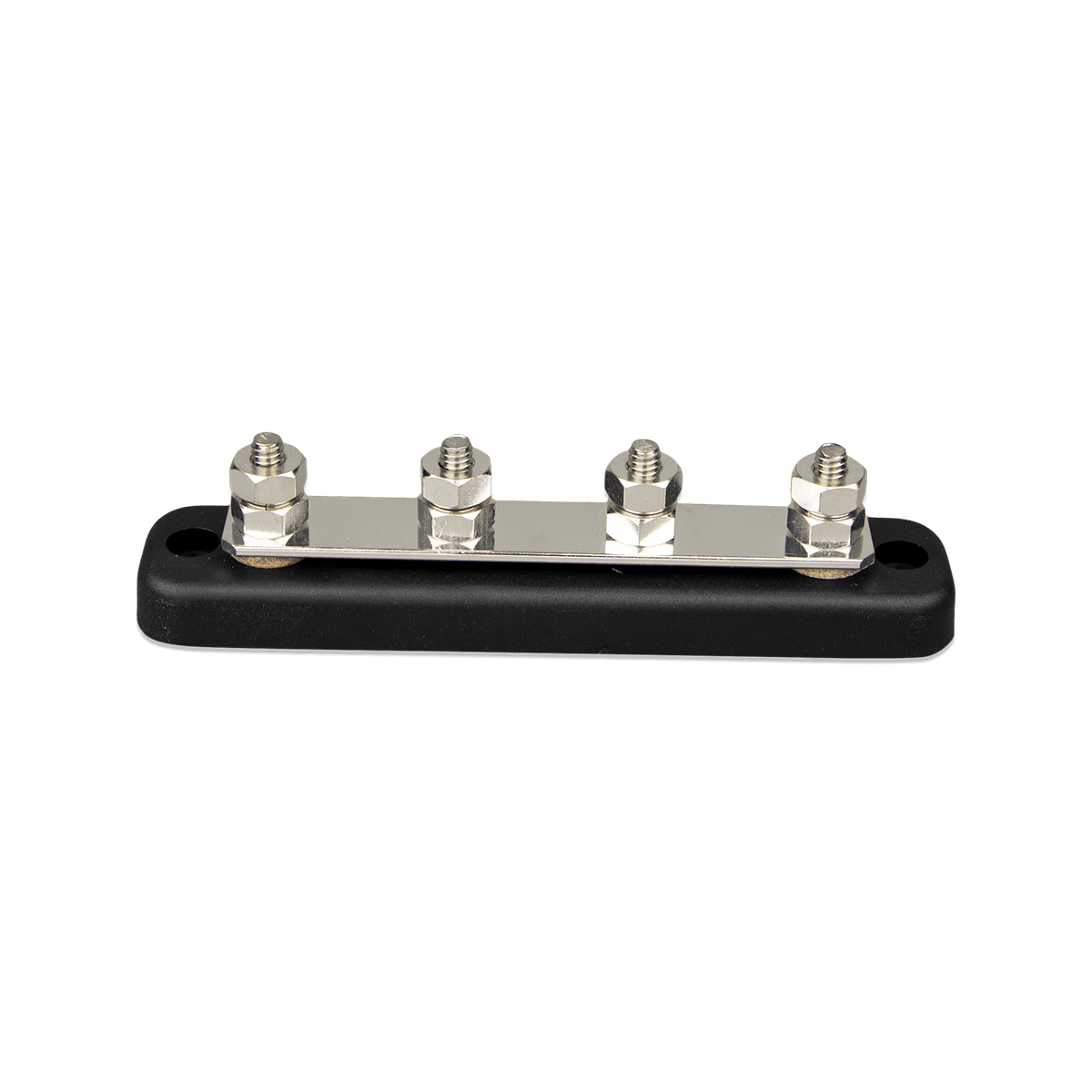

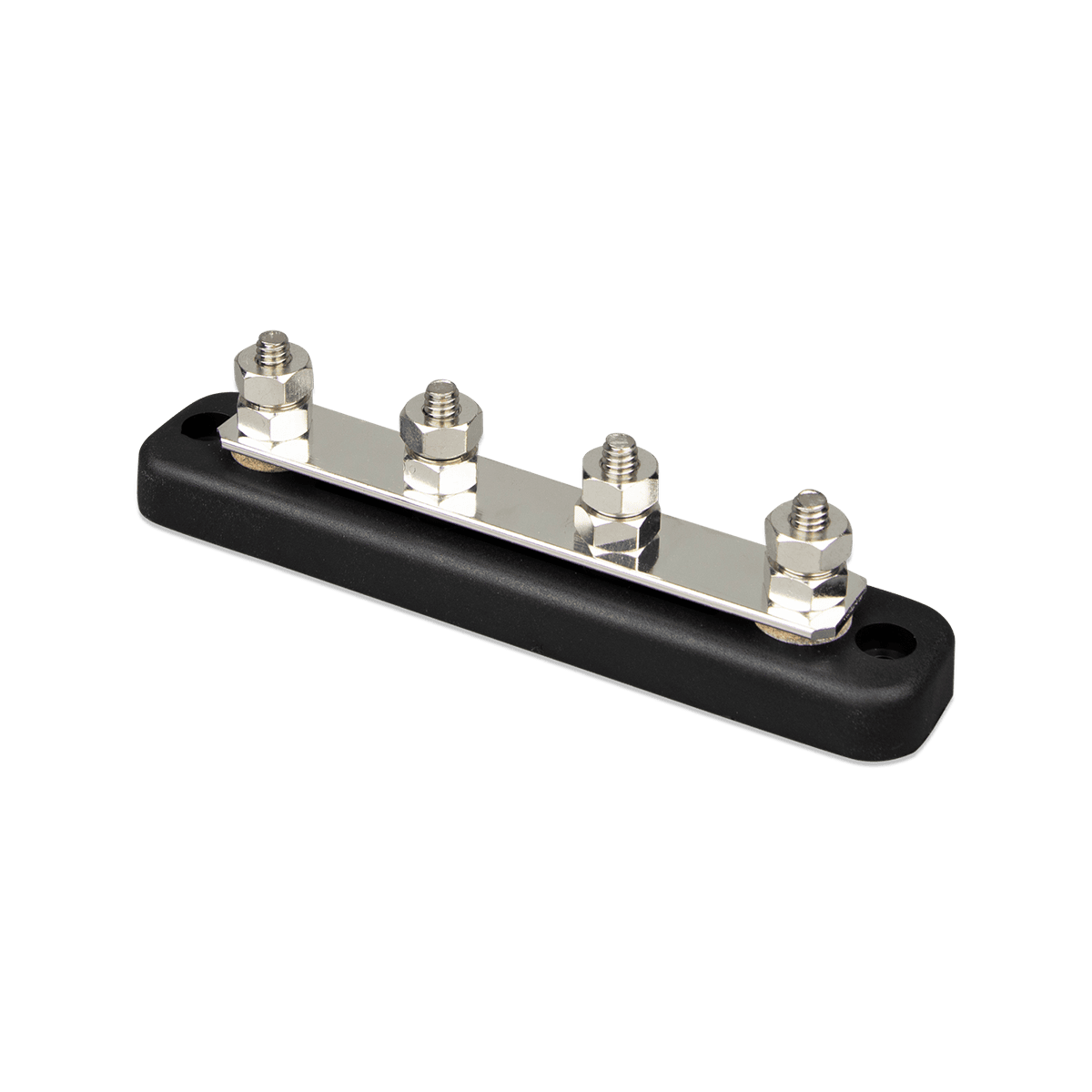

- Four 1/4 inch (6.35 mm) stainless steel studs for secure, high-torque connections
- Tin-plated copper strip and hex nuts for exceptional conductivity and corrosion resistance
- Durable black ABS base with a UL 94 V-0 flame-retardant safety rating
- Removable clear polycarbonate cover protects against accidental short circuits
Streamline Your Electrical Setup Today
Take the guesswork out of wiring your next power project and build an electrical foundation you can rely on. Order the Victron 150A 4-terminal busbar today to ensure a tidy, safe, and highly efficient DC distribution system for your vehicle, boat, or off-grid application.
SKU: VIC-VBB115040020
SPECIFICATIONS

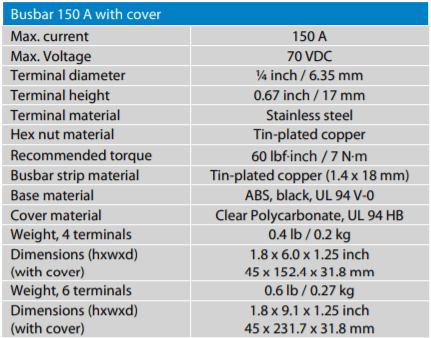

Specifications
| Max. Current | 150 A |
| Max. Voltage | 70 VDC |
| Terminal Diameter | ¼ inch / 6.35 mm |
| Terminal Height | 0.67 inch / 17 mm |
| Terminal Material | Stainless steel |
| Hex Nut Material | Tin-plated copper |
| Recommended Torque | 60 lbf·inch / 7 N·m |
| Busbar Strip Material | Tin-plated copper (1.4 x 18 mm) |
| Base Material | ABS, black, UL 94 V-0 |
| Cover Material | Clear Polycarbonate, UL 94 HB |
| Weight, 4 Terminals | 0.4 lb / 0.2 kg |

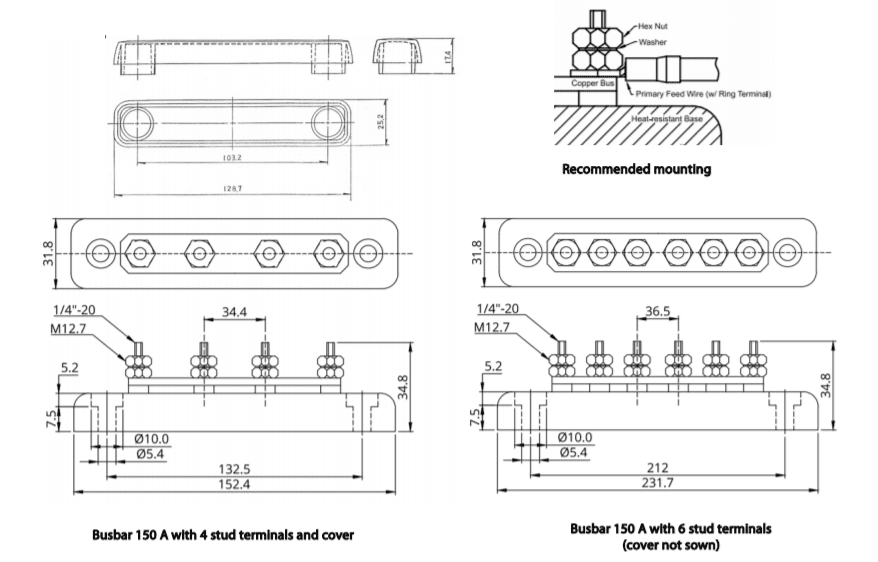

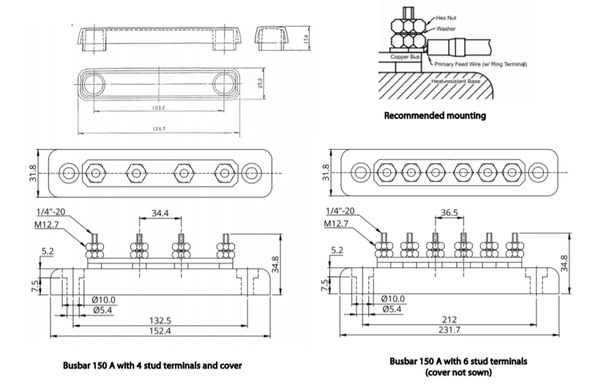

| Dimensions (HxWxD), 4 Terminals (with cover) | 1.8 x 6.0 x 1.25 inch / 45 x 152.4 x 31.8 mm |
| SKU: | VIC-VBB115040020 |
| Barcode: | 8719076052197 |
| Model #: | VBB115040020 |
| MPN: | VBB115040020 |
