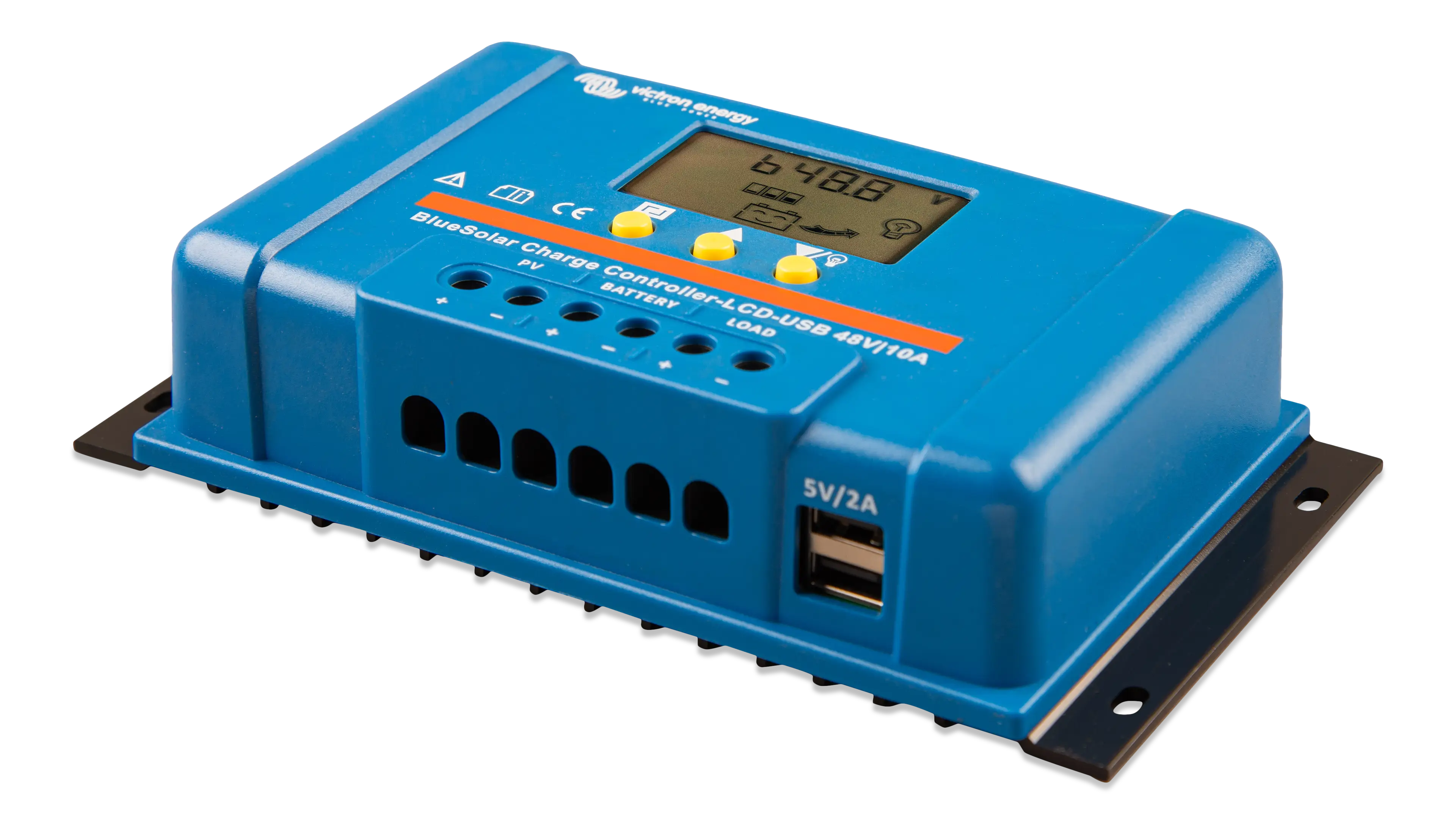

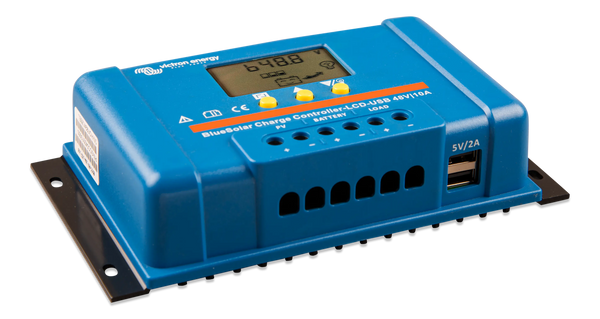

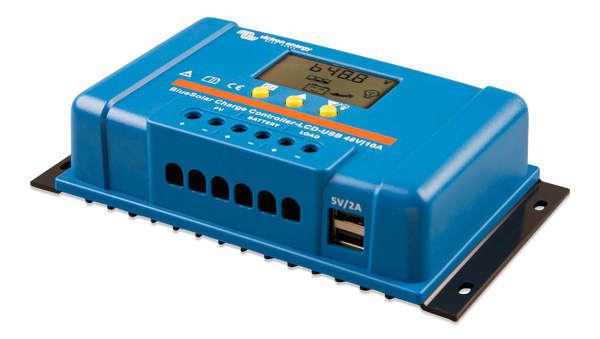

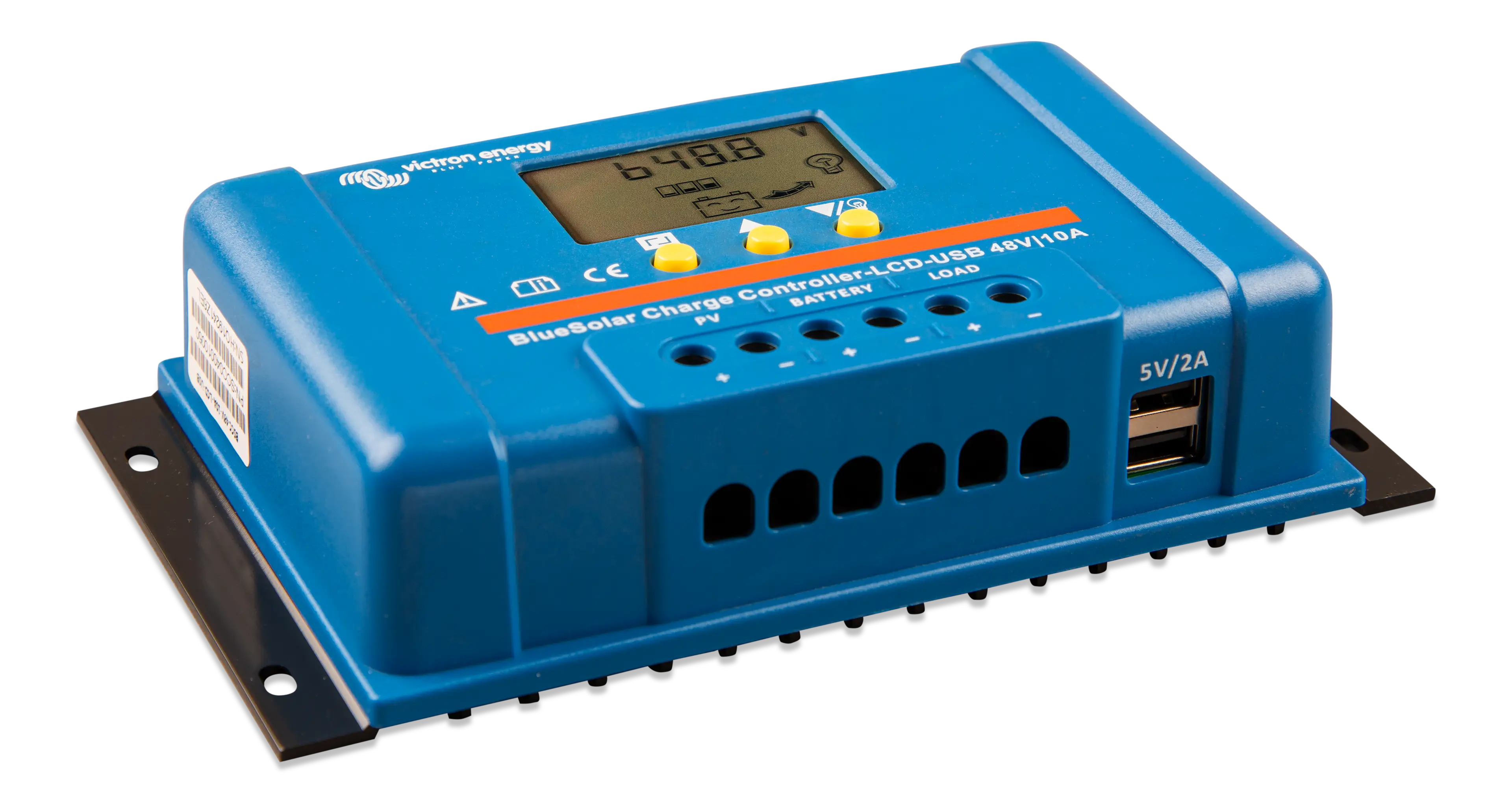

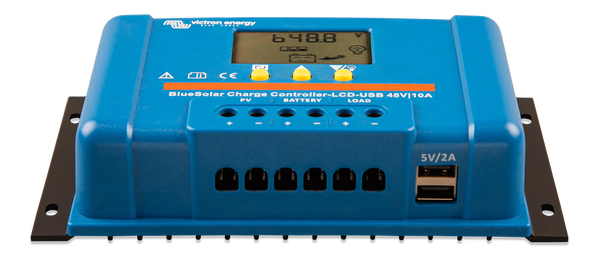

Victron 48V 10A BlueSolar PWM-LCD&USB Solar Charge Controller

LCD Display, Dual USB, Programmable for AGM/GEL/LiFePO4, 100V Input


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

Victron BlueSolar PWM-LCD&USB 48V 10A: Intelligent Solar Charge Controller for 48V Off-Grid Systems

Precision Battery Management with LCD Monitoring and Dual USB Charging

The Victron BlueSolar PWM-LCD&USB 48V 10A solar charge controller brings professional-grade battery management to small-scale 48V solar installations. Designed for reliability and ease of use, it features a backlit liquid crystal display for real-time system status and intuitive setup, making it an excellent choice for remote cabins, telecommunications sites, and off-grid backup systems.

Unlike generic PWM controllers, the BlueSolar series incorporates programmable charge algorithms tailored for AGM, GEL, flooded, and LiFePO4 (with internal BMS) batteries. This precision charging helps extend battery service life and reduces the risk of premature capacity loss, a common issue with basic on/off regulators. The controller’s automatic load disconnect safeguards your battery bank from deep discharge, while the day/night timer enables automated lighting control without additional hardware.

Key Features

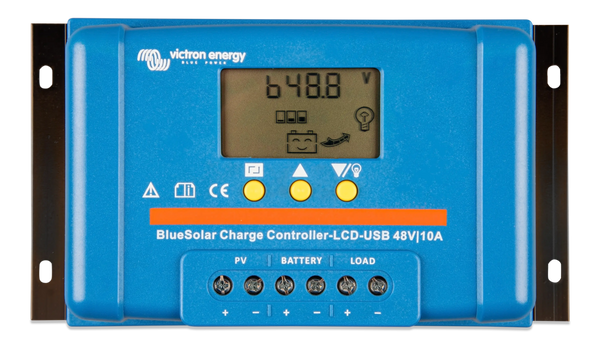

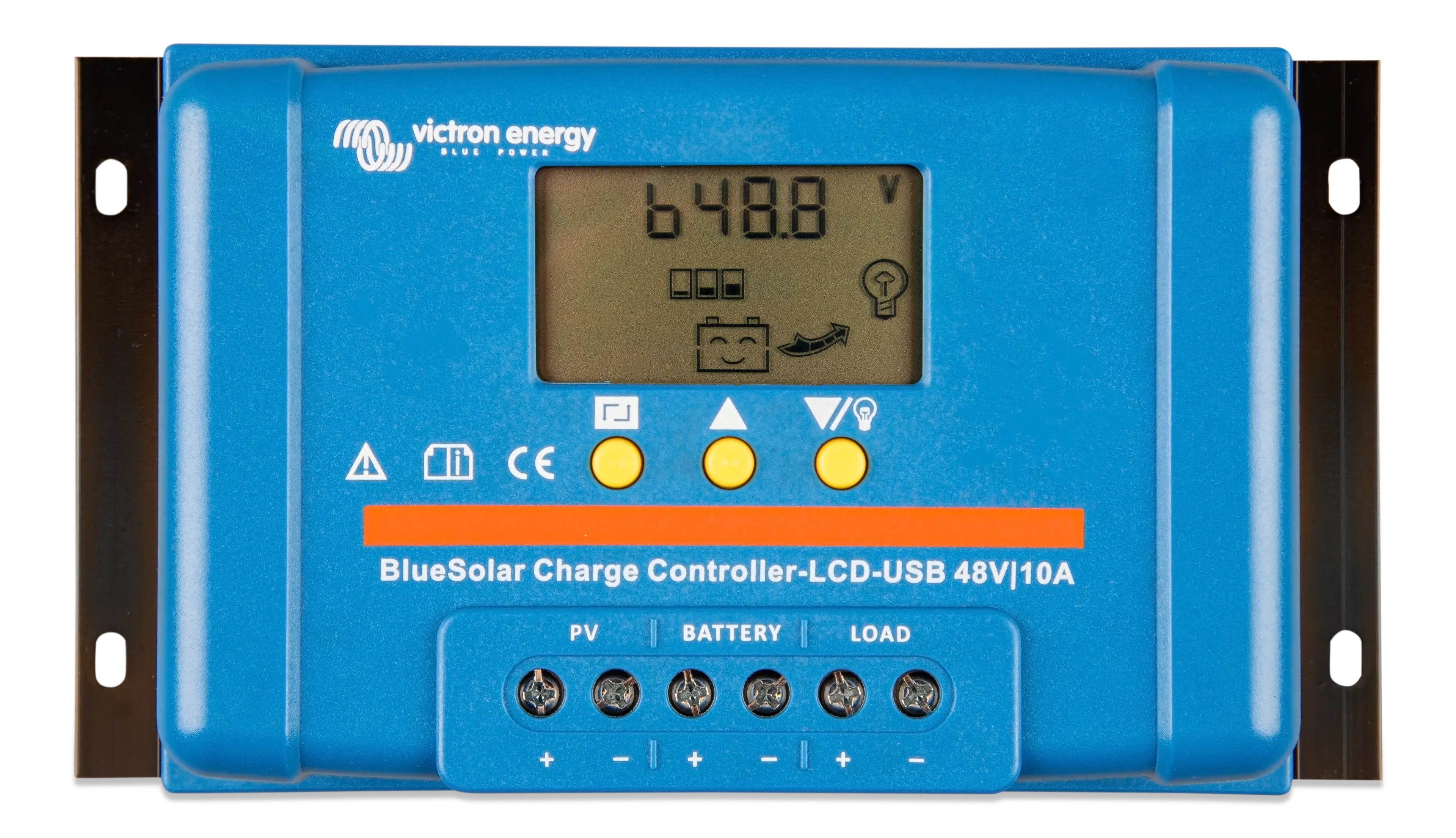

  • Backlit LCD display for clear monitoring of charge status, battery voltage, and load activity
  • Programmable charge profiles for AGM, GEL, flooded, and LiFePO4 batteries to optimise charging and longevity
  • Low voltage load disconnect with adjustable thresholds prevents harmful over-discharge
  • Day/night timer on load output for dusk-to-dawn lighting or timed appliance control

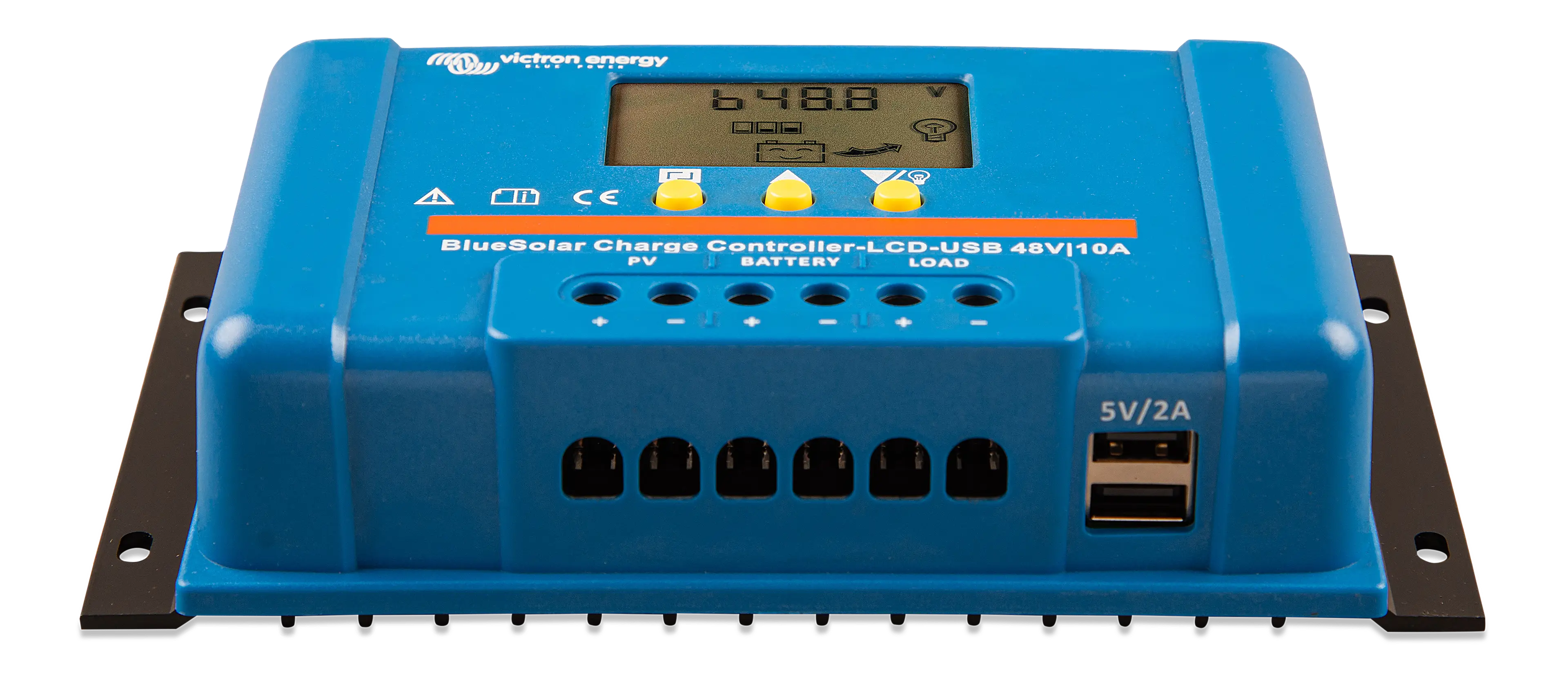

  • Dual 5V USB ports (2A total) for convenient device charging directly from the controller
  • Comprehensive electronic protection including reverse polarity, short circuit, and over-temperature safeguards
  • Common positive grounding simplifies integration with existing systems
  • Wide operating temperature range (-35 to +60°C) for reliable performance in harsh environments

Built for Demanding Off-Grid Applications

Engineered to Victron’s exacting standards, this controller handles up to 100V maximum solar input, allowing series connection of two 72-cell panels or four 36-cell panels for a 48V battery bank. The 10A rated charge current supports solar arrays up to approximately 480W, making it suitable for maintaining batteries in seasonal setups, security systems, and small telemetry stations.

The robust terminal block accepts 16 mm² (AWG6) cable, ensuring low-resistance connections and minimal voltage drop. With an IP20 rating, the unit is intended for indoor or protected enclosure mounting, keeping the electronics safe from moisture and dust. Self-consumption is kept below 10 mA, preserving battery charge during periods of low solar input.

Why Choose Victron BlueSolar PWM?

Victron Energy is known for durable, well-engineered power electronics, and the BlueSolar PWM-LCD&USB continues that tradition. The controller’s programmable low voltage disconnect and reconnect voltages give you full control over battery protection, while the manual load override allows direct switching when needed. For installations where an inverter is used, the load output can trigger an inverter’s remote on/off port, automating system operation without complex wiring.

Compared to entry-level PWM controllers, the BlueSolar offers superior build quality, a user-friendly interface, and the flexibility to adapt to different battery chemistries. This reduces the risk of incorrect charging parameters that can lead to battery damage or reduced runtime.

Typical Applications

  • 48V off-grid solar systems for remote cabins and sheds
  • Telecommunications and monitoring equipment backup
  • Solar-powered lighting with automated dusk-to-dawn operation
  • Battery maintenance for seasonal or infrequently used installations
  • Small-scale renewable energy projects and educational kits

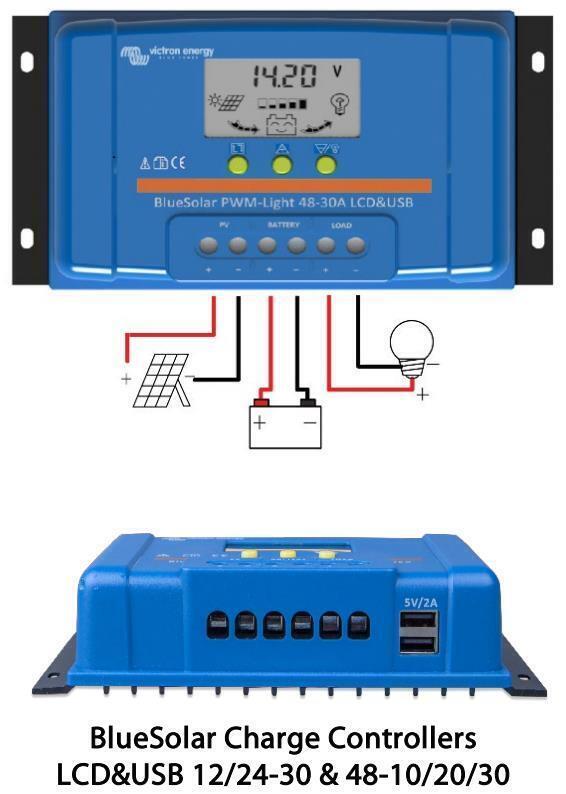

With its compact dimensions (101 x 184 x 47 mm) and lightweight design (0.3 kg), the controller is easy to install in tight spaces. The clear wiring diagram printed on the unit and the intuitive three-button interface reduce setup time and minimise installation errors.

Take Control of Your 48V Solar System

Equip your off-grid installation with a charge controller that delivers precise battery management and dependable performance. Add the Victron BlueSolar PWM-LCD&USB 48V 10A to your system today and experience the peace of mind that comes with professional-grade solar regulation.


SKU: VIC-SCC040010050

SPECIFICATIONS

Specifications

DisplayLiquid Crystal Display
Battery Voltage48 V
Rated Charge Current10 A
Automatic Load DisconnectYes
Maximum Solar Voltage100 V
Solar Panel Configuration For 48 V2 x 72 cell solar panels or 4 x 36 cell in series
Self-consumption< 10 mA
Load OutputManual control + low voltage disconnect + timer
ProtectionBattery reverse polarity (fuse), output short circuit, over temperature
Overload ProtectionShut down after 60 s in case of 130% load; shut down after 5 s in case of 160% load; short circuit: immediate shut down
GroundingCommon positive
Operating Temp. Range-35 to +60 °C (full load)
Humidity (Non-condensing)Max 95%
Programmable Battery Charge AlgorithmPreprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)
Charge Voltage 'Absorption'Factory setting: 57.6 V
Charge Voltage 'Float'Factory setting: 54.8 V
Low Voltage Load DisconnectFactory setting: 44.8 V
Low Voltage Load ReconnectFactory setting: 50.4 V
USB OutputsTwo 5 V USB outputs
USB Voltage5 V
USB Current2 A (total from 2 outputs)
Protection ClassIP20
Terminal Size16 mm² / AWG6
Weight0.3 kg
Dimensions (H X W X D)101 x 184 x 47 mm
SafetyEN60335-1, IEC 62109-1
EMCEN 61000-6-1, EN 61000-6-3, ISO 7637-2

SKU: VIC-SCC040010050
Barcode: 8719076046233
Model #: SCC040010050
MPN: SCC040010050

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
