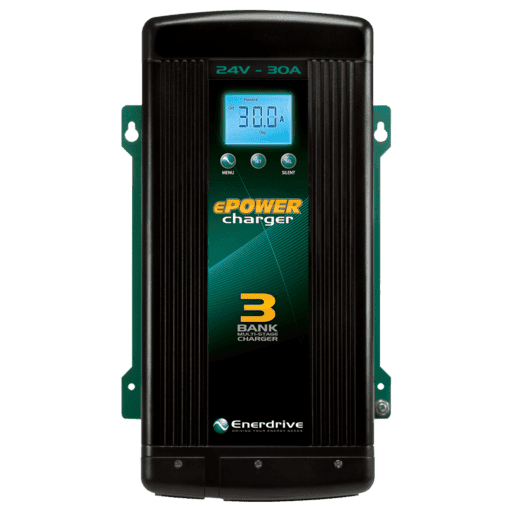

Enerdrive 24V 30A Multi-Bank ePower Battery Charger

Advanced 24V Power Management for Marine and Off-Grid Systems

Managing multiple battery systems requires precision and reliability, especially in demanding marine, RV and remote off-grid environments. The Enerdrive 24V 30A Multi-Bank ePower Battery Charger provides an intelligent, fully automatic solution for keeping your essential power reserves at peak capacity. Designed to deliver up to 30 amps of output, this unit allows users to safely and efficiently maintain up to three separate battery banks simultaneously.

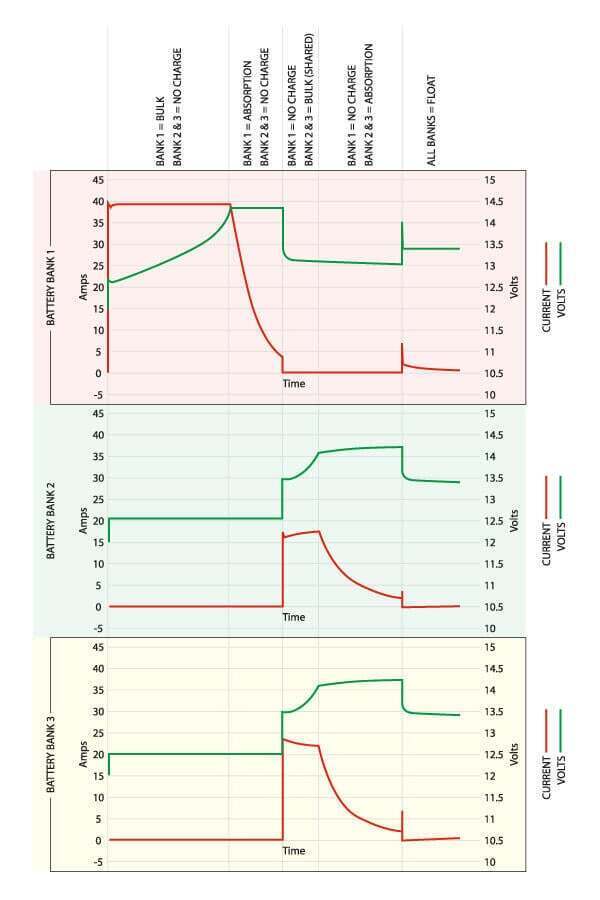

Important charging profile note: Battery bank 1 can be programmed independently and is intended as the priority or main battery bank, while battery banks 2 and 3 share the same charging algorithm rather than being configured separately. This means the charger can support a mixed setup such as bank 1 on lithium and banks 2 and 3 on AGM, however banks 2 and 3 must use the same battery profile. Once charging is complete, all three banks then move to a shared float stage determined by the bank 1 setting, so mixed-chemistry installations should always be matched against the battery manufacturers’ recommended charging requirements.

Lithium-Ready Multistage Technology

Modern energy storage relies heavily on precise voltage control to prevent premature capacity loss. This charger features advanced four-stage charging algorithms (Bulk, Absorption, Float and Maintenance) that can be tailored to exact battery chemistries. Whether you are running traditional Lead Acid, AGM, Gel or advanced Lithium iron phosphate (LiFePO4) setups, you can program the exact parameters required. By delivering the correct voltage and constant current tailored to lithium profiles, it reduces the risk of cell degradation and maximises the functional lifespan of your investment.

Key Features

• Three-bank configuration: Manage multiple 24V battery arrays from a single unit.
• Customisable chemistry profiles: Selectable settings for Gel, AGM, Flooded, Lithium and a fully programmable custom mode.
• Priority bank allocation: Ensures your most critical battery system receives charge first.
• Universal AC input: Operates efficiently across 90 to 265 VAC, making it highly adaptable for variable generator power or international grid connections.

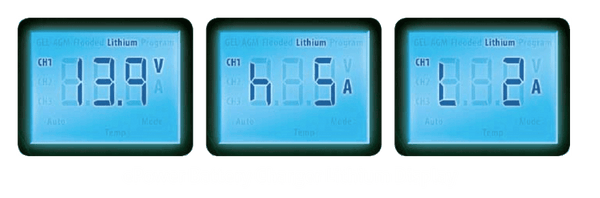

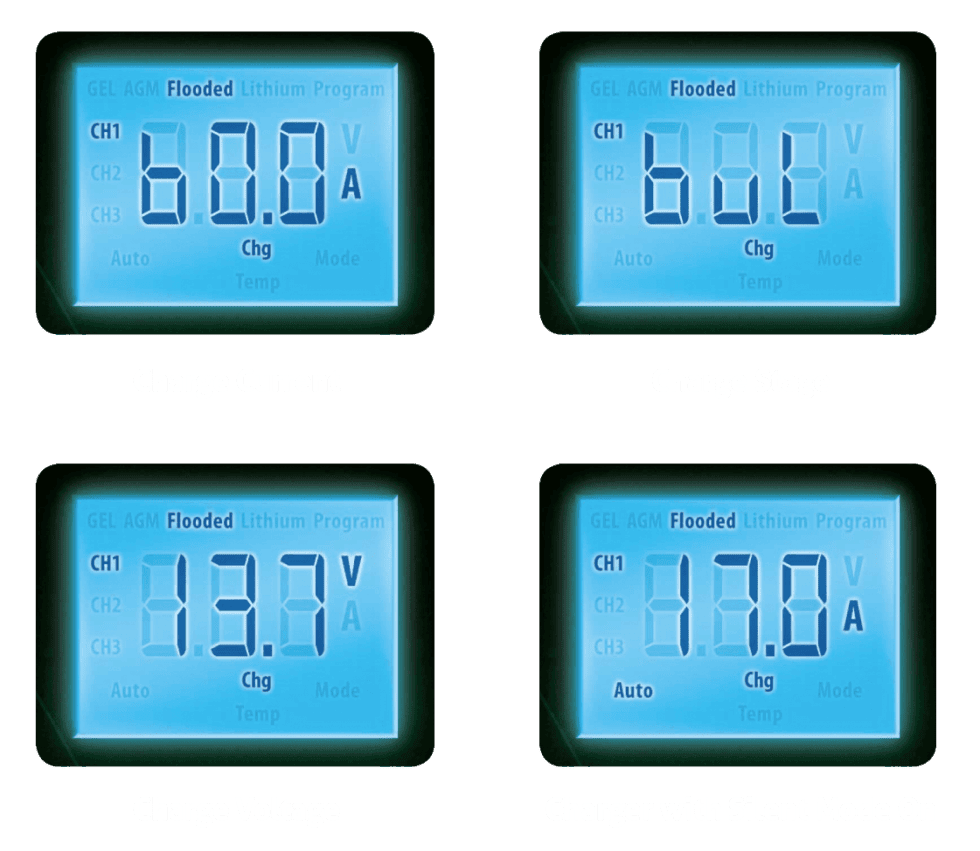

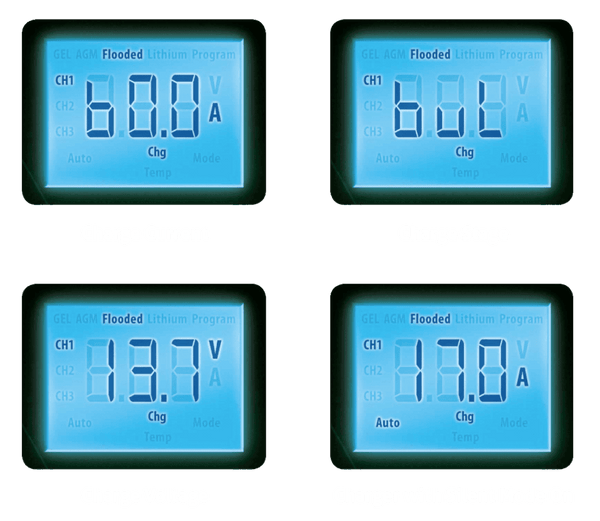

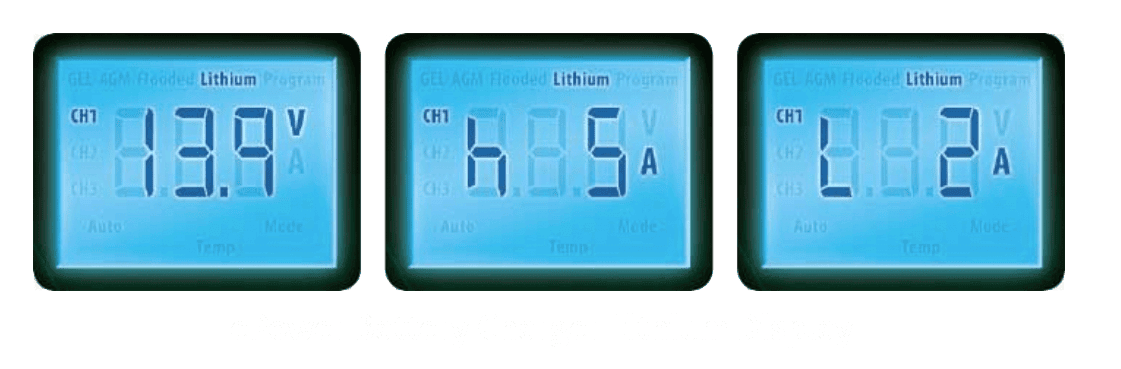

• High-visibility LCD interface: Monitor real-time charging status, battery voltage, output current and fault codes via a backlit screen.
• Heavy-duty terminals: Pan head connections with 6mm threads ensure secure and low-resistance cable mounting.

Silent Operation for Uninterrupted Rest

Noise management is a critical factor for compact RVs and marine vessels. The integrated silent mode function allows you to temporarily disable the forced-air cooling fan. When activated, the unit automatically halves the charge output for a period of 12 hours. This provides a completely silent charging environment during the night, allowing you to rest comfortably without background fan noise, before automatically resuming full capacity operations in the morning.

Comprehensive System Protection

Electrical faults can cause significant damage to expensive battery banks. This unit includes a comprehensive suite of safety mechanisms to mitigate common risks. It features integrated protection against reverse polarity, output short circuits and overcharging. Furthermore, a supplied RJ12 battery temperature sensor continually monitors environmental conditions. If temperatures rise to unsafe levels, the unit will automatically derate its output or shut down completely to prevent thermal runaway and protect your system architecture.

Optimise Your Battery Setup

Ensure your 24V electrical architecture remains balanced, protected and ready for heavy loads. Integrate the Enerdrive 24V 30A Multi-Bank ePower Battery Charger into your setup today to experience reliable, professional-grade energy management.
