Victron Battery Monitor BMV-702 Black (Non-Bluetooth)

Midpoint Voltage Monitoring for Series Battery Banks, 500A Shunt Included


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

Victron BMV-702: Precision Battery Monitoring for 12V to 48V Systems

Advanced Battery Management with Midpoint Voltage Detection

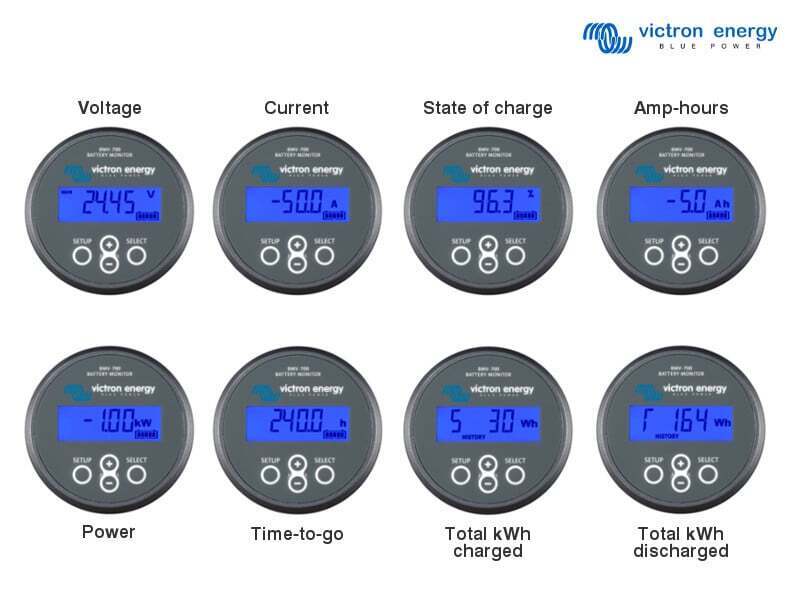

The Victron BMV-702 Battery Monitor functions as an intelligent fuel gauge for your battery bank, delivering real-time data on voltage, current, state of charge, and time remaining. Unlike basic voltage meters, the BMV-702 employs sophisticated algorithms that account for discharge rate, temperature, and battery age, ensuring accurate readings even under dynamic loads. This model includes a dedicated secondary input for midpoint voltage monitoring, a critical feature for identifying cell imbalances in series-connected battery strings before they lead to costly failures.

Designed for lithium and lead-acid batteries, the BMV-702 supports systems from 6.5V to 95V DC, making it suitable for 12V, 24V, and 48V installations in caravans, marine vessels, and off-grid solar setups. The included 500A/50mV shunt provides high-resolution current measurement down to 10mA, while the VE.Direct communication port enables integration with Victron GX devices and the VictronConnect app for detailed historical analysis.

Midpoint Voltage Monitoring: Protect Your Battery Investment

In series-connected battery banks, a single failing cell can compromise the entire string. The BMV-702 continuously measures the voltage at the midpoint of the bank, detecting deviations that indicate imbalance, aging, or damage. Early warning via programmable alarms allows corrective action, such as equalisation charging or cell replacement, preventing irreversible damage to expensive battery sets. This feature is especially valuable for large lithium or AGM banks where replacement costs are significant.

Key Features

  • Midpoint voltage monitoring detects cell imbalance in series battery banks
  • High-precision 500A shunt with 10mA resolution for accurate current tracking
  • Programmable relay for load shedding or generator start
  • VE.Direct port for connection to GX devices and VictronConnect
  • Wide 6.5–95V DC input range compatible with 12V, 24V, and 48V systems
  • Low self-consumption of 4mA at 12V minimises battery drain
  • Historical data logging for performance analysis and troubleshooting

Easy Installation and Flexible Mounting

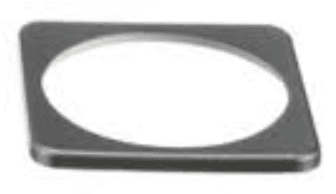

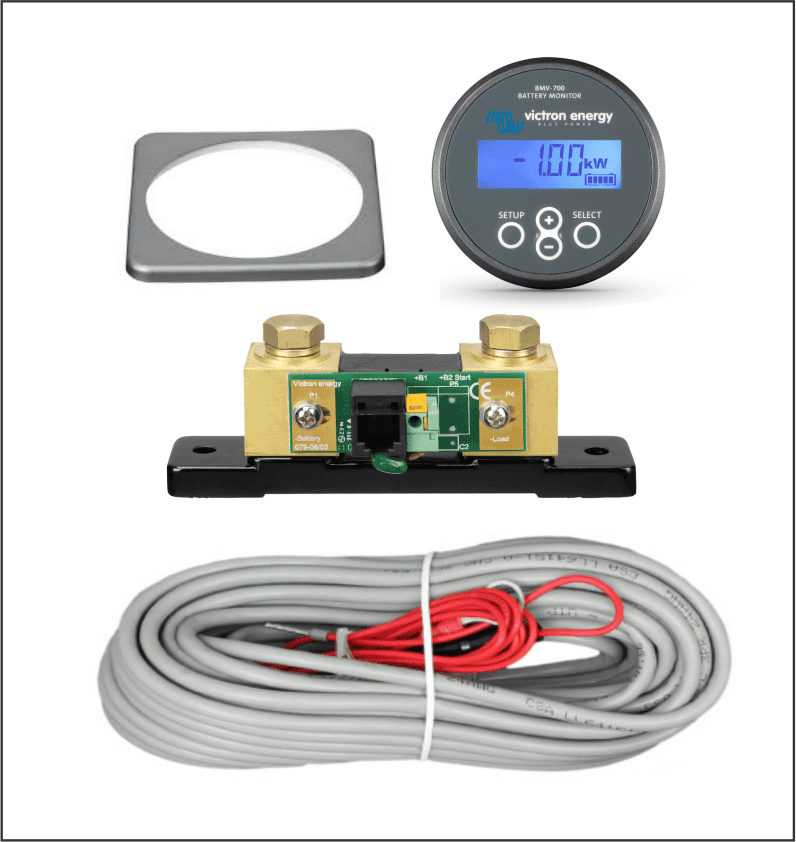

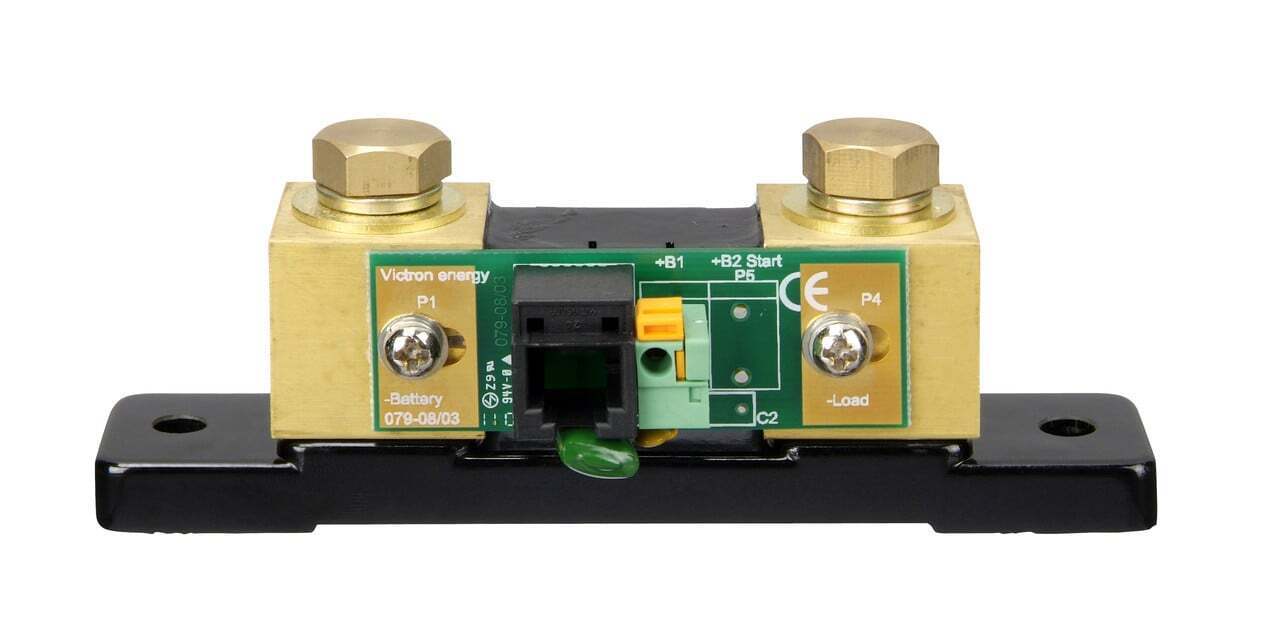

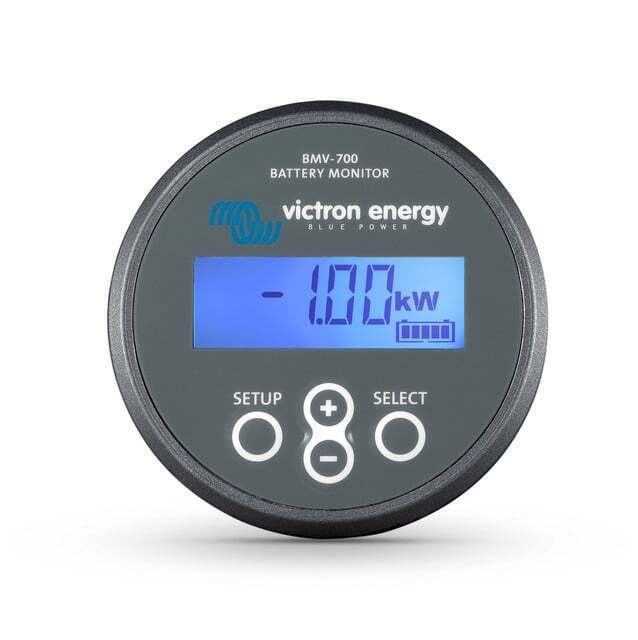

The BMV-702 ships with a 500A/50mV shunt featuring M10 (approx. 3/8") brass terminals, a 10-metre RJ12 cable, and a fused battery connection. The round head unit (63mm diameter) can be flush-mounted using the included square bezel (69x69mm) for a clean dashboard appearance. All electrical connections terminate at the shunt’s quick-connect PCB, simplifying wiring and reducing installation time.

Applications

Ideal for monitoring lithium battery banks in caravans, RVs, and boats, the BMV-702 also excels in off-grid solar systems, backup power installations, and industrial battery rooms. Its ability to track multiple parameters helps users optimise charging, extend battery life, and avoid unexpected downtime.

Take Control of Your Energy System

Equip your battery bank with the Victron BMV-702 Battery Monitor and gain the insights needed to maximise performance and longevity. Order today to ensure your power system operates at peak efficiency.


SKU: Vic-BAM010702200

SPECIFICATIONS

Specifications

Supply Voltage Range6.5 - 95 VDC
Input Voltage Range, Auxiliary Battery6.5 - 95 VDC
Battery Capacity (Ah)1 - 9999 Ah
Operating Temperature Range-40 +50 °C (-40 - 120 °F)
Temperature Measurement Range-20 +50 °C (-4 - 120 °F)
Additional InputVoltage (of a second battery), Temperature or Midpoint Voltage
Current Draw (Backlight Off)< 4 mA
Low Current Consumption2.9 Ah per month (4 mA) @ 12 V and 2.2 Ah per month (3 mA) @ 24 V
VE.Direct Communication PortYes
Relay60 V / 1 A normally open (function can be inverted)
Shunt Selection CapabilityUp to 10,000 A
Shunt (Included)500 A / 50 mV
Current Measurement Resolution10 mA (0.01 A)
Voltage Resolution± 0.01 V
Amp Hours Resolution± 0.1 Ah
State Of Charge Resolution (0 - 100%)± 0.1%
Time-To-Go Resolution± 1 min
Temperature Accuracy (0 - 50 °C or 30 - 120 °F)± 1 °C/°F
Accuracy Of Current Measurement± 0.4%
Accuracy Of Voltage Measurement± 0.3%
InstallationFlush mount
Head Unit Front Diameter63 mm (2.5 inch)
Head Unit Front Bezel69 x 69 mm (2.7 x 2.7 inch)
Head Unit Body Diameter And Depth52 mm (2.0 inch) and 31 mm (1.2 inch)
Shunt Connection BoltsM10 (0.3937 inch)
Head Unit Protection CategoryIP55 (not intended for outdoor use)
SafetyEN 60335-1
Emission / ImmunityEN 55014-1 / EN 55014-2
AutomotiveECE R10-4 / EN 50498

SKU: Vic-BAM010702200
Barcode: 8719076020110
Model #: BAM010702200
MPN: BAM010702200

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
