DESCRIPTION

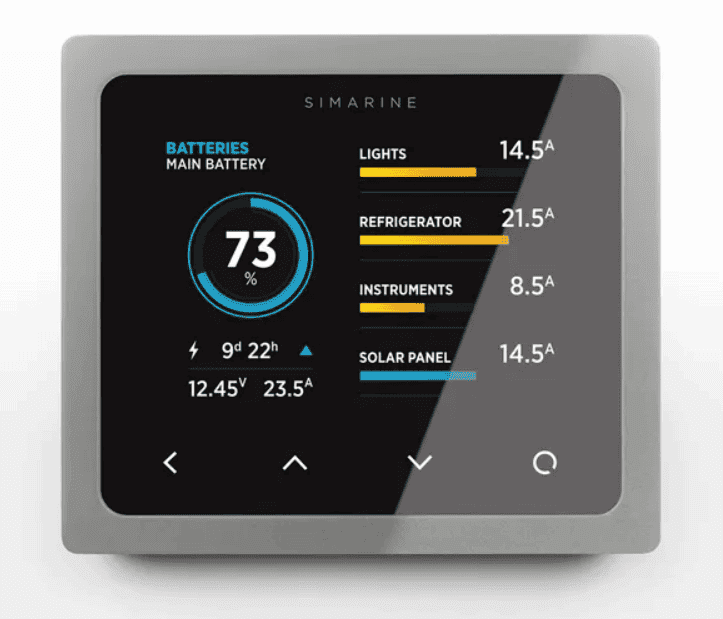

Simarine Pico: The Ultimate Silver Panel Mount Battery Monitor
Discover the pinnacle of battery monitoring with the Simarine Pico Display Panel Mount Silver . Engineered for the utmost demanding applications, this sophisticated device is your all-in-one solution for real-time energy tracking and management. Whether you're at sea, on the road, or enjoying off-grid living, the Pico Display is designed to meet your every need with unparalleled precision and ease.
Key Features:

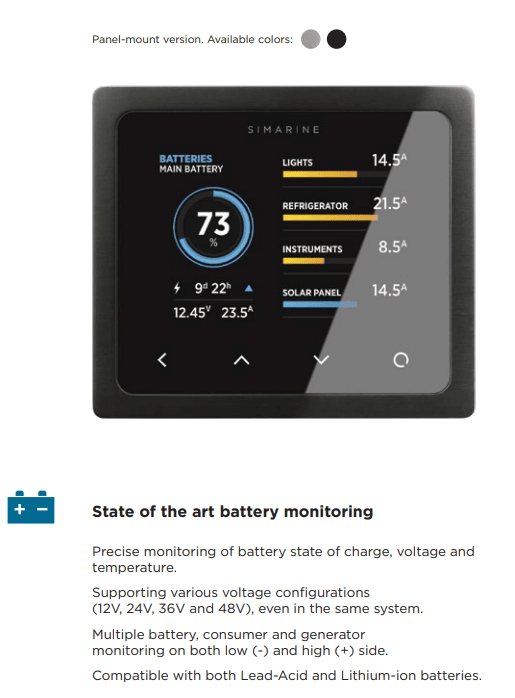

- Versatile Monitoring Capabilities: Effortlessly monitor up to 6 battery banks, alongside 6 additional battery voltages, ensuring you have all the critical information at your fingertips.

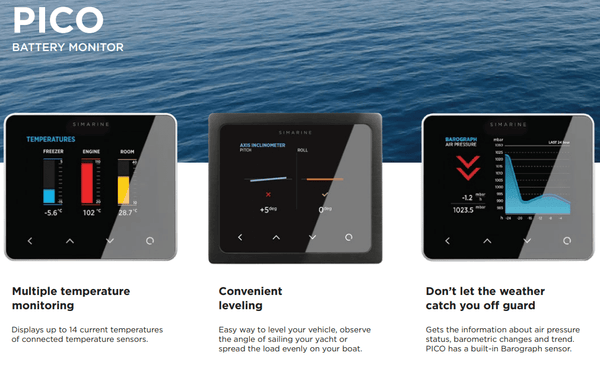

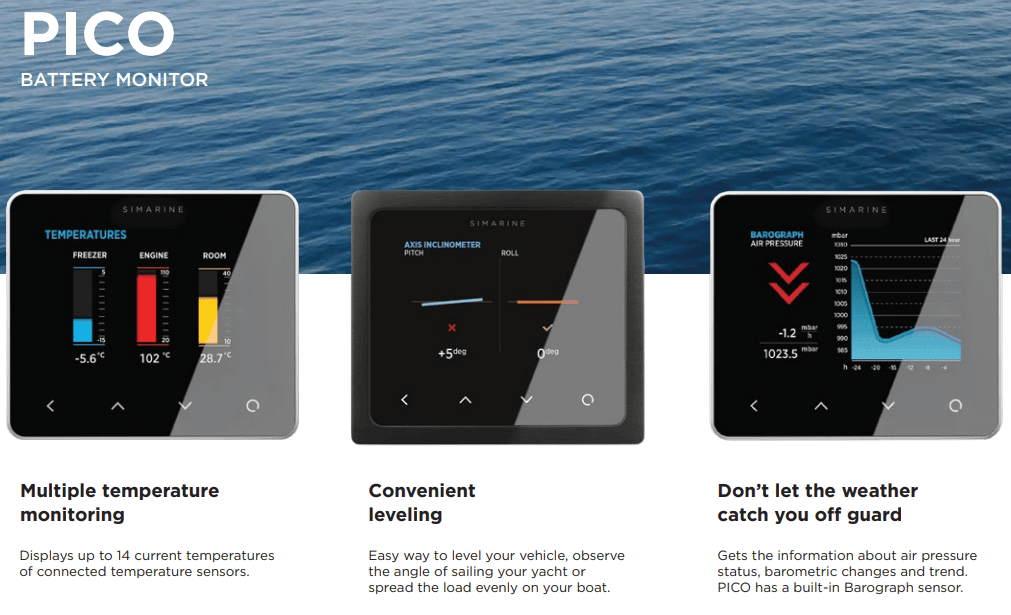

- Comprehensive Tracking: With the ability to track 14 tank levels and 20 different consumer or power generation readings, the Simarine Pico offers a level of detail unmatched in the market.
- Universal Compatibility: Seamlessly integrates with all Simarine shunts and modules, providing a flexible platform for your energy management system.
- Sleek Design: The silver panel mount not only adds a touch of elegance to your setup but is also designed for durability and ease of installation.
Why Choose Simarine Pico Display Panel Mount Silver?
The Simarine Pico Display is more than just a battery monitor; it's a comprehensive energy management tool that brings clarity and control to your energy usage. Its robust compatibility and detailed monitoring capabilities make it ideal for users who demand precision and reliability. With its sleek silver design, the Pico Display blends seamlessly into any environment, enhancing both functionality and aesthetics.
Elevate Your Energy Management Today
Take the first step towards advanced energy management with the Simarine Pico Display Panel Mount Silver. Perfect for marine, RV, and caravan enthusiasts, the Pico Display offers the reliability, precision, and ease of use that Simarine is known for. Experience the peace of mind that comes from having complete control over your energy resources, no matter where your adventures take you.
SKU: SI-PICO-4
SPECIFICATIONS
Specifications
| Official Product Name | PICO Panel Silver - Rev 2.0 |
|---|---|

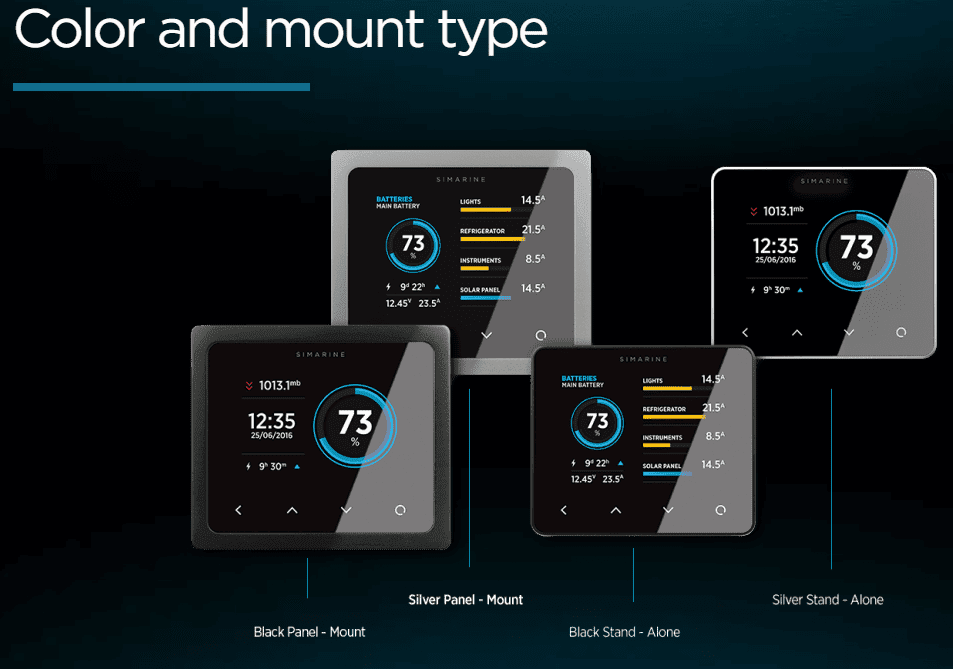

| Mount Type | Panel-mount |
| Colour | Silver |

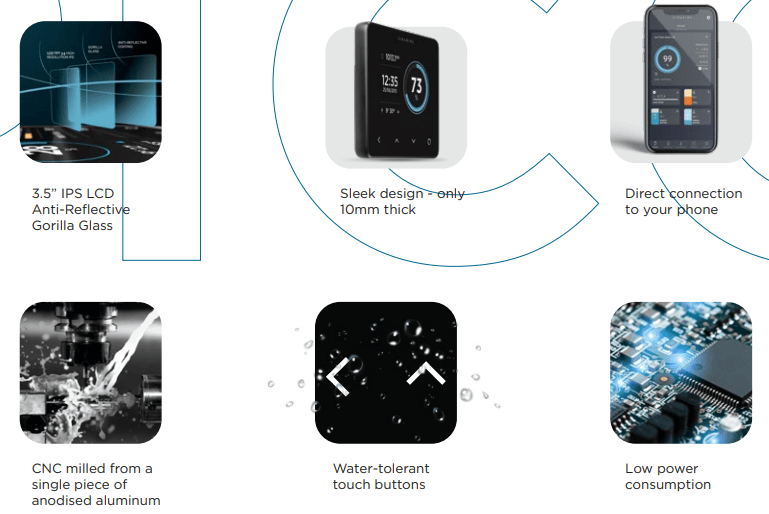

| Display | Optically bonded, high-resolution, 3.5 IPS screen with Gorilla® Glass, a polarizing filter, and automatic illumination |
| Case | IP67-rated anodized aluminum unibody case |
| Buttons | CapSense® touch buttons |
| Power Source Voltage Range | 6 - 35 VDC |
| Operating Temperature Range | From -20°C up to 70°C (-4°F up to 158°F) |
| Power Consumption At 12 V, WiFi On, 100 % Illumination | 90 mA |
| Power Consumption At 12 V, WiFi Off, 70 % Illumination | 35 mA |
| Power Consumption At 12 V, WiFi Off, 0 % Illumination | 18 mA |
| Power Consumption At 12 V, Power Off, Logger Still Active | 5 mA |
| Current Range | -999.99 to +999.99 A |
| Current Resolution | 0.01 A |
| Voltage Range | 0 - 75 VDC |
| Voltage Resolution | 0.001 V |
| Amp Hours (Ah) | ±0.1 Ah |
| Temperature Measurement Range | -40°C up to +150°C |
| Temperature Resolution | 0.1 °C / °F |
| SOC - State Of Charge | 0 - 100 % |
| WiFi Radio Frequency Band | 2.4 GHz |
| Monitoring Capabilities - Batteries | 6 |
| Monitoring Capabilities - Shunts | 24 |
| Monitoring Capabilities - Temperature Sensors | 10 |

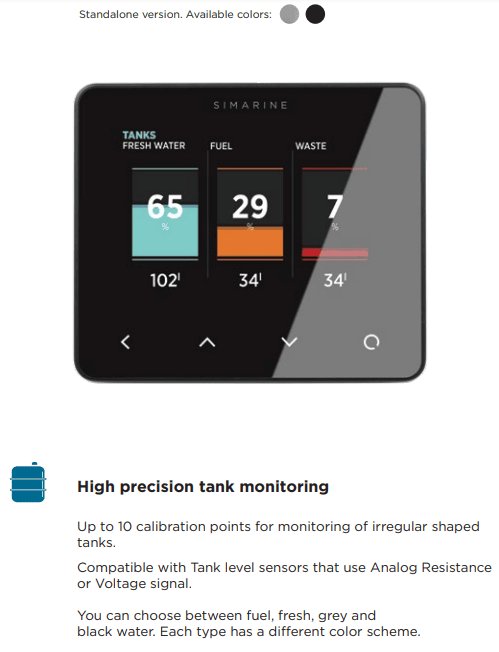

| Monitoring Capabilities - Tank Level Sensors | 14 |
| Monitoring Capabilities - Inclinometer Sensors | 2 |
| Dimensions (Without Connector) | 108.5 x 94 x 10 mm |
| SKU: | SI-PICO-4 |
| Model #: | SI-PICO-4 |
| MPN: | SI-PICO-4 |
