Simarine Pico Display Panel Mount Black

Simarine Pico3: The Ultimate Panel Mount Battery and Tank Monitor

The Simarine Pico is an advanced central monitoring unit engineered to provide complete visibility over your marine, caravan, or RV electrical system. Designed as a flush panel mount display, this sophisticated unit consolidates multiple gauges into a single, intuitive interface. Whether you are upgrading an existing 12V setup or installing a comprehensive lithium battery monitoring system, the Pico3 delivers precise real-time data to help you manage power effectively and avoid unexpected blackouts.

Precision Battery Tracking and Power Management

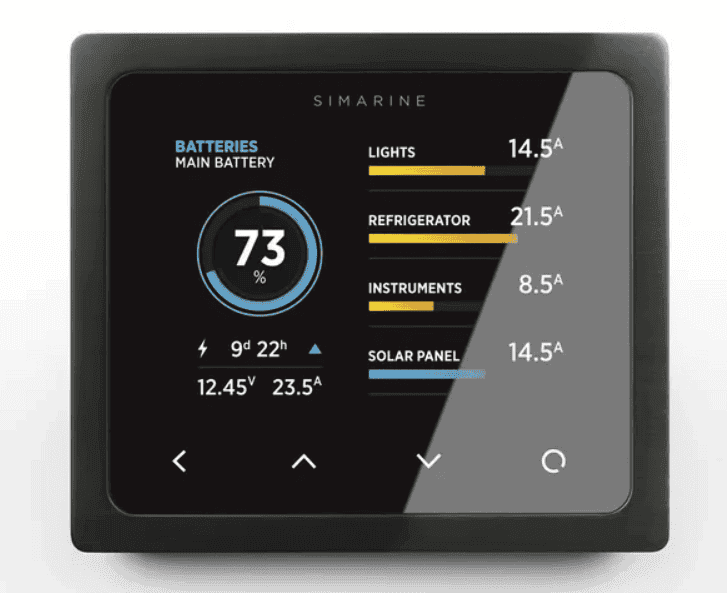

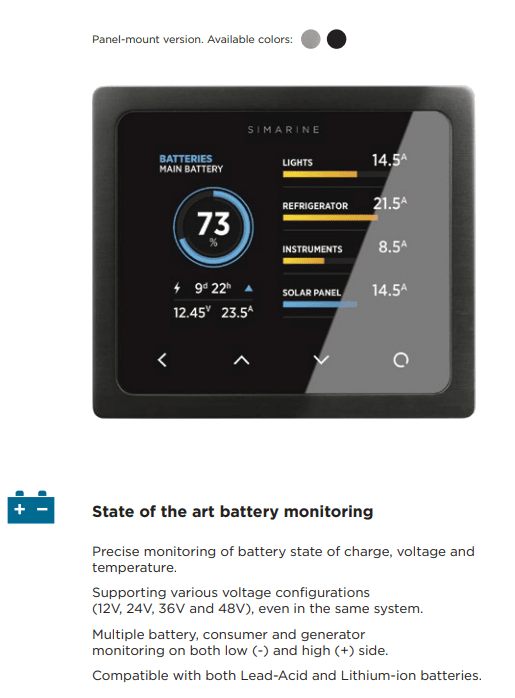

Generic battery monitors often rely on basic voltage readings, which can be highly inaccurate for modern power storage solutions. Paired with a compatible battery monitor with shunt, the Simarine Pico screen offers high-resolution tracking down to 0.01A and 0.01V. This ensures you know your exact state of charge, current consumption, and remaining battery time. Operating across a wide 6 to 35V range, it is perfectly suited for both 12V and 24V systems, providing reliable data for lead-acid, AGM, and advanced lithium-ion setups.

Unmatched Expandability for Tanks and Sensors

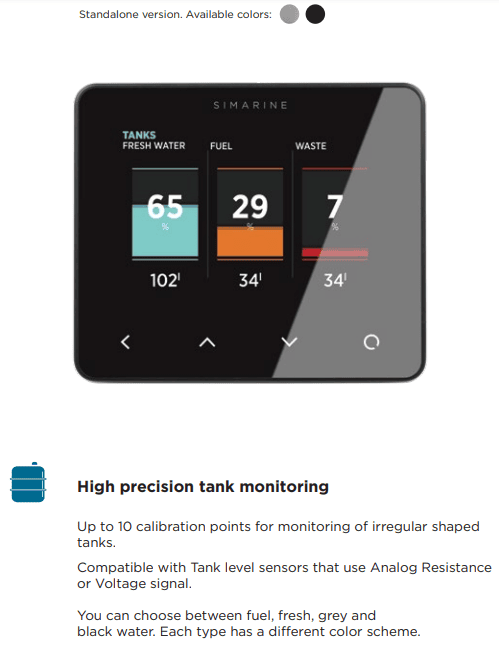

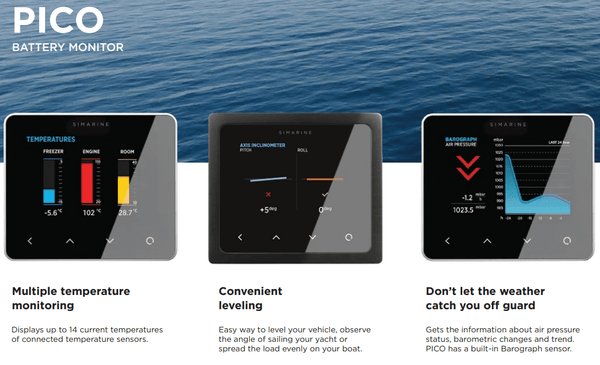

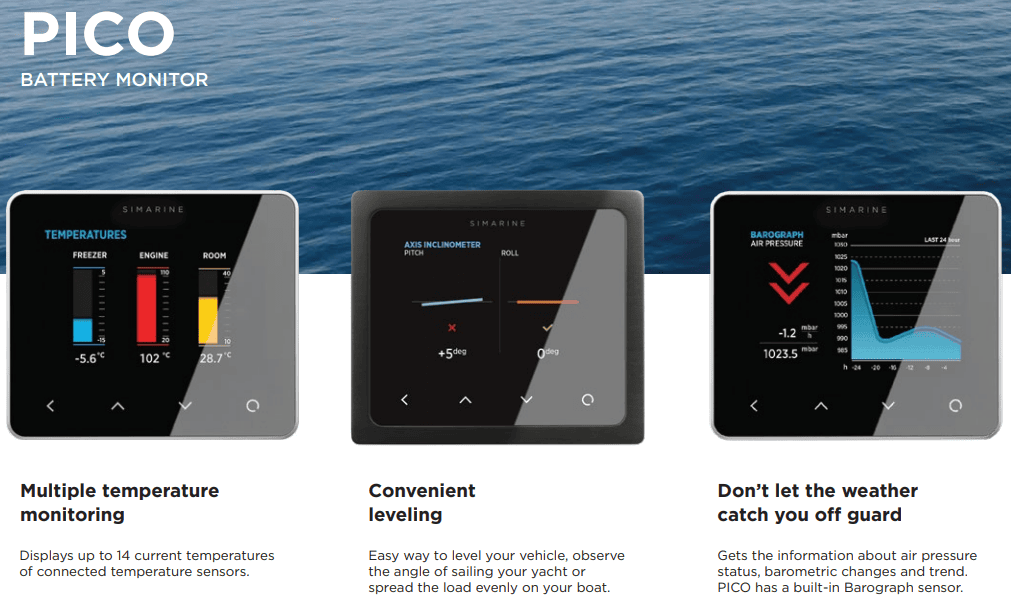

Beyond simple power tracking, this unit functions as a complete resource management hub. The Simarine Pico system supports an impressive array of inputs, allowing you to connect up to 6 battery banks, 24 individual shunts, 14 tank level sensors, 10 temperature sensors, and 2 inclinometers. By integrating all these metrics into one panel mount display, you reduce dashboard clutter and simplify system diagnostics. The advanced tank level monitoring supports up to 10 calibration points, ensuring highly accurate readings for asymmetrical fuel or water tanks.

Premium Build Quality and Intelligent Design

Constructed to withstand harsh mobile environments, the Pico monitor features a sleek 10mm ultra-thin CNC milled anodised aluminium casing. The vibrant 3.5-inch (approx. 89mm) IPS LCD screen is protected by Anti-Reflective Gorilla Glass, delivering excellent visibility even in bright, direct sunlight. Its water-tolerant touch-sensitive buttons ensure reliable navigation when operating in damp marine environments or humid conditions. Despite its bright display, the unit maintains exceptional power efficiency, drawing just 90mA during full operation and a mere 5mA when the display is off while the data logger remains active.

Seamless Wi-Fi Connectivity and App Integration

Monitoring your power and fluid levels does not require you to be standing right in front of the panel mounted display. The built-in 2.4 GHz Wi-Fi module connects directly to the Simarine smartphone application. This allows you to view real-time data, adjust settings, and monitor historical power usage graphs from the convenience of your phone. The internal logger can store up to three months of system data, helping you identify usage trends and optimise your off-grid energy consumption.

Key Features

• Comprehensive System Tracking: Monitor up to 6 battery banks, 14 tank levels, and 24 shunts from a single interface.
• High-Resolution Display: 3.5-inch (approx. 89mm) IPS LCD with Anti-Reflective Gorilla Glass for superior clarity.
• Durable Construction: CNC milled anodised aluminium casing with a flush 10mm panel mount design.
• Precision Accuracy: Tracks voltage and current down to 0.01V and 0.01A for exact state of charge management.
• Smart Connectivity: Built-in Wi-Fi enables real-time monitoring and configuration via the dedicated smartphone app.
• Water-Tolerant Controls: Reliable touch navigation designed for marine and off-grid environments.

Take Control of Your Off-Grid Power System

Eliminate the guesswork from your energy management and protect your battery investment with accurate, real-time data. Integrate this sophisticated display into your setup to ensure you always have a clear picture of your power and resource levels. Order your new panel mount monitoring system today and experience professional-grade diagnostics on your next off-grid adventure.
