Wakespeed WS500 P-type Wiring Harness

Professional Power Management: Wakespeed WS500 P-type Wiring Harness

The Wakespeed WS500 P-type Wiring Harness provides the critical communication and power bridge between your advanced alternator regulator and your electrical system. Built for demanding P-type alternator installations, this wiring harness simplifies the installation process while significantly reducing the risk of voltage drops, sensor errors, and communication failures often associated with generic wiring solutions.

Why a Dedicated Wiring Harness for Alternator Upgrades Matters

High-output alternators require precise control and accurate data to perform safely and efficiently. Constructing a custom loom from scratch introduces the potential for poor crimps, incorrect wire gauges, and moisture ingress. By utilising a pre-assembled, professional-grade harness, you ensure that vital signals regarding battery temperature, voltage sensing, and field control reach the regulator without interference. This allows your charging system to operate exactly as intended, protecting your expensive battery bank from undercharging or thermal runaway.

Intelligent System Integration

Modern off-grid and marine electrical systems rely heavily on data sharing between components. This harness is thoughtfully designed to support advanced system architectures, ensuring clean signal paths for both analog sensors and digital communication networks.

• Configured specifically for P-type alternator excitation setups.

Designed for Harsh Environments

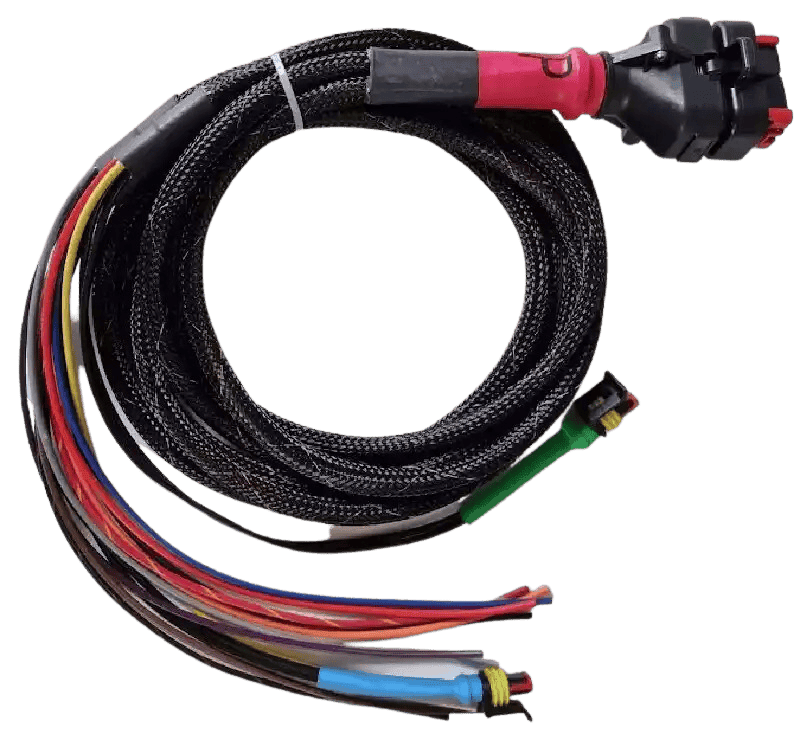

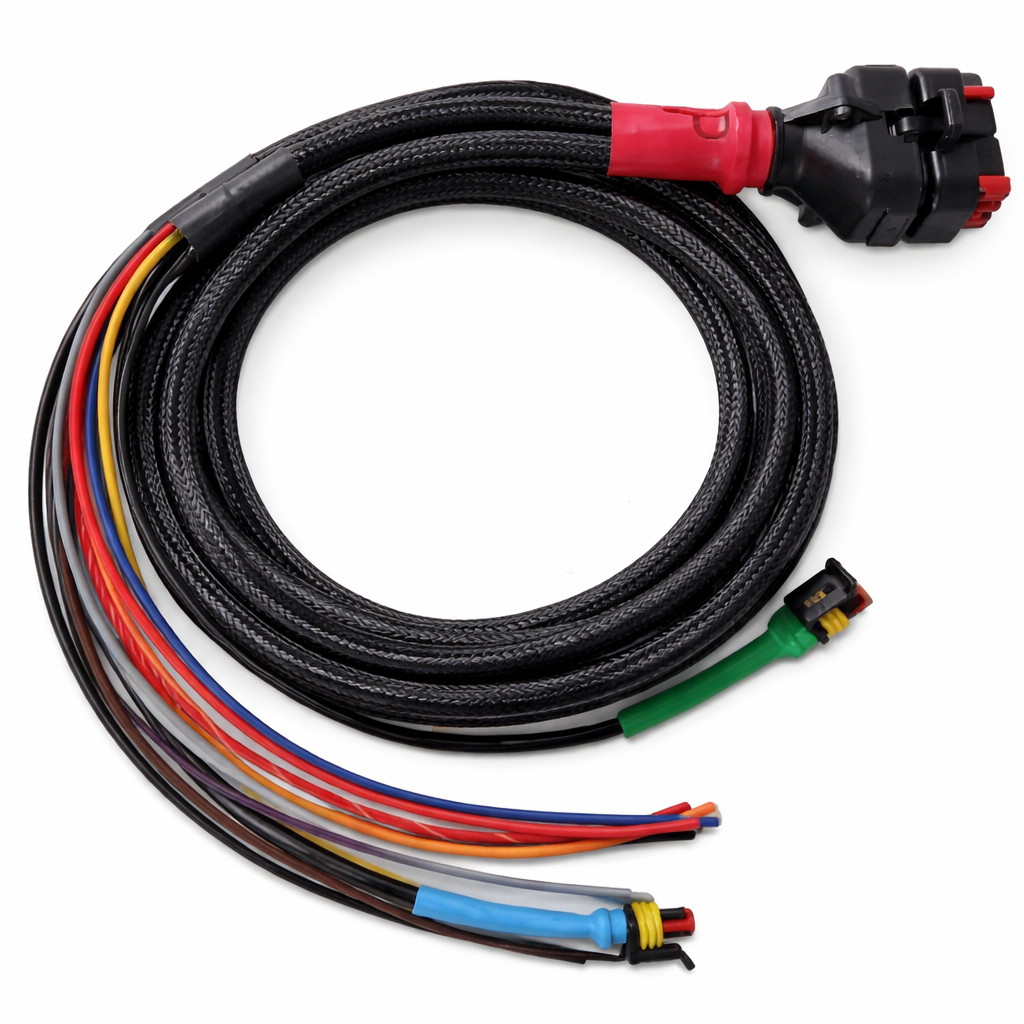

Engine bays and marine engine rooms expose electrical components to extreme heat, vibration, and moisture. To combat these harsh conditions, the harness features a heavy-duty braided mesh sleeving that provides exceptional mechanical protection against abrasion. Weather-sealed connectors, reinforced with robust heat shrink, prevent moisture and contaminants from compromising your connections. These industrial-grade materials work together to deliver long-lasting reliability in mobile and off-grid power systems.

Streamlined Installation Process

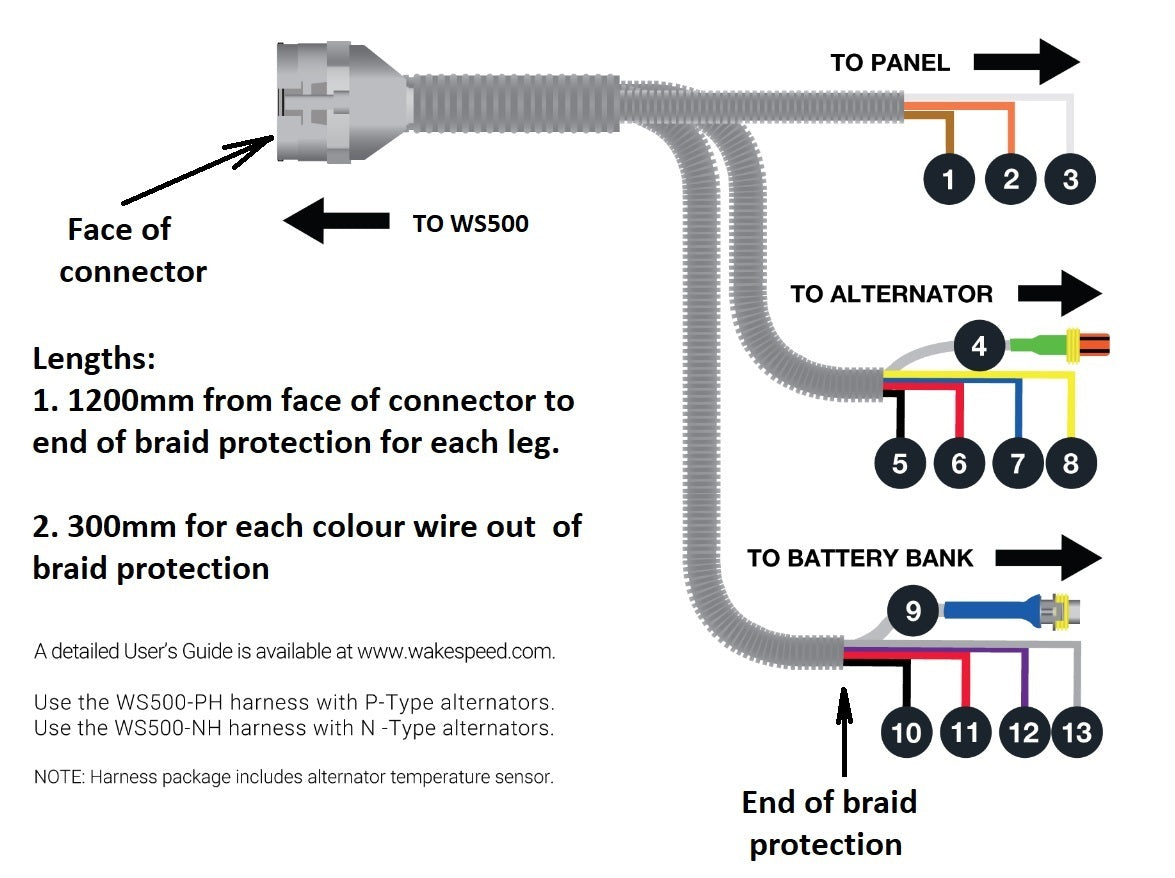

Time spent troubleshooting electrical gremlins is time away from your travels. This harness features standardised, colour-coded leads that align precisely with the Wakespeed WS500 wiring diagram. With clearly defined branches for the panel, alternator, and battery, the layout takes the guesswork out of the installation. Dedicated sensor plugs and pre-terminated connections further accelerate the process, allowing for a neat, professional finish that is easy to service and maintain over the lifespan of your vehicle or vessel.

Key Features

• Colour-coded and clearly labelled wiring for straightforward installation
• Durable braided protective sleeving resists heat and abrasion
• Weather-sealed, multi-pin connectors for secure regulator attachment
• Dedicated branches for panel, alternator, and battery connections

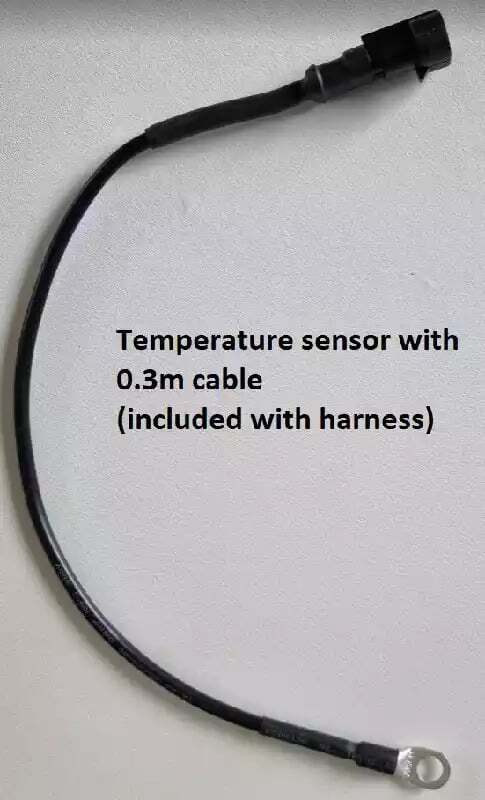

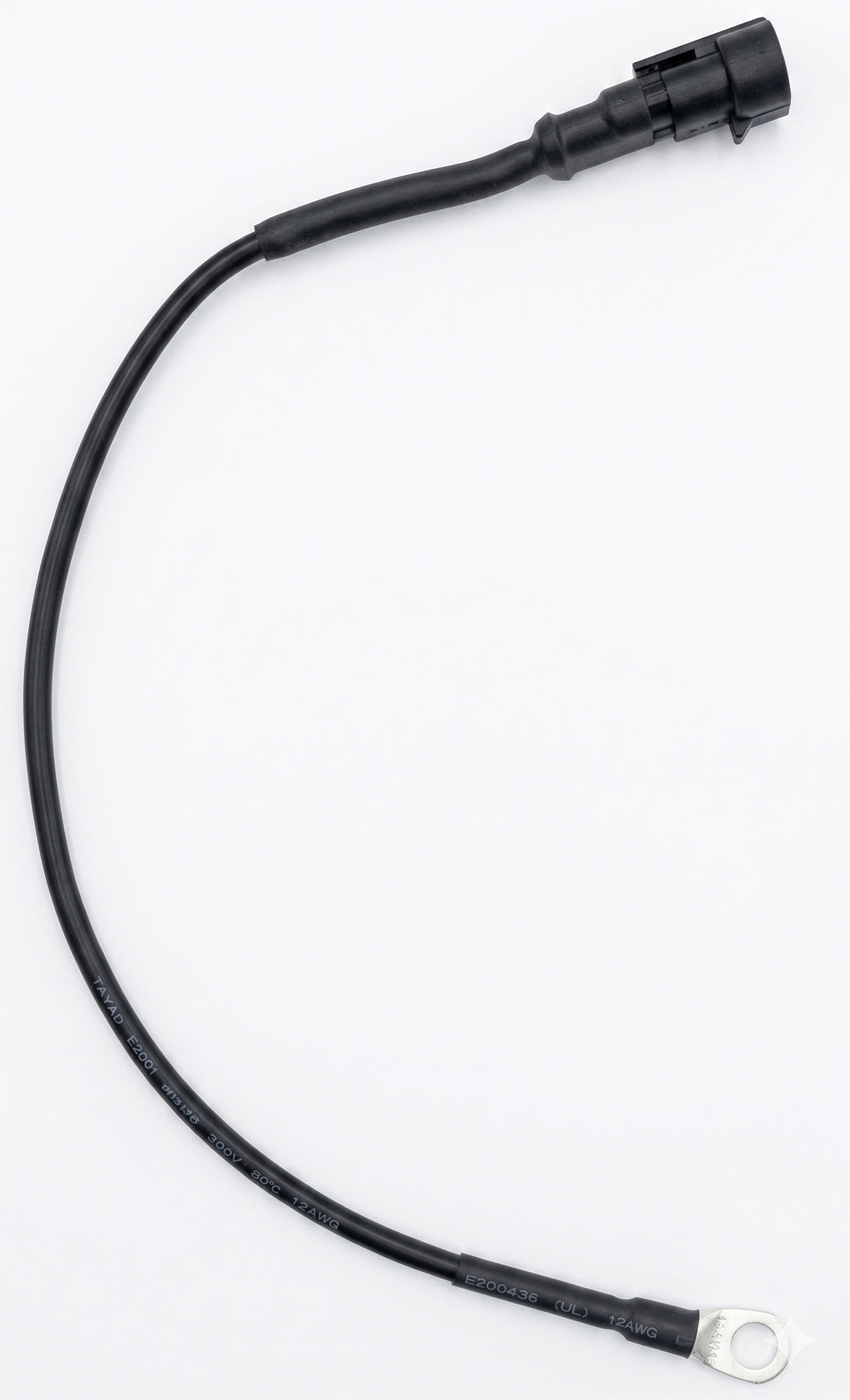

• Includes a 0.3m alternator temperature sensor with a secure ring terminal
• Optimised for accurate voltage and current sensing

Complete Your Power System

Ensure your advanced charging setup operates at peak efficiency with a wiring solution built for the task. Secure your reliable connection today and experience confident, high-performance power generation wherever your journey takes you.
