Votronic Thermometer / Clock Display 1253

Votronic 1253 LCD Thermometer and Clock: Precision Monitoring for Mobile and Off-Grid Environments

Triple-Zone Temperature Display with Integrated Quartz Clock for 12V and 24V Systems

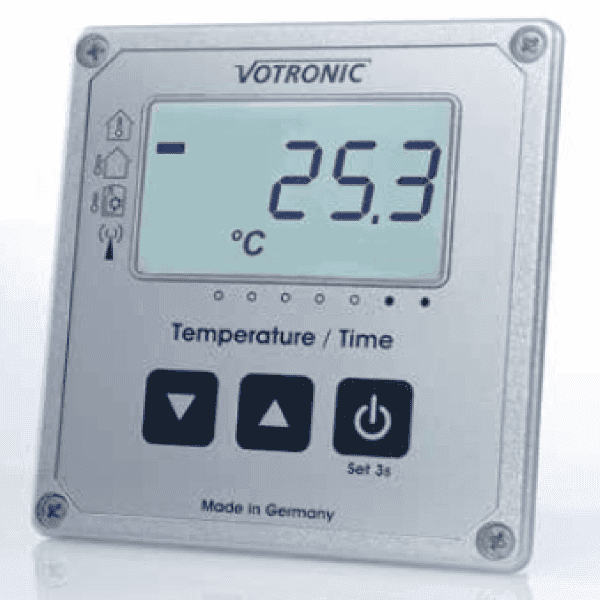

The Votronic LCD Thermometer/Clock S 1253 delivers accurate, real-time environmental data in a compact, vehicle-ready design. Engineered for caravans, motorhomes, 4WDs, and marine applications, this unit combines a three-channel digital thermometer with a high-precision quartz clock, all powered directly from the vehicle’s board battery. Its low current draw and large, backlit LCD make it a practical addition to any 12V or 24V electrical system where reliable monitoring is essential.

Unlike generic aftermarket gauges, the Votronic 1253 offers three independent temperature inputs: an integrated internal sensor for cabin or interior temperature, a supplied external sensor for outside air temperature (typically mounted behind the front bumper), and a third auxiliary input for monitoring fridge boxes, medication storage, or heat-sensitive cargo. This triple-sensor capability reduces the need for multiple standalone devices, simplifying installation and minimising dashboard clutter.

Engineered for Low Power Consumption and Clear Readability

One of the standout features of this unit is its exceptionally low current consumption, ranging from just 1 mA to 30 mA depending on backlight usage. This is critical for vehicles and off-grid setups where preserving battery capacity is a priority. The switchable white backlight ensures the large LCD digits remain legible in all lighting conditions, from bright daylight to complete darkness, without causing eye strain or distraction.

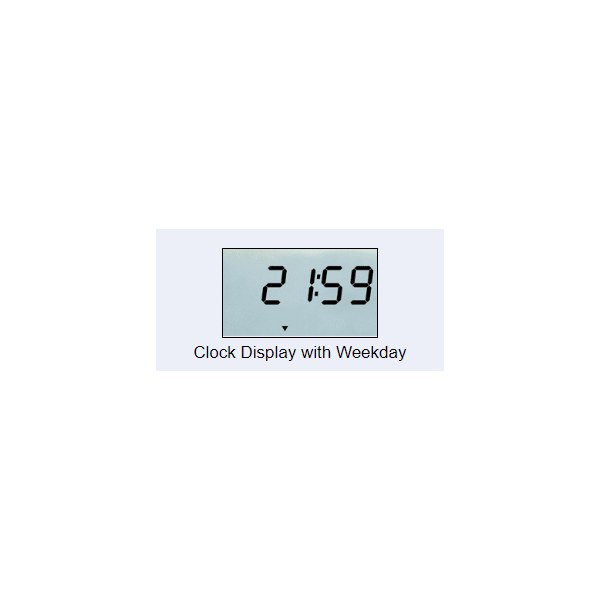

The clock module displays time in 24-hour format with a flashing colon as an operational indicator, and includes a weekday display for added convenience. A built-in power reserve protects timekeeping during voltage interruptions, so you won’t need to reset the clock after a battery disconnect or temporary power loss.

Key Features at a Glance

• Three temperature sensors – internal, external (included), and auxiliary input for versatile monitoring
• Wide measurement range from -30 °C to +70 °C with 0.1 °C resolution for precise readings
• Ultra-low power draw (1–30 mA) to minimise impact on your battery bank
• Large, backlit LCD with clear digits and status icons for at-a-glance checks
• 24-hour quartz clock with weekday display and power-failure reserve
• Compact flush-mount design (66 x 72 mm cutout) suits standard dashboard panels
• CE and E-approved for electromagnetic compatibility in vehicles

Reliable Monitoring That Reduces Risk

In mobile and remote applications, temperature extremes can damage sensitive equipment, spoil provisions, or compromise comfort. The Votronic 1253 helps mitigate these risks by providing continuous, accurate temperature data from multiple zones. For instance, the auxiliary input can be placed inside a 12V compressor fridge to verify cooling performance, or in a medication compartment where temperature stability is critical. Early detection of abnormal readings allows you to take corrective action before problems escalate.

The included external sensor features a fork terminal connector for secure, reliable attachment to the display unit, reducing the chance of intermittent connections caused by vibration. The unit’s E-approval (EMC/Vehicle Directive) confirms it has been tested for electromagnetic compatibility, so it won’t interfere with other onboard electronics such as radios, GPS, or engine management systems.

Simple Installation and Everyday Usability

Designed for flush mounting, the Votronic 1253 fits into a rectangular cutout of just 66 x 72 mm, with a visible bezel of 80 x 85 mm. The package includes a drilling template, mounting screws, and plug-in screw terminals, making installation straightforward for DIY enthusiasts and professional installers alike. The intuitive front-panel buttons allow easy switching between temperature channels, adjusting settings, and toggling the backlight.

Whether you’re monitoring cabin comfort on a cross-country road trip, keeping an eye on outside temperatures during alpine adventures, or ensuring your portable fridge stays within safe limits, this device provides the data you need without unnecessary complexity.

Upgrade Your Vehicle’s Monitoring Capability

Add the Votronic LCD Thermometer/Clock S 1253 to your dashboard and gain precise, multi-zone temperature awareness alongside a dependable clock. It’s a practical upgrade for anyone who values reliable instrumentation in their caravan, motorhome, 4WD, or boat. Order today and enjoy greater confidence in your mobile environment.
