Votronic Tank Level Display S - Grey Water

Precision Grey Water Monitoring for Mobile and Marine Applications

Engineered in Germany for Reliable Tank Level Indication

The Votronic Tank Level Display S for Grey Water delivers continuous, accurate monitoring of your wastewater tank, helping you manage capacity and avoid overflows. Designed and manufactured in Germany, this panel integrates seamlessly into 12V and 24V DC electrical systems, making it an excellent choice for caravans, motorhomes, camper trailers, and marine vessels.

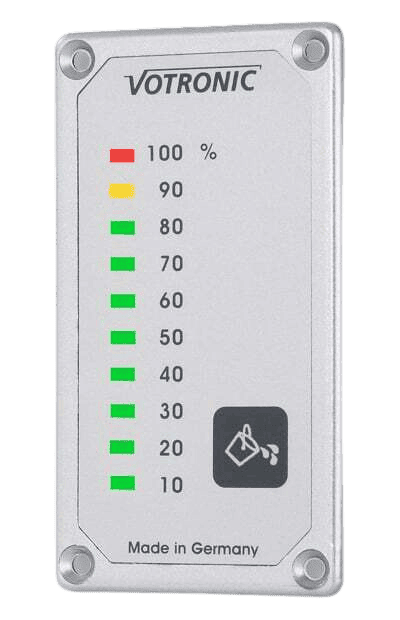

Unlike basic float switches or generic LED indicators, the Votronic display uses a 10-stage LED bar with three distinct colours to provide an instant, at-a-glance reading of your grey water level. The variable brightness of the LEDs reflects real-time changes during filling or emptying, so you always know exactly how much capacity remains.

Continuous Measurement for Complete Control

Conventional tank monitors often sample intermittently, leaving you guessing between readings. The Votronic system operates continuously, updating the LED bar as the level changes. This means you can watch the tank fill or drain in real time, giving you full control over the process and reducing the risk of unexpected overflows or pump running dry.

The display is activated at the touch of a button and automatically switches off after approximately 10 minutes to conserve power, drawing less than 1 mA in standby. This low current consumption is critical for off-grid setups where every milliamp counts.

Compact Design for Flexible Installation

With a front panel measuring just 85 x 47 mm and a mounting depth of only 18 mm, the Votronic Tank Level Display S fits into tight spaces where other monitors cannot. The shallow depth allows you to utilise storage compartments behind the panel without obstruction. The unit is designed for flush mounting with a simple 63 x 29 mm cut-out, and the recessed corner holes accept standard screws for a clean, professional finish.

Key Features

• 10-stage LED bar with green, yellow, and red indicators for quick level assessment
• Continuous real-time monitoring with variable brightness for instant trend recognition
• Ultra-low standby current (1 mA) and automatic 10-minute switch-off to preserve battery life
• Wide 10V to 32V DC input range compatible with both 12V and 24V systems
• Compact 85 x 47 x 20 mm dimensions with 18 mm mounting depth for installation in confined areas
• Made in Germany with robust construction for long-term reliability in mobile environments
• Clear grey water bucket symbol on the front panel for easy identification

Compatible Sensor Options for Any Tank

The Votronic Tank Level Display S works with a range of Votronic tank electrodes and sensors, allowing you to tailor the system to your specific tank material and size. Whether you have a small 15-litre grey water tank or a larger 110-litre capacity, there is a compatible sensor to ensure precise measurement. The display requires one sensor per tank, and the recommended cable cross-section of 0.5 to 1.5 mm² ensures a reliable signal even over longer wiring runs.

Built for Australian Conditions

Votronic products are known for their durability and consistent performance in demanding mobile applications. The Tank Level Display S is no exception, with a design that withstands vibration, temperature fluctuations, and the rigours of travel. The front panel is clearly marked with a grey water icon, preventing confusion in multi-tank installations where fresh, grey, and black water displays may be mounted side by side.

Reduce Risk and Improve Wastewater Management

Overfilling a grey water tank can lead to messy spills, unpleasant odours, and potential damage to your vehicle or vessel. By providing accurate, real-time level data, the Votronic display helps you avoid these issues and maintain a clean, hygienic living space. It also allows you to plan waste disposal stops more effectively, so you are never caught off guard.

For installers and DIY enthusiasts, the straightforward wiring and standardised modular format simplify integration with other Votronic components, such as battery monitors and solar controllers, creating a cohesive energy and resource management system.

Upgrade Your Tank Monitoring Today

Equip your caravan, motorhome, or boat with the precision of German engineering. Order the Votronic Tank Level Display S for Grey Water and take the guesswork out of wastewater management.
