Victron 200–250VAC 5kVA Single Phase Automatic Transfer Switch
IP54 20A Automatic AC Transfer for Caravans, RVs, and Marine Systems
DESCRIPTION
Victron VE Transfer Switch 5KVA: Automatic AC Source Selection for Mobile and Off-Grid Power Systems
Seamless Power Transfer for Caravans, RVs, and Marine Applications
The Victron VE Transfer Switch 5KVA provides reliable, automatic switching between two independent AC power sources, ensuring uninterrupted supply to your essential loads. Designed for single-phase 200-250V systems, this unit is a critical component in modern caravan inverter installations, RV power management, and marine electrical systems where shore power and onboard generation must coexist without manual intervention.
Unlike generic changeover switches that require physical operation, the VE Transfer Switch monitors the primary input and transfers to the secondary source within milliseconds when voltage is lost or falls outside acceptable parameters. This eliminates the risk of dropped loads, protects sensitive electronics from abrupt power interruptions, and simplifies system design for installers and end-users alike.
Engineered for Demanding Mobile Environments

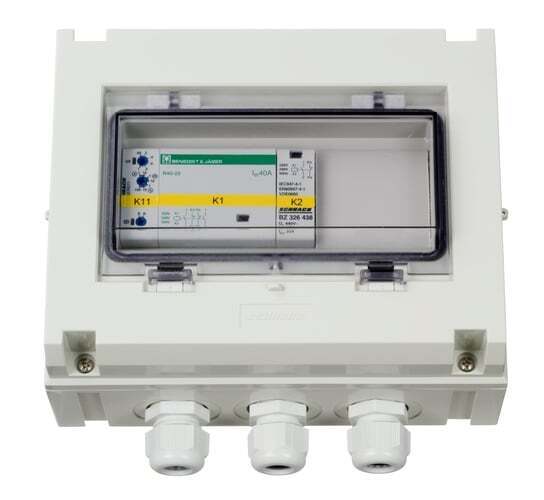

Housed in a robust IP54-rated enclosure, the VE Transfer Switch withstands dust, moisture, and vibration typical of off-road caravan setups and coastal marine installations. The compact 175 x 215 x 120 mm footprint and 1.85 kg weight allow flexible mounting in confined equipment bays, while the clear protective viewing window enables quick visual status checks without opening the enclosure.

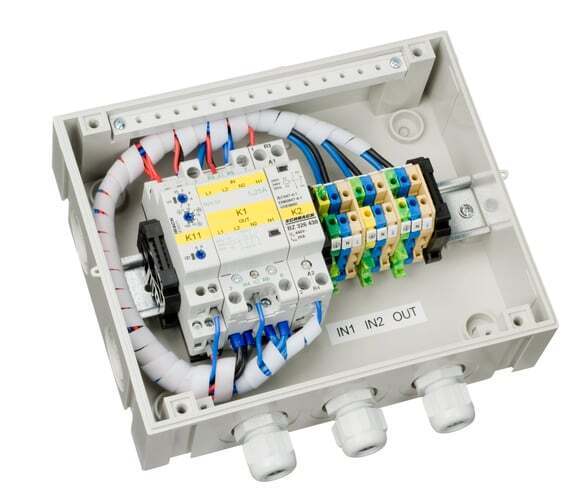

Three heavy-duty cable glands provide secure, strain-relieved entry for input and output wiring, maintaining the IP54 integrity even in high-humidity or washdown environments. Internally, colour-coded terminal blocks and clear circuit identification labels reduce installation time and minimise wiring errors, a practical advantage over unbranded alternatives that often lack such installer-friendly details.
Key Features
- Automatic source selection between shore power, generator, or inverter with no user intervention required
- Fast transfer time of 10-20 ms (closing contacts) and 5-20 ms (opening contacts) to keep sensitive loads online
- Adjustable input delay (approx. 10 seconds) prevents nuisance switching from transient voltage fluctuations
- Integrated auxiliary contact (200-240V AC, 20A) for remote signalling or control of external devices
- IP54 weatherproof enclosure with clear viewing window and secure cable glands for harsh environments
- 20A nominal current rating per input and output, supporting up to 1.3 kW motor loads such as air-conditioners
- Low standby consumption of only 6 VA on the primary input, preserving battery capacity in off-grid systems
Reliable Power Management Without Compromise
In typical caravan solar installations, the VE Transfer Switch sits between the inverter/charger and the AC distribution board, automatically selecting shore power when available and reverting to inverter output when disconnected. This eliminates the need for manual changeover switches that can be forgotten, leading to flattened batteries or tripped circuit breakers. For generator-backed systems, the switch ensures the generator only runs when shore power is absent, reducing fuel consumption and runtime hours.
The unit’s 20A continuous rating per input makes it suitable for most single-phase caravan and small marine applications, while the 1.3 kW maximum motor load accommodates rooftop air-conditioners and other inductive loads without contactor welding or premature failure. Unlike some budget transfer switches that use undersized relays, the Victron design employs a heavy-duty contactor rated for frequent operation, contributing to long service life in daily-use scenarios.
Installation Flexibility and System Integration
The VE Transfer Switch integrates seamlessly with Victron MultiPlus and Quattro inverter/charger systems, but its standalone operation also suits third-party inverters and generators. The adjustable input delay allows installers to fine-tune the switchover timing to match generator warm-up periods or inverter start-up sequences, preventing unnecessary cycling. An auxiliary contact provides a volt-free signal that can trigger remote alarms, start generators, or interface with monitoring systems such as the Victron Cerbo GX.
Why Choose the Victron VE Transfer Switch?
Generic automatic transfer switches often lack the environmental protection, documentation, and support expected in professional installations. The Victron VE Transfer Switch addresses these gaps with an IP54-rated enclosure, clear internal labelling, and comprehensive technical documentation. This reduces installation time, callbacks, and long-term reliability risks, particularly in mobile applications subject to vibration and temperature extremes.
With an operating temperature range of -5 °C to +60 °C and 95% non-condensing humidity tolerance, the switch performs reliably across Australia’s diverse climates, from tropical coastal regions to arid outback conditions. The RAL 7035 light-grey finish minimises solar heat absorption, further enhancing thermal performance in exposed mounting locations.
Upgrade Your Power System with Confidence
Whether you are building a new caravan electrical system, retrofitting an RV with inverter-charger capability, or designing a marine AC distribution panel, the Victron VE Transfer Switch 5KVA delivers the automatic, worry-free source selection that modern mobile lifestyles demand. Add this essential component to your installation today and experience the reliability that Victron Energy is known for worldwide.
SKU: VIC-COS230502100
SPECIFICATIONS
Specifications
| Nominal Voltage | 200 - 250 Vac, single-phase |
|---|---|
| Nominal Frequency | 50 - 60 Hz |
| Nominal Current Input 1 | 20 A |
| Nominal Current Input 2 | 20 A |
| Nominal Output Current | 20 A |
| Maximum Electromotor (Air-Conditioner) Power | 1.3 kW |
| Power Consumption Input 1 | 6 VA |
| Power Consumption Input 2 | 0 VA |
| Transfer Time by Closing Contacts | 10 - 20 ms |
| Transfer Time by Opening Contacts | 5 - 20 ms |
| Contacts Delay Input 1 | Approximately 10 s (adjustable) |
| Auxiliary Contact | 200 - 240 Vac, 20 A, cos phi = 1 |
| Operating Temperature | -5 °C to +60 °C |
| Maximum Humidity (Non-Condensing) | 95% |
| Miniature Circuit Breaker (MCB) | Not included - installation dependent |
| Earth Leakage Breakers (RCD) | Not included - installation dependent |
| Protection Category | IP 54 |
| Colour | RAL 7035 |
| Dimensions (mm) | 175 x 215 x 120 |
| Weight (kg) | 1.85 |
| SKU: | VIC-COS230502100 |
| Barcode: | 8719076022091 |
| Model #: | COS230502100 |
| MPN: | COS230502100 |
