Victron 12/24/48V 85A SmartSolar MPPT 250/85-Tr VE.CAN Bluetooth Solar Charge Controller

Ultra-fast MPPT with Bluetooth & VE.Can for 12/24/48V systems


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

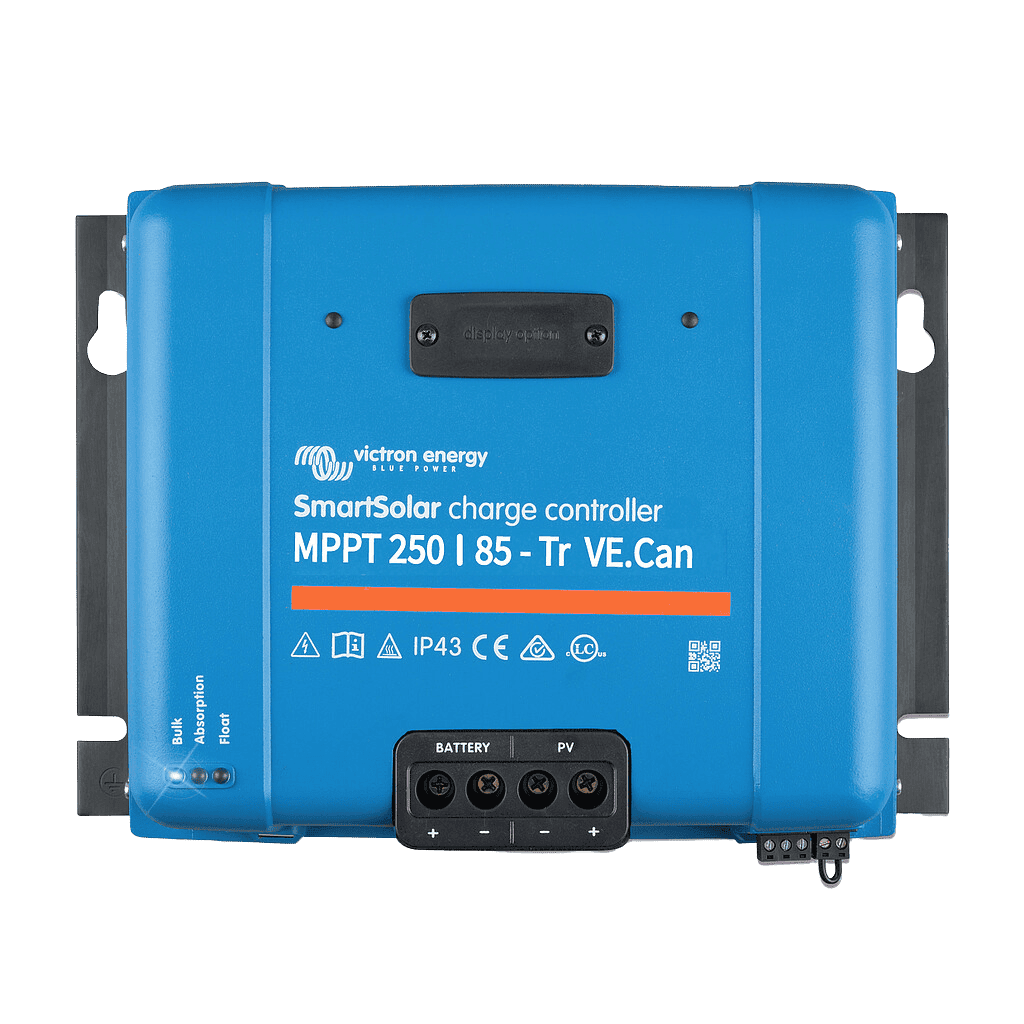

Victron SmartSolar MPPT 250/85-Tr VE.Can Bluetooth Solar Charge Controller

High-Performance MPPT Solar Regulation for 12V, 24V, and 48V Off-Grid Systems

The Victron SmartSolar MPPT 250/85-Tr VE.Can charge controller delivers advanced Maximum Power Point Tracking technology for off-grid solar systems, caravans, marine installations, and remote power applications. Designed to extract the maximum available energy from your solar array, this controller ensures your batteries receive a fast, efficient, and safe charge under all conditions.

With ultra-fast MPPT tracking, the controller adapts to changing light and shading in seconds, maximising yield even on cloudy days or when panels are partially shaded. The high conversion efficiency of up to 99% minimises energy losses, so more of your solar power reaches the battery bank. Built-in Bluetooth and VE.Can communication allow seamless monitoring and parallel synchronisation, making it a future-proof choice for expanding systems.

Advanced Charging Intelligence

The SmartSolar MPPT uses a multi-stage adaptive charge algorithm with eight pre-programmed battery settings, plus a fully user-definable mode. This ensures optimal charging for lead-acid, AGM, gel, and lithium batteries. Temperature compensation adjusts charge voltages based on battery temperature, protecting against overcharging in hot climates and undercharging in cold conditions.

Automatic battery voltage recognition detects 12V, 24V, or 48V systems, simplifying installation and reducing setup errors. The controller also features PV reverse polarity protection, output short circuit protection, and over-temperature protection with power derating, ensuring reliable operation in demanding Australian environments.

Seamless System Integration

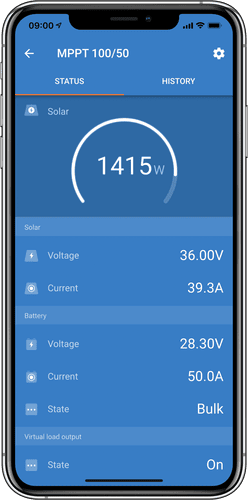

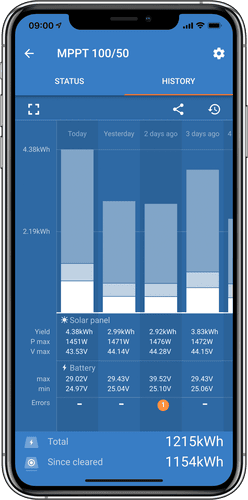

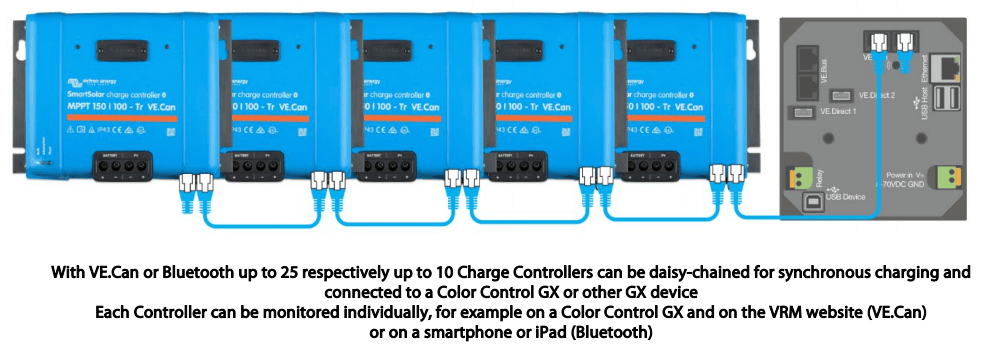

Integrated Bluetooth Smart allows wireless configuration and monitoring via the VictronConnect app on your smartphone or tablet. View real-time solar yield, battery voltage, charge current, and historical trends. The VE.Can interface enables parallel synchronised operation of up to 25 units, ideal for large-scale off-grid systems. A programmable relay and remote on/off connector provide flexible control for external devices or system automation.

For advanced monitoring, connect to a GX device or the VRM portal for remote access and firmware updates. The controller also supports an optional plug-on SmartSolar Control Display for local readouts.

Key Features

  • Ultra-fast MPPT tracking for maximum energy harvest in all conditions
  • Up to 99% conversion efficiency reduces heat and energy loss
  • Automatic 12/24/48V battery voltage detection for easy setup
  • Multi-stage adaptive charging with user-definable algorithm
  • Built-in Bluetooth for VictronConnect app monitoring and configuration
  • VE.Can communication for parallel operation of up to 25 controllers
  • Programmable relay and remote on/off for system control
  • Comprehensive electronic protection including PV reverse polarity and over-temperature
  • IP43 protection for electronics, suitable for indoor and sheltered outdoor use
  • Heavy-duty 35 mm² (AWG2) terminals for secure, low-resistance connections

Built for Australian Conditions

Engineered to operate from -30°C to +60°C with full rated output up to 40°C, this controller handles the extremes of the Australian climate. The natural convection cooling design eliminates noisy fans and reduces maintenance, while the robust aluminium heatsink dissipates heat effectively. With IP43 protection for electronic components and IP22 for the connection area, it resists dust and water spray, making it suitable for installation in caravans, boats, and remote equipment sheds.

Maximise Your Solar Investment

Whether you're powering a caravan solar system, a marine battery bank, or a remote off-grid installation, the Victron SmartSolar MPPT 250/85-Tr VE.Can controller ensures you get the most from your panels. Its advanced tracking and high efficiency mean faster charging and longer battery life, reducing generator run time and fuel costs.

Ready to upgrade your solar charging? Add the Victron SmartSolar MPPT 250/85-Tr VE.Can to your system today and experience reliable, intelligent power management wherever you are.


SKU: VIC-SCC125085411

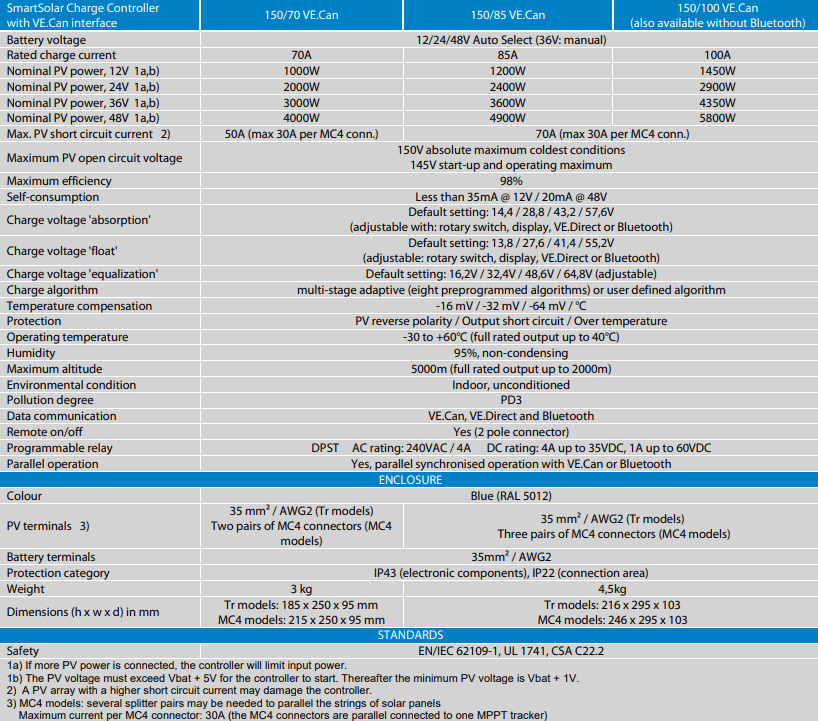

SPECIFICATIONS

Specifications

Battery Voltage12/24/48 V Auto Select (36 V: Manual)
Rated Charge Current85 A
Nominal PV Power, 12 V1200 W
Nominal PV Power, 24 V2400 W
Nominal PV Power, 36 V3600 W
Nominal PV Power, 48 V4900 W
Max. PV Short Circuit Current70 A
Maximum PV Open Circuit Voltage250 V Absolute Maximum Coldest Conditions / 245 V Start-up And Operating Maximum
Maximum Efficiency99 %
Self-consumptionLess Than 35 mA @ 12 V / 20 mA @ 48 V
Charge Voltage 'Absorption'Default Setting: 14.4 / 28.8 / 43.2 / 57.6 V
Charge Voltage 'Float'Default Setting: 13.8 / 27.6 / 41.4 / 55.2 V
Charge Voltage 'Equalization'Default Setting: 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
Charge AlgorithmMulti-stage Adaptive (Eight Pre-programmed Algorithms) Or User Defined Algorithm
ProtectionPV Reverse Polarity / Output Short Circuit / Over Temperature
Operating Temperature-30 To +60 °C (Full Rated Output Up To 40 °C)
Data CommunicationVE.Can, VE.Direct And Bluetooth
Remote On/OffYes (2 Pole Connector)
Programmable RelayDPST AC Rating: 240 VAC / 4 A DC Rating: 4 A Up To 35 VDC, 1 A Up To 60 VDC
Parallel OperationYes, Parallel Synchronised Operation With VE.Can (Max. 25 Units) Or Bluetooth (Max. 10 Units)
PV Terminals35 mm² / AWG2 (Tr Models)
Battery Terminals35 mm² / AWG2
Protection CategoryIP43 (Electronic Components), IP22 (Connection Area)
Weight4.5 kg
Dimensions (H x W x D)216 x 295 x 103 mm
SafetyEN/IEC 62109-1, UL 1741, CSA C22.2

SKU: VIC-SCC125085411
Barcode: 8719076050896
Model #: SCC125085411
MPN: SCC125085411
