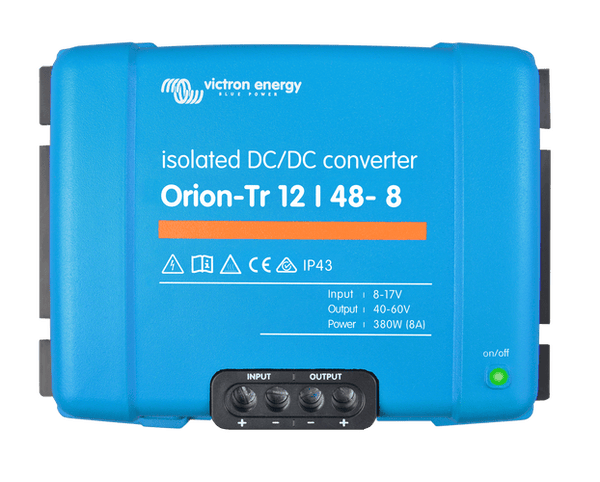

Front view of a blue Victron Orion-Tr 12/48-8 isolated DC-DC converter showing technical labels

Warning sign held by a person clarifying this is a DC-DC converter and not a battery charger

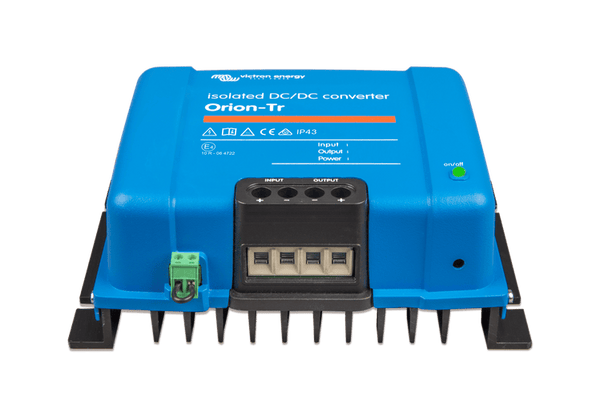

Angled view of the Victron Orion-Tr converter showing lower screw terminals and cooling heatsink

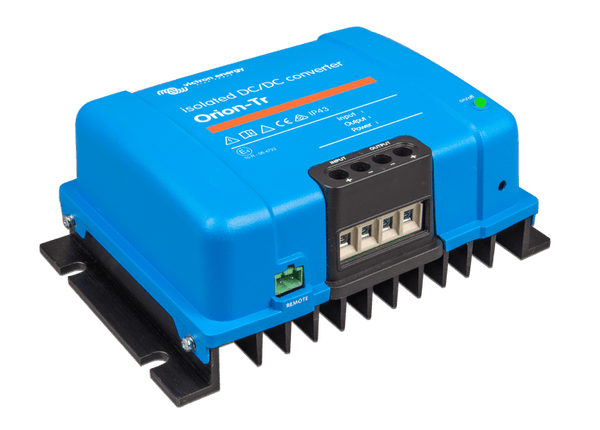

Isometric view of the Orion-Tr 12/48-8 converter highlighting the side mounting plate and rear heatsink fins

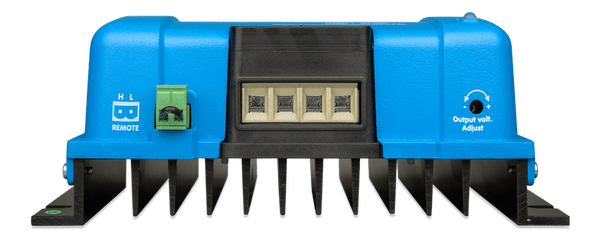

Technical front-on view of terminals and adjustment ports on the Orion-Tr isolated converter

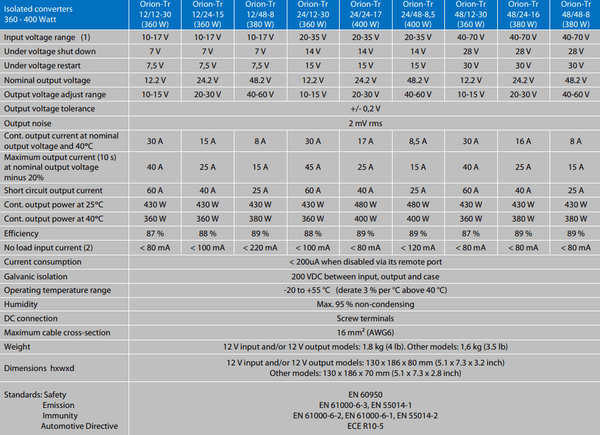

Technical specification table for Victron Orion-Tr isolated DC-DC converters showing performance data

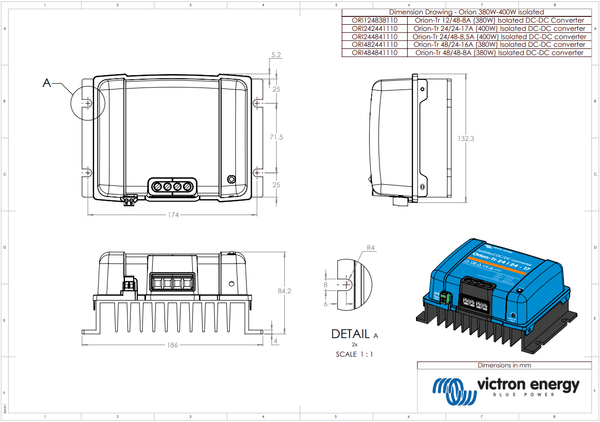

Dimensional drawing in millimetres for Victron Orion-Tr 380W and 400W isolated converters

Victron 12V to 48V Orion-Tr 12/48-8A Isolated DC-DC Converter

Victron Orion-Tr 12/48-8 (380W) Isolated DC-DC Converter: Clean, Stable Power for Sensitive Electronics Galvanic Isolation for Superior Noise Rejection and System Protection The Victron Orion-Tr 12/48-8 (380W) delivers a regulated, isolated DC output, making it the ideal solution for powering sensitive loads where electrical noise and ground loops cannot be tolerated. Unlike non-isolated converters, this unit provides 200V DC galvanic...

View More Details
