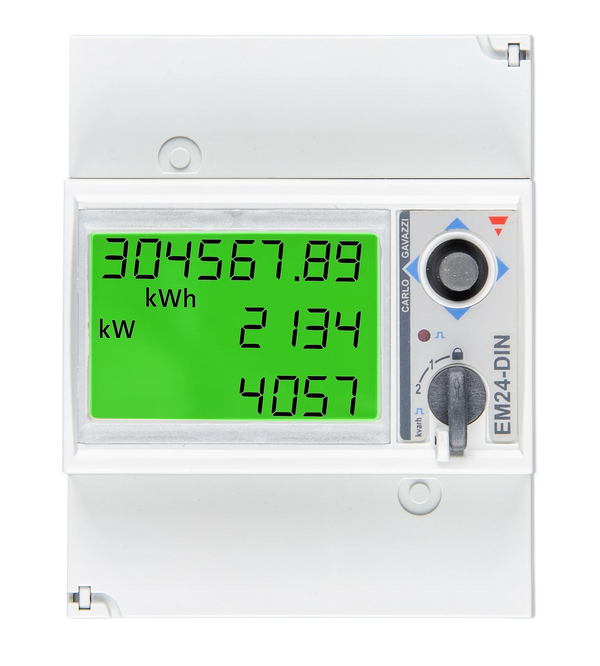

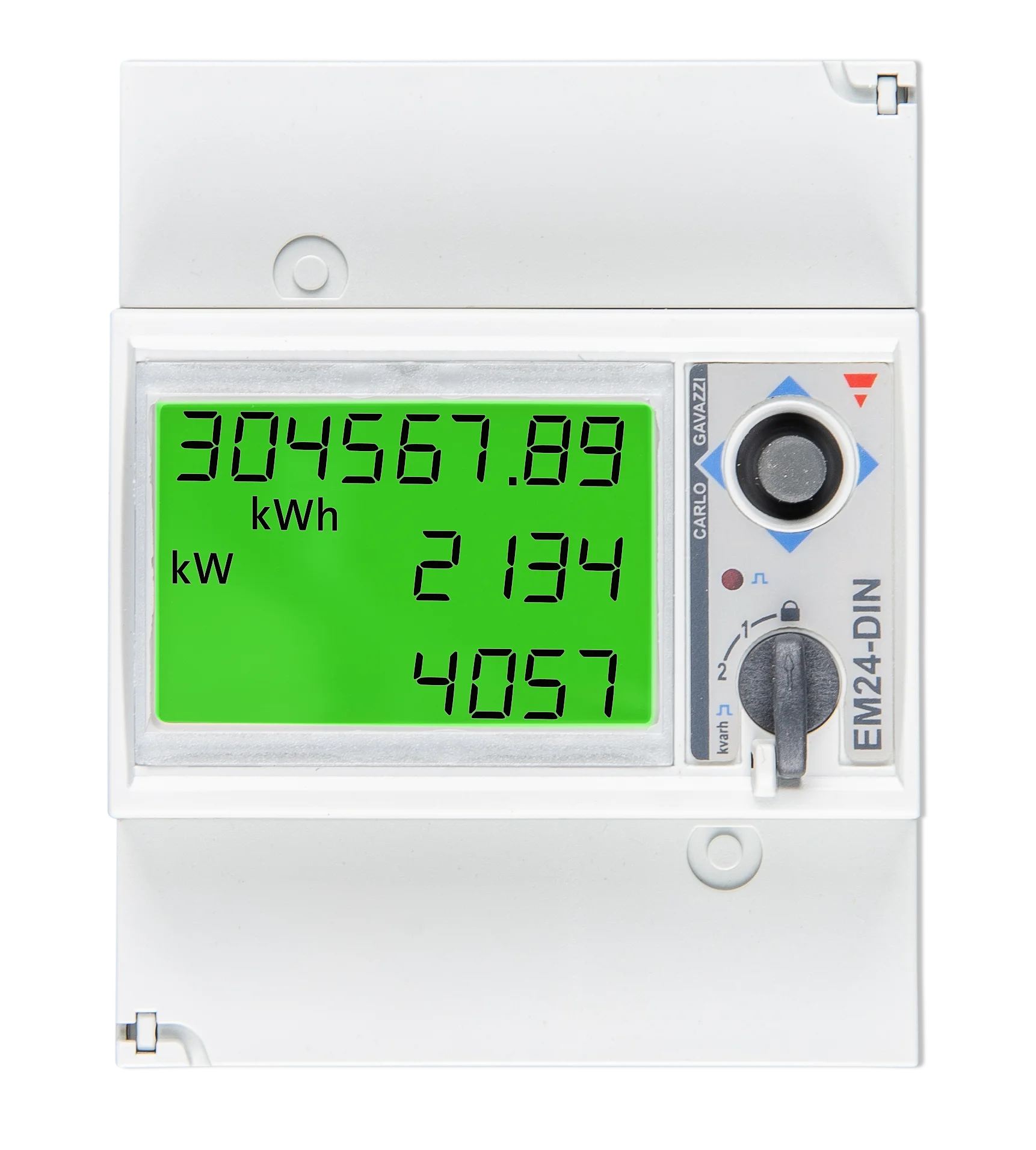

Victron 3-Phase 65A EM24 Ethernet Energy Meter

Precision Power Monitoring for Energy Storage Systems

The Victron EM24 Ethernet Energy Meter is a highly accurate, three-phase energy monitoring solution designed to track and manage power flow within an Energy Storage System (ESS). Engineered to measure up to 65A per phase, this device provides critical real-time data to help optimise energy consumption, minimise grid import or export, and ensure the system operates at peak efficiency.

Direct Ethernet Connectivity

Unlike traditional RS485 energy meters that require additional USB interface cables, the EM24 Ethernet model simplifies installation by connecting directly to a local area network (LAN) via a standard RJ45 cable. This allows seamless communication with Victron GX devices, such as the Cerbo GX or Ekrano GX, over the existing network infrastructure. By eliminating distance limitations associated with serial cables, the Ethernet connection provides greater flexibility when positioning the energy meter relative to the central control system.

Versatile Integration

While primarily designed for three-phase systems, the EM24 is also capable of monitoring single-phase configurations. It is typically installed at the main distribution board to measure total grid exchange, but it is equally well suited to measuring the AC output of a PV inverter or dedicated AC loads. Once connected, all data is relayed to the GX device and visualised in the Victron Remote Management (VRM) portal, providing comprehensive insights into energy generation and consumption patterns.

Key Features and Capabilities

• High Current Capacity: Rated for a maximum of 65A per phase, accommodating robust domestic and commercial electrical setups.
• Simplified Network Connection: Features an integrated Ethernet port for direct connection to the local network, bypassing the need for RS485 to USB adapters.
• Comprehensive Monitoring: Measures both power (W) and energy (kWh) to provide an accurate overview of the ESS or specific AC circuits.
• GX Device Compatibility: Fully compatible with the Victron ecosystem, feeding real-time data directly to Cerbo GX, Ekrano GX, and other GX control centres.
• VRM Portal Integration: Enables detailed remote monitoring, historical data logging, and system analysis via the free Victron Remote Management platform.
• Flexible Application: Suitable for measuring grid supply, PV inverter production, or specific heavy AC loads within the system.

Streamlined System Management

Accurate energy measurement is the cornerstone of any efficient off-grid or grid-connected ESS. By accurately detailing how much power is drawn from or fed back into the grid, the EM24 enables the Victron system to make intelligent decisions regarding battery charging and inverter output. This ensures maximum self-consumption of renewable energy and minimises reliance on external utility power.

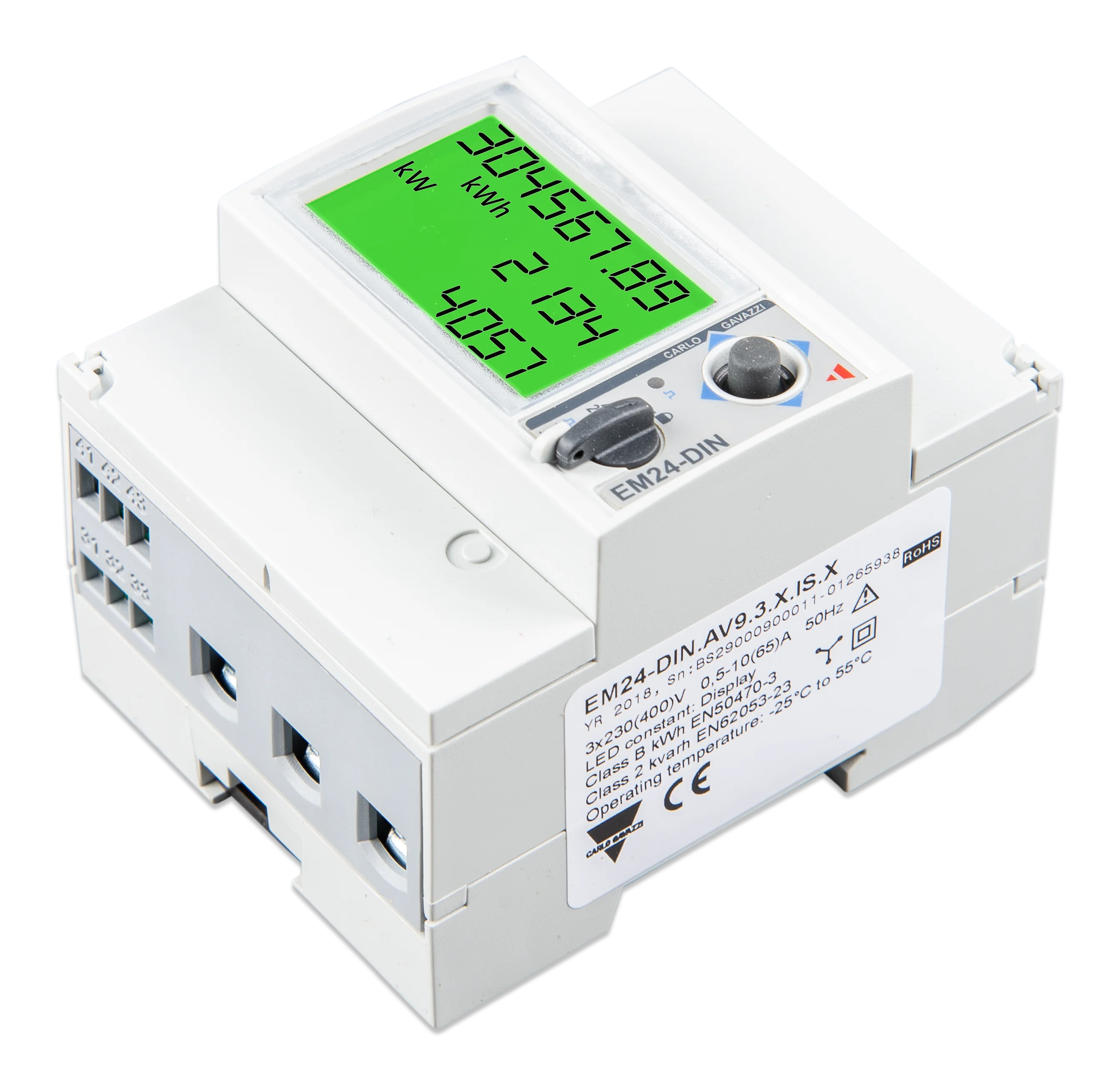

Designed for straightforward DIN-rail mounting in a standard distribution box, the EM24 Ethernet provides a clean and professional installation footprint. Whether expanding an existing solar installation or designing a comprehensive three-phase backup power system, this meter delivers the reliable data collection required for intelligent energy management.
