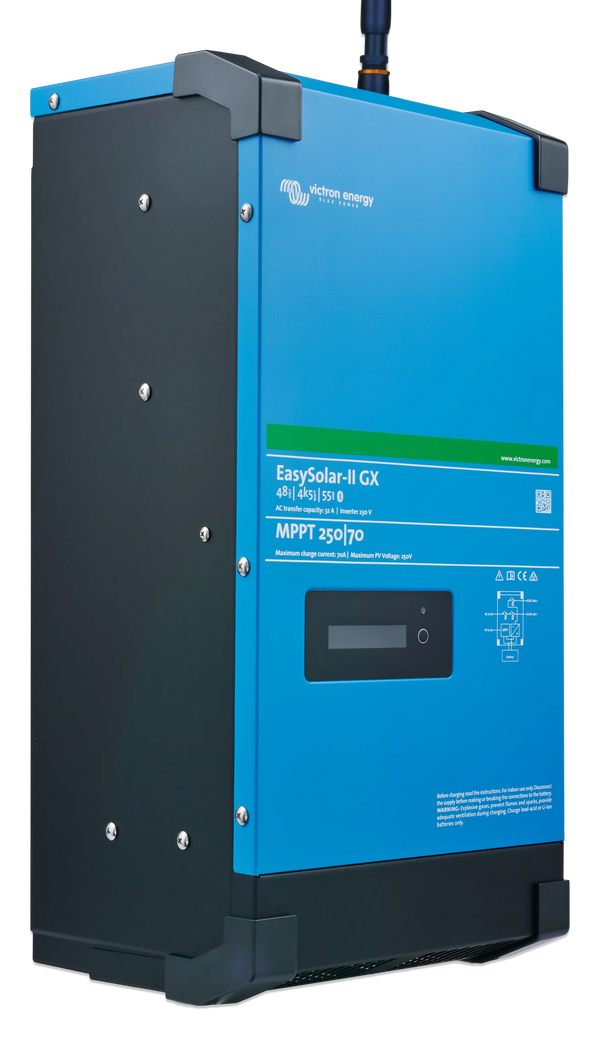

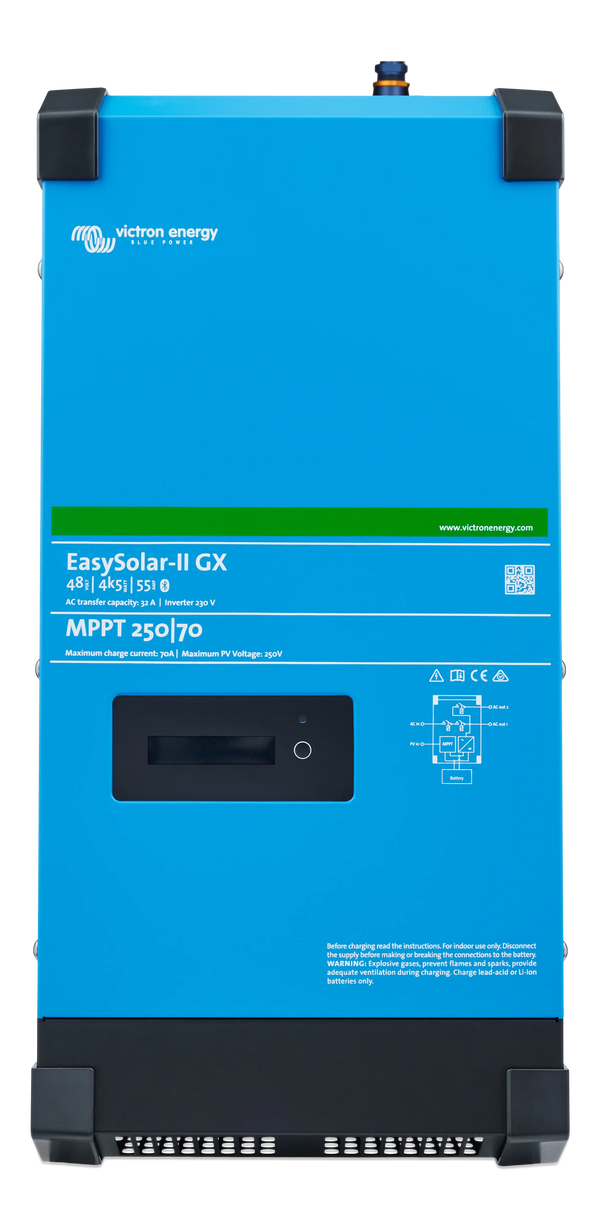

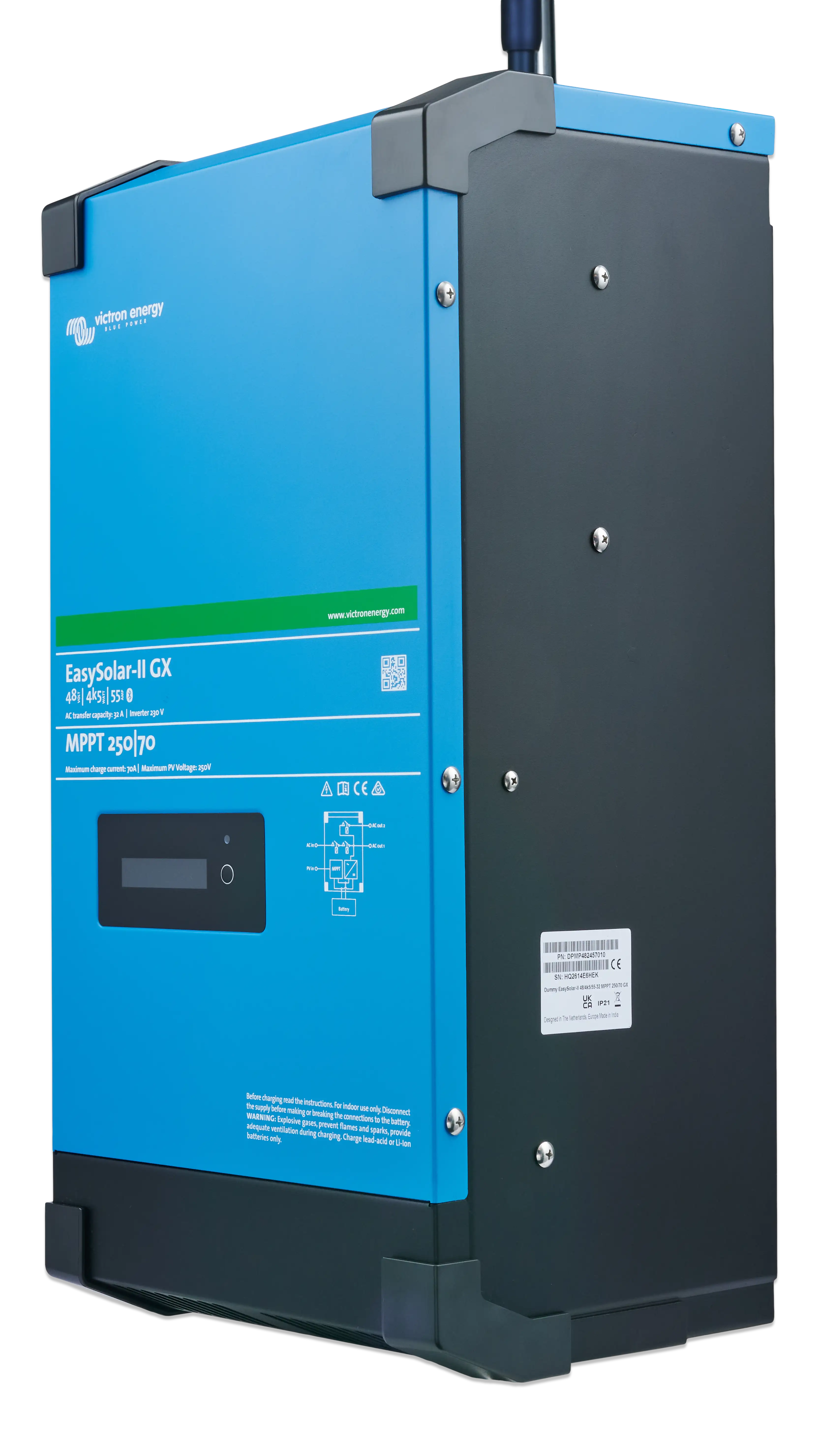

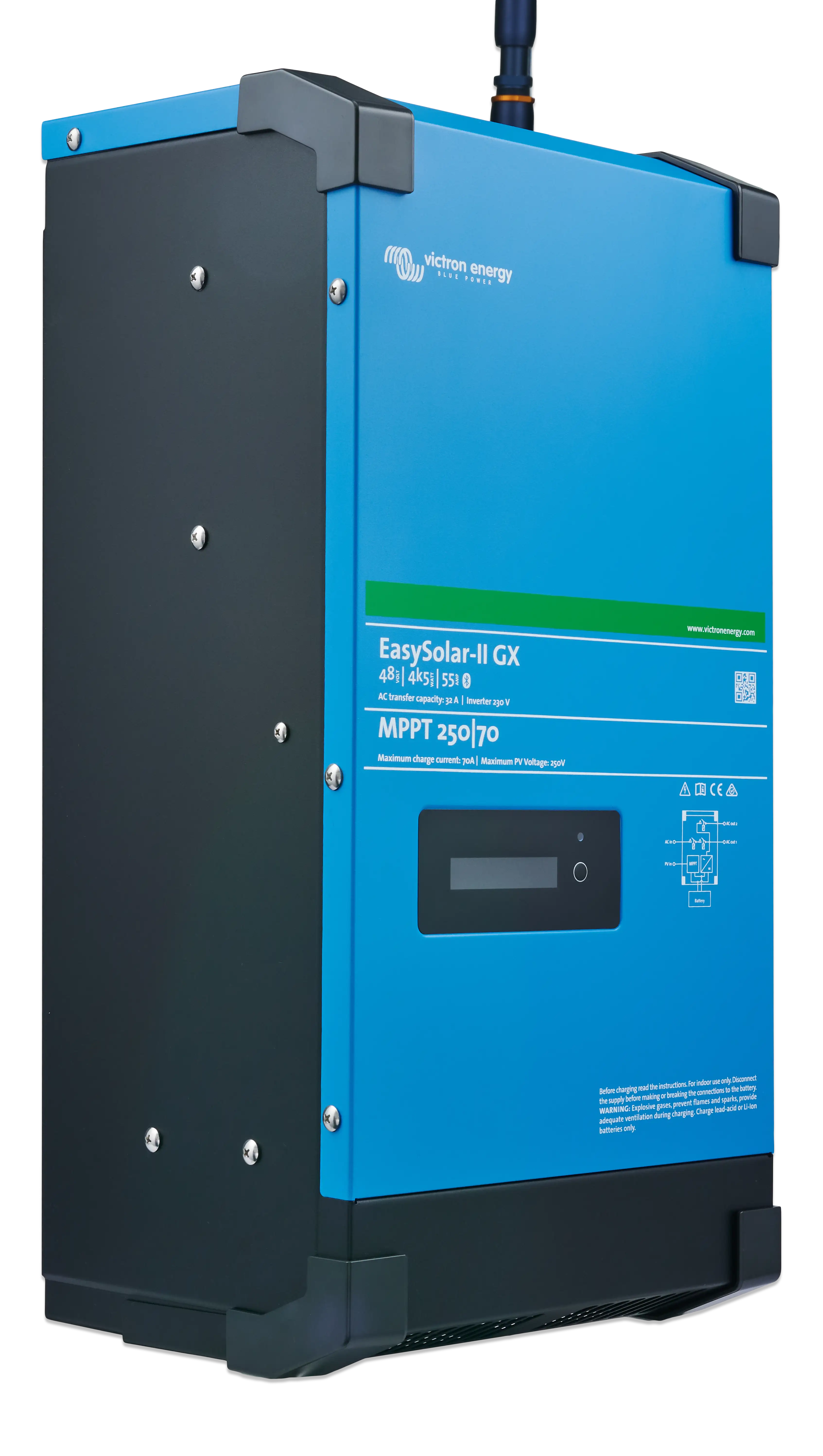

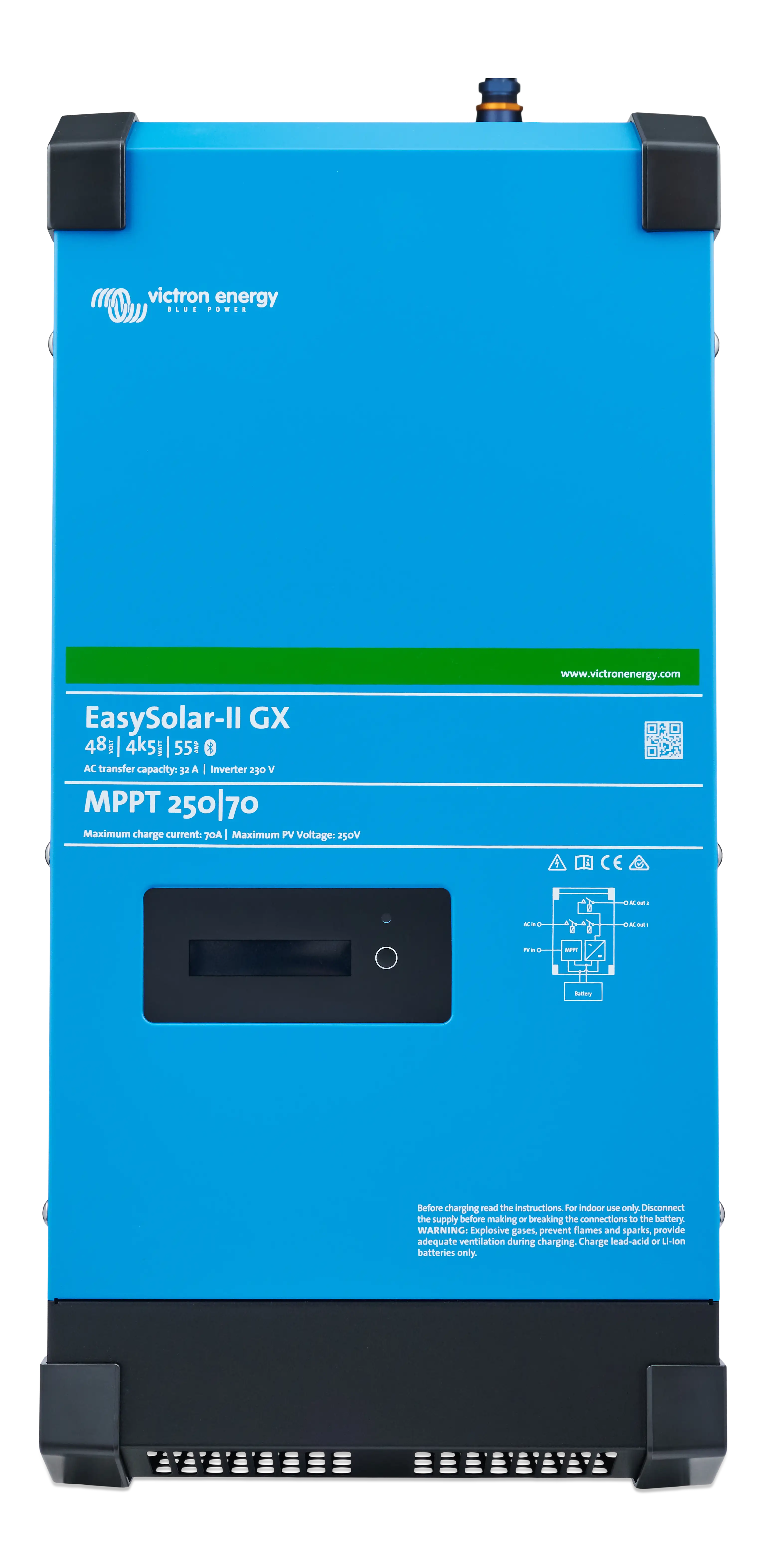

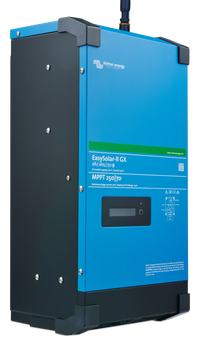

Victron Energy 48V 4500VA EasySolar-II GX Inverter Charger MPPT 250/70

Victron Energy EasySolar-II 48/4500/55-32 MPPT 250/70 GX

The Victron Energy EasySolar-II GX simplifies complex solar and energy storage systems by integrating three crucial components into one pre-wired enclosure. Combining a high-performance inverter/charger, an intelligent SmartSolar MPPT charge controller, and a sophisticated GX monitoring device, this unit reduces installation time and minimises required wall space. Designed for 48V battery systems, it provides a streamlined foundation for reliable off-grid and hybrid energy systems.

All-In-One Power Architecture

At the core of the EasySolar-II GX is a powerful 4500VA inverter capable of delivering up to 4kW of continuous power, well suited to running essential household or workshop loads. The integrated 55A battery charger efficiently replenishes stored energy from shore power or generator inputs, while the internal 32A transfer switch provides rapid switchover during grid outages, ensuring your critical appliances remain operational without disruption.

Integrated SmartSolar MPPT

To capture maximum solar yield, the unit incorporates an MPPT 250/70 solar charge controller. Capable of handling up to 4000W of photovoltaic input, this advanced controller tracks the optimal power point of your solar array in real time, even during fluctuating weather conditions. The internal pre-wiring from the MPPT to the inverter/charger eliminates the need for separate external DC cabling and external breakers between these components, resulting in a cleaner installation.

• High Power Output: Delivers up to 4000W of continuous inverter power, suitable for demanding off-grid loads.
• Integrated MPPT 250/70: Handles up to 4000W of PV input with a maximum open-circuit voltage of 250V to ensure optimal solar conversion.
• Advanced Battery Charging: The 55A integrated charger supports lithium, lead-acid, and other advanced battery chemistries when correctly configured.
• Seamless Backup Power: A 32A transfer switch provides rapid switchover to keep critical loads running smoothly during power outages.
• PowerAssist Technology: Dynamically manages AC input to prevent overloading limited grid or generator supplies by supplementing with battery power.

Built-In GX Monitoring & Control

The integrated GX device transforms the EasySolar-II into a fully connected smart system. Featuring a built-in display for at-a-glance status updates, the GX interface includes Wi-Fi, Ethernet, USB, VE.Direct, and BMS-Can connectivity. This allows for seamless integration with compatible batteries and complete remote management via the Victron Remote Management (VRM) portal. System operators can monitor live data, configure settings, and receive critical alerts from anywhere with an internet connection.

Streamlined Installation

By housing the critical components in a single unit, the EasySolar-II GX drastically reduces the complexity of system wiring. This not only decreases installation time but also minimises the potential for wiring errors. Upgrade your off-grid or hybrid energy system with the Victron EasySolar-II GX, delivering complete power management and monitoring in one highly capable unit.
