Victron Cerbo GX MK3 System Controller
Dual VE.Can Ports, 64-Bit Processor & Remote VRM Monitoring

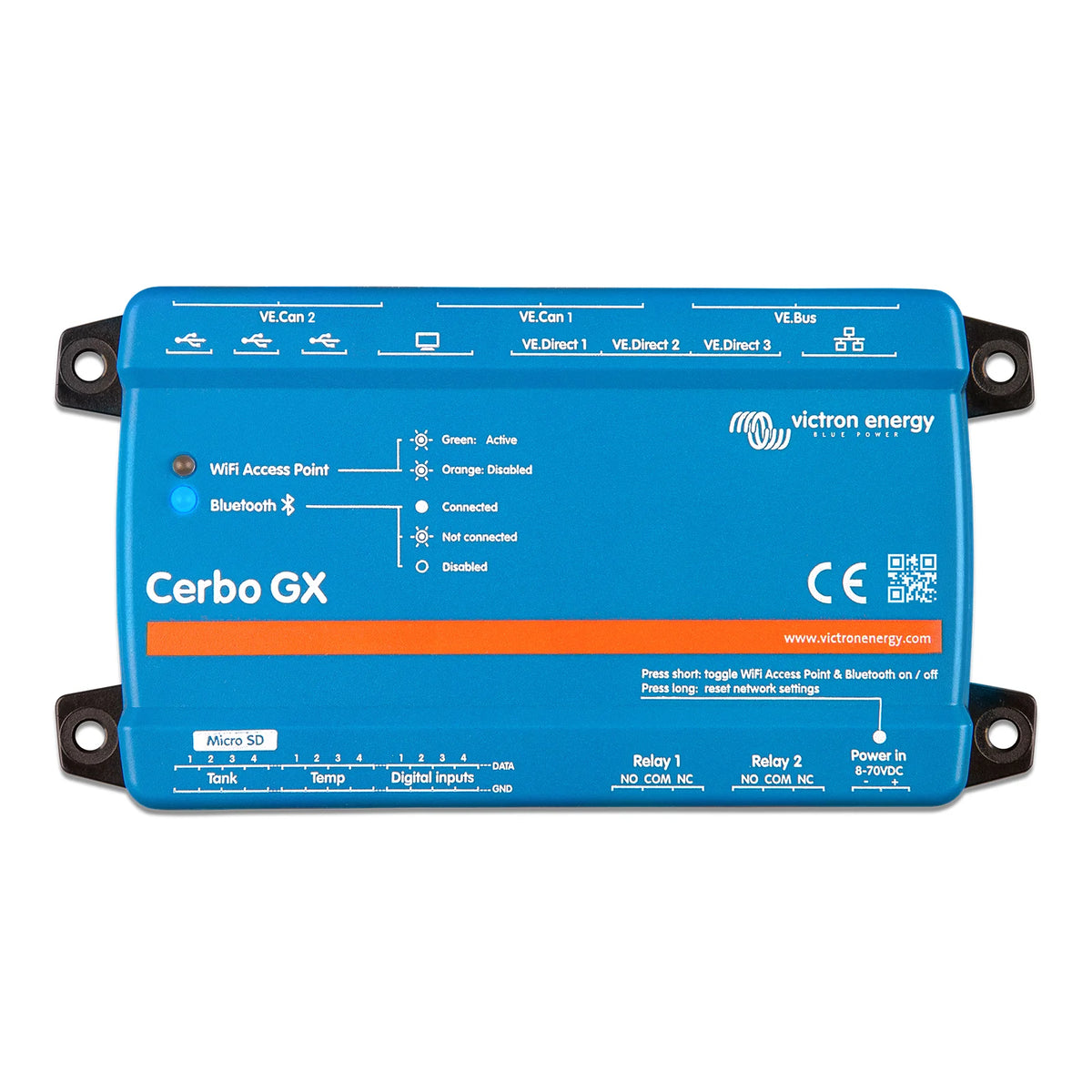

Highlights:Connectivity LEDs: Visual status indicators for WiFi Access Point and Bluetooth connection states,VE.Can and VE.Direct ports: Communication ports for connecting Victron and third-party CAN-bus and serial devices,Network and Bus ports: Dedicated VE.Bus and Ethernet connection labels for system-wide communication,Sensor and Tank inputs: Labels for 4 tank level, 4 temperature, and 4 digital pulse-counting inputs,Programmable Relays: Labels for two integrated relays for remote switching or alarm triggers,DC Power Input: Power connection point supporting a wide 8 to 70V DC supply voltage.

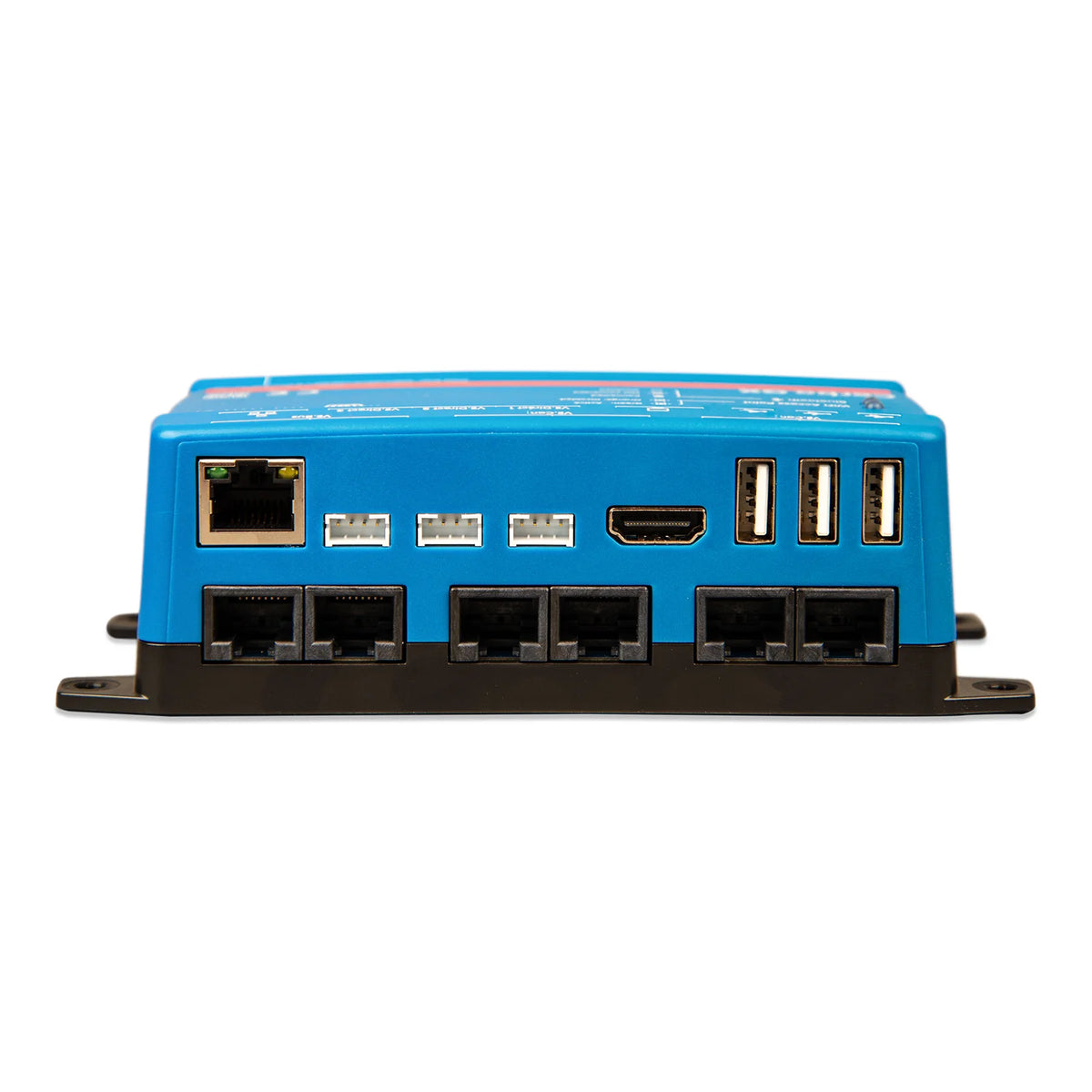

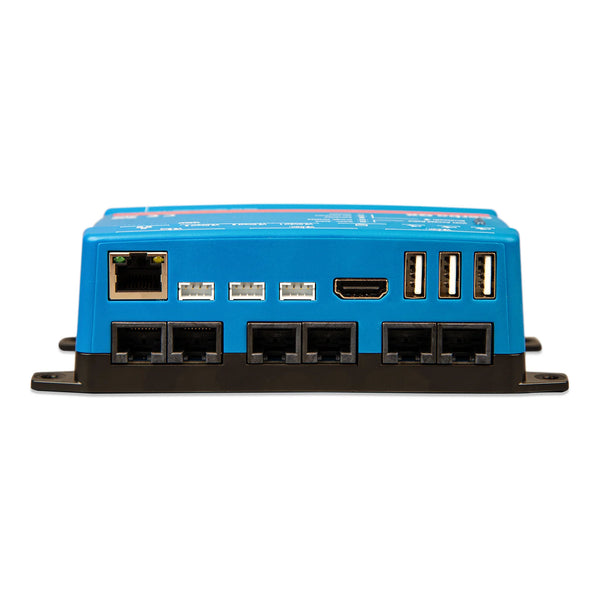

Key features: Three fully functional USB ports for external peripherals, HDMI port for connecting a GX Touch or external display, High-speed Ethernet port for internet and local network access, Three VE.Direct ports for connecting MPPTs and battery monitors.

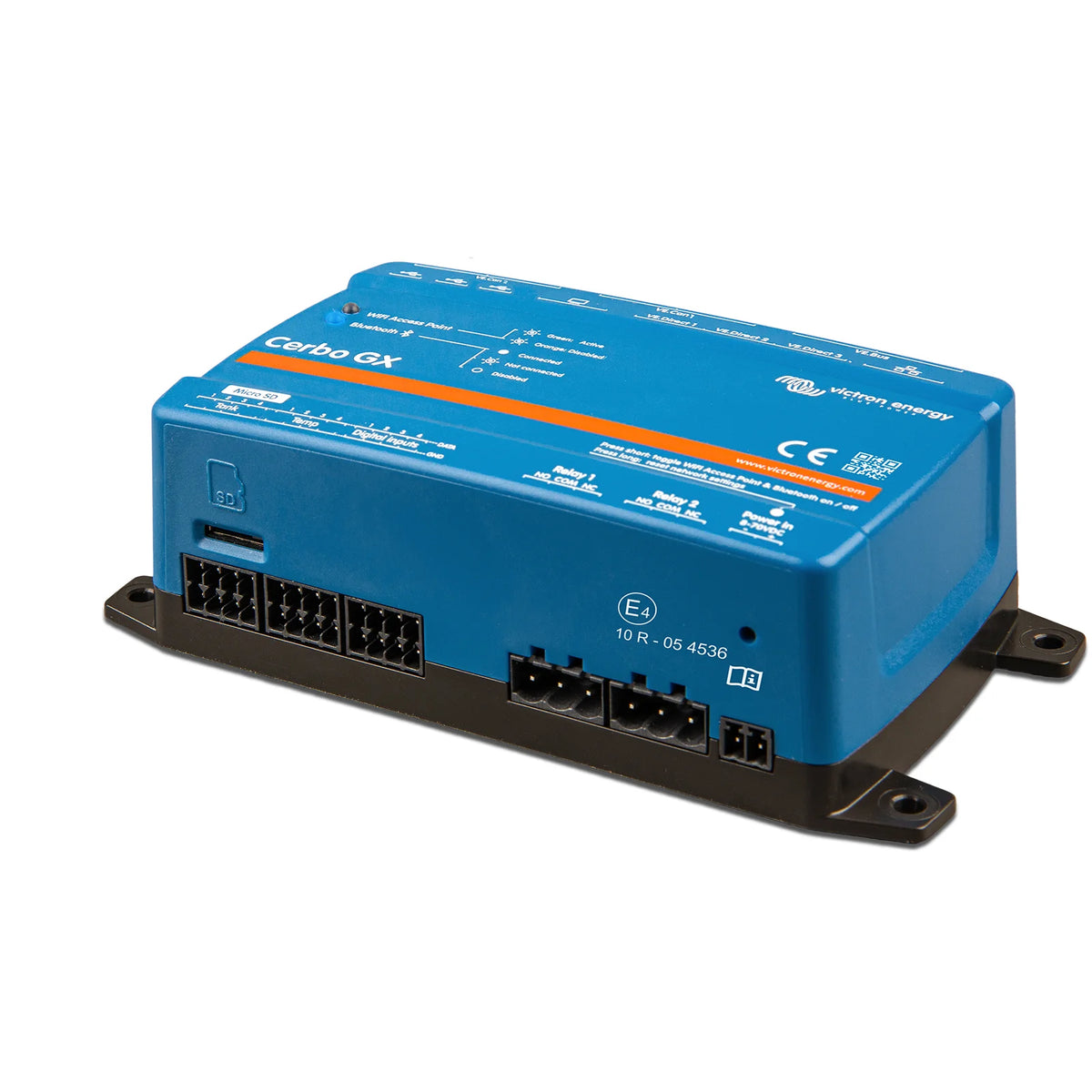

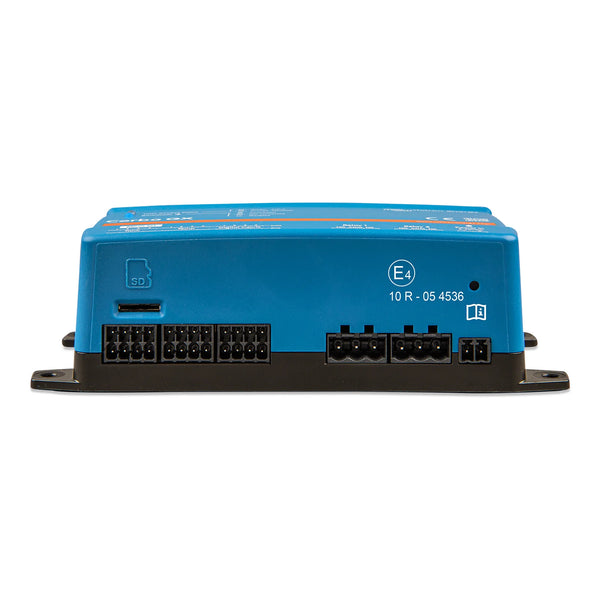

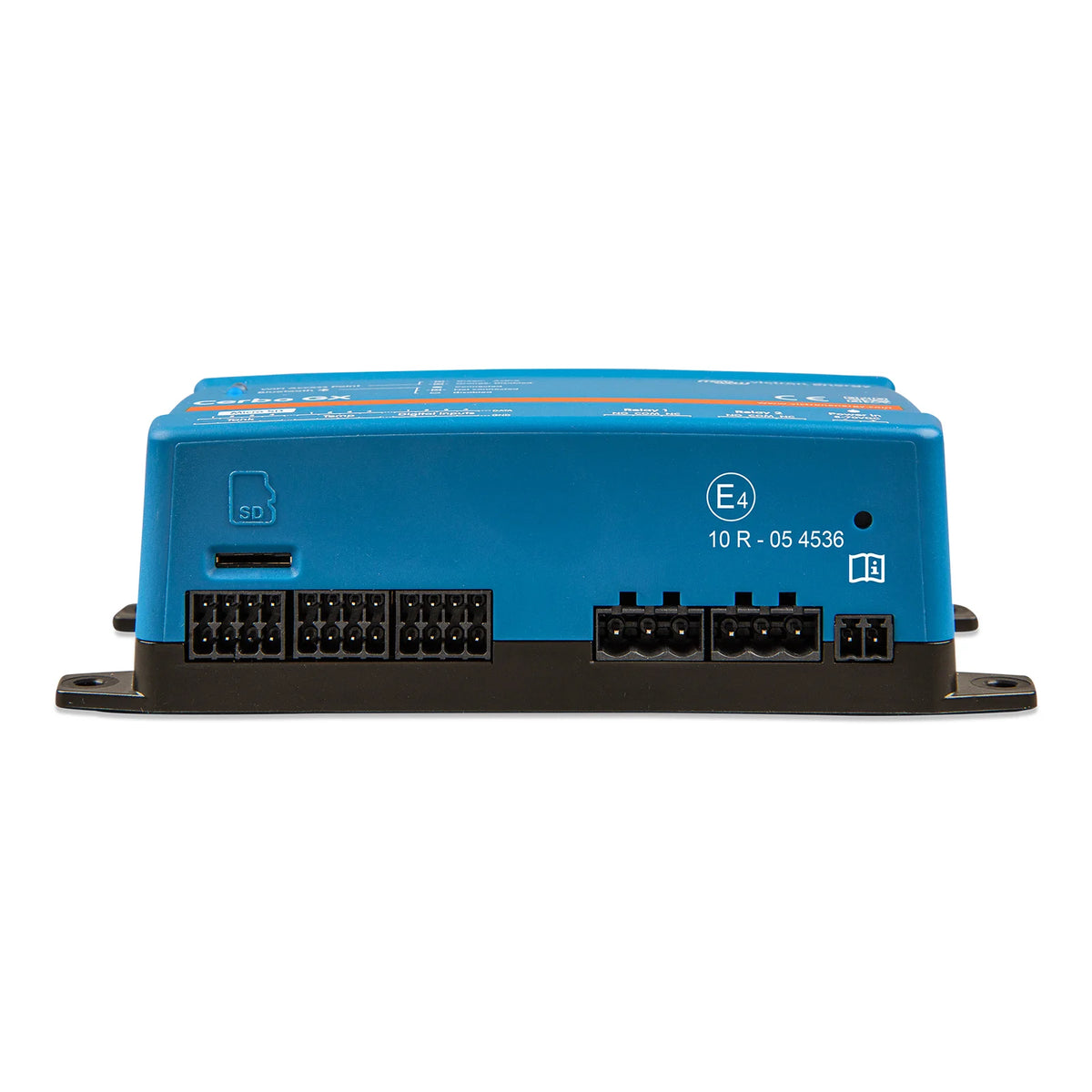

High-density terminal section featuring 4 tank level inputs, 4 temperature inputs, 4 digital inputs for pulse counting, and 2 programmable relays.

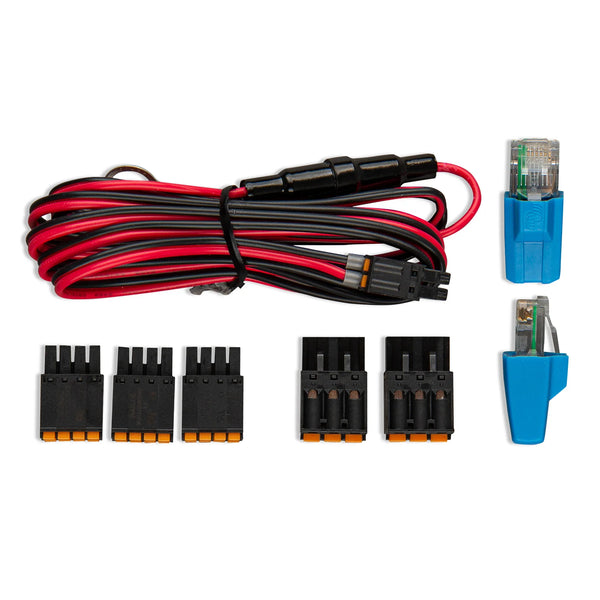

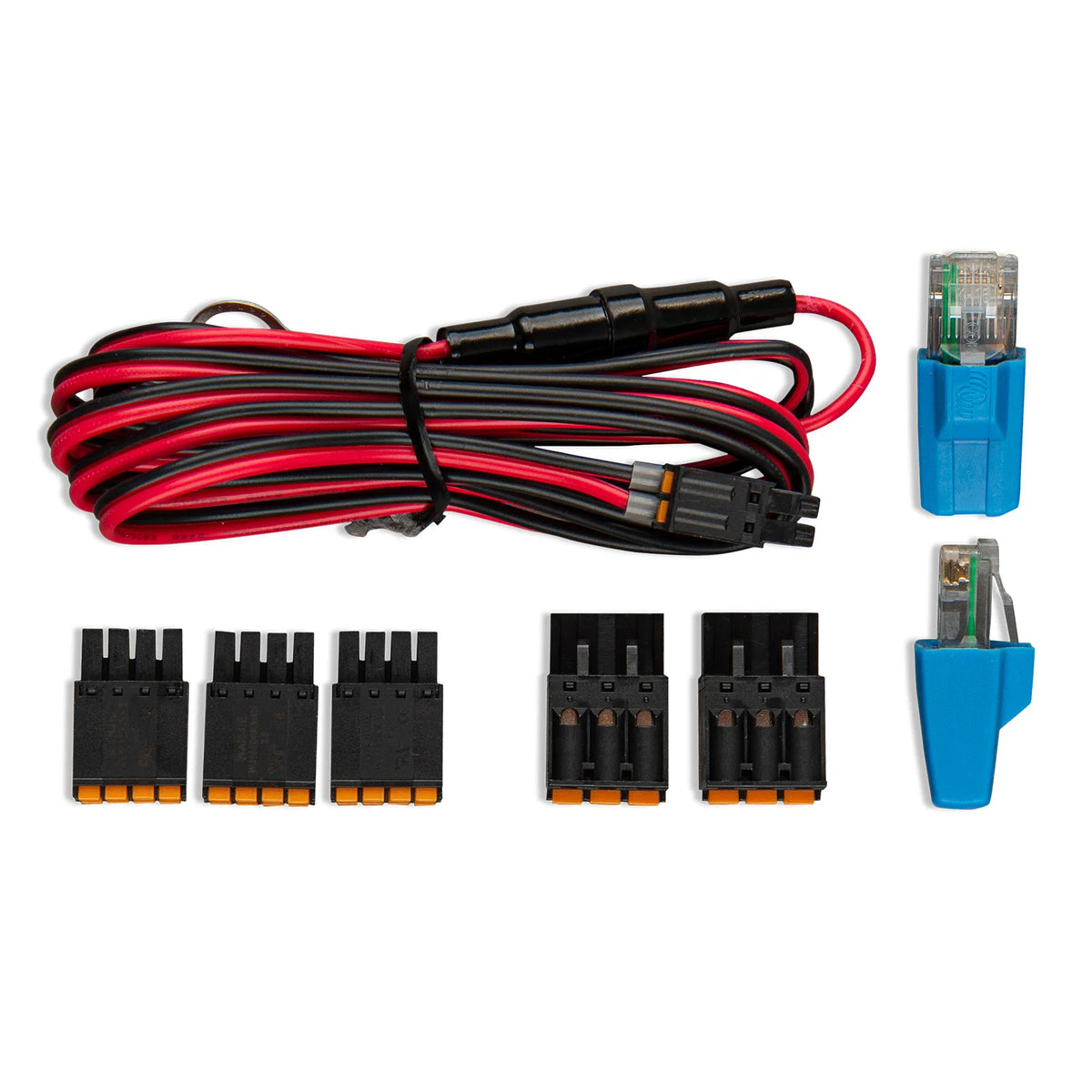

Full installation kit containing a fused power cable assembly, VE.Can terminators, and removable terminal blocks for all sensor and relay ports. DESCRIPTION

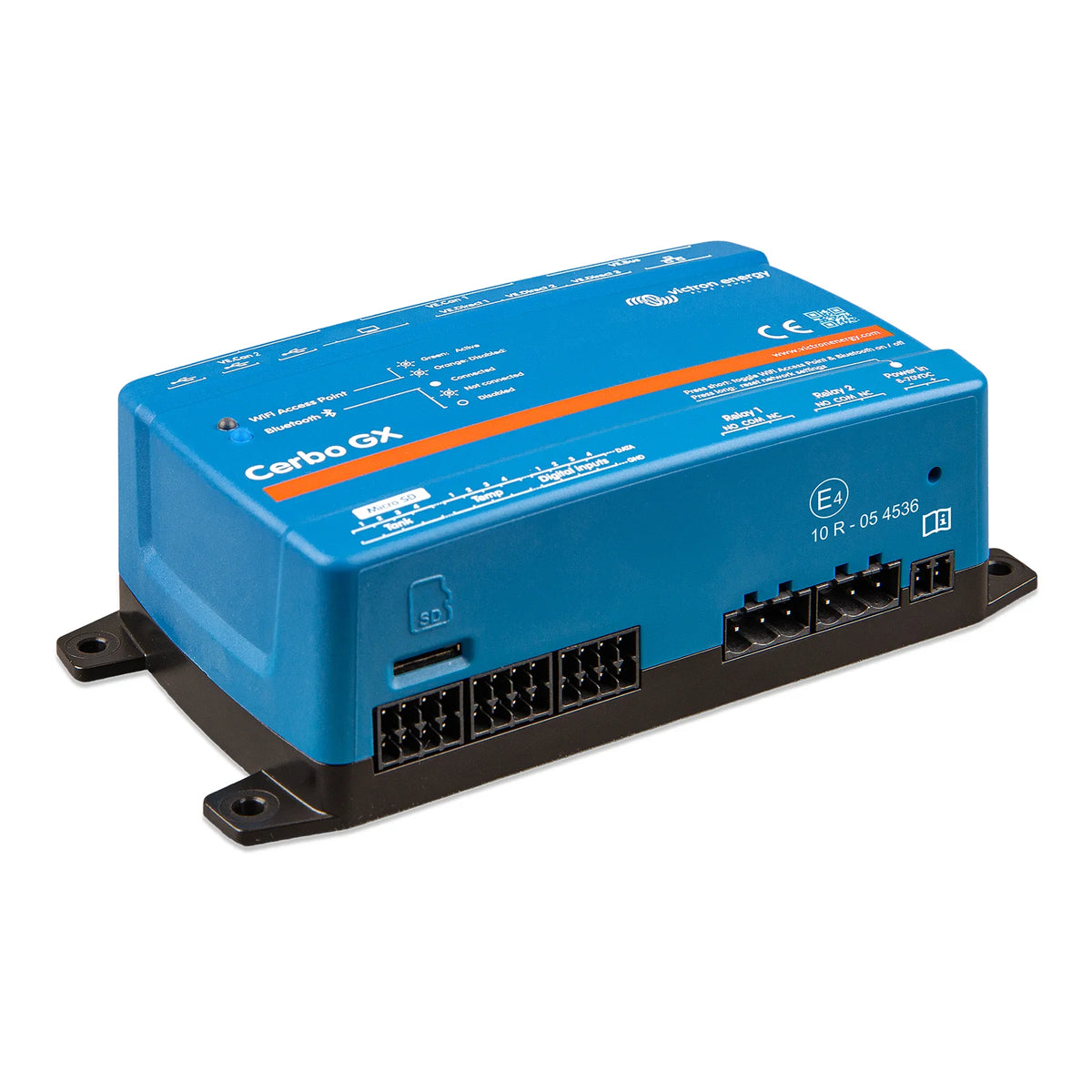

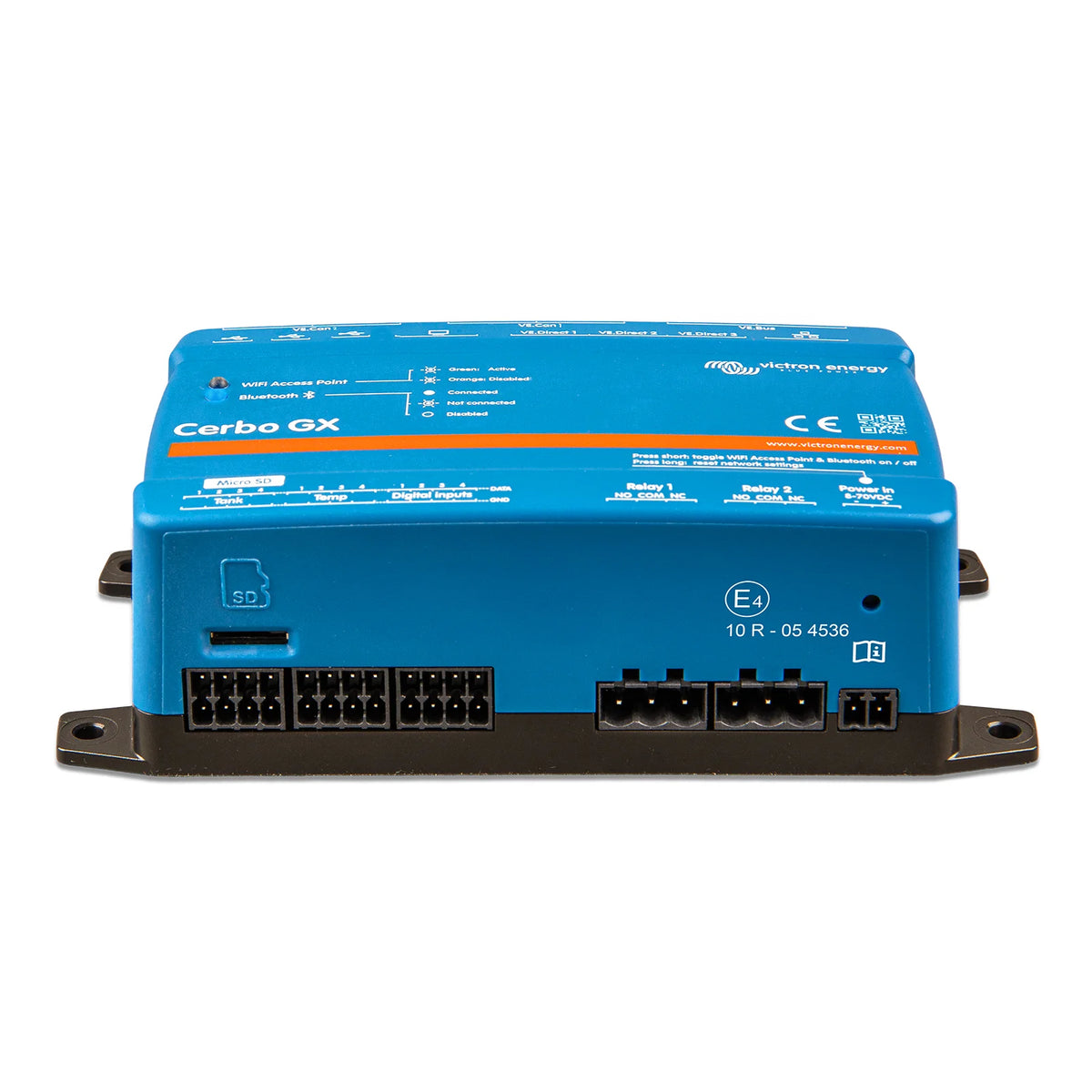

Victron Cerbo GX MK3 System Controller: Advanced Power Management
The Victron Cerbo GX MK3 System Controller provides advanced, centralised monitoring and control for complex power installations. Designed as the communication hub for marine, RV, off-grid, and energy storage systems, this latest generation GX device ensures precise control over all connected equipment. The MK3 hardware revision introduces a powerful quad-core Cortex-A53 64-bit processor, 1 GB of RAM, and 8 GB of flash storage, delivering a highly responsive platform for system management and connected applications.
Comprehensive Device Integration
Connecting and managing multiple components is straightforward with this central hub. The unit features extensive interfaces to support managed lithium batteries, solar chargers, inverter/chargers, and generators. With two fully functional VE.Can ports, the MK3 offers exceptional flexibility for larger systems, allowing the simultaneous connection of managed batteries and multiple VE.Can devices. Additionally, it includes three VE.Direct ports, three fully functional USB ports, and multiple inputs for tank levels and temperature monitoring.
- Upgraded Processing Power: Features a quad-core Cortex-A53 64-bit processor with 1 GB RAM and 8 GB flash storage for highly responsive system monitoring.
- Dual VE.Can Connectivity: Two fully functional CAN bus ports accommodate complex systems requiring simultaneous battery and device communication.
- Extensive Interfaces: Includes three VE.Direct ports, three USB ports, four tank level inputs, four temperature inputs, and two relays.
- Advanced Digital Inputs: Four digital inputs support pulse counting for specialised measurement applications.
- Generator Management: Supports automatic generator start and stop functionality with configurable operating conditions and quiet periods.
- NMEA 2000 Integration: NMEA 2000-out support allows seamless integration into compatible marine networks.
Remote and Local System Management
System performance, alarms, and settings can be managed from virtually anywhere. By connecting the device to the internet, data is transmitted to the free Victron Remote Management (VRM) portal. This allows operators to monitor battery state of charge, power consumption, solar generation, and tank levels remotely. For local access, the built-in Bluetooth and WiFi Access Point enable a direct connection via the VictronConnect app.
Flexible Installation Options
Suitable for a wide range of applications, the unit is designed for clean and adaptable installations. It operates on an 8-70V DC supply voltage and is compatible with DIN-rail mounting using an optional adapter (sold separately). It also supports connection to the separately mounted GX Touch 50 or GX Touch 70 displays for a streamlined dashboard interface. Centralising connected equipment through this single communication platform makes it easier to monitor system status, optimise operation, and diagnose issues efficiently.
Upgrade your power system management with a reliable, high-performance communication hub tailored for demanding off-grid and mobile applications.
SPECIFICATIONS
Specifications
| Supply Voltage | 8 - 70V DC |
| Processor | 4 x Cortex-A53 64-bit |
| RAM | 1 GB |
| Flash Storage | 8 GB |
| VE.Direct Ports | 3 |
| VE.Can Ports | 2 (Fully functional) |
| USB Ports | 3 (Fully functional) |
| Digital Inputs | 4 (Supports pulse counting) |
| Temperature Inputs | 4 |
| Tank Level Inputs | 4 |
| Relays | 2 |
| Connectivity | WiFi, Bluetooth, Ethernet |
| Mounting | Wall mount or DIN-rail (adapter required) |
| SKU: | VIC-BPP900450130 |
| Barcode: | 8719076080251 |
| Model #: | Cerbo GX MK3 |
| MPN: | Cerbo GX MK3 |
| Country of origin: | MY |
| Package weight: | 0.45 kg |
| Package length: | 0.06 m |
| Package width: | 0.22 m |
| Package height: | 0.12 m |
