Victron 48V 6000VA 100A Multi RS Inverter Charger
A lightweight, high-frequency 48V 6000VA inverter/charger engineered for advanced off-grid, mobile, and dynamic energy storage systems.
DESCRIPTION

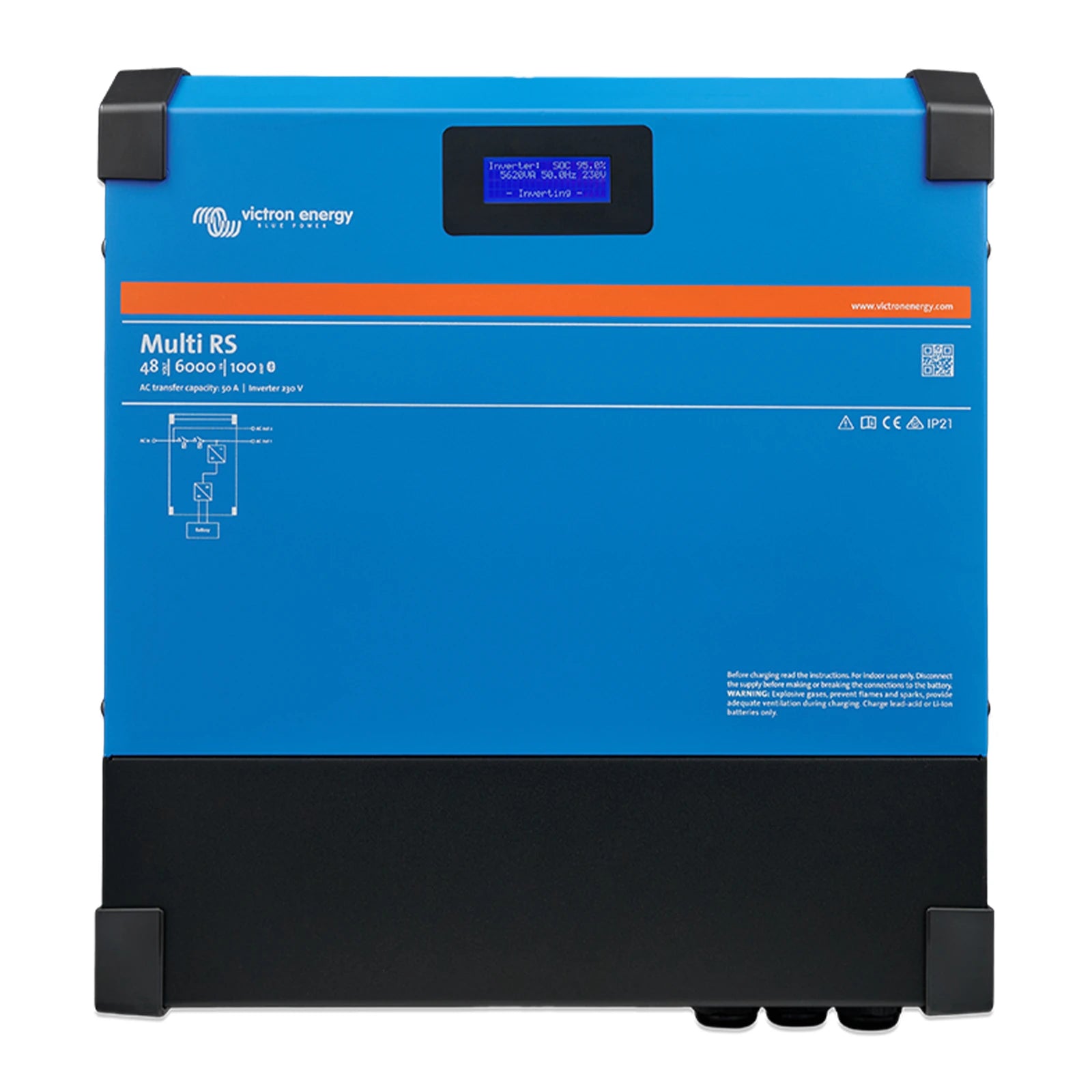

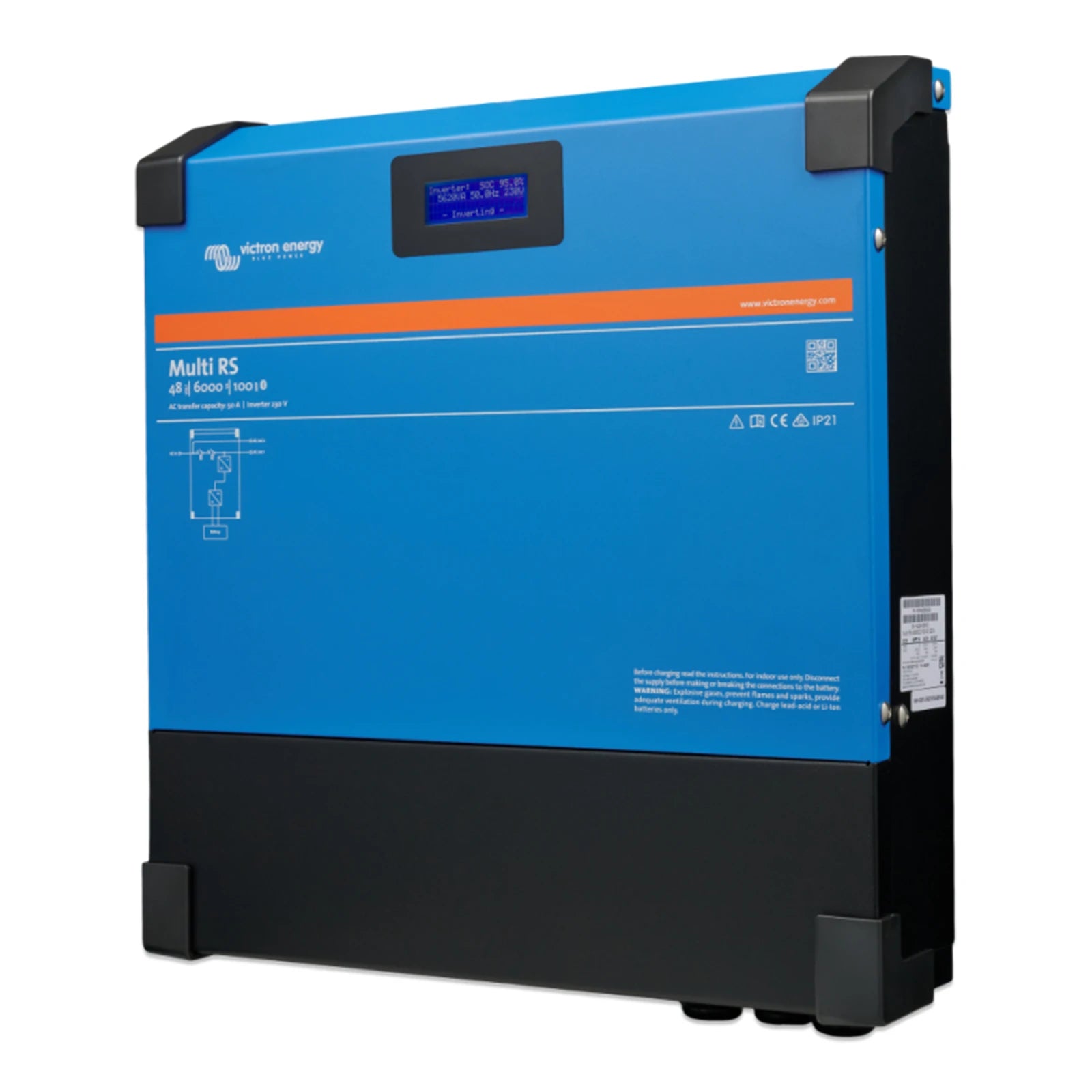

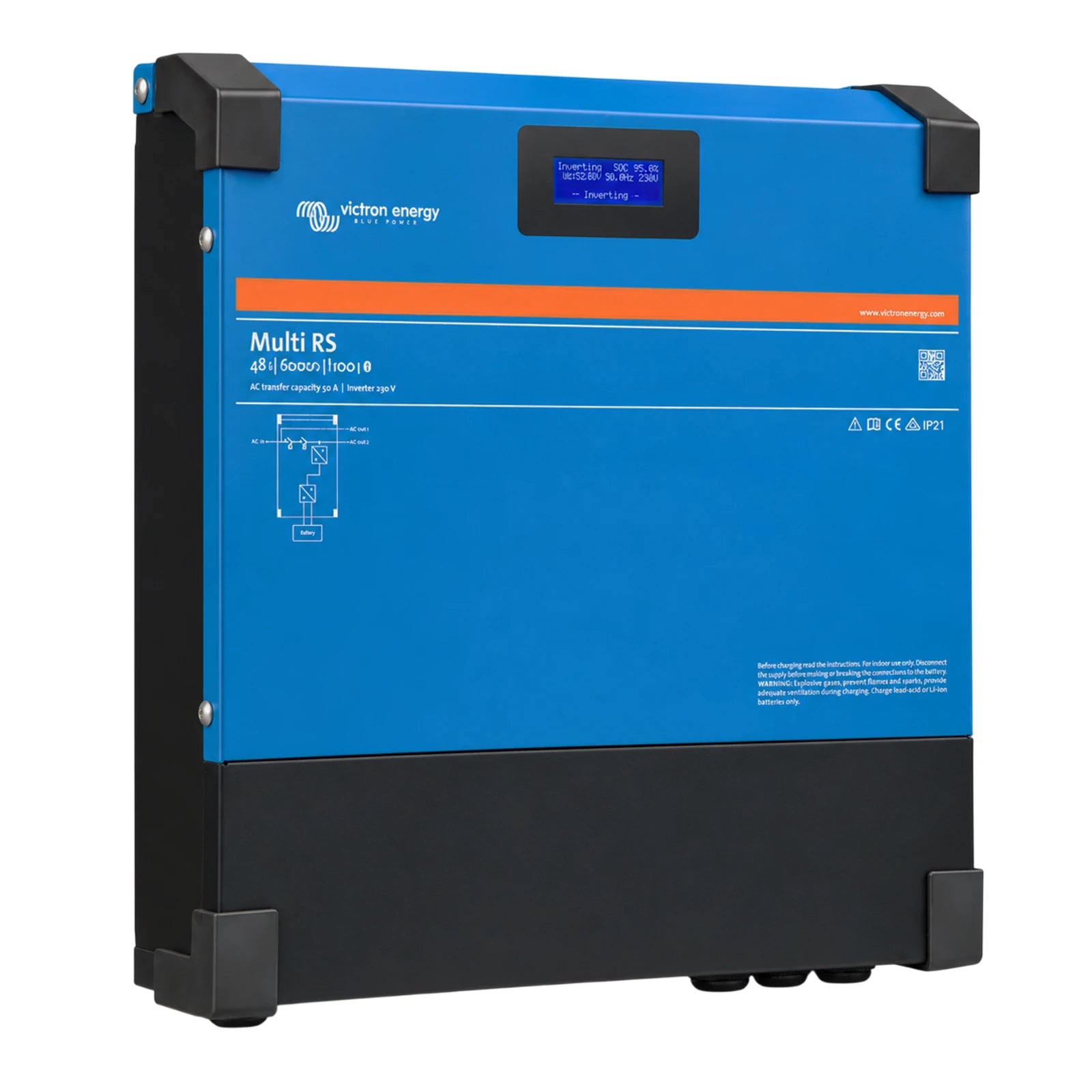

Victron 48V 6000VA Multi RS Inverter Charger
The Victron Multi RS 48/6000/100-50 is a sophisticated, high-frequency 48V to 230V inverter and charger designed for both complex stationary energy storage and demanding mobile applications. Operating as the dedicated non-solar variant of the acclaimed Multi RS Solar series, this model provides an exceptionally lightweight and efficient power conversion solution for systems that utilise separate solar charge controllers or require external AC-coupled PV inverters. Engineered for flexibility, it delivers robust continuous power and rapid battery charging within a compact footprint.
Versatile Power for Stationary and Mobile Applications
Whether deployed in a remote off-grid cabin or integrated into a marine or RV electrical system, the Multi RS provides outstanding adaptability. For stationary installations, the unit supports Victron's Dynamic Energy Storage System (ESS) functionality. This allows for advanced grid-interactive configurations, intelligent energy management, and seamless pairing with various types and sizes of external solar inverters. Installers can even utilise the unit for direct grid connection without batteries initially, making it simple to establish a system and add energy storage capacity at a later date. In mobile applications, the high-frequency design results in a remarkably lightweight unit that keeps auxiliary batteries fully charged from shore power, while offering the capability to feed excess generated energy back into the grid where permitted.
Key Features and System Integration
Built to handle rigorous power demands, the Multi RS integrates advanced charging algorithms and robust output capacity into a modern, highly connective platform.
- High-Frequency Design: Delivers 6000VA / 4800W of continuous output with a significantly reduced weight and physical footprint compared to traditional transformer-based inverters.
- Powerful 100A Battery Charger: Rapidly and safely replenishes high-capacity 48V battery banks when connected to AC shore power, grid sources, or compatible generators.
- Dynamic ESS Support: Integrates smoothly with advanced Energy Storage System configurations for grid-interactive operation, peak shaving, and energy trading.
- Seamless GX Device Compatibility: Connects directly to a Cerbo GX for comprehensive system control, remote monitoring via the VRM portal, zero-export configuration, and dedicated backup modes to power critical loads during grid outages.
- Integrated Connectivity: Features a clear integrated display and built-in Bluetooth connectivity for comprehensive monitoring and configuration via the VictronConnect app.
Advanced Monitoring and Configuration
System transparency is central to the Victron ecosystem. The Multi RS features an onboard display for quick status checks, while built-in Bluetooth allows installers and users to monitor all critical parameters directly via the VictronConnect app. This provides access to real-time performance metrics, historical trend data, quick firmware updates, and intuitive configuration tools. When connected to a GX device, the entire system can be monitored remotely from anywhere in the world using the free Victron Remote Management (VRM) portal, ensuring absolute oversight of energy generation, storage, and consumption.
Scalable and Flexible Architecture
Because the Multi RS 48/6000 does not include built-in MPPT solar charge controllers, it offers a blank canvas for custom system design. It is highly suitable for larger setups where solar arrays are managed by dedicated external MPPTs or AC-coupled PV inverters, allowing each component to be sized exactly to the required specification. Furthermore, the unit supports zero-export functionality to prevent unwanted grid feed-in and features a dedicated backup mode to ensure critical circuits remain powered seamlessly during unexpected utility outages.
Equip off-grid setups, dynamic energy storage systems, or advanced mobile power networks with the Victron Multi RS 48/6000 inverter/charger, ensuring reliable, high-efficiency power management for demanding electrical applications.
SKU: VIC-PMR482604000
SPECIFICATIONS
Specifications
| Model | Multi RS 48/6000/100-50 230V |
| Part Number | PMR482604000 |
| Input Voltage Range (DC) | 38 - 62 VDC |
| Output Voltage (AC) | 230 VAC ± 2% |
| Output Frequency | 50 Hz ± 0.1% |
| Continuous Output Power at 25°C | 6000 VA / 4800 W |
| Continuous Output Power at 40°C | 4000 W |
| Peak Power | 9000 W |
| Maximum AC Input Current | 50 A |
| Charge Voltage 'Absorption' | 57.6 V |
| Charge Voltage 'Float' | 55.2 V |
| Maximum DC Charge Current | 100 A |
| Protection Category | IP21 |
| Operating Temperature Range | -40°C to +65°C (fan assisted cooling) |
| Unit Weight | 11.0 kg |
| Packaged Weight | 14.95 kg |
| Unit Dimensions (H x W x D) | 425 x 440 x 125 mm |
| Packaged Dimensions (H x W x D) | 490 x 560 x 230 mm |
| SKU: | VIC-PMR482604000 |
| Barcode: | 8719076075189 |
| Package weight: | 14.95 kg |
| Package length: | 0.49 m |
| Package width: | 0.56 m |
| Package height: | 0.23 m |
