Victron 48V 13A Phoenix Smart IP43 48/13 Battery Charger

Intelligent 48V Charging for Advanced Power Systems

The Victron Energy Smart IP43 Charger 48/13 is a highly efficient, adaptive battery charger designed for 48V systems in marine, eMobility, leisure, off-grid, and industrial applications. Offering a 13A charge current from a single output, it provides precise battery management across a universal 120-240V AC input range. With an internal design focused on reliability and thermal management, it operates with up to 96 percent efficiency, ensuring minimal heat generation and an extremely low standby power consumption of just 1W.

Built-in Bluetooth and VictronConnect

Configuration and monitoring are straightforward thanks to the built-in Bluetooth capability. Using the VictronConnect app on a smartphone or tablet, users can easily monitor battery voltage, charge current, and operational status. The app also allows for full configuration of the charge algorithm, including the selection of preset profiles for different battery chemistries or the creation of custom charge parameters tailored to specific system requirements.

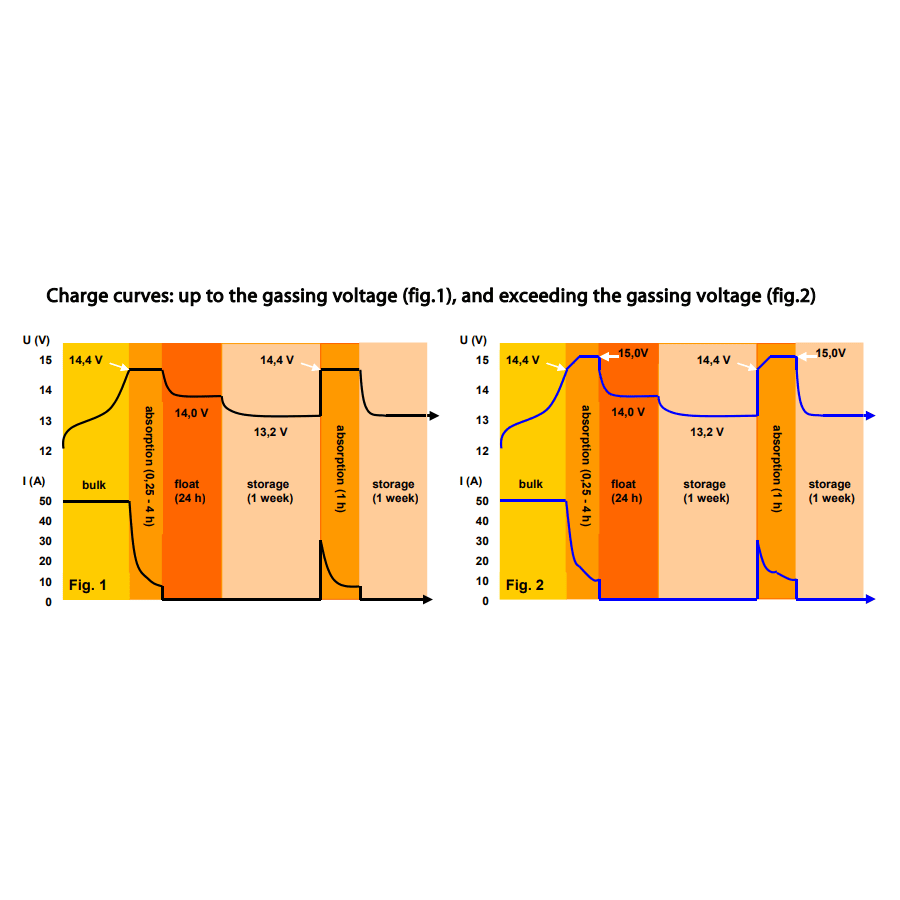

• Adaptive 6-Stage Charging: Automatically optimises the charging process (bulk, absorption, recondition, float, storage, and refresh) based on how the battery is being used.
• LiFePO4 Compatible: Features dedicated charge algorithms tailored for lithium iron phosphate batteries, ensuring safe and complete charging.
• VE.Direct Port: Enables a wired connection to a GX device, facilitating seamless system integration and remote monitoring via the VRM portal.
• VE.Smart Networking: Allows wireless communication with other Victron devices, such as Smart Battery Senses, to share voltage and temperature data for improved charge accuracy.
• High Efficiency: Achieves up to 96 percent efficiency, producing significantly less heat than standard chargers.
• Remote On/Off: Includes a dedicated terminal for remote control, making it well suited to integration with battery management systems (BMS) or external switches.

Robust and Future-Proof Design

Housed in a durable casing, the Smart IP43 Charger provides IP43 protection for its electronic components and IP22 protection for the connection area. The adaptive charge algorithm dynamically adjusts the absorption time to prevent overcharging during shallow discharges, while the storage mode reduces the float voltage to minimise gassing and corrosion of the positive plates when the battery is not in use. A programmable relay is also included, which can be configured to trigger external alarms or start a generator under specific conditions.

Seamless System Integration

The inclusion of VE.Direct makes this charger an excellent choice for users looking to build a fully monitored power system. When connected to a Cerbo GX or similar GX device, the charger's data can be viewed locally on a GX Touch display or remotely from anywhere in the world using the free Victron Remote Management (VRM) portal. Whether configuring an off-grid installation, an industrial backup supply, or a sophisticated marine power system, the Smart IP43 Charger delivers the reliability and control required for modern energy storage solutions.
